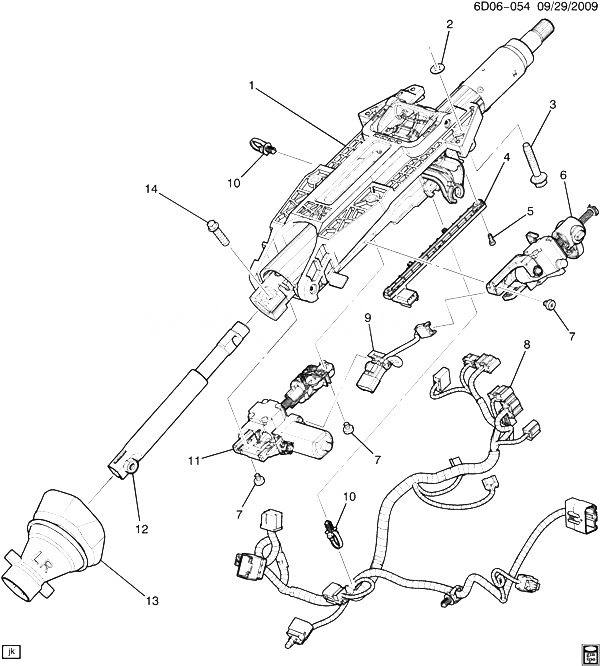

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
20964383 |
COLUMN, STRG (INCLS 2-7, 9, 11) |
DM(MN6, MX0, MX7, N38) |
2011-2012 |
01 |
| 001 |
20964383 |
COLUMN, STRG (INCLS 2-7, 9, 11) |
DN(MN6, MX0, N38) |
2011-2013 |
01 |
| 002 |
|
RETAINER, STRG COL UPR SUPT BOLT (PUSH ON) (PART OF 1) |
|
2011-2013 |
|
| 003 |
11610011 |
BOLT, INTER STRG SHF (PART OF 1) (M8X1.25X31, 17THD) |
D |
2011-2013 |
02 |
| 004 |
25897117 |
SENSOR, STRG COL TILT WHL POSN (PART OF 1) |
DM, DN |
2011-2013 |
01 |
| 005 |
25897120 |
BOLT, STRG COL (PART OF 1) (M4X12, 7OD) |
D |
2011-2013 |
02 |
| 006 |
|
MOTOR, STRG COL TILT WHL ACTR (PART OF 1) |
|
2011-2013 |
|
| 007 |
25897119 |
BOLT, STRG COL TILT WHL ACTR BRKT (PART OF 1) (M6X1X8.4, 13 OD) |
D |
2011-2013 |
AR |
| 008 |
20947819 |
HARNESS, STRG COL WRG (INCLS 10) |
D47-69(MYD) |
2011-2011 |
01 |
| 008 |
20947821 |
HARNESS, STRG COL WRG (INCLS 10) |
D47-69(MV7, BTM, N38) |
2011-2011 |
01 |
| 008 |
22776450 |
HARNESS, STRG COL WRG (INCLS 10) |
D47-69(MV7, BTM, N30, N38) |
2011-2011 |
01 |
| 008 |
22776447 |
HARNESS, STRG COL WRG (INCLS 10) |
D47-69(MG9) |
2011-2011 |
01 |
| 009 |
25897118 |
CABLE, STRG COL TILT WHL ACTR (PART OF 1) |
DM, DN |
2011-2013 |
01 |
| 010 |
|
RETAINER, STRG COL WRG HARN (PART OF 8) |
|
2011-2013 |
|
| 011 |
|
MOTOR, STRG COL TLSCP ACTR (PART OF 1) |
|
2011-2013 |
|
| 012 |
25854685 |
SHAFT, UPR INTER STRG (INCLS 13) |
DM(MN6, MX0) |
2011-2012 |
01 |
| 012 |
25854685 |
SHAFT, UPR INTER STRG (INCLS 13) |
DN(MN6, MX0) |
2011-2013 |
01 |
| 013 |
|
SEAL, INTER STRG SHF LWR (PART OF 12) |
|
2011-2013 |
|
| 014 |
11609752 |
BOLT, INTER STRG SHF UPR (M10X1.5X39, 6H THD) (16OD, 16 THRU HOLE) |
D |
2011-2013 |
01 |
