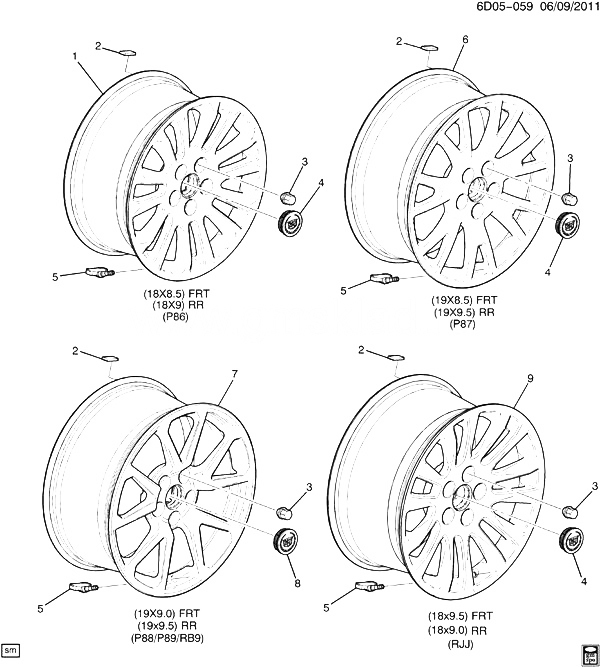

(6D05-059) 2011 D47 КОЛЕСА CADILLAC - CTS COUPE 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 09598699 WHEEL, FRT (PAINTED) (18X8.5) (ALUM) (48MM O/S 120X5XM14) DM, DN47(P86) 2011-2011 02
001 22820069 WHEEL, RR (18X9) D47(P86) 2011-2011 02
002 09597324 WEIGHT, WHL BAL (6.00 OZ) (STICK-ON REPLACEMENT) (TRIM AS REQUIRED) (WHL BAL) 2011-2011 AR
003 09597846 NUT, WHL (M14X1.5) (SS CAP) (TOTAL LENGTH 11.50MM) D35-47-69(PJ2, P61, P63, P75, P80, P86, P87, P88, P89, Q32, RBJ, RB9, RJJ, UHN) 2011-2011 20
004 09596629 CAP, HUB (BLACK BACKGROUND) (MULTI-COLORED CREST EMBLEM) (CODE JJC 5791) D35-47-69(P80, Q32) 2011-2011 04
004 09596628 CAP, HUB (SILVER BACKGROUND) (MULTI-COLORED CREST EMBLEM) (CODE BJC FPN) D35-47-69(PJ2, P61, P63, P75, P86, P87, RJJ, UHN) 2011-2011 04
005 SENSOR, TIRE PRESS IND (SEE GROUP 05.000 TIRE PRESSURE SENSOR FOR DETAILED ILLUSTRATED VIEW) (SNAP IN) (INCLS BLACK VALVE CAP) 2011-2011
006 22820065 WHEEL, RR (POLISHED) (19X9.5) (43MM O/S 120X5XM14 B/C) D47(P87) 2011-2011 02
007 09598614 WHEEL, RR (POLISHED) (19X10) (ALUM) (51MM O/S 120.0X5XM14 B/C) D47(P88) 2011-2011 02
007 09598615 WHEEL, RR (PAINTED) (19X10) (ALUM) (51MM O/S 120.0X5XM14 B/C) D47(P89) 2011-2011 02
007 20982648 WHEEL, FRT (SATIN GRAPHITE) (19X9) (CODE AAJ2) DN47(RB9) 2011-2011 02
007 20982650 WHEEL, RR (SATIN GRAPHITE) (19X10) DN47(RB9) 2011-2011 02
007 20951880 WHEEL, FRT (PAINTED) (19X9) (51MM O/S 120X5XM14 B/C) D47(P89) 2011-2011 02
007 20951881 WHEEL, FRT (POLISHED) (19X9) (51MM O/S 120X5XM14 B/C) D47(P88) 2011-2011 02
008 09596629 CAP, HUB (BLACK BACKGROUND) (MULTI-COLORED CREST EMBLEM) (CODE JJC 5791) D35-47-69(P88, P89, RBJ, RB9) 2011-2011 04
009 22820070 WHEEL, RR (18X9) (32MM O/S 120X5XM14 B/C) DM47(RJJ) 2011-2011 02
009 22820068 WHEEL, FRT (POLISHED) (18X8.5) (ALUM) (48MM O/S 120X5XM14 B/C) (CODE AACY AAMZ AANN AASP FRT) D47(RJJ) 2011-2011 02
