| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

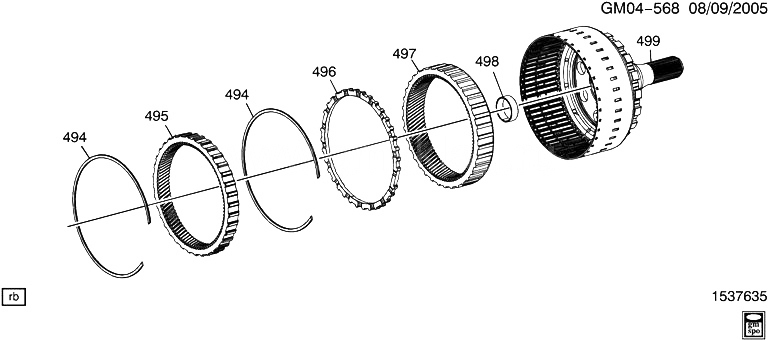

| 494 |
24241092 |
RING, OUTPUT CARR INTL GR RET (ACDelco #24241092) |
DM(MYB) |
2011-2011 |
01 |
| 495 |
24225477 |
GEAR, OUTPUT CARR INTL (FRT) (ACDelco #24225477) |
DM(MYB) |
2011-2011 |
01 |
| 496 |
24228887 |
SPACER, OUTPUT CARR INTL GR (3.342) |
DM(MYB) |
2011-2011 |
01 |
| 497 |
24230333 |
GEAR, OUTPUT CARR INTL (RR) (ACDelco #24230333) |
DM(MYB) |
2011-2011 |
01 |
| 498 |
|
BUSHING, OUTPUT CARR (PART OF 499) |
|
2011-2011 |
|
| 499 |
24239401 |
SHAFT, OUTPUT (INCLS 498) (ACDelco #24239401) (WHEN SERVICING SHAFT MUST ALSO REPLACE BEARING P/N 24237771) |
DM(MYB, MX0) |
2011-2011 |
01 |
| 499 |
24251229 |
SHAFT, OUTPUT (INCLS 498) (ACDelco #24251229) (REQUIRES O-RING 24251228, QTY 2. FOR 2009 AND PRIOR MODEL YEAR USAGES AND 2010MY TRANS B/C, 0ABT, 0ABU, MUST SERVICE T/W 19256369 T/CASE INPUT SHAFT) |
DM(MYB, MX7) |
2011-2011 |
01 |
