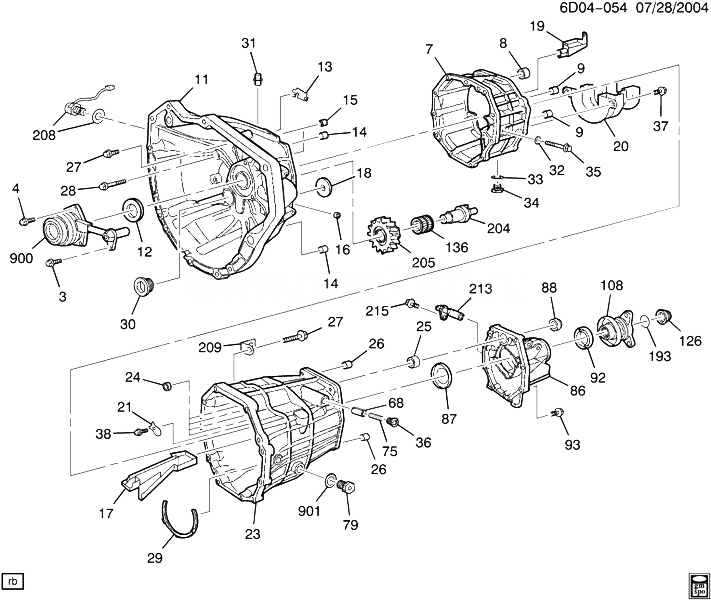

(6D04-054) 2011 DM47-69 6-СКОРОСТНАЯ МЕХАНИЧЕСКАЯ КОРОБКА ПЕРЕДАЧ PART 2 (MV7) CASE COMPONENTS CADILLAC - CTS COUPE 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
003 89058852 BOLT, CLU ACTR (M6X1.0X20) DM(LF1, LLT, MV7, JJB) 2011-2011 01
004 89048559 BOLT, CLU ACTR (M8X1.25X20) (4.104) DM(LF1, LLT, MV7, JJB) 2011-2011 03
007 89058759 CASE, TRANS INTER (INCLS 8, 9) DM(MV7) 2011-2011 01
008 89058774 BEARING, SHFT CONT SHF (PART OF 7) (4.408) (ACDelco #89058774) DM(MV7) 2011-2011 01
009 89058791 PIN, TRANS INTER CASE LOC (PART OF 7) DM(MV7) 2011-2011 02
011 19178542 CASE, TRANS FRT (INCLS 12-16) DM(MV7) 2011-2011 01
011 89058758 CASE, TRANS FRT (INCLS 12-16) DM(MV7) 2011-2011 01
012 89058833 SEAL, MAIN SHF (PART OF 11) (ACDelco #89058833) DM(MV7) 2011-2011 01
013 SHIELD, INPUT SHF BRG OIL (PART OF 11) 2011-2011
014 89058791 PIN, TRANS INTER CASE LOC (PART OF 11) DM(MV7) 2011-2011 02
015 89059311 PIN, TRANS CASE LOC (PART OF 11) DM(MV7) 2011-2011 02
016 89059312 PLUG, TRANS CASE HOLE (PART OF 11) DM(MV7) 2011-2011 01
017 TROUGH, TRANS RR CASE OIL 2011-2011
018 89058837 SLINGER, INPUT SHF BRG OIL (FRONT) DM(LF1, LLT, MV7, JJB) 2011-2011 01
019 89058839 TROUGH, M/TRNS OIL DM(MV7) 2011-2011 01
020 89058840 TROUGH, TRANS INTER CASE OIL DM(MV7) 2011-2011 01
021 89058820 RETAINER, CNTR GR BRG (4.352) DM(MV7) 2011-2011 01
023 89058760 CASE, TRANS RR (INCLS 24-26) DM(MV7) 2011-2011 01
024 BUSHING, SHFT SHF (PART OF 23) 2011-2011
025 89058774 BEARING, SHFT SHF (PART OF 23) (ACDelco #89058774) DM(MV7) 2011-2011 01
025 89059316 BEARING, SHFT SHF (PART OF 23) DM(MV7) 2011-2011 01
026 89058791 PIN, TRANS INTER CASE LOC (PART OF 23) DM(MV7) 2011-2011 02
027 89058853 BOLT, TRANS INTER CASE (M10X1.25X40) (4.104) DM(MV7) 2011-2011 06
028 89058854 BOLT, TRANS INTER CASE (M10X1.25X80) (4.104) DM(MV7) 2011-2011 05
029 89059319 GASKET, TRANS RR CASE DM(MV7) 2011-2011 01
030 89058843 PLUG, CLU HSG HOLE DM(MV7) 2011-2011 01
031 89059313 VENT, M/TRNS DM(MV7) 2011-2011 01
032 89059314 GASKET, REV IDLER GR SHF BOLT (ACDelco #89059314) DM(MV7) 2011-2011 01
033 89048245 GASKET, TRANS OIL DRN PLUG (ACDelco #89048245) DM(MV7) 2011-2011 01
033 89048245 GASKET, TRANS OIL DRN PLUG (ACDelco #89048245) DM(MV7) 2011-2011 01
034 19132842 PLUG, TRANS OIL DRN (4.510) DM(MV7) 2011-2011 01
035 89059315 BOLT, REV IDLER GR SHF RET DM(MV7) 2011-2011 01
036 19132971 PLUG, SHFT SHF DTNT DM(MV7) 2011-2011 01
037 89048559 BOLT, TRANS INTER CASE OIL TROUGH (M8X1.25X20) (4.104) DM(MV7) 2011-2011 02
037 89058842 BOLT, TRANS INTER CASE OIL TROUGH DM(MV7) 2011-2011 01
038 19132970 BOLT, CNTR GR BRG RET (4.307) DM(MV7) 2011-2011 01
068 89058860 DETENT, SHFT SHF (ACDelco #89058860) DM(LF1, LLT, MV7, JJB) 2011-2011 01
075 92195066 SPRING, SHFT SHF DTNT (ACDelco #92195066) DM(MV7) 2011-2011 01
079 89048248 PLUG, TRANS OIL FIL DM(MV7) 2011-2011 01
079 89048248 PLUG, TRANS OIL FIL (4.104) DM(MV7) 2011-2011 01
086 19178541 EXTENSION, TRANS (INCLS 87, 88) DM(LF1, LLT, MV7, JJB) 2011-2011 01
086 89058761 EXTENSION, TRANS (INCLS 87, 88) DM(MV7) 2011-2011 01
087 89058838 SLINGER, INPUT SHF BRG OIL (REAR) (PART OF 86) DM(LF1, LLT, MV7, JJB) 2011-2011 01
088 19180996 SEAL, SHFT CONT SHF (PART OF 86) (ACDelco #19180996) DM(MV7) 2011-2011 01
092 89058835 SEAL, RR OUTPUT SHF (ACDelco #89058835) DM(MV7) 2011-2011 01
093 88972750 BOLT, TRANS EXTN (M8X1.25X40) (8.900) DM(LF1, LLT, MV7) 2011-2011 08
108 19178540 FLANGE, TRANS PROP SHF DM(LF1, LLT, MV7) 2011-2011 01
108 89058847 FLANGE, TRANS PROP SHF DM(MV7) 2011-2011 01
126 19132973 NUT, PROP SHF TRANS FLG DM(LF1, LLT, MV7) 2011-2011 01
136 89058775 BEARING, REV IDLER GR (ACDelco #89058775) DM(MV7) 2011-2011 01
193 89058836 SEAL, PROP SHF TRANS FLG FLUID (ACDelco #89058836) DM(MV7) 2011-2011 01
204 89058790 SHAFT, REV IDLER GR DM(LF1, LLT, MV7, JJB) 2011-2011 01
205 89058789 GEAR, REV IDLER DM(LF1, LLT, MV7, JJB) 2011-2011 01
205 92149638 GEAR, REV IDLER DM(MV7) 2011-2011 01
208 19132844 SWITCH, B/U LP (ACDelco #D2205D) DM(LF1, LLT, MV7) 2011-2011 01
209 89059318 RETAINER, B/U LP SW DM(LF1, LLT, MV7, JJB) 2011-2011 01
213 89058851 SENSOR, M/TRNS OUTPUT SPD (4.337) (ACDelco #89058851) DM(MV7, JJB) 2011-2011 01
213 89058851 SENSOR, M/TRNS OUTPUT SPD (ACDelco #89058851) DM(MV7) 2011-2011 01
215 89058852 BOLT, VEH SPD SEN (M6X1.0X20) (0.780) DM47(MV7) 2011-2011 01
215 89058852 BOLT, VEH SPD SEN (M6X1.0X20) (0.780) DM47(MV7) 2011-2011 01
900 24242161 CYLINDER, CLU ACTR DM(LF1, LLT, MV7, JJB) 2011-2011 01
901 89048245 GASKET, TRANS OIL FILL PLUG (ACDelco #89048245) DM(MV7) 2011-2011 01
