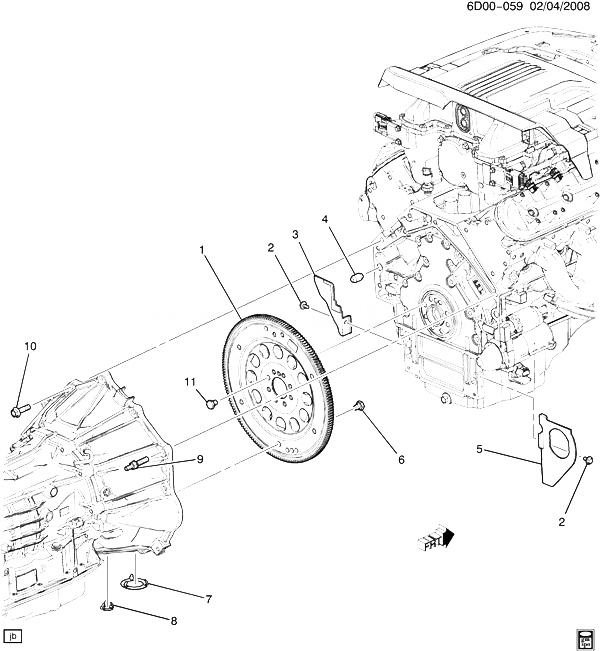

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
12636325 |
PLATE, A/TRNS FLEX |
DN(LSA, MYD) |
2011-2013 |
01 |
| 002 |
12560226 |
BOLT, HEX W/FLAT WASH, M6.0X1.0X14.5, 13.5, 17 OD, 9.8, 7114M, MACH (TRANS CVR) |
|
2011-2013 |
02 |
| 003 |
24261714 |
COVER, TRANS (ACDelco #24261714) |
DN(LSA, MYD) |
2011-2013 |
01 |
| 004 |
01453658 |
PIN, DOWEL STRAIGHT 5/8 DIA 1 3/16 LG (TRANS LOC) |
|
2011-2013 |
02 |
| 005 |
24261712 |
COVER, TRANS (ACDelco #24261712) |
DN(LSA, MYD) |
2011-2013 |
01 |
| 006 |
11589040 |
BOLT, TRANS T/CV (M10X1.5X22) |
DN(MYD) |
2011-2013 |
06 |
| 007 |
24205900 |
COVER, T/CV HSG ACC HOLE (62MM W/3 TANGS) (LARGE CVR) (ACDelco #24205900) |
DN(MYD, JJB) |
2011-2013 |
01 |
| 008 |
24205899 |
PLUG, T/CV HSG ACC HOLE (28MM W/3 TANGS) (SMALL CVR) (ACDelco #24205899) |
DN(LSA, MYD) |
2011-2013 |
01 |
| 009 |
11519797 |
STUD, TRANS (DOUBLE END, HFH, M8X1.25X20, M10X1.5X40, 18 OD, 69.5 TL9.8, GMW3359) |
DN(LSA, MYD) |
2011-2013 |
03 |
| 010 |
11515768 |
BOLT, HFH, REDUCED BODY, M10X1.5X40, 30THD, 22.3 O.D., HDR PT, 10.9, 7114M (TRANS) |
|
2011-2013 |
05 |
| 011 |
11569956 |
BOLT, A/TRNS FLEX PLT (M11X1.5X23.5 W/SEALER) |
DN(LSA, MYD) |
2011-2013 |
08 |
