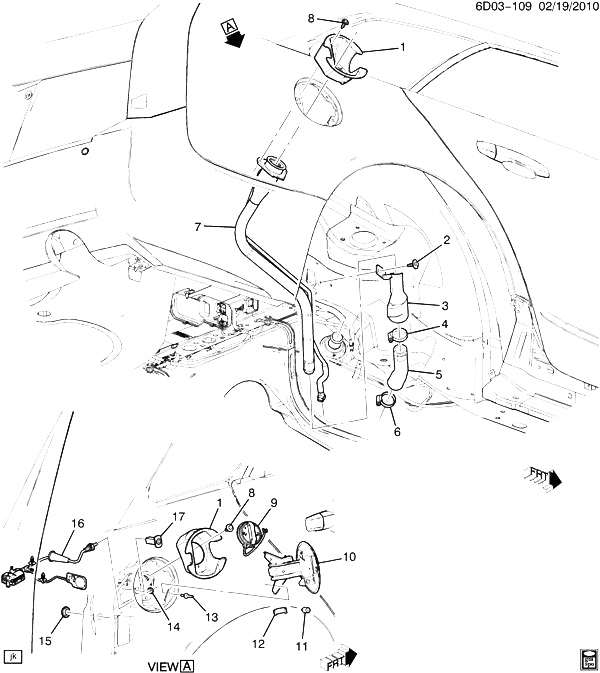

(6D03-109) 2011-2013 D35-47-69 ЗАЛИВНЫЕ ТРУБЫ И ШЛАНГИ ТОПЛИВНОГО БАКА CADILLAC - CTS COUPE 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 20802745 HOUSING, F/TNK FIL PIPE DM, DN47 2011-2013 01
002 11588928 BOLT, HEX, W/FL WA, M6X1X25, 14 THD, 24 O.D., DOG-PT, STL, GMW3200 (F/TNK FIL PIPE BRKT) 2011-2013 01
003 20911533 SHIELD, F/TNK FIL PIPE D35-47-69 2011-2013 01
004 11610236 CLAMP, TYPE F WORM GEAR 20-1/4 HEX HD SAE 302 STL GM3044 9 (PART OF 5) 2011-2013 01
005 15925742 HOSE, F/TNK FIL (INCLS 4) DN(LSA) 2011-2013 01
005 15925742 HOSE, F/TNK FIL (INCLS 4) DM(LF1, LLT) 2011-2011 01
006 11610236 CLAMP, TYPE F WORM GEAR 20-1/4 HEX HD SAE 302 STL GM3044 9 (F/TNK FIL HOSE) DN(LSA) 2011-2013 01
006 20768688 CLAMP, F/TNK FIL HOSE DM(LF1, LLT) 2011-2011 01
007 20789049 PIPE, F/TNK FIL D47 2011-2011 01
008 11509374 BOLT, SCR HEX W/FL WA, SELF TAP, 4.2X1.41X16, 12.5 O.D. (F/TNK FIL PIPE) 2011-2013 03
009 15832215 CAP, F/TNK FIL (INCLUDES TETHER) (ACDelco #GT303) D 2011-2011 01
010 20922489 DOOR, F/TNK FIL (INCLS 11, 12) (FOR VEH BUILT BEFORE 12/13/2010) (2ND DES 22773108) DM, DN47(1ST DES) 2011-2011 01
010 22773108 DOOR, F/TNK FIL (INCLS 11, 12) (FOR VEH BUILT ON OR AFTER 12/13/2010) (1ST DES 20922489) DM, DN47(2ND DES) 2011-2011 01
011 15845031 BUMPER, F/TNK FIL DR (PART OF 10) (16.570) DM, DN47 2011-2013 01
012 SPRING, F/TNK FIL DR (PART OF 10) 2011-2013
013 11519023 RIVET, POP SHANK 0.256, LENGTH 0.643, 0.189-0.268 GRIP RANGE, 1033 STL, (F/TNK FIL DR) 2011-2013 02
014 11589175 NUT, HEX, M8X1.25, 4 THK, GM510M, GMW3359, BLACK (F/TNK FIL DR LK ACTR) 2011-2013 01
015 22653093 PLUG, F/TNK FIL DR LAT REL CBL HOLE (30.2 X 9.2 MM) (FITS 19.3MM DIA HOLE) (12.942) DM35-47-69(EXC N08) 2011-2013 01
015 22653093 PLUG, F/TNK FIL DR LAT REL CBL HOLE (30.2 X 9.2 MM) (FITS 19.3MM DIA HOLE) (12.942) DN47-69(EXC N08) 2011-2013 01
016 25907014 ACTUATOR, F/TNK FIL DR LK D47(N08) 2011-2013 01
017 20912532 SPRING, F/TNK FIL DR (INCLS PLUNGER) DM, DN 2011-2013 01
