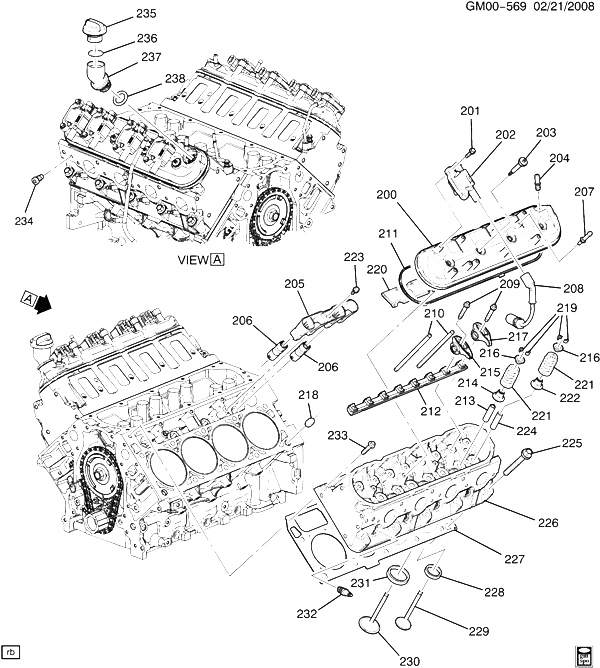

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 200 |
12637686 |
COVER, VLV RKR ARM (INCLS 201-204, 211, 220) |
DN(LSA) |
2011-2013 |
01 |
| 200 |
12637688 |
COVER, VLV RKR ARM (INCLS 201-204, 211, 220) |
DN(LSA) |
2011-2013 |
01 |
| 201 |
11588714 |
BOLT, HFH, M6X1X30, 22.7 THD, 14.2 OD, 8.8, GMW3359, M-PT. (PART OF 200) |
|
2011-2013 |
16 |
| 202 |
12611424 |
COIL, IGN (MELCO-MITSUBISHI) (PART OF 200) (MATING CONN W/LEADS USE 88987184) (ACDelco #D510C) |
DN(LSA) |
2011-2013 |
08 |
| 203 |
12577215 |
BOLT, VLV RKR ARM CVR (PART OF 200) (M6.0X1.0) (W/GROMMET, SLEEVE) |
DN(LSA) |
2011-2013 |
08 |
| 204 |
|
FITTING, PCV TUBE (PART OF 200) |
|
2011-2013 |
|
| 205 |
12595365 |
GUIDE, VLV LFTR (ACCOMMODATES 4 VLV LFTRS EACH, WITH SIDE GROOVES) |
DN(LSA) |
2011-2013 |
01 |
| 206 |
12576400 |
LIFTER, VLV (NON ACTIVE) (ACDelco #HL128) |
DN(LSA) |
2011-2013 |
08 |
| 207 |
11588967 |
STUD, BALL W/HFH, M6X1X20.65, 14.2 O.D., 8.8, GMW3359 (INT MANIF SIGHT SHLD) |
|
2011-2013 |
04 |
| 208 |
19180532 |
WIRE, SPLG (ACDelco #356X) |
DN(LSA) |
2011-2013 |
08 |
| 209 |
12560961 |
BOLT, VLV RKR ARM PIV SUPT (M8X1.25X52.5) |
DN(LSA) |
2011-2013 |
16 |
| 210 |
10238852 |
ROD, VLV PUSH |
DN(LSA) |
2011-2013 |
16 |
| 211 |
12637683 |
GASKET, VLV RKR ARM CVR (PART OF 200) |
DN(LSA) |
2011-2013 |
04 |
| 212 |
12600936 |
SUPPORT, VLV RKR ARM PIV |
DN(LSA) |
2011-2013 |
02 |
| 213 |
|
GUIDE, INT VLV (PART OF 226) |
|
2011-2013 |
|
| 214 |
12482063 |
SEAL KIT, INT VLV STEM OIL (W/SPRING SHIM) (14.4MM) (INCLS 8 SEALS) |
DN(LSA) |
2011-2013 |
01 |
| 215 |
12569167 |
ARM, INT VLV RKR (ARM, VLV RKR INT. FOR EXHST VLV RKR ARM SEE PN 10214664, QTY=8) |
DN(LSA) |
2011-2013 |
08 |
| 216 |
10166344 |
CAP, VLV SPR |
DN(LSA) |
2011-2013 |
08 |
| 218 |
12570326 |
PIN, CYL HD LOC |
DN(LSA) |
2011-2013 |
04 |
| 219 |
10166345 |
KEY, VLV STEM |
DN(LSA) |
2011-2013 |
16 |
| 220 |
|
BAFFLE, PCV (PART OF 200) |
|
2011-2013 |
|
| 221 |
12589774 |
SPRING, VLV |
DN(LSA) |
2011-2013 |
16 |
| 222 |
12482062 |
SEAL KIT, EXH VLV STEM OIL (22.8MM) (INCLS 8 SEALS) (*01, 02, 03, 04, 05) |
DN(LSA) |
2011-2013 |
01 |
| 223 |
12551163 |
BOLT, VLV LFTR GDE (M6X1.0X19) |
DN(LSA) |
2011-2013 |
04 |
| 224 |
|
GUIDE, EXH VLV (PART OF 226) |
|
2011-2013 |
|
| 225 |
19258707 |
BOLT, CYL HD (M11X2X100) |
DN(LSA) |
2011-2013 |
04 |
| 226 |
12610716 |
HEAD, CYL (INCLS 213, 224, 228, 231) |
DN(LSA) |
2011-2013 |
01 |
| 227 |
12622033 |
GASKET, CYL HD |
DN(LSA, MYD, MG9) |
2011-2013 |
02 |
| 228 |
|
SEAT, EXH VLV (PART OF 226) |
|
2011-2013 |
|
| 229 |
12582719 |
VALVE, EXH (STD) |
DN(LSA) |
2011-2013 |
04 |
| 230 |
12605223 |
VALVE, INT |
DN(LSA) |
2011-2013 |
04 |
| 231 |
|
SEAT, INT VLV (PART OF 226) |
|
2011-2013 |
|
| 232 |
12571165 |
SPARK PLUG, (ACDelco #41-104) (IRIDIUM) |
DN(LSA) |
2011-2013 |
08 |
| 233 |
12558840 |
BOLT, CYL HD (M8X1.25X45) |
D(LSA) |
2011-2013 |
10 |
| 234 |
11610259 |
PLUG, CYL HD CORE HOLE (M12X1.5X21.2) (HEX, SOC) |
DN(LSA) |
2011-2013 |
01 |
| 235 |
12583570 |
CAP, OIL FIL (INCLS 236) (NON VENTED) (ACDelco #FC215) (LABELED MOBIL 1 FOR 2ND DES SEE 12642163) |
DN(LSA, MG9, MYD, JJB) (1ST DES) |
2011-2011 |
01 |
| 235 |
12642163 |
CAP, OIL FIL (INCLS 236) (DEXOS SAE 5W-30 ON CAP) (ACDelco #FC242) (LABELED DEXOS, FOR 1ST DES SEE 12583570) |
DN(LSA, MG9, MYD, JJB) (2ND DES) |
2011-2011 |
01 |
| 236 |
12593348 |
SEAL, OIL FIL CAP (O RING) (PART OF 235) (27.94MM I.D.) (SIZE #320) |
DN(LSA) |
2011-2013 |
01 |
| 237 |
12609623 |
TUBE, OIL FIL (INCLS 238) |
DN(LSA) |
2011-2013 |
01 |
| 238 |
12593348 |
SEAL, OIL FIL CAP (O RING) (PART OF 237) (27.94MM I.D.) (SIZE #320) |
DN(LSA) |
2011-2013 |
01 |
