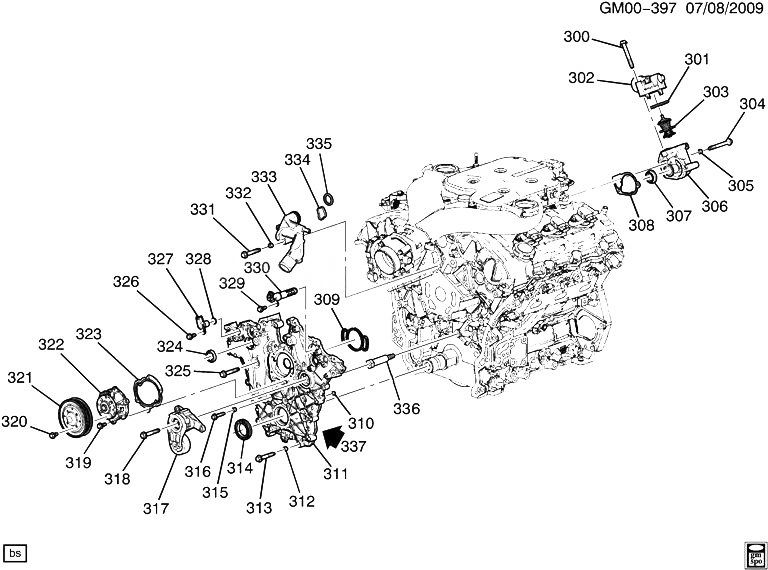

(GM00-397) 2011 DM,DR35-47-69 ДВИГАТЕЛЬ В СБОРЕ-3.6L V6 PART 3 ПЕРЕДНЯЯ КРЫШКА И ОХЛАЖДЕНИЕ (LLT/3.6D) CADILLAC - CTS COUPE 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
300 11588719 BOLT, HFH, M6X1X60, 18MM THD, 14.2 O.D., 8.8, 3359GMW (ENG COOL THERM HSG) (*KIT1) 2011-2011 02
301 12582472 SEAL, ENG COOL THERM (*KIT1) (ACDelco #12582472) DM(LLT) 2011-2011 01
302 HOUSING, ENG COOL THERM UPR (*KIT1) 2011-2011
303 THERMOSTAT, ENG COOL (W/WAT INL) (*KIT1) 2011-2011
304 11588720 BOLT, HFH, M6X1X70, 18 THD, 14.2 OD, 8.8, GMW3359, MAT POINT. (ENG COOL THERM HSG) (*KIT1) 2011-2011 03
305 11518792 RETAINER, ENG COOL THERM HSG BOLT (FOR M6 BOLT, LENGTH 7MM, WALL THICKNESS 0.60, THERMOPLASTIC) (*KIT1) (1.428) D 2011-2011 03
306 HOUSING, ENG COOL THERM LWR (*KIT1) 2011-2011
307 12584325 SEAL, ENG COOL THERM HSG (O RING) (*KIT1) (ACDelco #12584325) DM(LLT) 2011-2011 01
308 12625923 GASKET, ENG COOL THERM HSG (*KIT1) (ACDelco #12625923) DM(LLT) 2011-2011 01
309 12622550 SEAL, W/PMP (PART OF 311) (INSIDE THE FRONT COVER) (ACDelco #12622550) DM(LLT) 2011-2011 01
310 22531637 PIN, ENG FRT CVR LOC (PART OF 311) (8MM DIA, 12MM LONG) (DOWEL) (0.413) DM(LLT) 2011-2011 02
311 12643744 COVER, ENG FRT (W/ W/PMP) (INCLS 309, 310, 312-319, 322-328) DM(LLT) 2011-2011 01
312 RETAINER, ENG FRT CVR BOLT (PART OF 311) 2011-2011
313 11519171 BOLT, ENG FRT CVR (PART OF 311) (M8X1.25X50) (3.275) DM35-47-69(LLT) 2011-2011 22
314 12608750 SEAL, CR/SHF FRT OIL (PART OF 311) DM(LLT) 2011-2011 01
315 11518792 RETAINER, ENG FRT CVR (PART OF 311) (FOR M6 BOLT, LENGTH 7MM, WALL THICKNESS 0.60, THERMOPLASTIC) (1.428) DM(LLT) 2011-2011 02
316 11570139 BOLT, HFH, M6X1X33, 25 THD, 14.2 OD, 10.9, GMW4700 (ZN-NI). (PART OF 311) 2011-2011 02
317 12626644 TENSIONER, DRV BELT (PART OF 311) (ACDelco #12626644) DM(LLT) 2011-2011 01
318 11588730 BOLT, HFH, FULL BODY, 22THD, 18 OD, 8.8, GMW3359.M-PT. (PART OF 311) (ACDelco #11588730) 2011-2011 01
319 11562426 BOLT, HFH, M6X1X25, 18 THD, 14.2 OD, 10.9 STL GMW3359 (PART OF 311) 2011-2011 06
320 11588940 BOLT, HEX HD, W/CON SPR WA, M6X1X14.55, 8.45 THD, 13.3O.D., 8.8.GMW3359 (W/PMP PUL) 2011-2011 04
321 12611587 PULLEY, W/PMP (ACDelco #12611587) DM(LLT) 2011-2011 01
322 19195148 PUMP KIT, WAT (PART OF 311) (ACDelco #252-889) (ALL MAKES) DM47(LLT) 2011-2011 01
322 12637479 PUMP KIT, WAT (W/GSKT) (PART OF 311) (MUST REPLACE WATER PUMP BOLTS, BOLTS ARE SINGLE USE ONLY) (ACDelco #251-742) DM(LLT) 2011-2011 01
323 12634750 GASKET, W/PMP (PART OF 311) (ACDelco #251-2052) DM(LLT) 2011-2011 01
324 12593717 SEAL, CM/SHF POSN ACTR SOL VLV (O RING) (PART OF 311) DM(LLT) 2011-2011 04
325 11588730 BOLT, HFH, FULL BODY, 22THD, 18 OD, 8.8, GMW3359.M-PT. (PART OF 311) (ACDelco #11588730) 2011-2011 01
326 11562426 BOLT, HFH, M6X1X25, 18 THD, 14.2 OD, 10.9 STL GMW3359 (PART OF 311) 2011-2011 01
327 12615371 SENSOR, CM/SHF POSN (PART OF 311) (INCLS 328) (ACDelco #213-4592) DM(LLT, LF1) 2011-2011 04
328 WASHER, CM/SHF POSN SEN (PART OF 311, 327) 2011-2011
329 11588712 BOLT, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (CM/SHF POSN ACTR SOL VLV) 2011-2011 04
330 12636175 VALVE, CM/SHF POSN ACTR SOL DM(LLT) 2011-2011 04
331 11519972 BOLT, WAT OTLT (PART OF 333) (M6X1X50) (3.336) DM(LLT) 2011-2011 02
332 12570372 RETAINER, WAT OTLT (PART OF 333) DM(LLT) 2011-2011 02
333 12625268 OUTLET, WAT (INCLS 331, 332, 334, 335) (ACDelco #15-11056) DM(LLT) 2011-2011 01
334 12566429 SEAL, WAT OTLT (PART OF 333) (ACDelco #12566429) DM(LLT) 2011-2011 01
335 12584040 SEAL, CLNT OTLT (O RING) (PART OF 333) (ACDelco #15-32584) DM(LLT) 2011-2011 01
336 11610796 STUD, ENG FRT CVR (M8X1.25X17) (W/DOUBLE SHOULDER) DM(LLT) 2011-2011 02
337 12378521 SEALANT, RTV ENGINE SILICONE 5.3OZ CART (ENG FRT CVR) (ACDelco #10-2010) 2011-2011 AR
K01 12638185 HOUSING, ENG COOL THERM (INCLS 300-308) (ACDelco #15-81708) DM(LLT) 2011-2011 01
