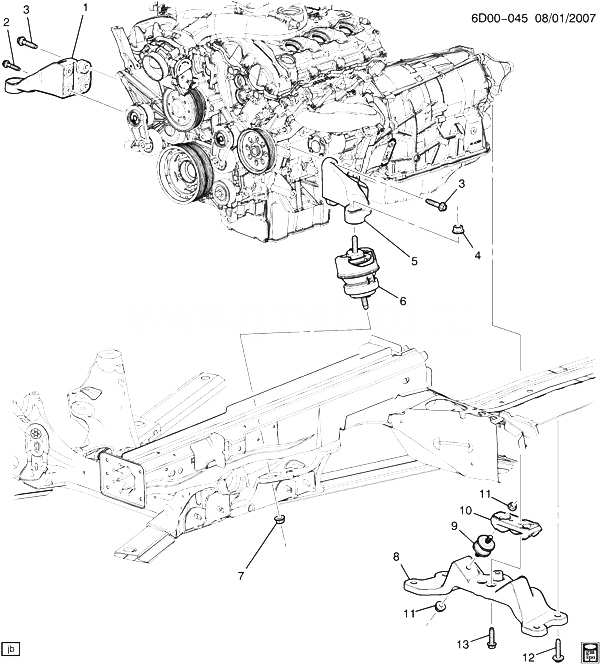

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25905221 |
BRACKET, ENG MT |
DM(MN6) |
2011-2012 |
01 |
| 002 |
11519171 |
BOLT, ENG MT BRKT (M8X1.25X50) (3.275) |
D35-47-69(MX0, MV7) |
2011-2012 |
01 |
| 003 |
11517383 |
BOLT, HEX W/CON SPR WASH, M10X1.5X55, 28 OD, 37 THD, 10.9, 7114M (ENG MT BRKT) |
|
2011-2013 |
07 |
| 004 |
11517780 |
NUT, M12X1.75, 15 THK, 29 OD, 10, 7111M, ALL METAL PREV TORQ (ENG MT) |
|
2011-2013 |
02 |
| 005 |
25905220 |
BRACKET, ENG MT |
DM(MN6) |
2011-2012 |
01 |
| 006 |
22783392 |
MOUNT, ENG |
D35-47-69(LF1, LLT, MN6, MX0) |
2011-2011 |
02 |
| 007 |
11516078 |
NUT, HFH, M12X1.75, 14THK, 25 O.D., 10, PZOR (ENG MT FRM SI) |
|
2011-2013 |
02 |
| 008 |
15234764 |
MOUNT, TRANS RR (INCLS 9, 10) |
D47-69(LLT, MV7) |
2011-2011 |
01 |
| 008 |
20945772 |
MOUNT, TRANS RR (INCLS 9, 10) |
DM(LF1, MV7) |
2011-2011 |
01 |
| 008 |
20945771 |
MOUNT, TRANS RR (INCLS 9, 10) |
DM(LF1, MX0) |
2011-2011 |
01 |
| 008 |
20945771 |
MOUNT, TRANS RR (INCLS 9, 10) |
DM(LLT, MX0) |
2011-2011 |
01 |
| 009 |
25843484 |
INSULATOR, TRANS RR MT SPR (PART OF 8) |
DM(LLT, LF1, MX0) |
2011-2011 |
02 |
| 010 |
|
MOUNT, TRANS RR (PART OF 8) |
|
2011-2013 |
|
| 011 |
11516078 |
NUT, HFH, M12X1.75, 14THK, 25 O.D., 10, PZOR (ENG MT FRM SI) |
|
2011-2013 |
04 |
| 012 |
11589169 |
BOLT ASM - HEX HD W/CONICAL WASHER, M10X1.50X50, GMW25 (10.9) STL, GMW33559 (TRANS RR MT BRKT) |
|
2011-2013 |
04 |
| 013 |
11588741 |
BOLT, HFH M10X.15X45 (TRANS MT) (2.042) |
|
2011-2013 |
02 |
