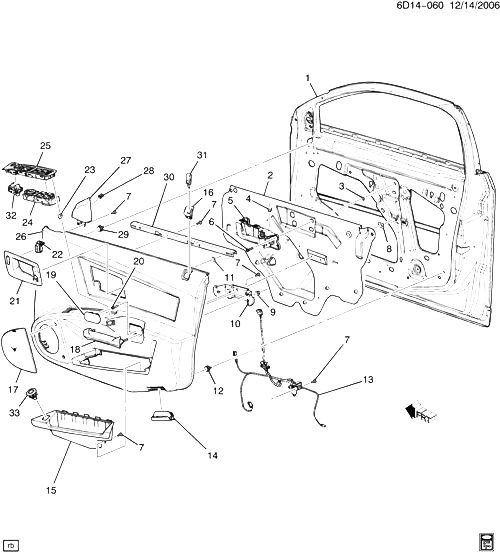

(6D14-060) - 2005-2007 DR69 ОБЛИЦОВКА ПЕРЕДНЕЙ ВОДИТЕЛЬСКОЙ ДВЕРИ CADILLAC - CTS 2007

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 DOOR, FRT SI (СМ. ГРУППУ 10.000 АРМАТУРА ПЕРЕДНЕЙ ДВЕРИ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2003-2007
002 25758247 DEFLECTOR, FRT S/D WAT D69 2003-2007 01
003 03907444 ГАЙКА, PUSH IN, SQUARE, UN THD, M9.5 SQ HOLE, NYLON (FRT S/D I/S HDL) 2003-2007 01
004 CLIP, FRT S/D I/S HDL ROD (ЧАСТЬ OF 5) 2005-2007
005 25759728 HANDLE, FRT S/D I/S (INCLS 4) (HIGH LUSTER) DR (EXPORT) 2004-2007 01
006 22527475 SCREW, SEMS HEX W/FL WA M6.3X1.81X20 ABPT 6010M SOFT WA PZOR (FRT S/D I/S HDL) 2003-2007 01
007 11509253 SCREW, W/LRG WA HD, M4.2X1.4X10, 11.3 O.D., BHL PT, STL, NO (ЧАСТЬ OF 26) 2003-2007 12
008 20310739 ГАЙКА, FRT S/D PULL HDL (3.125 MM) (RECTANGULAR NYLON) (14.690) D69 2003-2007 04
009 11503749 ГАЙКА, M6X1 (ЧАСТЬ OF 26) (ACDelco #11503749) 2003-2007 02
010 88952742 BRACKET, FRT S/D PULL HDL (ЧАСТЬ OF 26) D 2003-2007 01
011 20049623 ГАЙКА, HFH, 3/16, .75 O.D., .125 HT, SPR ST, PC (ЧАСТЬ OF 26) 2003-2007 02
012 11562043 RETAINER, FRT S/D T/PNL (ЧАСТЬ OF 26) (FOR 0.95 MM TO 1.0 MM THICK PANEL) (INCLS 11561499) (8.950) D69 2007-2007 12
013 25702496 HARNESS, S/D WRG (ЧАСТЬ OF 26) D69 2003-2007 02
015 88981454 POCKET, FRT S/D MAP (ЧАСТЬ OF 26) (GRAY) (W/TRUNK SWITCH HOLE) DR (13I) (EXPORT) 2004-2007 01
015 88983943 POCKET, FRT S/D MAP (ЧАСТЬ OF 26) (EBONY) (W/TRUNK SWITCH HOLE) DR (19I) (EXPORT) 2004-2007 01
016 19148996 BEZEL, FRT S/D LKG ROD P/BUT (ЧАСТЬ OF 26) (CASHMERE) DR69 (33I) (EXPORT) 2006-2007 02
016 88952714 BEZEL, FRT S/D LKG ROD P/BUT (ЧАСТЬ OF 26) (GRAY) D (13I) 2003-2007 02
016 88983938 BEZEL, FRT S/D LKG ROD P/BUT (ЧАСТЬ OF 26) (EBONY) (SATIN CHROME PULL CAP) D (19I) 2005-2007 02
017 19148995 GRILLE, RDO FRT SPKR (LH RH) (ЧАСТЬ OF 26) (CASHMERE) DR69 (B18, 33I) (EXPORT) 2006-2007 02
017 88952717 GRILLE, RDO FRT SPKR (LH RH) (ЧАСТЬ OF 26) (GRAY) DR (B18, 13I) (EXPORT) 2004-2007 02
017 88983939 GRILLE, RDO FRT SPKR (LH RH) (ЧАСТЬ OF 26) (EBONY) DR (19I) (EXPORT) 2004-2007 02
018 88983942 HANDLE, FRT S/D PULL (ЧАСТЬ OF 26) (EBONY) (MONO-TONE W/O WOOD) (КРАСКАED) (HANDLE CAP COMBINED) DR (19I) (EXC B18) (EXPORT) 2006-2007 02
018 89038779 HANDLE, FRT S/D PULL (ЧАСТЬ OF 26) (GRAY) (BURL WALNUT WOOD HANDLE) DR (B18, 13I) (EXPORT) 2006-2007 02
018 89038782 HANDLE, FRT S/D PULL (ЧАСТЬ OF 26) (GRAY) (КРАСКАED) DR (13I) (EXC B18) (EXPORT) 2006-2007 02
018 89040111 HANDLE, FRT S/D PULL (ЧАСТЬ OF 26) (EBONY) (BURL WALNUT WOOD HANDLE) DR (B18, 19I) (EXPORT) 2006-2007 02
018 89046414 HANDLE, FRT S/D PULL (ЧАСТЬ OF 26) (CASHMERE) (W/ BURL WALNUT) DR (B18, 33I) (EXPORT) 2006-2007 02
019 10372679 COVER, FRT S/D T/PNL (CASHMERE) D69 (33I) 2006-2007 02
019 25727743 COVER, FRT S/D T/PNL (GRAY) D69 (13I) 2005-2007 02
019 25748814 COVER, FRT S/D T/PNL (EBONY) D69 (19I, 31I) 2006-2007 02
020 03539184 БОЛТ, FRT S/D PULL HDL (ATTACH TO NUT IN SHT MTL) (14.683) D69 2003-2007 04
021 15824443 BEZEL, FRT S/D I/S HDL (ЧАСТЬ OF 26) (CASHMERE) DR (33I) (EXPORT) 2006-2007 01
021 25752962 BEZEL, FRT S/D I/S HDL (ЧАСТЬ OF 26) (EBONY) DR (13I, 19I) (EXPORT) 2006-2007 01
022 25752613 SWITCH, DR LK (ЧАСТЬ OF 26) (EBONY) D69 2003-2007 02
023 RETAINER, FRT S/D ACSRY SW MT PLT (ЧАСТЬ OF 26) 2005-2007
024 10363780 SWITCH, SI WDO (MAS) (ЧАСТЬ OF 26) (EBONY) DR (A45, B18, D26, 33I) (EXPORT) 2007-2007 01
024 10363780 SWITCH, SI WDO (MAS) (ЧАСТЬ OF 26) (EBONY) DR (D26, 13I, 19I) (EXPORT) 2007-2007 01
025 19148991 BEZEL, SI WDO SW (ЧАСТЬ OF 26) (CASHMERE) DR69 (A45, B18, D26, 33I) (EXPORT) 2006-2007 01
025 88983976 BEZEL, SI WDO SW (ЧАСТЬ OF 26) (EBONY) (USED W/WOOD HANDLE) DR (19I) (EXPORT) 2004-2007 01
025 89038794 BEZEL, SI WDO SW (ЧАСТЬ OF 26) (GRAY) (USED W/PLASTIC HANDLE) DR69 (D26, 13I) (EXPORT) 2004-2007 01
026 19148988 TRIM, FRT S/D (INCLS 7, 9-18, 21-25, 27-30, 32, 33) (CASHMERE) DR (A45, B18, D26, 33I) (EXPORT) 2006-2007 01
026 88983935 TRIM, FRT S/D (INCLS 7, 9-18, 21-25, 27-30, 32, 33) (EBONY) DR (D26, 19I) (EXPORT) 2006-2007 01
026 88983979 TRIM, FRT S/D (INCLS 7, 9-18, 21-25, 27-30, 32, 33) (GRAY) DR (D26, 13I) (EXPORT) 2006-2007 01
027 88983970 PANEL, FRT S/D UPR FRT TR (INCLS 28) (ЧАСТЬ OF 26) (EBONY) DR (A45, B18, D26, 19I, 33I) (EXPORT) 2006-2007 01
027 88983970 PANEL, FRT S/D UPR FRT TR (INCLS 28) (ЧАСТЬ OF 26) (EBONY) DR (D26, 13I) (EXPORT) 2006-2007 01
028 RETAINER, FRT S/D UPR TR (PUSH ON) (ЧАСТЬ OF 26, 27) 2005-2007
029 11562044 RETAINER, FRT S/D T/PNL (ЧАСТЬ OF 26) (FOR 1.7 MM TO 1.9 MM THICK PANEL) (INCLS 11561600) (8.950) D69 2007-2007 06
029 11562044 RETAINER, RR S/D T/PNL (ЧАСТЬ OF 26) (FOR 1.7 MM TO 1.9 MM THICK PANEL) (INCLS 11561600) (8.950) DM, DN, DR69 2004-2007 08
030 CHANNEL, FRT S/D WDO (ЧАСТЬ OF 26) 2005-2007
031 10372678 KNOB, FRT S/D LKG ROD (CASHMERE) D69 (33I) 2006-2007 02
031 25751121 KNOB, FRT S/D LKG ROD (GRAY) D69 (13I) 2004-2007 02
031 25751335 KNOB, FRT S/D LKG ROD (EBONY) D69 (19I, 31I) 2006-2007 02
032 25749090 SWITCH, D/SEAT ADJR MEMORY (ЧАСТЬ OF 26) (EBONY) D69 2004-2007 01
033 15296397 SWITCH, R/CMPT LID REL (ЧАСТЬ OF 26) (CASHMERE) DR69 (A45, B18, D26, 33I) (EXPORT) 2006-2007 01
033 25721205 SWITCH, R/CMPT LID REL (ЧАСТЬ OF 26) (GRAY) (ACDelco #D1424E) D69 (DL7, DR5, 13I) 2004-2007 01
033 25750522 SWITCH, R/CMPT LID REL (ЧАСТЬ OF 26) (EBONY) (ACDelco #D1481E) DR69 (19I) (EXPORT) 2004-2007 01
