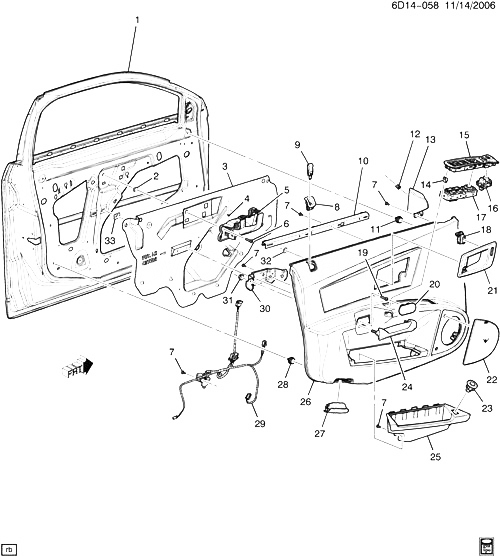

(6D14-058) - 2005-2007 DM,DN69 ОБЛИЦОВКА ПЕРЕДНЕЙ ВОДИТЕЛЬСКОЙ ДВЕРИ CADILLAC - CTS 2007

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 DOOR, FRT SI (СМ. ГРУППУ 10.000 АРМАТУРА ПЕРЕДНЕЙ ДВЕРИ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) (GRAY) (14.685) 2003-2007
002 03907444 ГАЙКА, PUSH IN, SQUARE, UN THD, M9.5 SQ HOLE, NYLON (FRT S/D I/S HDL) 2003-2007 01
003 25758248 DEFLECTOR, FRT S/D WAT D69 2003-2007 01
004 CLIP, FRT S/D I/S HDL ROD (ЧАСТЬ OF 5) 2005-2007
005 25759729 HANDLE, FRT S/D I/S (INCLS 4) (HIGH LUSTER) DM 2004-2007 01
005 25759731 HANDLE, FRT S/D I/S (INCLS 4) (SATIN CHROME) DN 2004-2007 01
006 22527475 SCREW, SEMS HEX W/FL WA M6.3X1.81X20 ABPT 6010M SOFT WA PZOR (FRT S/D I/S HDL) 2003-2007 01
007 11509253 SCREW, W/LRG WA HD, M4.2X1.4X10, 11.3 O.D., BHL PT, STL, NO (ЧАСТЬ OF 26) 2003-2007 12
008 19148996 BEZEL, FRT S/D LKG ROD P/BUT (CASHMERE) DM69 (33I) 2006-2007 02
008 88952714 BEZEL, FRT S/D LKG ROD P/BUT (GRAY) D (13I) 2003-2007 02
008 88952715 BEZEL, FRT S/D LKG ROD P/BUT (PEWTER) DM69 (DL7, 69I) (EXC A45, B18) 2006-2007 02
008 88983938 BEZEL, FRT S/D LKG ROD P/BUT (EBONY) (SATIN CHROME PULL CAP) D (19I) 2005-2007 02
009 10372678 KNOB, FRT S/D LKG ROD (CASHMERE) D69 (33I) 2006-2007 02
009 25751121 KNOB, FRT S/D LKG ROD (GRAY) D69 (13I) 2004-2007 02
009 25751335 KNOB, FRT S/D LKG ROD (EBONY) D69 (19I, 31I) 2006-2007 02
010 CHANNEL, FRT S/D WDO (ЧАСТЬ OF 26) 2005-2007
011 11562044 RETAINER, FRT S/D T/PNL (ЧАСТЬ OF 26) (FOR 1.7 MM TO 1.9 MM THICK PANEL) (INCLS 11561600) (8.950) DM, DR69 2007-2007 06
011 11562044 RETAINER, FRT S/D T/PNL (ЧАСТЬ OF 26) (FOR 1.7 MM TO 1.9 MM THICK PANEL) (INCLS 11561600) (8.950) DN69 2007-2007 06
012 RETAINER, FRT S/D UPR TR (PUSH ON) (ЧАСТЬ OF 26) 2005-2007
013 88983970 PANEL, FRT S/D UPR FRT TR (EBONY) DM (A45, DL7, 13I) (EXC B18) 2007-2007 01
013 88983970 PANEL, FRT S/D UPR FRT TR (EBONY) DM (13I) 2007-2007 01
013 88983970 PANEL, FRT S/D UPR FRT TR (EBONY) DM (B18, 19I, 33I) 2007-2007 01
013 88983971 PANEL, FRT S/D UPR FRT TR (EBONY) DM (A45, B18, DL7, 33I) 2007-2007 01
013 88983971 PANEL, FRT S/D UPR FRT TR (EBONY) DM (B18, DR5, 19I) (EXC A45) 2007-2007 01
013 88983971 PANEL, FRT S/D UPR FRT TR (EBONY) DM (B18, DR5, 33I) 2007-2007 01
013 88983971 PANEL, FRT S/D UPR FRT TR (EBONY) DM (DL7, 13I) 2007-2007 01
013 88983971 PANEL, FRT S/D UPR FRT TR (EBONY) DM (DR5, 13I) 2007-2007 01
014 RETAINER, FRT S/D ACSRY SW MT PLT (ЧАСТЬ OF 26) 2005-2007
015 19148991 BEZEL, SI WDO SW (CASHMERE) DM69 (A45, B18, DL7, 33I) 2006-2007 01
015 19148992 BEZEL, SI WDO SW (CASHMERE) DM69 (A45, B18, DR5, 33I) 2006-2007 01
015 19148993 BEZEL, SI WDO SW (CASHMERE) DM69 (B18, DR5, 33I) (EXC A45) 2006-2007 01
015 88983972 BEZEL, SI WDO SW (EBONY) DM (DR5, 19I) 2004-2007 01
015 88983974 BEZEL, SI WDO SW (EBONY) DM (DL7, 19I) (EXC A45, B18) 2006-2007 01
015 88983975 BEZEL, SI WDO SW (EBONY) (MONOTONE W/O WOOD) (W/FOLD MEMORY) (W/PLASTIC HANDLE) DM69 (DL7, 19I) 2004-2007 01
015 88983975 BEZEL, SI WDO SW (EBONY) (MONOTONE W/O WOOD) (W/FOLD MEMORY) (W/PLASTIC HANDLE) DM69 (A45, DL7, 19I, B18) 2006-2007 01
015 88983975 BEZEL, SI WDO SW (EBONY) (MONOTONE W/O WOOD) (W/FOLD MEMORY) (W/PLASTIC HANDLE) DN69 (19I, 31I) 2006-2007 01
015 89038788 BEZEL, SI WDO SW (PEWTER/GRAY) (USED W/WOOD HANDLE) DM69 (A45, DL7, 13I) 2004-2007 01
015 89038791 BEZEL, SI WDO SW (GRAY) DM69 (A45, B18, DR5, 13I) 2006-2007 01
015 89038791 BEZEL, SI WDO SW (GRAY) DM69 (DL7, 13I) (EXC A45, B18) 2006-2007 01
015 89038886 BEZEL, SI WDO SW (GRAY) DM69 (DR5, 13I) (EXC A45) 2005-2007 01
016 25749090 SWITCH, D/SEAT ADJR MEMORY (EBONY) D69 2004-2007 01
017 10363778 SWITCH, SI WDO (MAS) (EBONY) (LOCK/UNLOCK, TRUNK REL, MEMORY, OSRV MIRROR) DM (DR5, 13I, 19I, 33I) 2006-2007 01
017 10363778 SWITCH, SI WDO (MAS) (EBONY) (LOCK/UNLOCK, TRUNK REL, MEMORY, OSRV MIRROR) DN (DR5, 13I, 19I, 31I) 2006-2007 01
017 10363780 SWITCH, SI WDO (MAS) (EBONY) DM (A45, B18, DL7, 33I) 2007-2007 01
017 10363780 SWITCH, SI WDO (MAS) (EBONY) DM (DL7, 13I) 2007-2007 01
017 10363780 SWITCH, SI WDO (MAS) (EBONY) DM (DL7, 19I) 2007-2007 01
018 25752613 SWITCH, DR LK (EBONY) D69 2003-2007 02
019 03539184 БОЛТ, FRT S/D PULL HDL (ATTACH TO NUT IN SHT MTL) (14.683) D69 2003-2007 04
020 10372679 COVER, FRT S/D T/PNL (CASHMERE) D69 (33I) 2006-2007 02
020 25727743 COVER, FRT S/D T/PNL (GRAY) D69 (13I) 2005-2007 02
020 25748814 COVER, FRT S/D T/PNL (EBONY) D69 (19I, 31I) 2006-2007 02
021 15824444 BEZEL, FRT S/D I/S HDL (CASHMERE) DM (33I) 2006-2007 01
021 25752963 BEZEL, FRT S/D I/S HDL (EBONY) DM, DN (13I, 19I) 2006-2007 01
021 25752963 BEZEL, FRT S/D I/S HDL (EBONY) DN (31I) 2006-2007 01
022 19148995 GRILLE, RDO FRT SPKR (LH RH) (CASHMERE) DM69 (B18, 33I) 2006-2007 02
022 88952717 GRILLE, RDO FRT SPKR (LH RH) (GRAY) DM (13I) 2004-2007 02
022 88952717 GRILLE, RDO FRT SPKR (LH RH) (GRAY) DN (U57, 13I) 2005-2007 02
022 88983939 GRILLE, RDO FRT SPKR (LH RH) (EBONY) DM, DN (19I, 31I) 2006-2007 02
023 15296397 SWITCH, R/CMPT LID REL (CASHMERE) DM69 (A45, B18, DL7, 33I) 2006-2007 01
023 25721205 SWITCH, R/CMPT LID REL (GRAY) (ACDelco #D1424E) D69 (DL7, DR5, 13I) 2004-2007 01
023 25750522 SWITCH, R/CMPT LID REL (EBONY) (ACDelco #D1481E) DM (19I) 2006-2007 01
023 25750522 SWITCH, R/CMPT LID REL (EBONY) (ACDelco #D1481E) DN (19I, 31I) 2006-2007 01
024 19206597 HANDLE, FRT S/D PULL (GRAY) (SATIN CHROME) DN (DR5, 13I) 2006-2007 02
024 88983942 HANDLE, FRT S/D PULL (EBONY) (MONO-TONE W/O WOOD) (КРАСКАED) (HANDLE CAP COMBINED) DM (19I) (EXC B18) 2006-2007 02
024 89038779 HANDLE, FRT S/D PULL (GRAY) (BURL WALNUT WOOD HANDLE) DM (B18, 13I) 2006-2007 02
024 89038782 HANDLE, FRT S/D PULL (GRAY) (КРАСКАED) DM (13I) (EXC B18) 2006-2007 02
024 89039785 HANDLE, FRT S/D PULL (SATIN CHROME) DN (19I, 31I) 2006-2007 02
024 89040111 HANDLE, FRT S/D PULL (EBONY) (BURL WALNUT WOOD HANDLE) DM (B18, 19I) 2006-2007 02
024 89041933 HANDLE, FRT S/D PULL (EBONY) (W/FAUX HYBRID WOOD INSERTS) DM (DR5, 19I) (EXC B18) 2006-2007 02
024 89046414 HANDLE, FRT S/D PULL (CASHMERE) (W/ BURL WALNUT) DM (B18, 33I) 2006-2007 02
025 19148987 POCKET, FRT S/D MAP (CASHMERE) (W/TRUNK SWITCH HOLE) DM (A45, B18, DL7, 33I) 2006-2007 01
025 19148987 POCKET, FRT S/D MAP (CASHMERE) (W/TRUNK SWITCH HOLE) DM (B18, DR5, 33I) 2006-2007 01
025 88981445 POCKET, FRT S/D MAP (GRAY) (W/TRUNK SWITCH HOLE) DM (DR5, 13I) 2004-2007 01
025 88981445 POCKET, FRT S/D MAP (GRAY) (W/TRUNK SWITCH HOLE) DM (DL7, 13I) 2006-2007 01
025 88981451 POCKET, FRT S/D MAP (GRAY) (W/O TRUNK SWITCH HOLE) DM (A45, DL7, 13I) (EXC B18) 2006-2007 01
025 88983946 POCKET, FRT S/D MAP (EBONY) (W/TRUNK SWITCH HOLE) DM (19I) 2004-2007 01
025 88983946 POCKET, FRT S/D MAP (EBONY) (W/TRUNK SWITCH HOLE) DN (DR5, 19I, 31I) 2007-2007 01
026 19148985 TRIM, FRT S/D (INCLS 10-12, 14) (CASHMERE) DM (A45, B18, DL7, 33I) 2006-2007 01
026 19148985 TRIM, FRT S/D (INCLS 10-12, 14) (CASHMERE) DM (B18, DR5, 33I) 2006-2007 01
026 88983934 TRIM, FRT S/D (INCLS 10-12, 14) (EBONY) DM (DL7, DR5, 19I) 2005-2007 01
026 88983934 TRIM, FRT S/D (INCLS 10-12, 14) (EBONY) DN (DR5, 19I, 31I) 2006-2007 01
026 88983981 TRIM, FRT S/D (INCLS 10-12, 14) (GRAY) DM (DR5, DL7, 13I) 2004-2007 01
026 88983981 TRIM, FRT S/D (INCLS 10-12, 14) (GRAY) DN (DR5, 13I) 2006-2007 01
028 11562043 RETAINER, FRT S/D T/PNL (FOR 0.95 MM TO 1.0 MM THICK PANEL) (INCLS 11561499) (8.950) DM, DR69 2007-2007 12
028 11562043 RETAINER, FRT S/D T/PNL (FOR 0.95 MM TO 1.0 MM THICK PANEL) (INCLS 11561499) (8.950) DN69 2007-2007 12
028 11562043 RETAINER, RR S/D T/PNL (FOR 0.95 MM TO 1.0 MM THICK PANEL) (INCLS 11561499) (8.950) DM, DN, DR69 2004-2007 08
029 25702495 HARNESS, S/D WRG D69 2003-2007 01
030 88952741 BRACKET, FRT S/D PULL HDL D 2003-2007 01
031 11503749 ГАЙКА, M6X1 (FRT S/D PULL HDL) (ACDelco #11503749) 2003-2007 02
032 20049623 ГАЙКА, HFH, 3/16, .75 O.D., .125 HT, SPR ST, PC (FRT S/D TR FIN PNL) 2003-2007 02
033 20310739 ГАЙКА, FRT S/D PULL HDL (3.125 MM) (RECTANGULAR NYLON) (14.690) D69 2003-2007 04
