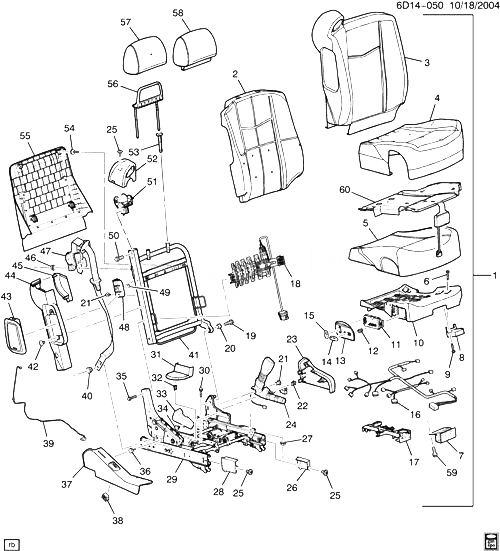

(6D14-050) - 2005-2007 DM,DN69 СИДЕНЬЕ ПАССАЖИРА (POWER ADJUSTER AH8) CADILLAC - CTS 2007

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 SEAT, PASS (ONLY AVAILABLE FOR CURRENT MODEL YEAR VEHICLES) (INCLS 2-60) 2005-2007
002 88994085 PAD, P/SEAT BK CUSH (14.896) DM, DN (AH8) 2005-2007 01
003 19122678 COVER, P/SEAT BK CUSH (CASHMERE) DM (AQ9, 334) (EXC KA1) 2006-2007 01
003 19122679 COVER, P/SEAT BK CUSH (CASHMERE) DM (AQ9, KA1, 334) 2006-2007 01
003 19122691 COVER, P/SEAT BK CUSH (CASHMERE W/EBONY) DN (AQ9, 315) 2006-2007 01
003 88995445 COVER, P/SEAT BK CUSH (EBONY) DM (AQ9, 19W) (EXC KA1) 2005-2007 01
003 88995446 COVER, P/SEAT BK CUSH (GRAY) DM (AQ9, 13W) (EXC KA1) 2005-2007 01
003 88995448 COVER, P/SEAT BK CUSH (EBONY) DM (AQ9, KA1, 19W) 2005-2007 01
003 88995450 COVER, P/SEAT BK CUSH (GRAY) DM (AQ9, KA1, 13W) 2005-2007 01
003 88995888 COVER, P/SEAT BK CUSH (GRAY W/EBONY) DM (AQ9, 134) (EXC KA1) 2005-2007 01
003 88995889 COVER, P/SEAT BK CUSH (EBONY) DM (AQ9, 194) (EXC KA1) 2005-2007 01
003 88995892 COVER, P/SEAT BK CUSH (GRAY W/EBONY) DM (AQ9, KA1, 134) 2005-2007 01
003 88995893 COVER, P/SEAT BK CUSH (EBONY) DM (AQ9, KA1, 194) 2005-2007 01
003 88995944 COVER, P/SEAT BK CUSH (EBONY) DN (AQ9, 195) 2006-2007 01
003 88995946 COVER, P/SEAT BK CUSH (GRAY) DN (AQ9, 135) 2006-2007 01
004 19122683 COVER, P/SEAT CUSH (CASHMERE) DM (AH8, AL2, AQ9, 334) (EXC KA1) 2006-2007 01
004 19122685 COVER, P/SEAT CUSH (CASHMERE) DM (AL2, AQ9, KA1, 334) (EXC CZ2) 2006-2007 01
004 19122697 COVER, P/SEAT CUSH (CASHMERE W/EBONY) (14.800) DN (AQ9, 315) 2006-2007 01
004 88995461 COVER, P/SEAT CUSH (EBONY) DM (AH8, AL2, AQ9, 19W) (EXC KA1) 2005-2007 01
004 88995462 COVER, P/SEAT CUSH (GRAY) DM (AH8, AL2, AQ9, 13W) (EXC KA1) 2005-2007 01
004 88995467 COVER, P/SEAT CUSH (EBONY) DM (AH8, AQ9, KA1, 19W) 2005-2007 01
004 88995468 COVER, P/SEAT CUSH (GRAY) DM (AH8, AL2, AQ9, KA1, 13W) 2005-2007 01
004 88995912 COVER, P/SEAT CUSH (GRAY W/EBONY) DM (AH8, AL2, AQ9, 134) (EXC KA1) 2005-2007 01
004 88995913 COVER, P/SEAT CUSH (EBONY) DM (AH8, AL2, AQ9, 194) (EXC KA1) 2005-2007 01
004 88995920 COVER, P/SEAT CUSH (GRAY W/EBONY) DM (AH8, AL2, AQ9, KA1, 134) 2005-2007 01
004 88995921 COVER, P/SEAT CUSH (EBONY) DM (AL2, AQ9, A45, KA1, 194) (EXC CZ2) 2005-2007 01
004 88995972 COVER, P/SEAT CUSH (EBONY) DN (AQ9, 195) 2006-2007 01
004 88995974 COVER, P/SEAT CUSH (GRAY) DN (AQ9, 135) 2006-2007 01
005 CUSHION, P/SEAT (ЧАСТЬ OF 60) 2005-2007
006 БОЛТ, P/SEAT CUSH FRM (ЧАСТЬ OF 10) 2005-2007
007 88992264 BRACKET, P/SEAT CUSH FRM FRT DM (AX4) (EXPORT) 2005-2007 01
008 10399538 МОДУЛЬ, P/SEAT HTR CONT D69 (KA1) 2005-2007 01
009 88897644 БОЛТ, P/SEAT ADJR (ADJR TO FRM) D69 2005-2007 01
010 88895458 РАМА, P/SEAT CUSH (INCLS 6) (PWR) DM, DN 2005-2007 01
011 12450264 SWITCH, P/SEAT ADJR (8-WAY) DM, DN 2005-2007 01
012 RETAINER, P/SEAT ADJR FIN CVR (ЧАСТЬ OF 13) 2005-2007
013 19122670 BEZEL, P/SEAT ADJR SW (INCLS 12) (CASHMERE) DM (33I) 2006-2007 01
013 19122670 BEZEL, P/SEAT ADJR SW (INCLS 12) (CASHMERE) DN (31I) 2006-2007 01
013 88895399 BEZEL, P/SEAT ADJR SW (INCLS 12) (GRAY) DM, DN (13I) 2005-2007 01
013 88992624 BEZEL, P/SEAT ADJR SW (INCLS 12) (EBONY) DM, DN (19I) 2005-2007 01
014 10367220 KNOB, P/SEAT ADJR SW (CASHMERE) DM (33I) 2006-2007 01
014 10367220 KNOB, P/SEAT ADJR SW (CASHMERE) DN (31I) 2006-2007 01
014 25721217 KNOB, P/SEAT ADJR SW (GRAY) D69 (13I) 2005-2007 01
014 25749092 KNOB, P/SEAT ADJR SW (EBONY) D69 (19I) 2005-2007 01
015 15210789 KNOB, P/SEAT RECL (CASHMERE) DM (33I) 2006-2007 01
015 15210789 KNOB, P/SEAT RECL (CASHMERE) DN (31I) 2006-2007 01
015 25749094 KNOB, P/SEAT RECL (EBONY) DM, DN (19I) 2005-2007 01
015 89043626 KNOB, P/SEAT RECL (EBONY) (11.588) DM (19I) 2006-2007 01
016 88994821 HARNESS, P/SEAT WRG (INCLS 17) DM (AH8, AL2, AQ9, ILW, IL4) (EXC KA1) 2007-2007 01
016 88994822 HARNESS, P/SEAT WRG (INCLS 17) DM (AH8, AL2, AQ9) 2005-2007 01
016 88994822 HARNESS, P/SEAT WRG (INCLS 17) DN69 (AQ9, AQ9) 2005-2007 01
017 SHIELD, WRG HARNESS (ЧАСТЬ OF 16) 2005-2007
018 88994089 LUMBAR SUB, P/SEAT (W/LUMBAR MOTOR) DM, DN 2005-2007 01
019 88952646 БОЛТ, P/SEAT BK CUSH PIV (INCLS 20) (11.628) DM 2005-2007 01
020 BUSHING, P/SEAT BK CUSH PIV (ЧАСТЬ OF 19) 2005-2007
021 88952627 ГАЙКА, P/SEAT BELT (BKL SI) (TUBE NUT) (11.556) D 2005-2007 01
022 RETAINER, P/SEAT ADJR FIN CVR (ЧАСТЬ OF 23) 2005-2007
023 19122660 COVER, P/SEAT RECL LWR FIN (INCLS 22) (CASHMERE) (INR) DM (33I) 2006-2007 01
023 19122660 COVER, P/SEAT RECL LWR FIN (INCLS 22) (CASHMERE) (INR) DN (31I) 2006-2007 01
023 88895371 COVER, P/SEAT RECL LWR FIN (INCLS 22) (GRAY) (INR) DM, DN (13I) 2005-2007 01
023 88992616 COVER, P/SEAT RECL LWR FIN (INCLS 22) (EBONY) (INR) DM, DN (19I) 2005-2007 01
024 15144623 BELT, P/SEAT (BKL SI) (GRAY) DM (AX4, 13I) (EXPORT) 2005-2007 01
024 15144624 BELT, P/SEAT (BKL SI) (EBONY) DM (AX4, 19I) (EXPORT) 2005-2007 01
024 15210813 BELT, P/SEAT (BKL SI) (CASHMERE) DM (AX4, 33I) (EXPORT) 2006-2007 01
024 89024403 BELT KIT, P/SEAT (BKL SI) (GRAY) DM, DN (13I) 2006-2007 01
024 89024404 BELT KIT, P/SEAT (BKL SI) (EBONY) DM (19W) 2006-2007 01
024 89024404 BELT KIT, P/SEAT (BKL SI) (EBONY) DM (IL4) (EXC AX4) 2006-2007 01
024 89024404 BELT KIT, P/SEAT (BKL SI) (EBONY) DN (19I) 2006-2007 01
024 89026038 BELT KIT, P/SEAT (BKL SI) (CASHMERE) DM (33I) 2006-2007 01
024 89026038 BELT KIT, P/SEAT (BKL SI) (CASHMERE) DN (315) 2006-2007 01
025 88897272 БОЛТ, P/SEAT (TOWER COVER) D69 2005-2007 03
026 19122671 COVER, P/SEAT ADJR FIN (CASHMERE) (FRT) DM (33I) 2006-2007 01
026 19122671 COVER, P/SEAT ADJR FIN (CASHMERE) (FRT) DN (31I) 2006-2007 01
026 19122672 COVER, P/SEAT ADJR FIN (CASHMERE) (FRT) DM (33I) 2006-2007 01
026 19122672 COVER, P/SEAT ADJR FIN (CASHMERE) (FRT) DN (31I) 2006-2007 01
026 88895391 COVER, P/SEAT ADJR FIN (GRAY) (FRT) D69 (13I) 2006-2007 01
026 88992625 COVER, P/SEAT ADJR FIN (EBONY) (FRT) D69 (19I) 2005-2007 01
026 88992626 COVER, P/SEAT ADJR FIN (EBONY) (FRT) D69 (19I) 2005-2007 01
027 11514623 БОЛТ, HEX W/CON WA, M6X1X20 (P/SEAT SI INFL RST MDL) 2005-2007 02
028 19122672 COVER, P/SEAT ADJR FIN (CASHMERE) (FRT) DM (33I) 2006-2007 01
028 19122672 COVER, P/SEAT ADJR FIN (CASHMERE) (FRT) DN (31I) 2006-2007 01
028 88895391 COVER, P/SEAT ADJR FIN (GRAY) (FRT) D69 (13I) 2006-2007 01
028 88992626 COVER, P/SEAT ADJR FIN (EBONY) (FRT) D69 (19I) 2005-2007 01
029 ADJUSTER, P/SEAT (СМ. ГРУППУ 11.000 ADJUSTER ASM/PASSENGER ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2005-2007
030 11609257 БОЛТ, P/SEAT ADJR (W/BELT) (M12X1.75X34) (8.907) D 2005-2007 AR
031 19122675 COVER, P/SEAT ADJR БОЛТ FIN (INCLS 32) (CASHMERE) DM (33I) 2006-2007 01
031 19122675 COVER, P/SEAT ADJR БОЛТ FIN (INCLS 32) (CASHMERE) DN (31I) 2006-2007 01
031 88895410 COVER, P/SEAT ADJR БОЛТ FIN (INCLS 32) (GRAY) D69 (13I) 2005-2007 01
031 88992629 COVER, P/SEAT ADJR БОЛТ FIN (INCLS 32) (EBONY) D69 (19I) 2005-2007 01
032 RETAINER, P/SEAT INR ADJR RR FIN CVR (ЧАСТЬ OF 31) 2005-2007
033 88895385 BEZEL, P/SEAT BELT OPG (BKL SI) (GRAY) DN (13I) 2005-2007 01
034 00332364 RETAINER - PUSH IN, FITS HOLE SIZE 0.245 - 0.260, GRIP LENGTH 0.52, 0.7 OD, MATERIAL NYLON 6/6 PER GMP.PA66.015 (P/SEAT SHLDR BELT) 2005-2007 01
035 88897643 БОЛТ, P/SEAT RECL (RECL TO FRM) D69 2005-2007 02
036 RETAINER, P/SEAT OTR RECL FIN CVR (ЧАСТЬ OF 37) 2005-2007
038 10315826 SWITCH, D/SEAT LUMBAR CONT (EBONY) D69 (19I) 2005-2007 01
038 15210786 SWITCH, D/SEAT LUMBAR CONT (CASHMERE) DM (33I) 2006-2007 01
038 15210786 SWITCH, D/SEAT LUMBAR CONT (CASHMERE) DN (31I) 2006-2007 01
039 25736516 HARNESS, INFL RST WRG (LESS TUBE-ST MEMORY SWITCH HARNESS) DM (AH8, AL2, AQ9, ILW) (EXC AX4) 2005-2007 01
039 25736516 HARNESS, INFL RST WRG (LESS TUBE-ST MEMORY SWITCH HARNESS) DM (AQ9, ILW) (EXC A45) 2005-2007 01
039 25736516 HARNESS, INFL RST WRG (LESS TUBE-ST MEMORY SWITCH HARNESS) DN (AQ9) 2005-2007 01
040 25604879 ГАЙКА, P/SEAT BELT (RETR SI) (SPL W/10X1.5 THREAD) (W/SILENCER (PLASTIC)ATTACHED) D 2005-2007 01
041 88994109 РАМА, P/SEAT BK CUSH (W/LUMBAR КРЕПЛЕНИЕ) DM (AH8, AL2) 2006-2007 01
041 88994109 РАМА, P/SEAT BK CUSH (W/LUMBAR КРЕПЛЕНИЕ) DN 2006-2007 01
042 00332364 RETAINER - PUSH IN, FITS HOLE SIZE 0.245 - 0.260, GRIP LENGTH 0.52, 0.7 OD, MATERIAL NYLON 6/6 PER GMP.PA66.015 (P/SEAT CUSH FRM SUPT) 2005-2007 02
043 15949901 МОДУЛЬ, P/SEAT SI INFL RST (GRAY) DM, DN (13I) 2006-2007 01
043 15949902 МОДУЛЬ, P/SEAT SI INFL RST (EBONY) DM (19I) 2006-2007 01
043 15949903 МОДУЛЬ, P/SEAT SI INFL RST (CASHMERE) DM (334) 2006-2007 01
043 15949903 МОДУЛЬ, P/SEAT SI INFL RST (CASHMERE) DN (315) 2006-2007 01
044 88897617 PANEL, P/SEAT BK CUSH SI BOLS DM, DN 2005-2007 01
045 19122662 BEZEL, P/SEAT SHLDR BELT OPG (CASHMERE) DM (33I) 2006-2007 01
045 19122662 BEZEL, P/SEAT SHLDR BELT OPG (CASHMERE) DN (31I) 2006-2007 01
045 88897619 BEZEL, P/SEAT SHLDR BELT OPG DM (ILC, IL2) 2005-2007 01
045 88897619 BEZEL, P/SEAT SHLDR BELT OPG DN (ILC, IL2) 2005-2007 01
045 88992618 BEZEL, P/SEAT SHLDR BELT OPG (EBONY) DM (19I) 2005-2007 01
045 88992618 BEZEL, P/SEAT SHLDR BELT OPG (EBONY) DN (19I) 2005-2007 01
046 11517996 ГАЙКА, P/SEAT BELT (RETR SI) (M10X1.5, 11.2 THK) (8.917) (ACDelco #11517996) D 2005-2007 01
047 10369734 BELT, P/SEAT (RETR SI) (EBONY) DN (195) 2006-2007 01
047 10369737 BELT, P/SEAT (RETR SI) (GRAY) DM (AX4, 13I) (EXPORT) 2005-2007 01
047 10369739 BELT, P/SEAT (RETR SI) (EBONY) DM (AX4, 19C) (EXPORT) 2005-2007 01
047 10369739 BELT, P/SEAT (RETR SI) (EBONY) DM (19W, 194) (EXPORT) 2006-2007 01
047 25782146 BELT, P/SEAT (RETR SI) (CASHMERE) DM (AX4, 332, 334) (EXPORT) 2006-2007 01
048 BRACKET, P/SEAT 2005-2007
049 11517068 ГАЙКА, INFL RST P/SEAT SI MDL (M6X1X3, 14.2 O.D.) (8.917) D 2005-2007 04
050 88952646 БОЛТ, P/SEAT BK CUSH FRM (11.628) D69 2005-2007 01
051 88897641 ROLLER, P/SEAT SHLDR BELT DM 2005-2007 01
052 88897615 COVER, P/SEAT SHLDR BELT OPG BZL (11.573) DM 2005-2007 01
052 88897615 COVER, P/SEAT SHLDR BELT OPG BZL (11.573) DN 2005-2007 01
053 19122625 GUIDE, P/SEAT H/RST (EBONY) (W/O BUTTON) D69 (19I) 2005-2007 01
053 19122627 GUIDE, P/SEAT H/RST (EBONY) (W/BUTTON) D69 (19I) 2005-2007 01
053 19122701 GUIDE, P/SEAT H/RST (CASHMERE) (3 7/8 INCHES) (W/O BUTTON) DM (33I) 2006-2007 01
053 19122701 GUIDE, P/SEAT H/RST (CASHMERE) (3 7/8 INCHES) (W/O BUTTON) DN (31I) 2006-2007 01
053 19122702 GUIDE, P/SEAT H/RST (CASHMERE) (3 7/8 INCHES) (W/BUTTON) DM (33I) 2006-2007 01
053 19122702 GUIDE, P/SEAT H/RST (CASHMERE) (3 7/8 INCHES) (W/BUTTON) DN (31I) 2006-2007 01
053 88994730 GUIDE, P/SEAT H/RST (GRAY) (W/BUTTON) (11.625) DM, DN (13I) 2005-2007 01
053 88994731 GUIDE, P/SEAT H/RST (GRAY) (W/O BUTTON) (11.625) D69 (13I) 2005-2007 01
054 10421018 RETAINER, P/SEAT BK CUSH CVR (ЧАСТЬ OF 55) (NATURAL) (4MM HOLE, 33MM) (15.100) DM, DN 2005-2007 03
055 19122658 PANEL, P/SEAT BK CUSH FIN (INCLS 54) (CASHMERE) (W/MESH MAP PKT) DM (33I) 2006-2007 01
055 88895407 PANEL, P/SEAT BK CUSH FIN (INCLS 54) (GRAY) (W/MESH MAP PKT) DM, DN (13I) 2005-2007 01
055 88992614 PANEL, P/SEAT BK CUSH FIN (INCLS 54) (EBONY) (W/MESH MAP PKT) DM, DN (19I) 2005-2007 01
056 88897670 SUPPORT, P/SEAT H/RST (*KIT1) D 2005-2007 01
057 88897669 FILLER, P/SEAT H/RST (*KIT1) D69 2005-2007 01
058 19122687 COVER, P/SEAT H/RST FIN (CASHMERE) DM (334) 2006-2007 01
058 88995928 COVER, P/SEAT H/RST FIN (GRAY) DM (134) 2005-2007 01
058 88995929 COVER, P/SEAT H/RST FIN (EBONY) (16.718) DM (194) 2005-2007 01
059 11509428 БОЛТ/SCREW, HEX, W/FLAT WA, M4.2X1.4X13, 12.3 O.D., BHL PT, 6010M, NO (P/SEAT CUSH FRM) (8.977) 2005-2007 04
060 19124390 МОДУЛЬ KIT, INFL RST FRT PASS PRESENCE (W/ SEN) (INCLS 5) DM, DN 2005-2007 01
K01 19122699 RESTRAINT, P/SEAT HD (INCLS 56, 57) (CASHMERE) DM (334) 2006-2007 01
K01 19122700 RESTRAINT, P/SEAT HD (INCLS 56, 57) (CASHMERE) DN (315) 2006-2007 01
K01 88995473 RESTRAINT, P/SEAT HD (INCLS 56, 57) (EBONY) DM (19W) 2005-2007 01
K01 88995474 RESTRAINT, P/SEAT HD (INCLS 56, 57) (GRAY) DM (13W) 2005-2007 01
K01 88995980 RESTRAINT, P/SEAT HD (INCLS 56, 57) (GRAY) DM (134) 2005-2007 01
K01 88995981 RESTRAINT, P/SEAT HD (INCLS 56, 57) (EBONY) (16.718) DM (194) 2005-2007 01
K01 88995984 RESTRAINT, P/SEAT HD (INCLS 56, 57) (EBONY) DN (195) 2005-2007 01
K01 88995986 RESTRAINT, P/SEAT HD (INCLS 56, 57) (GRAY) DN (135) 2005-2007 01
