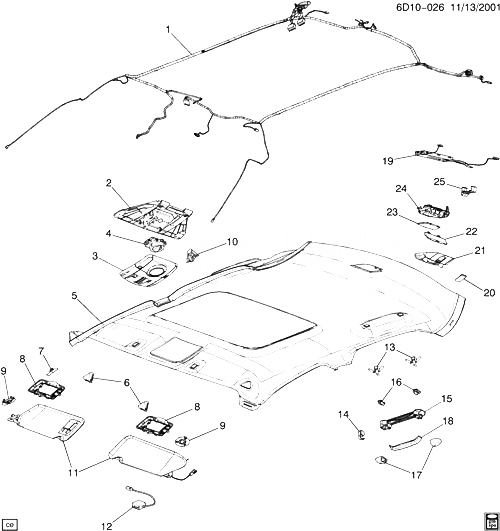

(6D10-026) - 2003-2007 D69 КРЫША HEADLINER (ЛЮК CF5) CADILLAC - CTS 2007

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 HARNESS, W/S HDR WRG (ЧАСТЬ OF 5) 2007-2007
002 19148855 RETAINER, RF CNSL (PUSH IN) D69 2005-2007 01
003 19149453 BEZEL, RF CNSL ACSRY SW (INCLS 7) (GRAY) (INCLS MECHANICAL CLIP DIMMER SWITCH W/DETECTOR) (WHEN REPL 2005 PRIOR MODEL YEAR DEALER MAY NEED TO ORDER ЧАСТЬ 19149453 T/W RETAINER 19148855.) D69 (CF5, 13I, 19I) 2006-2007 01
003 19149455 BEZEL, RF CNSL ACSRY SW (INCLS 7) (CASHMERE) (INCLS MECHANICAL CLIP DIMMER SWITCH W/DETECTOR) (WHEN REPL 2005 PRIOR MODEL YEAR, DLR MAY NEED TO ORDER ЧАСТЬ 19149455 T/W RETAINER 19148871.) DM, DN (CF5, 31I, 33I, 34I) 2006-2007 01
004 15255207 SWITCH, SUN RF (GRAY SWITCH KNOB, EBONY INTERIOR) D69 (CF5, 13I, 19I) 2004-2007 01
004 15256152 SWITCH, SUN RF (CASHMERE/EBONY) D69 (33I, 31I) 2007-2007 01
005 89026101 PANEL, HDLNG TR (INCLS 1, 25) (CASHMERE) DM (CF5, U2R, U66, 33I) (EXC AU5, UA2) 2007-2007 01
005 89026101 PANEL, HDLNG TR (INCLS 1, 25) (CASHMERE) DR (CF5, UA2, U2R, U66, 33I) (EXC AU5) (EXPORT) 2007-2007 01
005 89026102 PANEL, HDLNG TR (INCLS 1, 25) (CASHMERE) DN (CF5, 31I) 2006-2007 01
005 89026102 PANEL, HDLNG TR (INCLS 1, 25) (CASHMERE) DM (AU5, CF5, U2S, U2Y, U57, 33I) (EXC UA2) 2007-2007 01
005 89026102 PANEL, HDLNG TR (INCLS 1, 25) (CASHMERE) DM (AU8, CF5, U2S, U2Y, U57, 33I) 2007-2007 01
005 89026102 PANEL, HDLNG TR (INCLS 1, 25) (CASHMERE) DM (CF5, UAV, U2S, U57, 33I) (EXC AU5, AU8, UA2) 2007-2007 01
005 89026102 PANEL, HDLNG TR (INCLS 1, 25) (CASHMERE) DR (CF5, UA2, U2S, U2Y, U57, 33I) (EXC AU5) (EXPORT) 2007-2007 01
005 89026105 PANEL, HDLNG TR (INCLS 1, 25) (CASHMERE) DM (AU5, CF5, U2X, U57, 33I) (EXC UA2) 2007-2007 01
005 89026105 PANEL, HDLNG TR (INCLS 1, 25) (CASHMERE) DR (AU5, CF5, U2X, U57, 33I) (EXC UA2) (EXPORT) 2007-2007 01
005 89026527 PANEL, HDLNG TR (INCLS 1, 25) (GRAY) (HEADLINER PANEL W/PASSENGER PRESSENCE SYSTEM) (W/SUPRESSION) DN (CF5, 13I, 19I) 2005-2007 01
005 89026527 PANEL, HDLNG TR (INCLS 1, 25) (GRAY) (HEADLINER PANEL W/PASSENGER PRESSENCE SYSTEM) (W/SUPRESSION) DM (AU5, CF5, U2S, U2Y, U57, 13I, 19I) (EXC UA2) 2007-2007 01
005 89026527 PANEL, HDLNG TR (INCLS 1, 25) (GRAY) (HEADLINER PANEL W/PASSENGER PRESSENCE SYSTEM) (W/SUPRESSION) DM (AU8, CF5, U2S, U2Y, U57, 13I, 19I) 2007-2007 01
005 89026527 PANEL, HDLNG TR (INCLS 1, 25) (GRAY) (HEADLINER PANEL W/PASSENGER PRESSENCE SYSTEM) (W/SUPRESSION) DM (CF5, UAV, U2S, U57, 13I, 19I) (EXC AU5, AU8, UA2) 2007-2007 01
005 89026527 PANEL, HDLNG TR (INCLS 1, 25) (GRAY) (HEADLINER PANEL W/PASSENGER PRESSENCE SYSTEM) (W/SUPRESSION) DR (CF5, UA2, U2S, U2Y, U57, 13I, 19I) (EXC AU5) (EXPORT) 2007-2007 01
005 89026530 PANEL, HDLNG TR (INCLS 1, 25) (GRAY) (HEADLINER PANEL W/PASSENGER PRESSENCE SYSTEM) DM (AU8, CF5, U2R, U66, 13I, 19I) 2007-2007 01
005 89026530 PANEL, HDLNG TR (INCLS 1, 25) (GRAY) (HEADLINER PANEL W/PASSENGER PRESSENCE SYSTEM) DM (CF5, U2R, U66, 13I, 19I) (EXC AU5, AU8, UA2) 2007-2007 01
005 89026530 PANEL, HDLNG TR (INCLS 1, 25) (GRAY) (HEADLINER PANEL W/PASSENGER PRESSENCE SYSTEM) DR (CF5, UA2, U2R, U66, 13I, 19I) (EXC AU5) (EXPORT) 2007-2007 01
005 89026533 PANEL, HDLNG TR (INCLS 1, 25) (GRAY) (HEADLINER PANEL W/PASSENGER PRESSENCE SYSTEM) DM (AU5, CF5, U2X, U57, 13I, 19I) (EXC UA2) 2007-2007 01
005 89026533 PANEL, HDLNG TR (INCLS 1, 25) (GRAY) (HEADLINER PANEL W/PASSENGER PRESSENCE SYSTEM) DR (AU5, CF5, U2X, U57, 13I, 19I) (EXC UA2) (EXPORT) 2007-2007 01
006 88952147 RETAINER, S/S (GRAY) D69 (13I, 19I) 2004-2007 01
006 89026094 RETAINER, S/S (CASHMERE) DM69 (33I) 2006-2007 01
006 89026094 RETAINER, S/S (CASHMERE) DN69 (31I) 2006-2007 01
006 89026094 RETAINER, S/S (CASHMERE) DR69 (33I) (EXPORT) 2006-2007 01
007 88952150 RETAINER, S/S (ЧАСТЬ OF 3) (GRAY) D69 (13I, 19I) 2004-2007 01
007 89026095 RETAINER, S/S (ЧАСТЬ OF 3) (CASHMERE) DM69 (33I) 2006-2007 01
007 89026095 RETAINER, S/S (ЧАСТЬ OF 3) (CASHMERE) DN69 (31I) 2006-2007 01
007 89026095 RETAINER, S/S (ЧАСТЬ OF 3) (CASHMERE) DR69 (33I) (EXPORT) 2006-2007 01
008 88952168 LENS, S/S ILLUM MIR LP (LESS BULB) D69 2003-2007 04
009 21031302 REINFORCEMENT, S/S SUPT (CLIP) (ANCHOR PLT/SPIDER CLIP) D69 2003-2007 02
010 22612024 RETAINER, R/RL C/LP (55MM LONG) (PUSH-IN) (15.394) D69 2003-2007 02
011 88952122 СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, (GRAY) D69 (13I, 19I) 2004-2007 01
011 88952125 СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, (GRAY) (W/O GDO) D69 (13I, 19I) (EXC UG1) 2004-2007 01
011 88957498 СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, (GRAY) (W/JCI HOUSE SYMBOL ATTACHED GDO) (W/O TRAVELNOTE) DM69 (UG1, 13I, 19I) 2004-2007 01
011 88957498 СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, (GRAY) (W/JCI HOUSE SYMBOL ATTACHED GDO) (W/O TRAVELNOTE) DN69 (13I, 19I) 2004-2007 01
011 89026092 СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, (CASHMERE) DM69 (33I) 2006-2007 01
011 89026092 СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, (CASHMERE) DN69 (31I) 2006-2007 01
011 89026092 СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, (CASHMERE) DR69 (33I) (EXPORT) 2006-2007 01
011 89026093 СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, (CASHMERE) (W/O UGDO) DM69 (33I) 2006-2007 01
011 89026093 СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, (CASHMERE) (W/O UGDO) DR69 (33I) (EXPORT) 2006-2007 01
011 89026098 СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, (CASHMERE) (W/UGDO) DM69 (UG1, 33I) 2006-2007 01
011 89026098 СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК, (CASHMERE) (W/UGDO) DN69 (31I) 2006-2007 01
012 15240415 MICROPHONE, RDO VOL COMP INTR NOISE D69 2003-2007 01
013 25725191 CLIP, HDLNG T/PNL (GREEN) (18X12.5, SAE 1050STL) (CLIP TO HOLD M4.2X1.41 SCREW, PNL RING 0.94-3.5) DM 2007-2007 04
013 25725191 CLIP, HDLNG T/PNL (GREEN) (18X12.5, SAE 1050STL) (CLIP TO HOLD M4.2X1.41 SCREW, PNL RING 0.94-3.5) DR 2007-2007 04
014 88951934 HOOK, COAT (GRAY) DM, DN69 (13I, 19I) 2003-2007 02
014 88951934 HOOK, COAT (GRAY) DR69 (13I, 19I) (EXPORT) 2003-2007 02
014 89026089 HOOK, COAT (CASHMERE) DM, DN69 (31I, 33I) 2006-2007 02
014 89026089 HOOK, COAT (CASHMERE) DR69 (31I) (EXPORT) 2006-2007 02
015 88952103 RETAINER, ASST HDL BRKT (259X54X46) DM69 (CF5) 2004-2007 02
015 88952103 RETAINER, ASST HDL BRKT (259X54X46) DR69 (CF5) (EXPORT) 2005-2007 02
016 88952116 BRACKET, ASST HDL (HDLNR SUPT BRKT ASST HNDL) D69 2003-2007 04
017 88951937 ESCUTCHEON, R/RL FRT ASST STRP (GRAY) (END CAP-ASSIST HANDLE) D69 (13I, 19I) 2003-2007 04
017 89026090 ESCUTCHEON, R/RL RR ASST STRP (CASHMERE) (ASSIST HANDLE END CAP) DM, DN (33I) 2006-2007 04
017 89026090 ESCUTCHEON, R/RL RR ASST STRP (CASHMERE) (ASSIST HANDLE END CAP) DM, DN (31I) 2007-2007 04
018 88952118 HANDLE, ASST (GRAY) (HDLING TRIM) DM, DN69 (13I, 19I) 2003-2007 02
018 88952118 HANDLE, ASST (GRAY) (HDLING TRIM) DR69 (13I, 19I) (EXPORT) 2003-2007 02
018 89026088 HANDLE, ASST (CASHMERE) (HDLING TRIM) DM, DN69 (31I, 33I) 2006-2007 02
018 89026088 HANDLE, ASST (CASHMERE) (HDLING TRIM) DR69 (31I) (EXPORT) 2006-2007 02
019 19115756 МОДУЛЬ, RDO ANT (ACDelco #19115756) DM69 (EXC AU5, AU8) 2005-2007 01
019 19115756 МОДУЛЬ, RDO ANT (ACDelco #19115756) DN69 2006-2007 01
019 19115758 МОДУЛЬ, RDO ANT (ACDelco #19115758) DM, DR69 (AU5) (EXPORT) 2007-2007 01
019 19115762 МОДУЛЬ, RDO ANT (ACDelco #19115762) DM69 (AU8) 2005-2007 01
019 19115762 МОДУЛЬ, RDO ANT (ACDelco #19115762) DR69 (EXC AU5) (EXPORT) 2005-2007 01
020 COVER, DM LP OPG (ЧАСТЬ OF 21) 2003-2007
021 88952105 BEZEL, DM LP (INCLS 20, 23-24) (GRAY) (W/INTRUSION) DM69 (AU5, AU8) 2005-2007 01
021 88952105 BEZEL, DM LP (INCLS 20, 23-24) (GRAY) (W/INTRUSION) DR69 (EXPORT) 2005-2007 01
021 88952108 BEZEL, DM LP (INCLS 20, 23-24) (GRAY) (W/O INTRUSION) D69 (13W, 134, 19C, 19W, 194) (EXC UA2) 2005-2007 01
021 88952108 BEZEL, DM LP (INCLS 20, 23-24) (GRAY) (W/O INTRUSION) D69 (19I, 192) (EXC UA2) 2005-2007 01
021 89026091 BEZEL, DM LP (INCLS 20, 23-24) (CASHMERE) D69 (332, 334) (EXC UA2) 2006-2007 01
021 89026103 BEZEL, DM LP (INCLS 20, 23-24) (CASHMERE) D69 (UA2, 332, 334) 2006-2007 01
022 25697492 SENSOR, THEFT DTRNT (LEATHER INTERIOR) D69 2003-2007 01
022 25735888 SENSOR, THEFT DTRNT (CLOTH INTERIOR) D69 2003-2007 01
023 LENS, DM LP (ЧАСТЬ OF 21) 2003-2007
024 ШЛАНГИ, DM LP (ЧАСТЬ OF 21) 2003-2007
025 BRACKET, RDO ANT (ЧАСТЬ OF 5) 2003-2007
