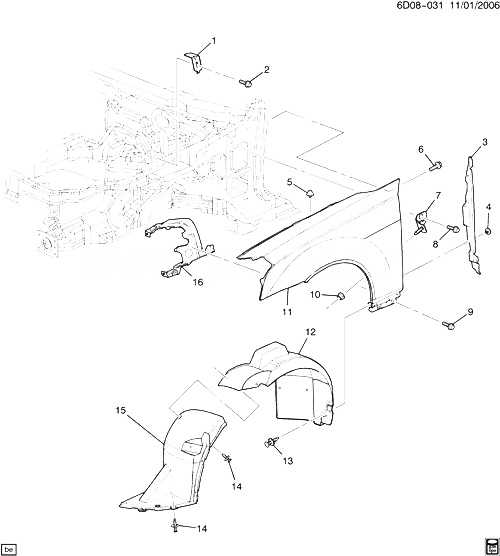

(6D08-031) - 2003-2007 D69 КРЫЛО КОЛЕСНАЯ КОРОБКА ПЕРЕДНЯЯ CADILLAC - CTS 2007

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15210125 BRACKET, F/FDR UPR DM, DN 2007-2007 02
001 15210125 BRACKET, F/FDR UPR DR (EXPORT) 2007-2007 02
002 11609540 БОЛТ, HWASH, M6X1X20, 16.15 THD, 17 OD, 8.8, GMW4205, HDR PT. (F/FDR UPR) 2003-2007 02
003 25740186 INSULATOR, F/FDR (INCLS 4) DM, DN 2006-2007 01
003 25740186 INSULATOR, F/FDR (INCLS 4) DR (EXPORT) 2006-2007 01
003 25740187 INSULATOR, F/FDR (INCLS 4) DM, DN 2006-2007 01
003 25740187 INSULATOR, F/FDR (INCLS 4) DR (EXPORT) 2006-2007 01
004 11519949 RETAINER, F/FDR INSL (ЧАСТЬ OF 3) (20MM DIA X 13.4MM) (PUSH PIN GROMMET) (10.154) DM, DN 2004-2007 04
004 11519949 RETAINER, F/FDR INSL (ЧАСТЬ OF 3) (20MM DIA X 13.4MM) (PUSH PIN GROMMET) (10.154) DR (EXPORT) 2004-2007 04
005 10119823 BUMPER, КАПОТ STOP (12.945) DM, DN, DR 2004-2007 02
006 11609540 БОЛТ, HWASH, M6X1X20, 16.15 THD, 17 OD, 8.8, GMW4205, HDR PT. (F/FDR) 2003-2007 04
007 15887529 BRACKET, F/FDR RR CTR DM, DN 2006-2007 01
007 15887529 BRACKET, F/FDR RR CTR DR (EXPORT) 2006-2007 01
007 15887530 BRACKET, F/FDR RR CTR DM, DN 2006-2007 01
007 15887530 BRACKET, F/FDR RR CTR DR (EXPORT) 2006-2007 01
008 11609540 БОЛТ, HWASH, M6X1X20, 16.15 THD, 17 OD, 8.8, GMW4205, HDR PT. (F/FDR RR CTR BRKT) 2003-2007 02
009 11609540 БОЛТ, HWASH, M6X1X20, 16.15 THD, 17 OD, 8.8, GMW4205, HDR PT. (F/FDR) 2003-2007 04
010 11514517 ГАЙКА, HEX, W/CON SPR WA, M6X1, 5.7THK, 18 O.D., 9, 7111M (F/FDR RR CTR BRKT) 2003-2007 02
011 88890921 КРЫЛО, FRT (INCLS 16) DM (EXC T90) 2003-2007 01
011 88890921 КРЫЛО, FRT (INCLS 16) DR (EXC T90) (EXPORT) 2003-2007 01
011 88890921 КРЫЛО, FRT (INCLS 16) DN (EXC T90) 2004-2007 01
011 88890922 КРЫЛО, FRT (INCLS 16) DM (EXC T90) 2003-2007 01
011 88890922 КРЫЛО, FRT (INCLS 16) DR (EXC T90) (EXPORT) 2003-2007 01
011 88890922 КРЫЛО, FRT (INCLS 16) DN (EXC T90) 2004-2007 01
011 88890923 КРЫЛО, FRT (INCLS 16) DM (T90) (EXPORT) 2003-2007 01
011 88890923 КРЫЛО, FRT (INCLS 16) DR (T90) (EXPORT) 2003-2007 01
011 88890923 КРЫЛО, FRT (INCLS 16) DN (T90) (EXPORT) 2004-2007 01
011 88890924 КРЫЛО, FRT (INCLS 16) DM (T90) (EXPORT) 2003-2007 01
011 88890924 КРЫЛО, FRT (INCLS 16) DR (T90) (EXPORT) 2003-2007 01
011 88890924 КРЫЛО, FRT (INCLS 16) DN (T90) (EXPORT) 2004-2007 01
012 25765934 LINER, FRT W/H D69 2003-2007 01
012 25765935 LINER, FRT W/H D69 2003-2007 01
013 11518017 RETAINER, 25 LG, 20.5 OD, 8.0 HOLE, 6.2-8.2 PNL, NYLON, 6/6, BLK (FRT BPR FASCIA) 2003-2007 14
014 21030249 RETAINER, EXPAN, 21 LG, 20. OD, 8.0 HOLE, 3.0-5.0 PNL, NYLON 6/6, BLK (FRT BPR FASCIA EXTN) (8.950) (PUSH IN) 2003-2007 10
015 10387369 EXTENSION, FRT BPR FASCIA DM 2004-2007 01
015 10387369 EXTENSION, FRT BPR FASCIA DR (EXPORT) 2004-2007 01
015 25750635 EXTENSION, FRT BPR FASCIA DN 2004-2007 01
015 25771743 EXTENSION, FRT BPR FASCIA DM 2004-2007 01
015 25771743 EXTENSION, FRT BPR FASCIA DR (EXPORT) 2004-2007 01
016 REINFORCEMENT, F/FDR FRT (ЧАСТЬ OF 11) 2003-2007
