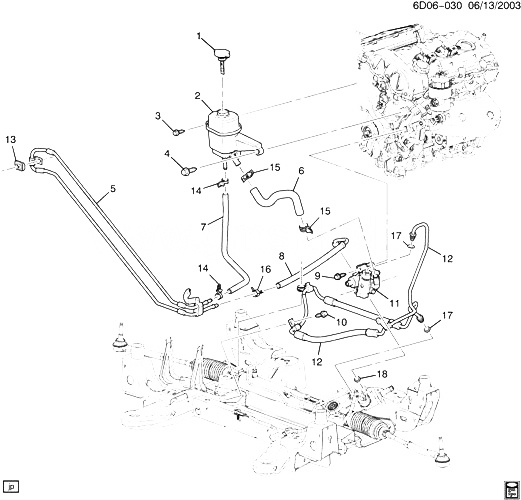

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
89047680 |
CAP, P/S PUMP RSVR (ЧАСТЬ OF 2)
| D69 (LP1, LY7) |
2005-2007 |
01 |
|
| 002 |
25772731 |
RESERVOIR, P/S FLUID (INCLS 1)
| D69 (LP1, LY7) |
2005-2007 |
01 |
|
| 003 |
11610010 |
БОЛТ, HEX W/ CON WA, M8X1.25X40, 32 THD, 28 OD, 9.8, 7114M, MACH, P-PT (P/S FLUID RSVR)
|
2004-2007 |
02 |
|
| 004 |
11519467 |
БОЛТ, HEX W/CON WA, M12X1.75X64, 58.6 THD, 24OD, 10.9, 7114M, MACH, 6175M, HDR (P/S FLUID RSVR) |
|
2004-2007 |
01 |
| 005 |
25745643 |
COOLER, P/S FLUID
| D69 (LP1, LY7, M82) |
2005-2007 |
01 |
|
| 006 |
25768050 |
HOSE, P/S FLUID RSVR OTLT (INCLS 15)
| D69 (LP1, LY7) |
2007-2007 |
01 |
|
| 007 |
25773286 |
HOSE, P/S FLUID RSVR INL (INCLS 14)
| DM |
2004-2007 |
01 |
|
| 008 |
25743804 |
HOSE, P/S GR OTLT (INCLS 16, 18)
| DM |
2004-2007 |
01 |
|
| 009 |
11519980 |
БОЛТ, HFH, M8X1.25X40, 22 THD, 18 OD, 8.8, GMW3359, 6MM MATPOINT. (P/S PUMP) |
|
2004-2007 |
03 |
| 010 |
11516424 |
БОЛТ, HFH, M6X1X25, 14.2 O.D., HDR PT, 9.8, ZE (P/S GR INL HOSE BRKT)
|
2004-2007 |
03 |
|
| 011 |
|
PUMP, P/S (СМ. ГРУППУ 06.000 НАСОС РУЛЕВОГО УПРАВЛЕНИЯ ASM ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2004-2007 |
|
| 012 |
25768048 |
HOSE, P/S GR INL (INCLS 17)
| DM |
2005-2007 |
01 |
|
| 013 |
|
ГАЙКА, P/S FLD CLR |
|
2005-2007 |
|
| 014 |
|
CЛАМПА, P/S FLUID RSVR INL HOSE (ЧАСТЬ OF 7) |
|
2005-2007 |
|
| 015 |
|
CЛАМПА, P/S FLUID RSVR OTLT HOSE (ЧАСТЬ OF 6) |
|
2005-2007 |
|
| 016 |
|
CЛАМПА, P/S GR OTLT HOSE (ЧАСТЬ OF 8) |
|
2005-2007 |
|
| 017 |
88952001 |
SEAL, P/S GR INL HOSE (O RING) (ЧАСТЬ OF 12) (6.616) |
DM |
2007-2007 |
02 |
| 018 |
|
SEAL, P/S GR OTLT HOSE (O-RING) (ЧАСТЬ OF 8) |
|
2007-2007 |
|
