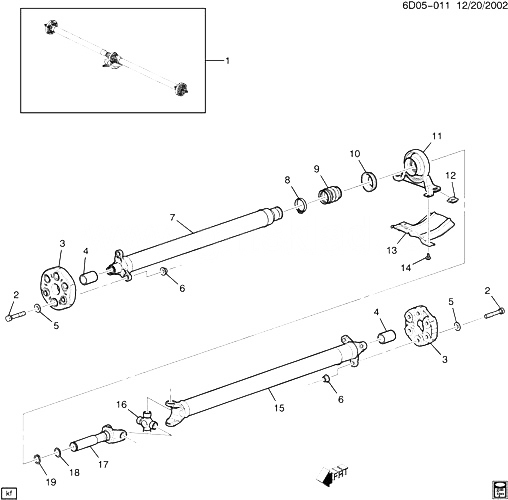

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15833891 |
SHAFT, PROP (INCLS 2-19) |
DM (MV1) |
2007-2007 |
01 |
| 001 |
25773497 |
SHAFT, PROP (INCLS 2-19) |
DM (M82) (EXC JNG) |
2005-2007 |
01 |
| 001 |
25773497 |
SHAFT, PROP (INCLS 2-19) |
DM (M82, JNG) (EXPORT) |
2006-2007 |
01 |
| 001 |
25773497 |
SHAFT, PROP (INCLS 2-19) |
DR69 (M82) (EXPORT) |
2006-2007 |
01 |
| 002 |
11588658 |
БОЛТ, TRANS PROP SHF FLG (INCLS 5) (M12X1.75X70) (HEX) (8.900)
| D69 (M82) |
2004-2007 |
06 |
|
| 002 |
11588658 |
БОЛТ, TRANS PROP SHF FLG (INCLS 5) (M12X1.75X70) (HEX) (8.900)
| D69 (MV1) |
2005-2007 |
06 |
|
| 003 |
|
COUPLING, PROP SHF |
|
2007-2007 |
|
| 004 |
|
LOCATOR, PROP SHF |
|
2007-2007 |
|
| 005 |
11588689 |
WASHER, FRT PROP SHF (ЧАСТЬ OF 2) (ID 12.25, OD 23.0, THK 3.38MM)
| D69 |
2004-2007 |
03 |
|
| 006 |
11516073 |
ГАЙКА, PROP SHF FLG (M12X1.75X11.5, 10) (HEX LK PREV TORQ) (7111M ZE) (8.917)
| DN69 |
2004-2007 |
03 |
|
| 006 |
11516073 |
ГАЙКА, PROP SHF FLG (M12X1.75X11.5, 10) (HEX LK PREV TORQ) (7111M ZE) (8.917)
| DM69 |
2005-2007 |
06 |
|
| 006 |
11516073 |
ГАЙКА, PROP SHF FLG (M12X1.75X11.5, 10) (HEX LK PREV TORQ) (7111M ZE) (8.917)
| DR69 (EXPORT) |
2005-2007 |
06 |
|
| 007 |
|
SHAFT, FRT PROP |
|
2007-2007 |
|
| 008 |
|
CЛАМПА, FRT PROP SHF BRG UPR (*KIT1) |
|
2007-2007 |
|
| 009 |
|
BOOT, PROP SHF RR SLIP YOKE (*KIT1) |
|
2007-2007 |
|
| 010 |
|
SLINGER, FRT PROP SHF BRG (*KIT1) |
|
2007-2007 |
|
| 011 |
|
BEARING, PROP SHF CTR SUPT (*KIT1) |
|
2007-2007 |
|
| 012 |
25708829 |
SHIM, PROP SHF CTR SUPT BRG (BLACK) (OVERALL HEIGHT 2MM)
| D69 |
2004-2007 |
AR |
|
| 012 |
25708830 |
SHIM, PROP SHF CTR SUPT BRG (GREEN) (OVERALL HEIGHT 4MM)
| D69 |
2004-2007 |
AR |
|
| 012 |
25708831 |
SHIM, PROP SHF CTR SUPT BRG (BLUE) (OVERALL HEIGHT 6MM)
| D69 |
2004-2007 |
AR |
|
| 012 |
25708832 |
SHIM, PROP SHF CTR SUPT BRG (YELLOW) (OVERALL HEIGHT 8MM)
| D69 |
2004-2007 |
AR |
|
| 012 |
25708833 |
SHIM, PROP SHF CTR SUPT BRG (WHITE) (OVERALL HEIGHT 10MM)
| D69 |
2004-2007 |
AR |
|
| 012 |
25708834 |
SHIM, PROP SHF CTR SUPT BRG (PURPLE) (OVERALL HEIGHT 12MM)
| D69 |
2004-2007 |
AR |
|
| 013 |
|
SHIELD, PROP SHF CTR SUPT BRG |
|
2007-2007 |
|
| 014 |
|
БОЛТ, PROP SHF SHLD |
|
2007-2007 |
|
| 015 |
|
SHAFT, RR PROP |
|
2007-2007 |
|
| 016 |
|
JOINT, PROP SHF UNIVERSAL |
|
2007-2007 |
|
| 017 |
|
YOKE, PROP SHF SLIP |
|
2007-2007 |
|
| 018 |
|
RING, PROP SHF CTR SUPT BRG THR (*KIT1) |
|
2007-2007 |
|
| 019 |
|
RETAINER, RR PROP SHF (*KIT1) |
|
2007-2007 |
|
| K01 |
88951975 |
BEARING KIT, PROP SHF CTR SUPT (INCLS 8-11, 18, 19)
| D69 (MV1, M82) |
2005-2007 |
01 |
|
