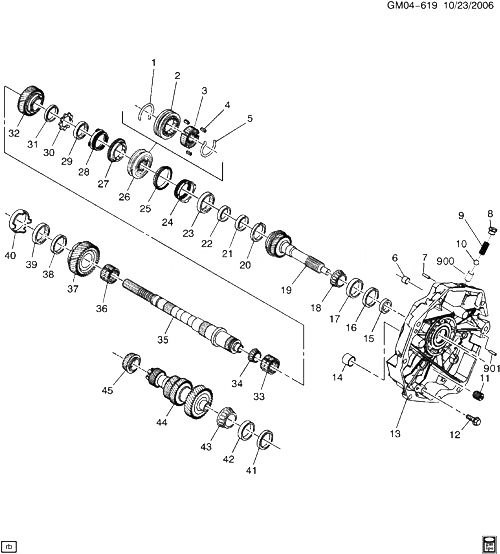

(GM04-619) - 2007 DN 6-ТИ СКОРОСТНАЯ МКПП ЧАСТЬ 2 (M12) GEARS SHAFTS(2ND DES) CADILLAC - CTS 2007

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 89059973 ПРУЖИНА, 3RD 4TH GR SYN (ЧАСТЬ OF 26) DN (M12) 2007-2007 02
002 SLEEVE, 3RD 4TH GR SYN (ЧАСТЬ OF 26) 2007-2007
003 HUB, 3RD 4TH GR SYN (ЧАСТЬ OF 26) 2007-2007
004 14083521 KEY, 3RD 4TH GR (ЧАСТЬ OF 26) (WINGED FLANGES ON SIDES OF KEY) (4.384) DN (M12) 2007-2007 03
005 89059973 ПРУЖИНА, 3RD 4TH GR SYN (ЧАСТЬ OF 26) DN (M12) 2007-2007 02
006 89059428 BEARING, SHFT SHF (ЧАСТЬ OF 13) DN (M12) 2007-2007 01
007 12523068 PIN, TRANS CASE LOC (ЧАСТЬ OF 13) (0.685) DN (M12) 2007-2007 02
008 89059438 PLUG, SHFT SHF DTNT DN (M12) 2007-2007 01
009 89059437 ПРУЖИНА, SHFT SHF DTNT DN (M12) 2007-2007 01
010 89059436 ROLLER, SHFT SHF DTNT DN (M12) 2007-2007 01
011 25522466 PLUG, 1/2-14 X 39/64 (TRANS FRT ADAPT INSP) (ACDelco #25522466) 2007-2007 01
012 12523235 БОЛТ, CLU HSG (M10X1.5-40MM) DN (M12) 2007-2007 08
013 19133180 ADAPTER, CLU HSG (INCLS 6, 7, 14) (FOR TRANS ASM 24236983) (FOR 1ST DES SEE 89059424) DN (M12) (2ND DES) 2007-2007 01
014 19133179 BUSHING, SHFT SHF (REV SHF SHFT) DN (M12) 2007-2007 01
015 89059435 SEAL, INPUT SHF (ACDelco #89059435) DN (M12) 2007-2007 01
016 12523218 SHIM, INPUT SHF BRG (.022MM) DN (M12) 2007-2007 01
016 12523219 SHIM, INPUT SHF BRG (.024MM) DN (M12) 2007-2007 01
016 12523220 SHIM, INPUT SHF BRG (.026MM) DN (M12) 2007-2007 01
016 12523221 SHIM, INPUT SHF BRG (.028MM) DN (M12) 2007-2007 01
016 12523222 SHIM, INPUT SHF BRG (.030MM) DN (M12) 2007-2007 01
016 12523223 SHIM, INPUT SHF BRG (.032MM) DN (M12) 2007-2007 01
016 12523224 SHIM, INPUT SHF BRG (.034MM) DN (M12) 2007-2007 01
016 12523225 SHIM, INPUT SHF BRG (.036MM) DN (M12) 2007-2007 01
016 12523226 SHIM, INPUT SHF BRG (.038MM) DN (M12) 2007-2007 01
016 12523227 SHIM, INPUT SHF BRG (.040MM) DN (M12) 2007-2007 01
016 12523228 SHIM, INPUT SHF BRG (.042MM) DN (M12) 2007-2007 01
016 12523229 SHIM, INPUT SHF BRG (.044MM) DN (M12) 2007-2007 01
016 12523230 SHIM, INPUT SHF BRG (.046MM) DN (M12) 2007-2007 01
016 12523231 SHIM, INPUT SHF BRG (.048MM) DN (M12) 2007-2007 01
016 12523232 SHIM, INPUT SHF BRG (.050MM) DN (M12) 2007-2007 01
017 RACE, INPUT SHF BRG (ЧАСТЬ OF 18) 2007-2007
018 12523289 BEARING, INPUT SHF (INCLS 17) (4.355) (ACDelco #12523289) DN (M12) 2007-2007 01
019 19132834 SHAFT, MAIN (INCLS 20) D (M12) 2007-2007 01
020 RACE, INPUT SHF BRG (ЧАСТЬ OF 19) 2007-2007
021 12523253 RING, 3RD 4TH GR SYN RET (4.318) DN (M12) 2007-2007 01
022 12455003 WASHER, 3RD 4TH GR SYN HUB THR DN (M12) 2007-2007 01
023 12455017 CONE, 4TH GR SYN INR DN (M12) 2007-2007 01
024 88894070 CONE, 4TH GR SYN OTR DN (M12) 2007-2007 01
025 89059968 RING, 4TH GR BLOCKING DN (M12) 2007-2007 01
026 89060012 SYNCHRONIZER, 3RD 4TH GR (INCLS 1-5) DN (M12) 2007-2007 01
027 89059967 RING, 3RD GR BLOCKING DN (M12) 2007-2007 01
028 88894069 CONE, 3RD GR SYN OTR DN (M12) 2007-2007 01
029 12454999 CONE, 3RD GR SYN INR DN (M12) 2007-2007 01
030 12454997 WASHER, 3RD GR THR DN (M12) 2007-2007 01
031 12454997 WASHER, 3RD GR THR DN (M12) 2007-2007 01
032 89059966 GEAR, 3RD D (M12) 2007-2007 01
033 12523073 BEARING, 3RD GR DN (M12) 2007-2007 01
034 12523059 BEARING, MAIN SHF FRT (4.317) DN (M12) 2007-2007 01
035 19132834 SHAFT, MAIN D (M12) 2007-2007 01
036 12523073 BEARING, 2ND GR DN (M12) 2007-2007 01
037 88894088 GEAR, 2ND DN (M12) 2007-2007 01
038 12455005 SPACER, 2ND GR BRG DN (M12) 2007-2007 01
039 89059970 CONE, 2ND GR SYN INR DN (M12) 2007-2007 01
040 89059969 CONE, 2ND GR SYN OTR DN (M12) 2007-2007 01
041 14050780 SHIM, CNTR GR BRG (.014 THK) (4.376) DN (M12) 2007-2007 01
041 14050781 SHIM, CNTR GR BRG (.016 THK) (4.376) DN (M12) 2007-2007 01
041 14050782 SHIM, CNTR GR BRG (.018 THK) (4.376) DN (M12) 2007-2007 01
041 14050783 SHIM, CNTR GR BRG (.012 THK) (4.376) DN (M12) 2007-2007 01
041 14050784 SHIM, CNTR GR BRG (.020 THK) (4.376) DN (M12) 2007-2007 01
041 14050785 SHIM, CNTR GR BRG (.036 THK) (4.376) DN (M12) 2007-2007 01
041 14050786 SHIM, CNTR GR BRG (.022 THK) (4.376) DN (M12) 2007-2007 01
041 14050787 SHIM, CNTR GR BRG (.023 THK) (4.376) DN (M12) 2007-2007 01
041 14069868 SHIM, CNTR GR BRG (.024 THK) (4.376) (ACDelco #14069868) DN (M12) 2007-2007 01
041 14069869 SHIM, CNTR GR BRG (.025 THK) (4.376) (ACDelco #14069869) DN (M12) 2007-2007 01
041 14069870 SHIM, CNTR GR BRG (.026 THK) (4.376) (ACDelco #14069870) DN (M12) 2007-2007 01
041 14069871 SHIM, CNTR GR BRG (.027 THK) (4.376) (ACDelco #14069871) DN (M12) 2007-2007 01
041 14069872 SHIM, CNTR GR BRG (.028 THK) (4.376) (ACDelco #14069872) DN (M12) 2007-2007 01
041 14069873 SHIM, CNTR GR BRG (.029 THK) (4.376) (ACDelco #14069873) DN (M12) 2007-2007 01
041 14069874 SHIM, CNTR GR BRG (.030 THK) (4.376) (ACDelco #14069874) DN (M12) 2007-2007 01
041 14069875 SHIM, CNTR GR BRG (.031 THK) (4.376) (ACDelco #14069875) DN (M12) 2007-2007 01
041 14069876 SHIM, CNTR GR BRG (.032 THK) (4.376) (ACDelco #14069876) DN (M12) 2007-2007 01
041 14069877 SHIM, CNTR GR BRG (.033 THK) (4.376) (ACDelco #14069877) DN (M12) 2007-2007 01
041 14069878 SHIM, CNTR GR BRG (.034 THK) (4.376) (ACDelco #14069878) DN (M12) 2007-2007 01
041 14069879 SHIM, CNTR GR BRG (.035 THK) (4.376) (ACDelco #14069879) DN (M12) 2007-2007 01
041 14069880 SHIM, CNTR GR BRG (.037 THK) (4.376) (ACDelco #14069880) DN (M12) 2007-2007 01
041 14069881 SHIM, CNTR GR BRG (.038 THK) (4.376) (ACDelco #14069881) DN (M12) 2007-2007 01
041 14069882 SHIM, CNTR GR BRG (.039 THK) (4.376) (ACDelco #14069882) DN (M12) 2007-2007 01
041 14069883 SHIM, CNTR GR BRG (.040 THK) (4.376) (ACDelco #14069883) DN (M12) 2007-2007 01
041 14069884 SHIM, CNTR GR BRG (.041THK) (4.376) (ACDelco #14069884) DN (M12) 2007-2007 01
041 14069885 SHIM, CNTR GR BRG (.042 THK) (4.376) (ACDelco #14069885) DN (M12) 2007-2007 01
041 14069886 SHIM, CNTR GR BRG (.043 THK) (4.376) (ACDelco #14069886) DN (M12) 2007-2007 01
041 14069887 SHIM, CNTR GR BRG (.044 THK) (4.376) (ACDelco #14069887) DN (M12) 2007-2007 01
042 RACE, CNTR GR SHF BRG (ЧАСТЬ OF 43, 44) 2007-2007
043 12523054 BEARING, FRT CNTR GR FRT (INCLS 42) (ЧАСТЬ OF 44) (ACDelco #S1316) DN (M12) 2007-2007 01
044 19132800 GEAR KIT, CNTR (INCLS 42, 43, 45 AND GEAR, RR CNTR SHOWN ON 6-ТИ СКОРОСТНАЯ МКПП EXTENSION ШЛАНГИ И REVERSE IDLER GEAR - ЧАСТЬ 5) DN (M12) 2007-2007 01
045 12523216 BEARING, FRT CNTR GR RR (ЧАСТЬ OF 44) (ACDelco #S1308) DN (M12) 2007-2007 01
900 89059427 SLEEVE, SHFT SHF DTNT (ЧАСТЬ OF 13) DN (M12) 2007-2007 02
901 12523217 PIN, CLU HSG LOC (ЧАСТЬ OF 13) (4.105) DN (M12) 2007-2007 02
901 12523217 PIN, CLU HSG LOC (ЧАСТЬ OF 13) (4.105) DN (M12) 2007-2007 02
