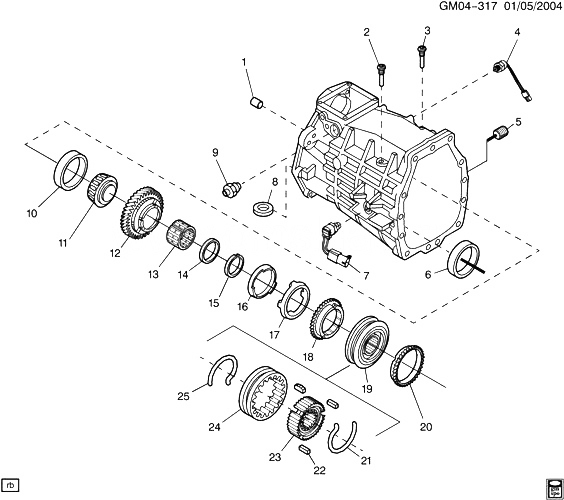

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
12523068 |
PIN, TRANS CASE LOC (0.685) |
DN (M12) |
2004-2007 |
02 |
| 002 |
12523213 |
PIN, SHFT SHF INTLK (4.309) |
DN (M12) |
2004-2007 |
02 |
| 003 |
12523213 |
PIN, SHFT SHF INTLK (4.309) |
DN (M12) |
2004-2007 |
02 |
| 004 |
12458118 |
SENSOR, M/TRNS FLUID TEMP (ACDelco #12458118) |
D (LS2, M12, JJA) |
2006-2007 |
01 |
| 005 |
25522466 |
PLUG, 1/2-14 X 39/64 (TRANS OIL FIL) (ACDelco #25522466)
|
2004-2007 |
01 |
|
| 006 |
|
RACE, CNTR GR SHF BRG |
|
2004-2007 |
|
| 007 |
89059441 |
SWITCH, B/U LP (ACDelco #D2299C) |
D (LS2, M12, JJA) |
2006-2007 |
01 |
| 008 |
12386078 |
MAGNET, TRANS (ACDelco #12386078) |
DN (M12) |
2004-2007 |
02 |
| 009 |
89059430 |
DETENT, SHFT INTLK |
DN (M12) |
2004-2007 |
01 |
| 010 |
|
RACE, CNTR GR SHF BRG (ЧАСТЬ OF 11) |
|
2004-2007 |
|
| 011 |
12523057 |
BEARING, MAIN SHF RR (INCLS 10) (W/STRAIGHT ROLLERS) (ACDelco #S1314) |
DN (M12) |
2004-2007 |
01 |
| 012 |
19132835 |
GEAR, 1ST |
D (M12) |
2006-2007 |
01 |
| 013 |
12523188 |
BEARING, 1ST GR (4.383) |
DN (M12) |
2004-2007 |
01 |
| 014 |
89059974 |
WASHER, 1ST GR THR |
DN (M12) |
2006-2007 |
02 |
| 015 |
89059975 |
RING, 1ST 2ND GR SYN RET |
DN (M12) |
2006-2007 |
01 |
| 016 |
89059970 |
CONE, 1ST GR SYN INR |
DN (M12) |
2004-2007 |
01 |
| 017 |
89059969 |
CONE, 1ST GR SYN OTR |
DN (M12) |
2004-2007 |
01 |
| 018 |
89059475 |
RING, 1ST GR BLOCKING |
DN (M12) |
2004-2007 |
01 |
| 019 |
89059476 |
SYNCHRONIZER, 1ST 2ND GR (INCLS 23-25) |
DN (M12) |
2004-2007 |
01 |
| 020 |
89059475 |
RING, 2ND GR BLOCKING |
DN (M12) |
2004-2007 |
01 |
| 021 |
12455008 |
ПРУЖИНА, 1ST 2ND GR SYN |
DN (M12) |
2004-2007 |
02 |
| 022 |
12523208 |
INSERT, 1ST 2ND SHFT FORK |
DN (M12) |
2004-2007 |
02 |
| 023 |
|
HUB, 1ST 2ND GR SYN (ЧАСТЬ OF 19) |
|
2004-2007 |
|
| 024 |
|
SLEEVE, 1ST 2ND GR SYN (ЧАСТЬ OF 19) |
|
2004-2007 |
|
| 025 |
12455008 |
ПРУЖИНА, 1ST 2ND GR SYN (ЧАСТЬ OF 19) |
DN (M12) |
2004-2007 |
02 |
