| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

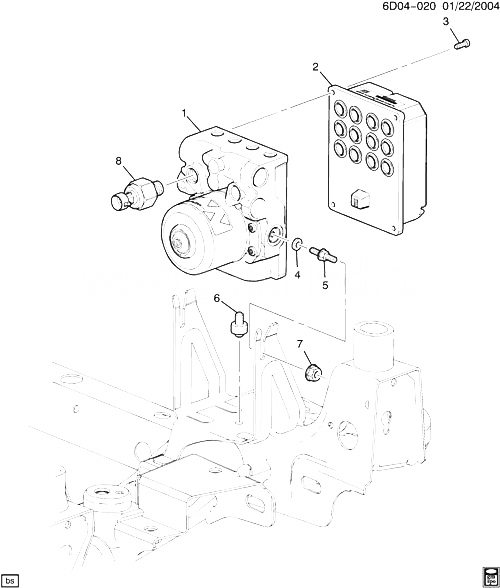

| 001 |
89060233 |
VALVE KIT, BRK PRESS MOD (INCLS 3-5, 7) (ACDelco #89060233)
| DM69 (FE1, FE2, FE3) |
2005-2007 |
01 |
|
| 001 |
89060233 |
VALVE KIT, BRK PRESS MOD (INCLS 3-5, 7) (ACDelco #89060233)
| DR69 (FE1, FE2, FE3) (EXPORT) |
2005-2007 |
01 |
|
| 001 |
89060233 |
VALVE KIT, BRK PRESS MOD (INCLS 3-5, 7) (ACDelco #89060233)
| DM69 (FE5, JL4, QGQ) |
2007-2007 |
01 |
|
| 001 |
89060233 |
VALVE KIT, BRK PRESS MOD (INCLS 3-5, 7) (ACDelco #89060233)
| DR69 (FE5, JL4, QGQ) (EXPORT) |
2007-2007 |
01 |
|
| 002 |
89060294 |
МОДУЛЬ KIT, ELEK BRK TRACT CONT (INCLS 3) (REQS PROGRAMMING) (BRK APPLY SEN REQS CALN) (REFER TO SERV INFO) (ACDelco #89060294) |
DM69 (FE1) |
2005-2007 |
01 |
| 002 |
89060294 |
МОДУЛЬ KIT, ELEK BRK TRACT CONT (INCLS 3) (REQS PROGRAMMING) (BRK APPLY SEN REQS CALN) (REFER TO SERV INFO) (ACDelco #89060294) |
DR69 (FE1) (EXPORT) |
2005-2007 |
01 |
| 002 |
89060339 |
МОДУЛЬ KIT, ELEK BRK TRACT CONT (INCLS 3) (REQS PROGRAMMINGBRK APPLY SEN REQS CALNREFER TO SERV INFO) (ACDelco #89060339)
| DM69 (FE2, FE3) |
2005-2007 |
01 |
|
| 002 |
89060339 |
МОДУЛЬ KIT, ELEK BRK TRACT CONT (INCLS 3) (REQS PROGRAMMINGBRK APPLY SEN REQS CALNREFER TO SERV INFO) (ACDelco #89060339)
| DR69 (FE2, FE3) (EXPORT) |
2005-2007 |
01 |
|
| 002 |
89060339 |
МОДУЛЬ KIT, ELEK BRK TRACT CONT (INCLS 3) (REQS PROGRAMMINGBRK APPLY SEN REQS CALNREFER TO SERV INFO) (ACDelco #89060339)
| DM69 (FE5, JL4, QGQ) |
2007-2007 |
01 |
|
| 002 |
89060339 |
МОДУЛЬ KIT, ELEK BRK TRACT CONT (INCLS 3) (REQS PROGRAMMINGBRK APPLY SEN REQS CALNREFER TO SERV INFO) (ACDelco #89060339)
| DR69 (FE5, JL4, QGQ) (EXPORT) |
2007-2007 |
01 |
|
| 003 |
15285211 |
SCREW-PAN HD, M5X0.8X13.5, 7.85 THD, 7.62 OD, 9.8, T25 TORX, HDR (ЧАСТЬ OF 1, 2) (8.913) |
|
2003-2007 |
04 |
| 004 |
25741456 |
INSULATOR, BRK PRESS MOD VLV (ЧАСТЬ OF 1) |
DM69 (FE1, FE2, FE3) |
2005-2007 |
01 |
| 004 |
25741456 |
INSULATOR, BRK PRESS MOD VLV (ЧАСТЬ OF 1) |
DR69 (FE1, FE2, FE3) (EXPORT) |
2005-2007 |
01 |
| 004 |
25741456 |
INSULATOR, BRK PRESS MOD VLV (ЧАСТЬ OF 1) |
DM69 (FE5, JL4, QGQ) |
2006-2007 |
01 |
| 004 |
25741456 |
INSULATOR, BRK PRESS MOD VLV (ЧАСТЬ OF 1) |
DR69 (FE5, JL4, QGQ) (EXPORT) |
2006-2007 |
01 |
| 005 |
11588304 |
STUD, FLANGE DOUBLE END, M8X14 UNTHD, M8X1.25X13, 17 OD, 5.8, GM4345M (ЧАСТЬ OF 1) |
|
2003-2007 |
02 |
| 006 |
25707563 |
PIN, BRK PRESS MOD VLV |
DM (FE1, FE2, FE3) (EXC E5A, TY6) |
2007-2007 |
01 |
| 007 |
11514596 |
ГАЙКА, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (ЧАСТЬ OF 1) (8.915) (ACDelco #11514596) |
|
2003-2007 |
02 |
| 008 |
25743362 |
SENSOR, BRK PRESS MOD VLV PRESS (ACDelco #25743362)
| D69 |
2005-2007 |
01 |
|
