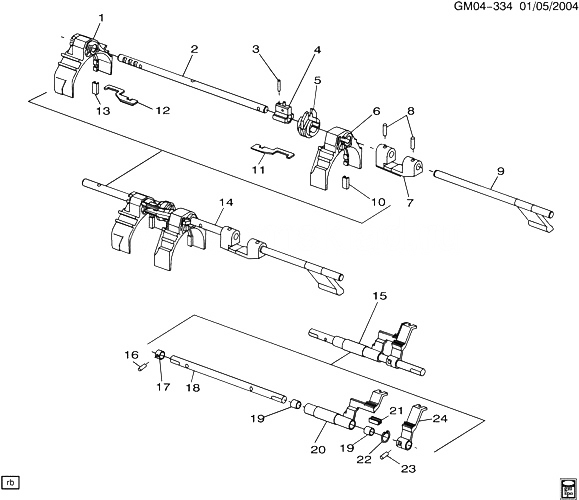

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
12523210 |
FORK, 1ST 2ND SHFT (INCLS 13) |
DN (M12) |
2004-2007 |
01 |
| 002 |
89059460 |
SHAFT, 1ST 2ND 3RD 4TH SHFT |
DN (M12) |
2004-2007 |
01 |
| 003 |
00454512 |
PIN, 3/16X3/4, SPR РАСПРЕДЕЛИТЕЛЬ ЗАЖИГАНИЯED, PL (SEL CONT LVR) |
|
2004-2007 |
01 |
| 004 |
12523211 |
LEVER, SEL CONT |
DN (M12) |
2004-2007 |
01 |
| 005 |
12523212 |
PLATE, SHFT INTLK (GEAR SELECT) (HOLDS INTERLOCK PLATES) |
DN (M12) |
2004-2007 |
01 |
| 006 |
88996653 |
FORK, 3RD 4TH SHFT (INCLS 10) |
DN (M12) |
2004-2007 |
01 |
| 007 |
89059482 |
LEVER, OFFSET SHFT |
DN (M12) |
2004-2007 |
01 |
| 008 |
00454512 |
PIN, 3/16X3/4, SPR РАСПРЕДЕЛИТЕЛЬ ЗАЖИГАНИЯED, PL (OFFSET SHFT LVR) |
|
2004-2007 |
02 |
| 009 |
89059484 |
SHAFT, REV INTLK |
DN (M12) |
2004-2007 |
01 |
| 010 |
12523208 |
INSERT, 3RD 4TH SHFT FORK (ЧАСТЬ OF 6) |
DN (M12) |
2004-2007 |
01 |
| 011 |
12523209 |
PLATE, SHFT INTLK (HELD INTO INTERLOCK PLATE) |
DN (M12) |
2004-2007 |
01 |
| 012 |
12523209 |
PLATE, SHFT INTLK (HELD INTO INTERLOCK PLATE) |
DN (M12) |
2004-2007 |
01 |
| 013 |
12523208 |
INSERT, 1ST 2ND SHFT FORK (ЧАСТЬ OF 1) |
DN (M12) |
2004-2007 |
02 |
| 014 |
|
SHAFT, 1ST 2ND SHFT (SERVICED BY 1-13) |
|
2004-2007 |
|
| 015 |
|
SHAFT, 5TH 6TH SHFT (SERVICED BY 16-24) |
|
2004-2007 |
|
| 016 |
00454512 |
PIN, 3/16X3/4, SPR РАСПРЕДЕЛИТЕЛЬ ЗАЖИГАНИЯED, PL (REV SHFT COLR) |
|
2004-2007 |
01 |
| 017 |
12523203 |
COLLAR, TRANS REV SHFT LVR |
DN (M12) |
2004-2007 |
01 |
| 018 |
12523202 |
SHAFT, 5TH 6TH REV SHFT (W/TRANS ASMS 24235494, 12591326) (FOR 2ND DES SEE 19133184) |
DN (M12) (1ST DES) |
2007-2007 |
01 |
| 018 |
19133184 |
SHAFT, 5TH 6TH REV SHFT (FOR TRANS ASM 24236983) (FOR 1ST DES SEE 12523202) |
DN (M12) (2ND DES) |
2007-2007 |
01 |
| 019 |
12523001 |
BUSHING, SHFT SHF (TOP RAIL) (ЧАСТЬ OF 20) |
DN (M12) |
2004-2007 |
02 |
| 019 |
19133179 |
BUSHING, SHFT SHF (REV SHF SHFT) (ЧАСТЬ OF 20) |
DN (M12) |
2007-2007 |
01 |
| 020 |
19178631 |
LEVER, TRANS 5TH 6TH SHFT (INCLS 19, 21) |
DN (M12) |
2004-2007 |
01 |
| 021 |
12523233 |
INSERT, 5TH REV SHFT FORK (ЧАСТЬ OF 20) |
DN (M12) |
2004-2007 |
02 |
| 022 |
12541299 |
RING, 5TH 6TH REV SHFT SHF RET (.89 I.D.) (4.384) |
DN (M12) |
2004-2007 |
01 |
| 023 |
00454512 |
PIN, 3/16X3/4, SPR РАСПРЕДЕЛИТЕЛЬ ЗАЖИГАНИЯED, PL (REV SHFT LVR) |
|
2004-2007 |
01 |
| 024 |
12523205 |
LEVER, REV SHFT (REV) |
DN (M12) |
2004-2007 |
01 |
