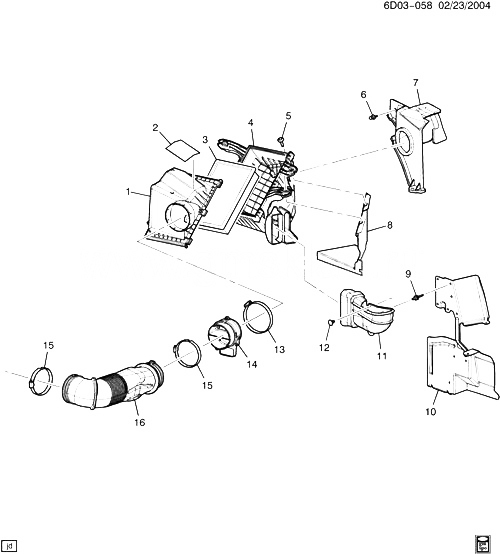

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15248182 |
COVER, КОНДИЦИОНЕРL HSG (INCLS 13) |
DN |
2006-2007 |
01 |
| 002 |
25737097 |
LABEL, КОНДИЦИОНЕР REFRIG CHRG (ЧАСТЬ OF 4) |
D69 |
2004-2007 |
01 |
| 003 |
25750701 |
ELEMENT, КОНДИЦИОНЕРL (ЧАСТЬ OF 4) (ACDelco #A1623C)
| DN (LS2) |
2006-2007 |
01 |
|
| 004 |
15293433 |
ШЛАНГИ, КОНДИЦИОНЕРL (INCLS 2, 3) |
DN |
2004-2007 |
01 |
| 005 |
11588831 |
SCREW, HEX W/ CON WA, M6X1X35, 33.5 THD, 17 O.D.HDR PT, 9.8, BLK (КОНДИЦИОНЕРL) |
|
2004-2007 |
03 |
| 006 |
05973400 |
RETAINER, INT AIR BFL (PUSH IN) (BLACK) (25.4MM HEAD) (ROUND) (1.269) |
D |
2004-2007 |
03 |
| 007 |
15846428 |
BAFFLE, INT AIR |
D |
2004-2007 |
01 |
| 008 |
25763120 |
DEFLECTOR, FRT INT AIR DUCT |
D (LS2) |
2006-2007 |
01 |
| 009 |
11516807 |
RIVET, POP, 4.8 DIA, 19.9 LONG, 16 OD, 5-5.25 HOLE, 1-9 GRIP RANGE, AL, BLACK (ЧАСТЬ OF 10)
|
2004-2007 |
02 |
|
| 010 |
25761272 |
SHIELD, E/CMPT SPH (INCLS 9, 11, 12) |
DN |
2004-2007 |
01 |
| 011 |
25750690 |
DUCT, FRT INT AIR (ЧАСТЬ OF 10) |
DN |
2004-2007 |
01 |
| 012 |
10121502 |
RETAINER, FITS .250 HOLE, 1.01LG.700-OD NYLON BLACK (ЧАСТЬ OF 10)
|
2004-2007 |
04 |
|
| 013 |
25750707 |
CЛАМПА, КОНДИЦИОНЕРL OTLT DUCT (ЧАСТЬ OF 1) |
DN |
2004-2007 |
01 |
| 014 |
25341604 |
SENSOR, MASS AIRFLOW (ACDelco #213-1150) |
DN |
2006-2007 |
01 |
| 015 |
25750707 |
CЛАМПА, КОНДИЦИОНЕРL OTLT DUCT (ЧАСТЬ OF 16) |
DN |
2004-2007 |
01 |
| 016 |
15293430 |
DUCT, КОНДИЦИОНЕРL OTLT (INCLS 15) |
DN |
2006-2007 |
01 |
