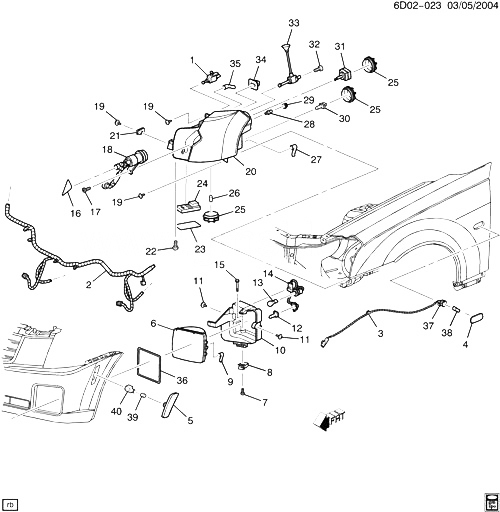

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
ADJUSTER, HDLP HORIZ (ЧАСТЬ OF 20) |
|
2004-2007 |
|
| 002 |
|
HARNESS, FWD LP WRG (СМ. ГРУППУ 02.000 ЖГУТЫ ПРОВОДОВ/ПЕРЕДНИЕ ФАРЫ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2003-2007 |
|
| 003 |
15357910 |
HARNESS, AUX MKR LP WRG (ЧАСТЬ OF 4) (INCLS 37) (INCLS CONNECTOR SOCKET) |
D69 (T90) (EXPORT) |
2004-2007 |
01 |
| 004 |
15930598 |
ЛАМПА, FRT SI T/SIG (INCLS 3, 37, 38) |
D69 (T90) (EXPORT) |
2006-2007 |
02 |
| 005 |
15930691 |
ЛАМПА, FRT SI MKR (INCLS 39, 40) |
D69 |
2003-2007 |
01 |
| 005 |
15930692 |
ЛАМПА, FRT SI MKR (INCLS 39, 40)
| D69 |
2003-2007 |
01 |
|
| 006 |
15930687 |
ЛАМПА, FRT T/SIG FOG (INCLS 8-15) |
DM |
2004-2007 |
01 |
| 006 |
15930687 |
ЛАМПА, FRT T/SIG FOG (INCLS 8-15) |
DR (EXPORT) |
2004-2007 |
01 |
| 006 |
15930687 |
ЛАМПА, FRT T/SIG FOG (INCLS 8-15) (2.585) |
DM |
2004-2007 |
01 |
| 006 |
15930687 |
ЛАМПА, FRT T/SIG FOG (INCLS 8-15) (2.585) |
DR (EXPORT) |
2004-2007 |
01 |
| 006 |
15930688 |
ЛАМПА, FRT T/SIG FOG (INCLS 8-15)
| DM |
2004-2007 |
01 |
|
| 006 |
15930688 |
ЛАМПА, FRT T/SIG FOG (INCLS 8-15)
| DR (EXPORT) |
2004-2007 |
01 |
|
| 006 |
15930688 |
ЛАМПА, FRT T/SIG FOG (INCLS 8-15) (2.585)
| DM |
2004-2007 |
01 |
|
| 006 |
15930688 |
ЛАМПА, FRT T/SIG FOG (INCLS 8-15) (2.585)
| DR (EXPORT) |
2004-2007 |
01 |
|
| 007 |
11589015 |
БОЛТ, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (FRT FOG LP)
|
2003-2007 |
06 |
|
| 008 |
|
ГАЙКА, FRT FOG LP RET (ЧАСТЬ OF 6) |
|
2004-2007 |
|
| 009 |
|
VENT, FRT FOG LP (ЧАСТЬ OF 6) |
|
2004-2007 |
|
| 010 |
|
BRACKET, FRT FOG LP OTR (ЧАСТЬ OF 6) |
|
2004-2007 |
|
| 011 |
11589015 |
БОЛТ, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (ЧАСТЬ OF 6)
|
2003-2007 |
02 |
|
| 012 |
10346260 |
BULB, FRT FOG LP (ЧАСТЬ OF 6) (TRADE 9145) (ACDelco #9145)
| DM, DN69 |
2004-2007 |
AR |
|
| 012 |
10346260 |
BULB, FRT FOG LP (ЧАСТЬ OF 6) (TRADE 9145) (ACDelco #9145)
| DR69 (EXPORT) |
2004-2007 |
AR |
|
| 013 |
12450108 |
BULB, TRADE #3157KX (ЧАСТЬ OF 6) (2.679) (ACDelco #3157KX) (LONGER LIFE KRYPTON)
|
2003-2007 |
01 |
|
| 014 |
|
HARNESS, FOG LMP (ЧАСТЬ OF 6) |
|
2004-2007 |
|
| 015 |
|
ADJUSTER, FRT FOG LP (ЧАСТЬ OF 6) |
|
2004-2007 |
|
| 016 |
12335552 |
NOZZLE, HDLP WA (ЧАСТЬ OF 20) |
D69 (CE4) |
2003-2007 |
01 |
| 016 |
12335553 |
NOZZLE, HDLP WA (ЧАСТЬ OF 20) |
D69 (CE4) |
2003-2007 |
01 |
| 017 |
|
БОЛТ, HDLP (NOZZLE) (ЧАСТЬ OF 20) |
|
2004-2007 |
|
| 018 |
12335550 |
PUMP, HDLP WA (ЧАСТЬ OF 20) (ACDelco #12335550) |
D69 (CE4) |
2003-2007 |
01 |
| 018 |
12335551 |
PUMP, HDLP WA (ЧАСТЬ OF 20) (ACDelco #12335551)
| D69 (CE4) |
2003-2007 |
01 |
|
| 019 |
11518497 |
SCREW, ASM HEX HD W/FLAT WASHER, M6X1.0X25, 14 THD, 9.8 (HDLP) |
|
2003-2007 |
06 |
| 020 |
15826014 |
HEADЛАМПА, (INCLS 1, 22-35) (MAY NEED TO REMOVE FASCIA SUPPORT BRACKET) |
DM69 (EXC CE4, TR7, TT6, TT7, TT8, T84) |
2006-2007 |
01 |
| 020 |
15826015 |
HEADЛАМПА, (INCLS 1, 22-35) (MAY NEED TO REMOVE FASCIA SUPPORT BRACKET) |
DM69 (EXC CE4, TR7, TT6, TT7, TT8, T84) |
2006-2007 |
01 |
| 020 |
15826016 |
HEADЛАМПА, (INCLS 1, 16-18, 22-35) (W/ FRT PARK) (MAY NEED TO REMOVE FASCIA SUPPORT BRACKET) |
DM69 (CE4, TT6) |
2005-2007 |
01 |
| 020 |
15826017 |
HEADЛАМПА, (INCLS 1, 16-18, 22-35) (MAY NEED TO REMOVE FASCIA SUPPORT BRACKET) |
DM69 (CE4, TT6) |
2005-2007 |
01 |
| 020 |
15826018 |
HEADЛАМПА, (INCLS 1, 22-35) (MAY NEED TO REMOVE FASCIA SUPT BRKT UNLESS RUNNING ЛАМПАS ARE REPLACED.)
| DM69 (TR7, T84) (EXPORT) |
2007-2007 |
01 |
|
| 020 |
15826019 |
HEADЛАМПА, (INCLS 1, 22-35) (MAY NEED TO REMOVE FASCIA SUPT BRKT UNLESS RUNNING ЛАМПАS ARE REPLACED.)
| DM (TR7, T84) (EXPORT) |
2007-2007 |
01 |
|
| 020 |
15826020 |
HEADЛАМПА, (INCLS 1, 22-35) (MAY NEED TO REMOVE FASCIA SUPT BRKT UNLESS RUNNING ЛАМПАS ARE REPLACED.) |
DM, DR69 (TR7) (EXC CE4, TT6, TT7, TT8, T84) (EXPORT) |
2006-2007 |
01 |
| 020 |
15826021 |
HEADЛАМПА, (INCLS 1, 22-35) (MAY NEED TO REMOVE FASCIA SUPT BRKT UNLESS RUNNING ЛАМПАS ARE REPLACED.) |
DM, DR69 (TR7) (EXC CE4, TT6, TT7, TT8, T84) (EXPORT) |
2006-2007 |
01 |
| 020 |
15826022 |
HEADЛАМПА, (EXHAUST STOCK ON VEHICLES BUILT BEFORE 1-16-07) (INCLS 1, 16-18, 22-35) (INCLS CZ2 STAMP) (MAY NEED TO REMOVE FASCIA SUPT BRKT UNLESS RUNNING ЛАМПАS ARE REPLACED.)
| DM (CE4, TR7, TT8) (1ST DES) |
2007-2007 |
01 |
|
| 020 |
15826023 |
HEADЛАМПА, (EXHAUST STOCK ON VEHICLES BUILT BEFORE 1-16-07) (INCLS 1, 16-18, 22-35) (INCLS CZ2 STAMP)
| DM69 (CE4, TR7, TT8) (1ST DES) |
2007-2007 |
01 |
|
| 020 |
15826024 |
HEADЛАМПА, (USE ON VEHICLES AFTER 1/16/07) (INCLS 1, 16-18, 22-35) (MAY NEED TO REMOVE FASCIA SUPT BRKT UNLESS RUNNING ЛАМПАS ARE REPLACED.) |
DM69 (CE4, TR7, TT7) (EXPORT) |
2007-2007 |
01 |
| 020 |
15826024 |
HEADЛАМПА, (USE ON VEHICLES AFTER 1/16/07) (INCLS 1, 16-18, 22-35) (MAY NEED TO REMOVE FASCIA SUPT BRKT UNLESS RUNNING ЛАМПАS ARE REPLACED.) |
DR69 (CE4, TT7) (EXPORT) |
2007-2007 |
01 |
| 020 |
15826025 |
HEADЛАМПА, (INCLS 1, 16-18, 22-35) (MAY NEED TO REMOVE FASCIA SUPT BRKT UNLESS RUNNING ЛАМПАS ARE REPLACED.) |
DM69 (CE4, TR7, TT7) |
2007-2007 |
01 |
| 020 |
15826025 |
HEADЛАМПА, (INCLS 1, 16-18, 22-35) (MAY NEED TO REMOVE FASCIA SUPT BRKT UNLESS RUNNING ЛАМПАS ARE REPLACED.) |
DR69 (CE4, TT7) (EXPORT) |
2007-2007 |
01 |
| 020 |
15826026 |
HEADЛАМПА, (INCLS 1, 16-18, 22-35) (MAY NEED TO REMOVE FASCIA SUPT BRKT UNLESS RUNNING ЛАМПАS ARE REPLACED.) |
DM, DR69 (CE4, TT7) (EXC TR7) (EXPORT) |
2006-2007 |
01 |
| 020 |
15826027 |
HEADЛАМПА, (INCLS 1, 16-18, 22-35) (MAY NEED TO REMOVE FASCIA SUPT BRKT UNLESS RUNNING ЛАМПАS ARE REPLACED.) |
DM, DR (CE4, TT7) (EXC TR7) (EXPORT) |
2006-2007 |
01 |
| 020 |
25781497 |
HEADЛАМПА, (INCLS 1, 22-35) (USE ONLY ON VEHICLES BUILT ON OR AFTER 1-16-07.) |
DM69 (T84) (EXC TR7) (EXPORT) |
2007-2007 |
01 |
| 020 |
25781498 |
HEADЛАМПА, (INCLS 1, 22-35) (USE ONLY ON VEHICLES BUILT ON OR AFTER 1-16-07.) |
DM69 (T84) (EXC TR7) (EXPORT) |
2007-2007 |
01 |
| 020 |
25838671 |
HEADЛАМПА, (EXHAUST STOCK ON VEHICLES BUILT BEFORE 1-16-07) (INCLS 1, 16-18, 22-35) (LESS CZ2 STAMP) |
DM69 (CE4, TR7, TT8) (1ST DES) |
2007-2007 |
01 |
| 020 |
25838671 |
HEADЛАМПА, (USED ON VEHICLES BUILT AFTER 1-16-07) (INCLS 1, 16-18, 22-35) (LESS CZ2 STAMP) |
DM69 (CE4, TR7, TT8) (2ND DES) |
2007-2007 |
01 |
| 020 |
25838672 |
HEADЛАМПА, (USED ON VEHICLES BUILT AFTER 1-16-07) (INCLS 1, 16-18, 22-35) (LESS CZ2 STAMP) (MAY NEED TO REMOVE FASCIA SUPT BRKT UNLESS RUNNING ЛАМПАS ARE REPLACED.) |
DM (CE4, TR7, TT8) (2ND DES) |
2007-2007 |
01 |
| 021 |
11518121 |
ГАЙКА, U, M6X1, MULTI THD, .5-4.0 THK PNL (HDLP BRKT) |
|
2003-2007 |
02 |
| 022 |
|
БОЛТ, HDLP BULB BALLAST (ЧАСТЬ OF 20) |
|
2004-2007 |
|
| 023 |
|
PLATE, HDLP STUD (BALLAST) (ЧАСТЬ OF 20) |
|
2004-2007 |
|
| 024 |
89024736 |
BALLAST, HDLP (LH AND RH) (4 PIN CONNECTOR) (ЧАСТЬ OF 20) |
DM69 (CE4, TT6) |
2006-2007 |
02 |
| 025 |
12335547 |
COVER, HDLP BULB ACC (ЧАСТЬ OF 20) |
D69 |
2003-2007 |
06 |
| 026 |
09442399 |
BULB (W5W) (ЧАСТЬ OF 20) (ACDelco #W5W) |
|
2003-2007 |
01 |
| 027 |
|
VENT, HDLP (ЧАСТЬ OF 20) |
|
2004-2007 |
|
| 028 |
|
STUD, HDLP BALL (ЧАСТЬ OF 20) |
|
2004-2007 |
|
| 029 |
25728475 |
RETAINER, HDLP (LH AND RH) (ЧАСТЬ OF 20) |
D69 |
2003-2007 |
AR |
| 030 |
25735602 |
BULB, HDLP (LOW BEAM) (ЧАСТЬ OF 20) (TRADE #9006XSLL) (ACDelco #9006SXLL)
| DM69 (EXC CE4, T84) |
2006-2007 |
02 |
|
| 030 |
25735602 |
BULB, HDLP (LOW BEAM) (ЧАСТЬ OF 20) (TRADE #9006XSLL) (ACDelco #9006SXLL)
| DM69 (T84) (EXC TR7) |
2007-2007 |
02 |
|
| 030 |
25735603 |
BULB, HDLP (LOW BEAM) (ЧАСТЬ OF 20) (TRADE #D1S) (ACDelco #D1S)
| DM69 (CE4, TT6) |
2005-2007 |
02 |
|
| 031 |
25735601 |
BULB, HDLP (HIGH BEAM) (ЧАСТЬ OF 20) (TRADE #9005XSLL) (ACDelco #9005SX) (LONGER LIFE)
| D69 |
2003-2007 |
02 |
|
| 032 |
|
БОЛТ, HDLP HSG ADJR (W/NUT) (ЧАСТЬ OF 20) |
|
2004-2007 |
|
| 033 |
|
ADJUSTER, HDLP VERT (ЧАСТЬ OF 20) |
|
2004-2007 |
|
| 034 |
|
CONNECTOR, HDLP (ЧАСТЬ OF 20) |
|
2004-2007 |
|
| 035 |
|
VENT, HDLP (ЧАСТЬ OF 20) |
|
2004-2007 |
|
| 036 |
25740856 |
SEAL, FRT FOG LP
| D69 |
2003-2007 |
01 |
|
| 036 |
25740857 |
SEAL, FRT FOG LP
| D69 |
2003-2007 |
01 |
|
| 037 |
88986416 |
SOCKET, FRT SI MKR LP (ЧАСТЬ OF 3, 4) (GRAY) (2-WAY FEMALE) (W/LEADS) (2.596) (ACDelco #LS44)
| D |
2003-2007 |
01 |
|
| 038 |
09442399 |
BULB (W5W) (ЧАСТЬ OF 4) (ACDelco #W5W) |
|
2003-2007 |
02 |
| 039 |
09421330 |
BULB, TRADE#194, 12V, 2CP (ЧАСТЬ OF 5) (ACDelco #L194) |
|
2003-2007 |
02 |
| 040 |
12335815 |
SOCKET, FRT SI MKR LP (ЧАСТЬ OF 5) (ACDelco #LS112) |
D69 |
2003-2007 |
02 |
