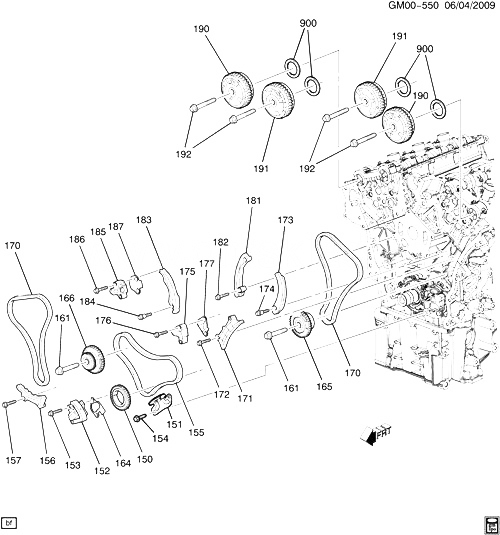

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 150 |
12590921 |
SPROCKET, CR/SHF (STAMPED 12590921) (FOR 2ND DES SEE 12599721)
| D (LP1) (1ST DES) |
2007-2007 |
01 |
|
| 150 |
12599721 |
SPROCKET, CR/SHF (STAMPED 12599721) (FOR 1ST DES SEE 12590921)
| D (LP1) (2ND DES) |
2007-2007 |
01 |
|
| 151 |
12586959 |
GUIDE, TMG CHAIN (2 КРЕПЛЕНИЕ HOLES) (LOWER PRIMARY)
| D (LP1) |
2007-2007 |
01 |
|
| 152 |
12609262 |
РОЛИК НАТЯЖИТЕЛЬ, CM/SHF INTER DRV CHAIN (INCLS 153, 164) (INCLS БОЛТS, RETAINER, GSKT)
| D (LP1) |
2007-2007 |
01 |
|
| 153 |
11588255 |
БОЛТ, HFH, REDUCED BODY, M8X1.25X45, 22 THD, 18 O.D., 8.8, 3179GMW (ЧАСТЬ OF 152)
|
2007-2007 |
02 |
|
| 154 |
11588725 |
БОЛТ, HFH, M8X1.25X35, 25 THD, 18 OD, 8.8 STL, GMW3359, M-PT (TMG CHAIN GDE)
|
2007-2007 |
02 |
|
| 155 |
12590920 |
CHAIN, CM/SHF INTER DRV (IF CRANKSHAFT SPKT STAMPED 12590921, USE 12590920) (2ND DES SEE 12599718) (PRIMARY) |
D (LP1) |
2007-2007 |
01 |
| 155 |
12616609 |
CHAIN, CM/SHF INTER DRV (IF CRANKSHAFT SPKT STAMPED 12599721, USE 12599718) (1ST DES SEE 12590920) (PRIMARY)
| D (LP1) |
2007-2007 |
01 |
|
| 156 |
12597417 |
GUIDE, TMG CHAIN (INCLS 157) (UPPER PRIMARY) |
D (LP1) |
2007-2007 |
01 |
| 157 |
11588255 |
БОЛТ, HFH, REDUCED BODY, M8X1.25X45, 22 THD, 18 O.D., 8.8, 3179GMW (ЧАСТЬ OF 156)
|
2007-2007 |
02 |
|
| 161 |
11588252 |
БОЛТ, HFH, RDUCD BDY, M6X1X70, 18 THD, 14.2 O.D., 8.8, GMW3179 CODE G (ЧАСТЬ OF 165, 166) |
|
2007-2007 |
02 |
| 164 |
12589477 |
GASKET, TMG CHAIN HSG (ЧАСТЬ OF 152) (PRIMARY) |
D69 (LP1) |
2007-2007 |
01 |
| 165 |
12612839 |
SPROCKET, TMG CHAIN IDLER (INCLS 161) (0.736)
| D (LP1) |
2007-2007 |
01 |
|
| 166 |
12597414 |
SPROCKET, CM/SHF (INCLS 161) (IDLER) (USE IF STAMPED 12590922) (FOR 2ND DES SEE 12600460) |
D (LP1) (1ST DES) |
2007-2007 |
01 |
| 170 |
12589011 |
CHAIN, CM/SHF INTER DRV (USE IF RH INT ACTUATOR IS 12590682) (FOR 2ND DES SEE 12599716) (92 PITCH) (SECONDARY) |
D (LP1) |
2007-2007 |
02 |
| 170 |
12616608 |
CHAIN, CM/SHF INTER DRV (USE IF RH INT ACTUATOR IS 12603475) (FOR 1ST DES SEE 12589011) (SECONDARY)
| D (LP1) |
2007-2007 |
02 |
|
| 171 |
12597416 |
GUIDE, TMG CHAIN (IF STAMPED 12589010 USE 12597416) (FOR 2ND DES SEE 12600461) (INCLS 172) (2 КРЕПЛЕНИЕ HOLES) (SECONDARY) |
D (LP1) |
2007-2007 |
01 |
| 171 |
12600461 |
GUIDE, TMG CHAIN (IF STAMPED 12599720 USE 12600461) (FOR 1ST DES SEE 12597416) (INCLS 172) (2 КРЕПЛЕНИЕ HOLES) (SECONDARY)
| D (LP1) |
2007-2007 |
01 |
|
| 172 |
11588255 |
БОЛТ, HFH, REDUCED BODY, M8X1.25X45, 22 THD, 18 O.D., 8.8, 3179GMW (ЧАСТЬ OF 171)
|
2007-2007 |
02 |
|
| 173 |
12586960 |
GUIDE, TMG CHAIN (SINGLE КРЕПЛЕНИЕ HOLE) (PIVOT ARM)
| D (LP1) |
2007-2007 |
01 |
|
| 174 |
11518858 |
БОЛТ, HFH, M8X1.25X43, 16 THD, 18 O.D., 8.8, GMW3179 (TMG CHAIN TENSR)
|
2007-2007 |
01 |
|
| 175 |
12609260 |
РОЛИК НАТЯЖИТЕЛЬ, TMG CHAIN (INCLS 176, 177) (SECONDARY) (INCLS БОЛТS, RETAINER, GSKT)
| D (LP1) |
2007-2007 |
01 |
|
| 176 |
11588255 |
БОЛТ, HFH, REDUCED BODY, M8X1.25X45, 22 THD, 18 O.D., 8.8, 3179GMW (ЧАСТЬ OF 175)
|
2007-2007 |
02 |
|
| 177 |
12589478 |
GASKET, TMG CHAIN HSG (ЧАСТЬ OF 175) |
D (LP1) |
2007-2007 |
01 |
| 181 |
12597418 |
GUIDE, TMG CHAIN (IF STAMPED 12586963 USE 12597418) (FOR 2ND DES SEE 12600462) (INCLS 182) (2 КРЕПЛЕНИЕ HOLES) (SECONDARY) |
D (LP1) |
2007-2007 |
01 |
| 181 |
12600462 |
GUIDE, TMG CHAIN (IF STAMPED 12599719 USE 12600462) (FOR 1ST DES SEE 12597418) (INCLS 182) (2 КРЕПЛЕНИЕ HOLES) (SECONDARY)
| D (LP1) |
2007-2007 |
01 |
|
| 182 |
11588255 |
БОЛТ, HFH, REDUCED BODY, M8X1.25X45, 22 THD, 18 O.D., 8.8, 3179GMW (ЧАСТЬ OF 181)
|
2007-2007 |
02 |
|
| 183 |
12586961 |
GUIDE, TMG CHAIN (SINGLE КРЕПЛЕНИЕ HOLE) (PIVOT ARM)
| D (LP1) |
2007-2007 |
01 |
|
| 184 |
11518858 |
БОЛТ, HFH, M8X1.25X43, 16 THD, 18 O.D., 8.8, GMW3179 (TMG CHAIN TENSR)
|
2007-2007 |
01 |
|
| 185 |
12609258 |
РОЛИК НАТЯЖИТЕЛЬ, TMG CHAIN (INCLS 186, 187) (SECONDARY) (INCLS БОЛТS, RETAINER, GSKT)
| D (LP1) |
2007-2007 |
01 |
|
| 186 |
11588255 |
БОЛТ, HFH, REDUCED BODY, M8X1.25X45, 22 THD, 18 O.D., 8.8, 3179GMW (ЧАСТЬ OF 185)
|
2007-2007 |
02 |
|
| 187 |
12589479 |
GASKET, TMG CHAIN HSG (ЧАСТЬ OF 185) |
D (LP1) |
2007-2007 |
01 |
| 190 |
12590683 |
ACTUATOR, CM/SHF POSN (EXHAUST) |
D (LP1) |
2007-2007 |
02 |
| 191 |
12590682 |
ACTUATOR, CM/SHF POSN (INTAKE) (STAMPED 12590682) (FOR 2ND DES SEE 12603744) |
D (LP1) (1ST DES) |
2007-2007 |
01 |
| 191 |
12590682 |
ACTUATOR, CM/SHF POSN (INTAKE) (STAMPED 12590682) (FOR 2ND DES SEE 12603745) |
D (LP1) (1ST DES) |
2007-2007 |
01 |
| 191 |
12603744 |
ACTUATOR, CM/SHF POSN (INT) (USE WASHER 12630941) (STAMPED 12603744) (FOR 1ST DES SEE 12590682) (5 SCREWS ON BACKPLATE) |
DM (LP1) (2ND DES) |
2007-2007 |
01 |
| 191 |
12603744 |
ACTUATOR, CM/SHF POSN (INT) (USE WASHER 12630941) (STAMPED 12603744) (FOR 1ST DES SEE 12590682) (5 SCREWS ON BACKPLATE) |
DR (LP1) (2ND DES) (EXPORT) |
2007-2007 |
01 |
| 191 |
12603745 |
ACTUATOR, CM/SHF POSN (INT) (USE WASHER 12630941) (STAMPED 12603745) (FOR 1ST DES SEE 12590682) (5 SCREWS ON BACKPLATE) |
D (LP1) (2ND DES) |
2007-2007 |
01 |
| 192 |
11588279 |
БОЛТ, HFH, M10X1.5X80, 26 THD, 22.3 O.D., 10.9, GM4277M (CM/SHF POSN ACTR) |
|
2007-2007 |
04 |
| 900 |
12630941 |
WASHER, CM/SHF THR (USED ON ACTUATORS 12603744-745, 12606653 12630916-918) (**FIELD FIX ONLY, DO NOT CATALOG**)
| D (LP1) |
2007-2007 |
02 |
|
