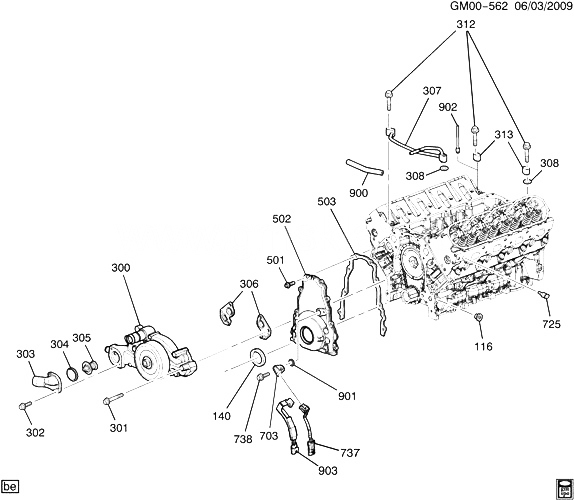

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 116 |
11588949 |
PLUG, M16X1.5X14, 24 OD, SAE 1010 STL, GMW3044, W/ AL WASHER (ENG BLK COOL DRN HOLE)
|
2007-2007 |
02 |
|
| 140 |
12585673 |
SEAL, CR/SHF FRT OIL (ЧАСТЬ OF 502) (0.207) (ACDelco #296-02)
| D (LS2) |
2007-2007 |
01 |
|
| 300 |
89018052 |
PUMP KIT, WAT (INCLS 302-306) (ACDelco #89018052) |
D (LS2) |
2007-2007 |
01 |
| 301 |
12551926 |
БОЛТ, W/PMP (M8X1.25X83)
| D (LS2) |
2007-2007 |
06 |
|
| 302 |
11516480 |
БОЛТ, W/PMP INL (ЧАСТЬ OF 300) (M6X1X25-10MM SOC) |
D (LS2) |
2007-2007 |
02 |
| 303 |
12600172 |
INLET, W/PMP (INCLS 304, 305) (ЧАСТЬ OF 300) (INCLS INLET, SEAL, THERMOSTAT) |
D (LS2) |
2007-2007 |
01 |
| 304 |
12570307 |
SEAL, WAT INL (ЧАСТЬ OF 300, 303) (ACDelco #131-169)
| D (LS2, M12) |
2007-2007 |
01 |
|
| 305 |
12600171 |
THERMOSTAT, ENG COOL (SEAL NOT INCLUDED) (ЧАСТЬ OF 300, 303) (ACDelco #131-156)
| D (LS2, M12) |
2007-2007 |
01 |
|
| 306 |
12559271 |
GASKET, W/PMP (ЧАСТЬ OF 300) (ACDelco #12559271) |
D (LS2) |
2007-2007 |
02 |
| 307 |
12602548 |
PIPE, ENG COOL AIR BL (INCLS 308, 900) (INCLS PIPE, HOSE, SEALS, CAP) |
D (LS2, M12) |
2007-2007 |
01 |
| 308 |
12602541 |
SEAL, ENG COOL AIR BL PIPE (O RING) (ЧАСТЬ OF 307, 313) |
D (LS2, M12) |
2007-2007 |
02 |
| 312 |
11514008 |
БОЛТ, METRIC HEX FLG HD (M6X1X30) (POR 9.8) (ENG COOL AIR BL PIPE) (1.097) |
|
2007-2007 |
04 |
| 313 |
12602540 |
COVER, ENG COOL AIR BL PIPE HOLE (INCLS 308) (INCL SEALS) |
D (LS2, M12) |
2007-2007 |
02 |
| 501 |
11515758 |
БОЛТ, HFH, M8X1.25X30, 28THD, 18 O.D., MACH PT, 10.9, 7114M (ЧАСТЬ OF 502)
|
2007-2007 |
08 |
|
| 502 |
12600325 |
COVER, ENG FRT (INCLS 140, 501, 503, 703, 737, 730, 901, 903) (INCLS COVER, SEAL, GASKET, БОЛТ, JUMPER, SENSOR, BRACKET, WIRE) |
D (LS2) |
2007-2007 |
01 |
| 503 |
12574294 |
GASKET, ENG FRT CVR (ЧАСТЬ OF 502)
| D (LS2) |
2007-2007 |
01 |
|
| 703 |
12591720 |
SENSOR, CM/SHF POSN (INCLS 901) (ЧАСТЬ OF 502) (ACDelco #213-3826)
| DN (LS2, M12) |
2007-2007 |
01 |
|
| 725 |
12608814 |
SENSOR, ENG COOL TEMP (ACDelco #213-4333) |
DN (LS2, M12) |
2007-2007 |
01 |
| 725 |
12608814 |
SENSOR, ENG COOL TEMP (1.150) (ACDelco #213-4333) |
DN (LS2, M12) |
2007-2007 |
01 |
| 737 |
12593593 |
WIRE, CM/SHF POSN SEN (ЧАСТЬ OF 502) (INCLS 903) (W/3-WAY INLINE CONNECTOR TO ДВИГАТЕЛЬ HARNESS) (W/3-WAY INLINE CONNECTOR TO ДВИГАТЕЛЬ HARNESS 2ND DESIGN SEE 12602854.) |
D (LS2, M12) (1ST DES) |
2007-2007 |
01 |
| 737 |
12613158 |
WIRE, CM/SHF POSN SEN (ЧАСТЬ OF 502) (INCLS 903) (W/5-WAY INLINE CONNECTOR TO ДВИГАТЕЛЬ HARNESS) (W/5-WAY INLINE CONNECTOR TO ДВИГАТЕЛЬ HARNESS 1ST DESIGN SEE 12593593.) |
DN (LS2, M12) (2ND DES) |
2007-2007 |
01 |
| 738 |
11588712 |
БОЛТ, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (ЧАСТЬ OF 502) |
|
2007-2007 |
01 |
| 900 |
12600254 |
HOSE, ENG COOL AIR BL PIPE DPNG (ЧАСТЬ OF 307) |
D (LS2) |
2007-2007 |
01 |
| 901 |
|
SEAL, CM/SHF POSN SEN (O RING) (ЧАСТЬ OF 502, 703) |
|
2007-2007 |
|
| 902 |
12602048 |
PLUG, ENG COOL AIR BL (55MM, ALUMINUM) |
D (LS2) |
2007-2007 |
02 |
| 903 |
12627500 |
BRACKET, CM/SHF POSN SEN LEAD CLIP (ЧАСТЬ OF 502, 737) |
DN (LS2, M12) |
2007-2007 |
01 |
