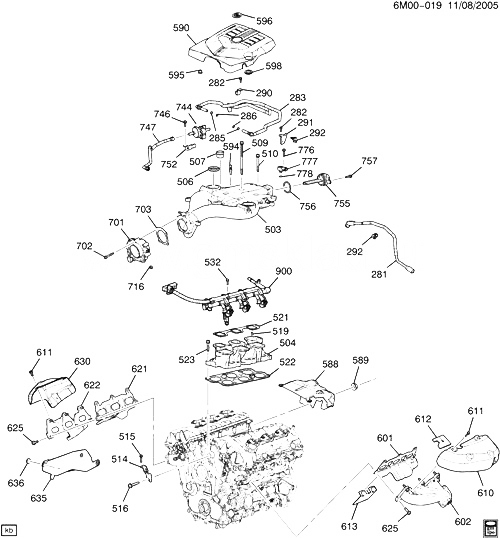

(6M00-019) - 2006-2007 D69 ДВИГАТЕЛЬ В СБОРЕ-3.6L V6 ЧАСТЬ 5 КОЛЛЕКТОР ДЕТАЛИ КОМПЛЕКТА (LY7/3.6-7) CADILLAC - CTS 2007

Поз.НомерОписаниеПрименениеНоменклатураКол-во
281 12603992 TUBE, PCV (INCLS 292) D69 (LP1, LY7) 2006-2007 01
282 11588712 БОЛТ, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (PCV TUBE) 2006-2007 02
283 12616910 HOSE, PCV (INCLS 285, 286, 290-292) (DIRTY AIR) D (LY7) 2006-2007 01
285 SEAL, PCV VLV HOSE CONN (O RING) (ЧАСТЬ OF 283) 2006-2007
286 SEAL, PCV VLV HOSE CONN (O RING) (ЧАСТЬ OF 283) 2006-2007
290 BRACKET, PCV VLV HOSE (ЧАСТЬ OF 283) 2006-2007
291 BRACKET, PCV VLV HOSE (ЧАСТЬ OF 283) 2006-2007
292 CLIP, PCV VLV HOSE (ЧАСТЬ OF 281, 283) 2006-2007
503 12587556 MANIFOLD, UPR INT (INCLS 506) D (LY7, MV1) 2006-2007 01
503 12587556 MANIFOLD, UPR INT (INCLS 506) DM (LY7, M82) 2006-2007 01
503 12587556 MANIFOLD, UPR INT (INCLS 506) DR (LY7, M82) (EXPORT) 2006-2007 01
504 12571079 MANIFOLD, LWR INT (INCLS 519) D (LY7) 2006-2007 01
506 PLUG, INT MANIF (ЧАСТЬ OF 503) 2006-2007
507 12567371 GROMMET, UPR INT MANIF SIGHT SHLD D (LY7) 2006-2007 01
507 12606862 GROMMET, UPR INT MANIF SIGHT SHLD (32MM OD) D (LY7) 2006-2007 04
509 11518906 БОЛТ, HFH, RDUCD BDY, M8X1.25X165, 22 THD, 18 O.D., 8.8, GMW3359 (INT UPR MANIF) 2006-2007 04
510 11519176 БОЛТ, INT MANIF (M8X1.25X80) (4.081) D (LY7) 2006-2007 01
514 12577530 BRACE, INT MANIF D (LY7) 2006-2007 01
515 11588967 STUD, BALL W/HFH, M6X1X20.65, 14.2 O.D., 8.8, GMW3359 (INT MANIF BR) 2006-2007 01
516 11900286 БОЛТ, HFH, W/RDUCD BODY, M12X1.75X75.9, 30 THD, 26.6 OD, 10.9, GMW3359 (INT MANIF BR) 2006-2007 01
519 PIN, UPR INT MANIF LOC (ЧАСТЬ OF 504) 2006-2007
521 GASKET, UPR INT MANIF (*KIT1) 2006-2007
522 GASKET, LWR INT MANIF (*KIT1) 2006-2007
523 11519170 БОЛТ-HFH, M8X1.25X45, 22 THD, 18 OD, 8.8, 3359GMW, REDUCED BODY. (LWR INT MANIF) 2006-2007 02
532 11588714 БОЛТ, HFH, M6X1X30, 22.7 THD, 14.2 OD, 8.8, GMW3359, M-PT. (F/INJN FUEL RL) 2006-2007 03
588 12584921 COVER, UPR INT MANIF D (LP1, LY7, JJA) 2006-2007 01
589 11517031 ГАЙКА, HFH, M8X1.25, 9.4THK, 17.4 O.D., 10, TIN ZN (UPR INT MANIF SIGHT SHLD) 2006-2007 01
590 12583732 SHIELD, UPR INT MANIF SIGHT (INCLS 595, 596, 598) DM (LY7) 2006-2007 01
590 12583732 SHIELD, UPR INT MANIF SIGHT (INCLS 595, 596, 598) DR (LY7) (EXPORT) 2006-2007 01
594 11588523 STUD, M6X1 (UPR INT MANIF SIGHT SHLD) 2006-2007 02
595 GROMMET, UPR INT MANIF SIGHT SHLD (ЧАСТЬ OF 590) 2006-2007
596 EMBLEM, INT MANIF CVR (ЧАСТЬ OF 590) 2006-2007
598 GROMMET, UPR INT MANIF SIGHT SHLD (ЧАСТЬ OF 590) 2006-2007
601 12576262 GASKET, EXH MANIF D (LY7) 2006-2007 01
602 12571102 MANIFOLD, EXH D (LY7) 2006-2007 01
610 12580706 SHIELD, EXH MANIF HT D (LY7) 2006-2007 01
611 11518860 БОЛТ, HFH, M8X1.25X30, 20.9 THD, 18 O.D., 10.9, GMW3179 CODE G, GM6194M (EXH MANIF H/SHLD) 2006-2007 07
612 12582663 INSULATOR, EXH MANIF UPR D (LP1, LY7) 2006-2007 01
613 12581806 INSULATOR, EXH MANIF LWR D (LP1, LY7) 2006-2007 01
621 12576263 GASKET, EXH MANIF D (LY7) 2006-2007 01
622 12571101 MANIFOLD, EXH D (LY7) 2006-2007 01
625 11518860 БОЛТ, HFH, M8X1.25X30, 20.9 THD, 18 O.D., 10.9, GMW3179 CODE G, GM6194M (EXH MANIF H/SHLD) 2006-2007 14
630 12617267 SHIELD, EXH MANIF HT D (LY7) 2006-2007 01
635 12581807 INSULATOR, EXH MANIF LWR D (LP1, LY7) 2006-2007 01
636 14093869 ГАЙКА, PUSH ON, M6, 2.25THK, 12.95 O.D., STL, POR (EXH MANIF H/SHLD INSL) 2006-2007 03
701 12589056 BODY, THROT (INCLS 716) (INCLS THROTTLE POSITION SENSOR) (INCLS ACT MTR) (ACDelco #217-2253) D (LY7) 2006-2007 01
702 11519972 БОЛТ, THROT BODY (M6X1.0X50) D (LY7) 2006-2007 04
703 12581398 GASKET, THROT BODY (ACDelco #217-1610) D (LY7) 2006-2007 01
716 12577831 CLIP, ENG WRG HARN (ЧАСТЬ OF 701) D69 2006-2007 01
744 12611801 VALVE, EVAP EMIS CNSTR PURGE SOL (INCLS 752) (ACDelco #214-1685) D (LP1, LY7, MV1, MX5, M82) 2006-2007 01
744 12611801 VALVE, EVAP EMIS CNSTR PURGE SOL (INCLS 752) (ACDelco #214-1685) DM, DW (LY7) 2007-2007 01
746 11588712 БОЛТ, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (EVAP EMIS CNSTR PURGE SOL VLV BRKT) 2006-2007 01
747 12584171 HOSE, EVAP EMIS CNSTR SOL VLV D 2006-2007 01
752 BRACKET, SOL VLV (ЧАСТЬ OF 744) 2006-2007
755 12586694 VALVE, INT MANIF TUNING (INCLS 756) D (LY7, MV1) 2006-2007 01
755 12586694 VALVE, INT MANIF TUNING (INCLS 756) DM (LY7, M82) 2006-2007 01
755 12586694 VALVE, INT MANIF TUNING (INCLS 756) DR (LY7, M82) (EXPORT) 2006-2007 01
756 SEAL, INT MANIF TUNING VLV (ЧАСТЬ OF 755) 2006-2007
757 11588714 БОЛТ, HFH, M6X1X30, 22.7 THD, 14.2 OD, 8.8, GMW3359, M-PT. (INT MANIF TUNING VLV) 2006-2007 02
776 11588714 БОЛТ, HFH, M6X1X30, 22.7 THD, 14.2 OD, 8.8, GMW3359, M-PT. (MAP SEN) 2006-2007 01
777 12575467 SENSOR, MAP (INCLS 778) (ACDelco #213-1584) D (LY7) 2006-2007 01
778 SEAL, MAP SEN (ЧАСТЬ OF 777) 2006-2007
900 RAIL, F/INJN FUEL (СМ. ГРУППУ 03.000 FUEL INJECTION RAIL ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2006-2007
K01 12625785 GASKET KIT, CYL HD (INCLS 521, 522) D (LY7) 2006-2007 01
