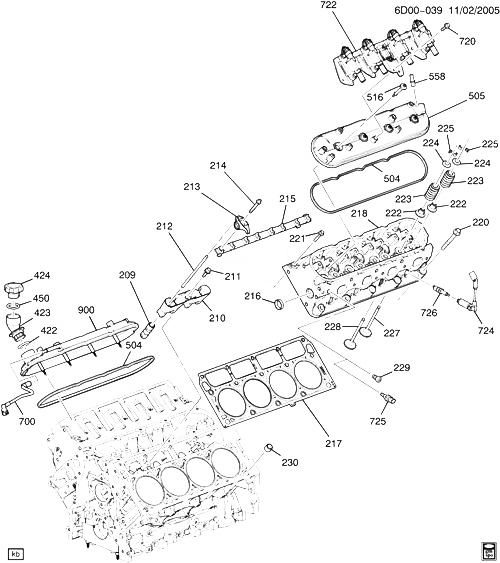

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 209 |
17122490 |
LIFTER, VLV (HYD, ROLLER, NON-ACTIVE FUEL MANAGEMENT LIFTER) (ACDelco #HL124)
| D (LS2) |
2006-2007 |
08 |
|
| 210 |
12595365 |
GUIDE, VLV LFTR (ACCOMMODATES 4 VLV LFTRS EACH, WITH SIDE GROOVES)
| D (LS2) |
2006-2007 |
01 |
|
| 211 |
12551163 |
БОЛТ, VLV LFTR GDE (M6X1.0X19) |
D (LS2) |
2006-2007 |
04 |
| 212 |
10238852 |
ROD, VLV PUSH
| D (LS2) |
2006-2007 |
16 |
|
| 213 |
10214664 |
ARM, VLV RKR
| D (LS2) |
2006-2007 |
16 |
|
| 214 |
12560961 |
БОЛТ, VLV RKR ARM PIV SUPT (M8X1.25X52.5) |
D (LS2) |
2006-2007 |
16 |
| 215 |
12552203 |
SUPPORT, VLV RKR ARM PIV
| D (LS2) |
2006-2007 |
02 |
|
| 216 |
11562126 |
PLUG, CYL HD CORE HOLE (ЧАСТЬ OF 218) (CUP, 32.03X7.88X1.27, S30400 SS PER SAE J405.)
| D (LS2) |
2006-2007 |
02 |
|
| 217 |
12589227 |
GASKET, CYL HD
| D (LS2) |
2006-2007 |
02 |
|
| 218 |
12615363 |
HEAD, CYL (INCLS 216) (INCLS GUIDES, SEATS, PLUG) |
D (LS2) |
2006-2007 |
01 |
| 220 |
11571134 |
БОЛТ, CYL HD (*1, 2, 3, 4, 5) (M11X2X100) |
D (LS2) |
2007-2007 |
20 |
| 220 |
12558840 |
БОЛТ, CYL HD (M8X1.25X45)
| D (LS2) |
2006-2007 |
10 |
|
| 221 |
11571134 |
БОЛТ, CYL HD (*1, 2, 3, 4, 5) (M11X2X100) |
D (LS2) |
2007-2007 |
20 |
| 221 |
12558840 |
БОЛТ, CYL HD (M8X1.25X45)
| D (LS2) |
2006-2007 |
10 |
|
| 222 |
12482063 |
SEAL KIT, INT VLV STEM OIL (14.4MM) (INCLS 8 SEALS)
| D (LS2, M12) |
2006-2007 |
01 |
|
| 223 |
12586484 |
ПРУЖИНА, VLV |
D (LS2) |
2006-2007 |
16 |
| 224 |
10166344 |
CAP, VLV SPR
| D (LS2, M12) |
2006-2007 |
16 |
|
| 225 |
10166345 |
KEY, VLV STEM |
D (LS2) |
2006-2007 |
16 |
| 227 |
12563064 |
VALVE, EXH (STD)
| D (LS2) |
2006-2007 |
08 |
|
| 228 |
12563063 |
VALVE, INT (STD) |
D (LS2) |
2006-2007 |
08 |
| 229 |
11610259 |
PLUG, CYL HD CORE HOLE (M12X1.5X21.2) |
D (LS2) |
2006-2007 |
01 |
| 230 |
12570326 |
PIN, CYL HD LOC
| D (LS2) |
2006-2007 |
04 |
|
| 422 |
12593348 |
SEAL, OIL FIL TUBE (O RING) (ЧАСТЬ OF 423) (27.94MM I.D.) (SIZE #320) (1.758)
| D (LS2) |
2006-2007 |
01 |
|
| 423 |
12559505 |
TUBE, OIL FIL (INCLS 422) |
D (LS2) |
2006-2007 |
01 |
| 424 |
12583570 |
CAP, OIL FIL (ROUND W/HDL) (INCLS 450) (NON VENTED) (ACDelco #FC215) |
D (LS2) |
2006-2007 |
01 |
| 450 |
12593348 |
SEAL, OIL FIL CAP (O RING) (ЧАСТЬ OF 424) (27.94MM I.D.) (SIZE #320)
| D (LS2) |
2006-2007 |
01 |
|
| 504 |
12612045 |
GASKET, VLV RKR ARM CVR (ЧАСТЬ OF 505, 900)
| D (LS2) |
2006-2007 |
02 |
|
| 505 |
12570427 |
COVER, VLV RKR ARM (INCLS 504, 516, 558) (INCLSCOVER, GASKET, БОЛТ, DEFLECTOR, FITTING) |
D (LS2, M12) |
2006-2007 |
01 |
| 516 |
12577215 |
БОЛТ, VLV RKR ARM CVR (ЧАСТЬ OF 505, 900) (M6.0X1.0) (W/GROMMET, SLEEVE) |
D (LS2) |
2006-2007 |
08 |
| 558 |
12567915 |
FITTING, PCV (ЧАСТЬ OF 505) |
D (LS2) |
2006-2007 |
01 |
| 700 |
12597480 |
TUBE, PCV |
D69 (LS2, M12, JJA) |
2006-2007 |
01 |
| 720 |
11516424 |
БОЛТ, HFH, M6X1X25, 14.2 O.D., HDR PT, 9.8, ZE (IGN РАСПРЕДЕЛИТЕЛЬ ЗАЖИГАНИЯ)
|
2006-2007 |
08 |
|
| 722 |
12580353 |
BRACKET, IGN РАСПРЕДЕЛИТЕЛЬ ЗАЖИГАНИЯ (ACDelco #12580353) |
D (LS2, M12) |
2006-2007 |
02 |
| 724 |
89018057 |
WIRE, SPLG (ACDelco #356F)
| D (LS2) |
2006-2007 |
08 |
|
| 725 |
12608814 |
SENSOR, ENG COOL TEMP (ACDelco #213-4333) |
DN (LS2, M12) |
2007-2007 |
01 |
| 725 |
12608814 |
SENSOR, ENG COOL TEMP (1.150) (ACDelco #213-4333) |
DN (LS2, M12) |
2007-2007 |
01 |
| 726 |
12609877 |
СВЕЧИ, (GAP 0.040) (ACDelco #41-985) (IRIDIUM) |
D (LS2, M12) |
2006-2007 |
08 |
| 900 |
12582224 |
COVER, VLV RKR ARM (INCLS 504, 516) (INCLSCOVER, GASKET, БОЛТ, DEFLECTOR, FITTING) |
D (LS2, M12) |
2006-2007 |
02 |
