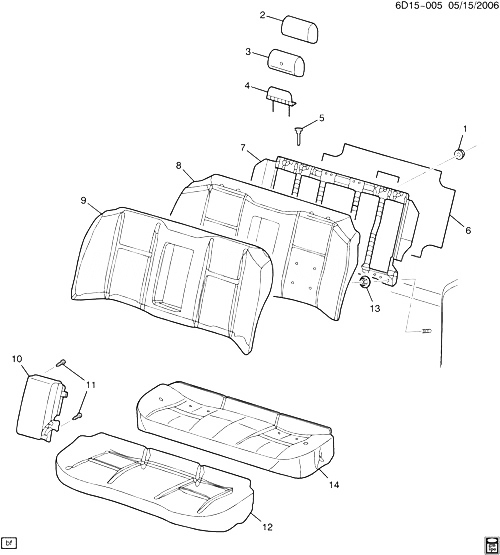

(6D15-005) - 2005-2007 DM69 ЗАДНЕЕ СИДЕНЬЕ-W TRIMS(EXC (AM9)) CADILLAC - CTS 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 11508388 ГАЙКА, HEX W/CON WA, M6X1, 23.75 O.D., 5.55THK, 9, POR (R/SEAT BK CUSH) (8.915) 2005-2007 04
002 88995488 COVER, R/SEAT H/RST (EBONY) (*KIT1) DM (19W) 2005-2007 02
002 88995489 COVER, R/SEAT H/RST (GRAY) (*KIT1) DM (13W) 2005-2007 02
003 88897671 PAD, R/SEAT H/RST (*KIT1) D69 2005-2006 02
004 88897672 SUPPORT, R/SEAT H/RST (GOES INTO ЗАДНИЙ BACK) (*KIT1) D69 2005-2007 02
005 19122625 GUIDE, R/SEAT H/RST (EBONY) (W/O BUTTON) (11.376) D69 (19I) 2005-2007 02
005 19122627 GUIDE, R/SEAT H/RST (EBONY) (W/BUTTON) (11.376) D69 (19I) 2005-2007 02
005 88994730 GUIDE, R/SEAT H/RST (GRAY) (W/BUTTON) DM (13I) 2005-2007 02
005 88994731 GUIDE, R/SEAT H/RST (GRAY) (W/O BUTTON) DM, DN (13I) 2005-2007 02
006 88949026 COVER, R/SEAT BK CUSH (ПОКРЫТИЕ DEADENER) DM (EXC AM9) 2005-2007 01
007 88896808 РАМА, R/SEAT BK CUSH (14.896) DM (EXC AM9) 2005-2007 01
008 88992527 PAD, R/SEAT BK CUSH DM 2005-2007 01
009 88995503 COVER, R/SEAT BK CUSH (EBONY) DM (19W) (EXC AM9) 2005-2007 01
009 88995504 COVER, R/SEAT BK CUSH (GRAY) DM (13W) (EXC AM9) 2005-2007 01
010 ARMREST, R/SEAT (СМ. ГРУППУ 15.000 ПОДЛОКОТНИК ЗАДНЕГО СИДЕНЬЯ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2005-2007
011 12337828 SCREW, HEX W/FLAT WA, TAP, M6.3X1.81X20, 13.2 O.D., AB PT, STL, PZ0R (R/SEAT A/RST) 2005-2007 04
012 88995506 COVER, R/SEAT CUSH (EBONY) DM (19W) 2005-2007 01
012 88995507 COVER, R/SEAT CUSH (GRAY) DM (13W) 2005-2007 01
013 11515552 ГАЙКА, HEX W/CON WA, M10X1.5X13.5, 31.75 OD, 9, ZF (R/SEAT BK CUSH BRKT) 2005-2007 04
014 88896778 CUSHION, R/SEAT D69 2005-2007 01
K01 88995482 RESTRAINT, R/SEAT HD (INCLS 2-4) (EBONY) DM (19W) 2005-2007 02
K01 88995483 RESTRAINT, R/SEAT HD (INCLS 2-4) (GRAY) DM (13W) 2005-2007 02
