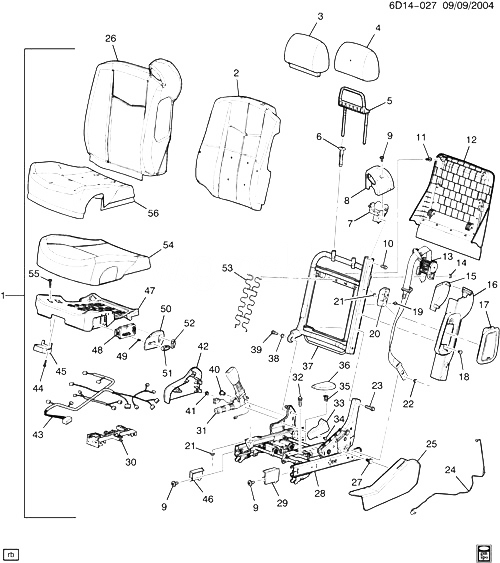

(6D14-027) - 2004-2007 DM,DN69 СИДЕНЬЕ В СБОРЕ/DRIVER (EXC (AL2)) CADILLAC - CTS 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 SEAT, DRVR (ONLY AVAILABLE FOR CURRENT MODEL YEAR VEHICLES) (INCLS 2-56) 2004-2007
002 88993031 PAD, D/SEAT BK CUSH (14.896) DM (EXC AL2) 2006-2007 01
002 88994084 PAD, D/SEAT BK CUSH (W/LUMBAR) (14.896) DN (AQ9) 2006-2007 01
003 19122687 COVER, D/SEAT H/RST FIN (CASHMERE) DM (334) 2006-2006 01
003 19122698 COVER, D/SEAT H/RST (CASHMERE W/EBONY) DN (315) 2006-2006 01
003 88896165 COVER, D/SEAT H/RST FIN (EBONY) DM (AX4, 19C) (EXPORT) 2006-2006 01
003 88995470 COVER, D/SEAT H/RST (EBONY) DM (19W) 2006-2006 01
003 88995471 COVER, D/SEAT H/RST (GRAY) DM (13W) 2006-2006 01
003 88995928 COVER, D/SEAT H/RST FIN (GRAY) DM (134) 2006-2006 01
003 88995929 COVER, D/SEAT H/RST FIN (EBONY) (16.718) DM (194) 2006-2006 01
003 88995976 COVER, D/SEAT H/RST (EBONY) DN (195) 2006-2006 01
003 88995978 COVER, D/SEAT H/RST (GRAY) (14.880) DN (135) 2006-2006 01
004 88897669 FILLER, D/SEAT H/RST D69 2004-2007 01
005 88897670 SUPPORT, D/SEAT H/RST D 2004-2007 01
006 19122625 GUIDE, D/SEAT H/RST (EBONY) (W/O BUTTON) D69 (19I) 2004-2007 01
006 19122627 GUIDE, D/SEAT H/RST (EBONY) (W/BUTTON) D69 (19I) 2004-2007 01
006 19122701 GUIDE, D/SEAT H/RST (CASHMERE) (3 7/8 INCHES) (W/O BUTTON) DM (33I) 2006-2007 01
006 19122701 GUIDE, D/SEAT H/RST (CASHMERE) (3 7/8 INCHES) (W/O BUTTON) DN (31I) 2006-2007 01
006 19122702 GUIDE, D/SEAT H/RST (CASHMERE) (3 7/8 INCHES) (W/BUTTON) DM (33I) 2006-2007 01
006 19122702 GUIDE, D/SEAT H/RST (CASHMERE) (3 7/8 INCHES) (W/BUTTON) DN (31I) 2006-2007 01
006 88994730 GUIDE, D/SEAT H/RST (GRAY) (W/BUTTON) (11.625) DM, DN (13I) 2006-2007 01
006 88994731 GUIDE, D/SEAT H/RST (GRAY) (W/O BUTTON) (11.625) D69 (13I) 2004-2007 01
007 88897640 ROLLER, D/SEAT SHLDR BELT DN 2004-2007 01
007 88897640 ROLLER, D/SEAT SHLDR BELT DM 2004-2007 01
008 88897614 COVER, D/SEAT SHLDR BELT OPG BZL (11.573) DM 2004-2007 01
008 88897614 COVER, D/SEAT SHLDR BELT OPG BZL (11.573) DN 2004-2007 01
009 88897272 БОЛТ, D/SEAT (TOWER COVER) D69 2004-2007 03
010 88897644 БОЛТ, D/SEAT ADJR (ADJR TO FRM) D69 2004-2007 01
011 10421018 RETAINER, D/SEAT BK CUSH CVR (ЧАСТЬ OF 12) (NATURAL) (4MM HOLE, 33MM) (15.100) D69 2004-2007 03
012 19122657 PANEL, D/SEAT BK CUSH FIN (INCLS 11) (CASHMERE) (W/MESH MAP PKT) DM (33I) 2006-2007 01
012 19122657 PANEL, D/SEAT BK CUSH FIN (INCLS 11) (CASHMERE) (W/MESH MAP PKT) DN (31I) 2006-2007 01
012 88895403 PANEL, D/SEAT BK CUSH FIN (INCLS 11) (GRAY) (W/MESH MAP PKT) DM, DN (13I) 2005-2007 01
012 88992613 PANEL, D/SEAT BK CUSH FIN (INCLS 11) (EBONY) (W/MESH MAP PKT) DM, DN (19I) 2004-2007 01
013 10369728 BELT, D/SEAT (RETR SI) (GRAY) DM (AX4, 13I) (EXPORT) 2004-2007 01
013 10369730 BELT, D/SEAT (RETR SI) (EBONY) DM (AX4, 19I) (EXPORT) 2004-2007 01
013 15210805 BELT, D/SEAT (RETR SI) (CASHMERE) DM (AX4, 334) (EXPORT) 2006-2007 01
013 15210807 BELT, D/SEAT (RETR SI) (CASHMERE) DN (195) 2006-2007 01
013 88952474 BELT KIT, D/SEAT (RETR SI) (GRAY) DM (13I) 2004-2007 01
013 88952474 BELT KIT, D/SEAT (RETR SI) (GRAY) DN (13I) 2005-2006 01
013 88957483 BELT KIT, D/SEAT (RETR SI) (EBONY) DM (19I) 2004-2007 01
013 88957483 BELT KIT, D/SEAT (RETR SI) (EBONY) DN (19I) 2004-2007 01
013 89026025 BELT KIT, D/SEAT (RETR SI) (CASHMERE) DM (334) 2006-2007 01
013 89026025 BELT KIT, D/SEAT (RETR SI) (CASHMERE) DN (315) 2006-2007 01
014 25604879 ГАЙКА, D/SEAT BELT (RETR SI) (SPL W/10X1.5 THREAD) (W/SILENCER (PLASTIC)ATTACHED) DM 2004-2007 01
014 25604879 ГАЙКА, D/SEAT BELT (RETR SI) (SPL W/10X1.5 THREAD) (W/SILENCER (PLASTIC)ATTACHED) DN 2004-2007 01
015 88897618 BEZEL, D/SEAT SHLDR BELT OPG DM 2004-2007 01
015 88897618 BEZEL, D/SEAT SHLDR BELT OPG DN 2004-2007 01
016 88897616 PANEL, D/SEAT BK CUSH SI BOLS DM, DN 2004-2007 01
017 15949895 МОДУЛЬ, D/SEAT SI INFL RST (GRAY) DM, DN (13I) 2006-2007 01
017 15949896 МОДУЛЬ, D/SEAT SI INFL RST (EBONY) DM, DN (19I) 2006-2007 01
017 15949897 МОДУЛЬ, D/SEAT SI INFL RST (CASHMERE) DM (33I) 2006-2007 01
017 15949897 МОДУЛЬ, D/SEAT SI INFL RST (CASHMERE) DN (31I) 2006-2007 01
018 00332364 RETAINER - PUSH IN, FITS HOLE SIZE 0.245 - 0.260, GRIP LENGTH 0.52, 0.7 OD, MATERIAL NYLON 6/6 PER GMP.PA66.015 (D/SEAT BK CUSH OTR SUPT) 2004-2007 02
019 11514623 БОЛТ, HEX W/CON WA, M6X1X20 (D/SEAT SI INFL RST MDL) 2004-2007 02
020 BRACKET, D/SEAT 2004-2007
021 11517068 NUT-METRIC HEX FLABGE, M6X1, 10MM SOCKET (INFL RST D/SEAT SI MDL) 2004-2007 04
022 25604879 ГАЙКА, D/SEAT BELT (RETR SI) (OB BELT ANCHOR) (SPL W/10X1.5 THREAD) (W/SILENCER (PLASTIC)ATTACHED) DM (AQ9) 2004-2007 01
022 25604879 ГАЙКА, D/SEAT BELT (RETR SI) (OB BELT ANCHOR) (SPL W/10X1.5 THREAD) (W/SILENCER (PLASTIC)ATTACHED) DN (AQ9) 2004-2007 01
023 88897643 БОЛТ, D/SEAT RECL (RECL TO FRM) D69 2004-2007 02
024 25736516 HARNESS, INFL RST WRG (LESS TUBE-ST MEMORY SWITCH HARNESS) DM (AQ9, IL4) (EXC AL2, AX4, A45) 2005-2006 01
024 25736516 HARNESS, INFL RST WRG (LESS TUBE-ST MEMORY SWITCH HARNESS) DM (AQ9, ILW) (EXC A45) 2005-2007 01
024 25736516 HARNESS, INFL RST WRG (LESS TUBE-ST MEMORY SWITCH HARNESS) DM (AQ9, ILW) (EXC AH8, AL2) 2005-2007 01
024 25736516 HARNESS, INFL RST WRG (LESS TUBE-ST MEMORY SWITCH HARNESS) DN (AQ9) 2005-2007 01
025 19122663 COVER, D/SEAT RECL LWR FIN (INCLS 27) (CASHMERE) (OTR) (W/O SWITCH OPENING) DM (33I) (EXC AL2) 2006-2007 01
025 19122667 COVER, D/SEAT RECL LWR FIN (INCLS 27) (CASHMERE) (OTR) DN (31I) 2006-2007 01
025 88949021 COVER, D/SEAT RECL LWR FIN (INCLS 27) (GRAY) (OTR) (W/O SWITCH OPENING) DM (13I) 2006-2007 01
025 88992619 COVER, D/SEAT RECL LWR FIN (INCLS 27) (EBONY) (OTR) (W/O SWITCH OPENING) DM, DN (19I) 2004-2007 01
026 19122676 COVER, D/SEAT BK CUSH (CASHMERE) DM (AQ9, 334) (EXC KA1) 2006-2006 01
026 19122677 COVER, D/SEAT BK CUSH (CASHMERE) DM (AQ9, KA1, 334) 2006-2006 01
026 19122689 COVER, D/SEAT BK CUSH (CASHMERE W/EBONY) DN (AQ9, 315) 2006-2006 01
026 88895434 COVER, D/SEAT BK CUSH (EBONY) DM (AX4, 19C) (EXC KA1) (EXPORT) 2006-2006 01
026 88895474 COVER, D/SEAT BK CUSH (EBONY) DM (AX4, KA1, 19C) (EXPORT) 2006-2006 01
026 88995439 COVER, D/SEAT BK CUSH (EBONY) DM (AQ9, 19W) (EXC KA1) 2006-2006 01
026 88995440 COVER, D/SEAT BK CUSH (GRAY) DM (AQ9, 13W) (EXC KA1) 2006-2006 01
026 88995442 COVER, D/SEAT BK CUSH (EBONY) DM (AQ9, KA1, 19W) 2006-2006 01
026 88995443 COVER, D/SEAT BK CUSH (GRAY) DM (AQ9, KA1, 13W) 2006-2006 01
026 88995880 COVER, D/SEAT BK CUSH (GRAY) DM (AQ9, 134) (EXC KA1) 2006-2006 01
026 88995881 COVER, D/SEAT BK CUSH (EBONY) DM (AQ9, 194) (EXC KA1) 2006-2006 01
026 88995884 COVER, D/SEAT BK CUSH (GRAY W/EBONY) DM (AQ9, KA1, 134) 2006-2006 01
026 88995885 COVER, D/SEAT BK CUSH (EBONY) (16.724) DM (AQ9, KA1, 194) 2006-2006 01
026 88995936 COVER, D/SEAT BK CUSH (EBONY) (W/HEAT) DN (AQ9, 195) 2006-2006 01
026 88995938 COVER, D/SEAT BK CUSH (GRAY) (W/HEAT) DN (AQ9, 135) 2006-2006 01
027 RETAINER, D/SEAT OTR RECL FIN CVR (ЧАСТЬ OF 25) 2004-2007
028 ADJUSTER, D/SEAT (СМ. ГРУППУ 11.000 ADJUSTER ASM/DRIVER ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2004-2007
029 19122671 COVER, D/SEAT ADJR FIN (CASHMERE) (FRT) DM (33I) 2006-2007 01
029 19122671 COVER, D/SEAT ADJR FIN (CASHMERE) (FRT) DN (31I) 2006-2007 01
029 88895386 COVER, D/SEAT ADJR FIN (GRAY) (FRT) DM, DN (13I) 2005-2007 01
029 88992625 COVER, D/SEAT ADJR FIN (EBONY) (FRT) D69 (19I) 2004-2007 01
030 SHIELD, WRG HARNESS (ЧАСТЬ OF 43) 2004-2007
031 15144611 BELT, D/SEAT (BKL SI) (GRAY) DM (AX4, 13I) (EXPORT) 2005-2007 01
031 15210802 BELT, D/SEAT (BKL SI) (CASHMERE) DM (AX4, 33I) (EXPORT) 2006-2007 01
031 89024400 BELT KIT, D/SEAT (BKL SI) (GRAY) DM (13I) 2004-2007 01
031 89024400 BELT KIT, D/SEAT (BKL SI) (GRAY) DN (13I) 2005-2007 01
031 89024401 BELT KIT, D/SEAT (BKL SI) (EBONY) DM (19I) 2004-2007 01
031 89024401 BELT KIT, D/SEAT (BKL SI) (EBONY) DN (19I) 2004-2007 01
031 89026037 BELT KIT, D/SEAT (BKL SI) (CASHMERE) DM (334) 2006-2007 01
031 89026037 BELT KIT, D/SEAT (BKL SI) (CASHMERE) DN (315) 2006-2007 01
032 88897644 БОЛТ, D/SEAT ADJR (ADJR TO FRM) D69 2004-2007 01
033 19122802 BEZEL, D/SEAT BELT OPG (BKL SI) (CASHMERE) (INNER) DM (33I) 2006-2007 01
033 19122802 BEZEL, D/SEAT BELT OPG (BKL SI) (CASHMERE) (INNER) DN (31I) 2006-2007 01
033 88895381 BEZEL, D/SEAT BELT OPG (BKL SI) (GRAY) DM (13I) 2004-2007 01
033 88895381 BEZEL, D/SEAT BELT OPG (BKL SI) (GRAY) DN (13I) 2005-2007 01
033 88992617 BEZEL, D/SEAT BELT OPG (BKL SI) (EBONY) (INNER) DM (19I) 2004-2006 01
033 88992617 BEZEL, D/SEAT BELT OPG (BKL SI) (EBONY) (INNER) DN (19I) 2004-2007 01
034 00332364 RETAINER - PUSH IN, FITS HOLE SIZE 0.245 - 0.260, GRIP LENGTH 0.52, 0.7 OD, MATERIAL NYLON 6/6 PER GMP.PA66.015 (D/SEAT SPCR) 2004-2007 01
035 RETAINER, D/SEAT ADJR FIN CVR (ЧАСТЬ OF 36) 2004-2007
036 19122675 COVER, D/SEAT ADJR БОЛТ FIN (INCLS 35) (CASHMERE) DM (33I) 2006-2007 01
036 19122675 COVER, D/SEAT ADJR БОЛТ FIN (INCLS 35) (CASHMERE) DN (31I) 2006-2007 01
036 88895410 COVER, D/SEAT ADJR БОЛТ FIN (INCLS 35) (GRAY) D69 (13I) 2004-2007 01
036 88992629 COVER, D/SEAT ADJR БОЛТ FIN (INCLS 35) (EBONY) D69 (19I) 2004-2007 01
037 88849036 РАМА, D/SEAT BK CUSH (INCLS 53) (W/SUSPENSION) DM (EXC AL2) 2006-2007 01
037 88994108 РАМА, D/SEAT BK CUSH (INCLS 53) (W/LUMBAR КРЕПЛЕНИЕ) DN 2006-2007 01
038 BUSHING, D/SEAT BK CUSH PIV (ЧАСТЬ OF 39) 2004-2007
039 88952646 БОЛТ, D/SEAT BK CUSH FRM (INCLS 38) (11.628) D69 2004-2007 01
040 88952627 ГАЙКА, D/SEAT BELT (BKL SI) (TUBE NUT) (11.556) D69 2004-2006 01
041 RETAINER, D/SEAT ADJR FIN CVR (ЧАСТЬ OF 42) 2004-2007
042 19122659 COVER, D/SEAT RECL LWR FIN (INCLS 41) (CASHMERE) (INR) DM (33I) 2006-2007 01
042 19122659 COVER, D/SEAT RECL LWR FIN (INCLS 41) (CASHMERE) (INR) DN (31I) 2006-2007 01
042 88895367 COVER, D/SEAT RECL LWR FIN (ЧАСТЬ OF 41) (GRAY) (INR) DM, DN (13I) 2005-2007 01
042 88992615 COVER, D/SEAT RECL LWR FIN (INCLS 41) (EBONY) (INR) DM, DN (19I) 2004-2007 01
043 88897277 HARNESS, D/SEAT CONT MDL WRG (INCLS 30) DM (AQ9, ILC, ILW, IL4) (EXC AL2, A45, KA1) 2005-2007 01
043 88897278 HARNESS, D/SEAT CONT MDL WRG (INCLS 30) DM (AQ9, ILW, IL4, KA1) (EXC AL2, A45) 2005-2007 01
043 88897278 HARNESS, D/SEAT CONT MDL WRG (INCLS 30) DM (AQ9, AX4, ILC, KA1) (EXC AL2, A45) 2006-2007 01
044 11509428 БОЛТ/SCREW, HEX, W/FLAT WA, M4.2X1.4X13, 12.3 O.D., BHL PT, 6010M, NO (D/SEAT) (8.977) 2004-2007 02
045 10399538 МОДУЛЬ, D/SEAT HTR CONT D69 (KA1) 2004-2007 01
046 19122672 COVER, D/SEAT ADJR FIN (CASHMERE) (FRT) DM (33I) 2006-2007 01
046 19122672 COVER, D/SEAT ADJR FIN (CASHMERE) (FRT) DN (31I) 2006-2007 01
046 88895391 COVER, D/SEAT ADJR FIN (GRAY) (FRT) DM, DN (13I) 2005-2007 01
046 88992626 COVER, D/SEAT ADJR FIN (EBONY) (FRT) D69 (19I) 2004-2007 01
047 88895457 РАМА, D/SEAT CUSH (INCLS 55) (PWR) DM, DN 2004-2007 01
048 12450263 SWITCH, D/SEAT ADJR (8-WAY) DM, DN 2004-2007 01
049 RETAINER, D/SEAT ADJR FIN CVR (ЧАСТЬ OF 50) 2004-2007
050 19122810 BEZEL, D/SEAT ADJR SW (INCLS 49) (CASHMERE) DM (33I) 2006-2007 01
050 19122810 BEZEL, D/SEAT ADJR SW (INCLS 49) (CASHMERE) DN (31I) 2006-2007 01
050 88895395 BEZEL, D/SEAT ADJR SW (INCLS 49) (GRAY) DM, DN (13I) 2005-2007 01
050 88992623 BEZEL, D/SEAT ADJR SW (INCLS 49) (EBONY) DM, DN (19I) 2004-2007 01
051 10367220 KNOB, D/SEAT ADJR SW (CASHMERE) DM (33I) 2006-2007 01
051 10367220 KNOB, D/SEAT ADJR SW (CASHMERE) DN (31I) 2006-2007 01
051 25721217 KNOB, D/SEAT ADJR SW (GRAY) D69 (13I) 2004-2007 01
051 25749092 KNOB, D/SEAT ADJR SW (EBONY) D69 (19I) 2004-2007 01
052 15210788 KNOB, D/SEAT RECL LVR (CASHMERE) DM (33I) 2006-2007 01
052 15210788 KNOB, D/SEAT RECL LVR (CASHMERE) DN (31I) 2006-2007 01
052 25721207 KNOB, D/SEAT RECL LVR (GRAY) DM, DN (13I) 2005-2007 01
052 25749093 KNOB, D/SEAT RECL LVR (EBONY) DM, DN (19I) 2004-2007 01
053 SUPPORT, D/SEAT BK CUSH FRM (ЧАСТЬ OF 37) 2004-2007
054 88995421 PAD, D/SEAT CUSH DM 2004-2007 01
054 88995421 PAD, D/SEAT CUSH DN 2004-2007 01
055 БОЛТ, D/SEAT CUSH FRM (ЧАСТЬ OF 47) 2004-2007
056 19122680 COVER, D/SEAT CUSH (CASHMERE) (POWER) DM (AQ9, 334) (EXC KA1) 2006-2006 01
056 19122681 COVER, D/SEAT CUSH (CASHMERE) DM (AQ9, KA1, 334) 2006-2006 01
056 19122693 COVER, D/SEAT CUSH (CASHMERE W/EBONY) (14.924) DN (AQ9, 315) 2006-2006 01
056 88994778 COVER, D/SEAT CUSH (EBONY) DM (AQ9, AX4, 19C) (EXC KA1) (EXPORT) 2006-2006 01
056 88995452 COVER, D/SEAT CUSH (EBONY) DM (AQ9, 19W) (EXC KA1) 2006-2006 01
056 88995453 COVER, D/SEAT CUSH (GRAY) DM (AQ9, 13W) (EXC KA1) 2006-2006 01
056 88995455 COVER, D/SEAT CUSH (EBONY) DM (AQ9, KA1, 19W) 2006-2006 01
056 88995456 COVER, D/SEAT CUSH (GRAY) DM (AQ9, KA1, 13W) 2006-2006 01
056 88995896 COVER, D/SEAT CUSH (GRAY) DM (AQ9, 134) (EXC KA1) 2006-2006 01
056 88995897 COVER, D/SEAT CUSH (EBONY) DM (AQ9, 194) (EXC KA1) 2006-2006 01
056 88995904 COVER, D/SEAT CUSH (GRAY W/EBONY) DM (AQ9, KA1, 134) 2006-2006 01
056 88995905 COVER, D/SEAT CUSH (EBONY) (16.717) DM (AQ9, KA1, 194) 2006-2006 01
056 88995956 COVER, D/SEAT CUSH (EBONY) DN (AQ9, 195) 2006-2006 01
056 88995958 COVER, D/SEAT CUSH (GRAY) DN (AQ9, 135) 2006-2006 01
