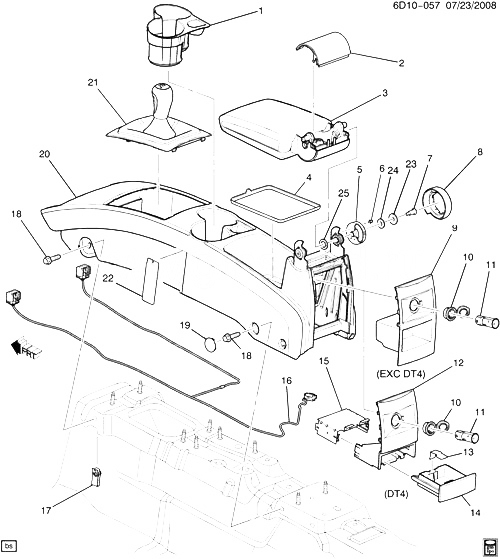

(6D10-057) - 2005-2007 DN69 КОНСОЛЬ/ПОЛ CADILLAC - CTS 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15299433 LINER, F/FLR CNSL CUP HLDR (ЧАСТЬ OF 20) (CASHMERE) D69 (33I) 2006-2007 01
001 25745862 LINER, F/FLR CNSL CUP HLDR (ЧАСТЬ OF 20) (EBONY) D69 (U2S, 13I, 19I) (EXPORT) 2005-2007 01
002 10357843 COVER, F/FLR CNSL A/RST HGE (GRAY) (CENTER COVER) DN69 (135) 2005-2007 01
002 10397709 COVER, F/FLR CNSL A/RST HGE (CASHMERE) (CENTER COVER) DN69 (315) 2006-2007 01
002 25764288 COVER, F/FLR CNSL A/RST HGE (EBONY) (CENTER COVER) DN (19I) 2005-2007 01
003 10357841 ARMREST, F/FLR CNSL (GRAY) DN (13I) 2005-2007 01
003 10397705 ARMREST, F/FLR CNSL (CASHMERE) DN (31I) 2006-2007 01
003 25764285 ARMREST, F/FLR CNSL (EBONY) DN (19I) 2005-2007 01
004 15299435 LINER, F/FLR CNSL CMPT (ЧАСТЬ OF 20) (CASHMERE) D69 (33I) 2006-2007 01
004 25737724 LINER, F/FLR CNSL CMPT (ЧАСТЬ OF 20) (EBONY) (LESS CUP ДЕРЖАТЕЛЬ) D69 (13I, 19I) 2005-2007 01
005 DETENT, F/FLR CNSL A/RST (ЧАСТЬ OF 20) 2005-2007
006 25737722 RIVET, F/FLR CNSL (ЧАСТЬ OF 20) D69 2005-2007 06
007 19207830 БОЛТ, F/FLR CNSL A/RST D69 2005-2007 02
008 10397708 COVER, F/FLR CNSL A/RST HGE (CASHMERE) (END CAP) DN (315) 2006-2007 02
008 25750152 COVER, F/FLR CNSL A/RST HGE (EBONY) (END CAP) DN (M12, UAV, 195) 2006-2007 02
008 25759216 COVER, F/FLR CNSL A/RST HGE (GRAY) (END CAP) DM, DN, DR69 (13I) 2006-2007 02
009 10397712 COVER, F/FLR CNSL RR (INCLS 10, 11) (CASHMERE) DN (M12, 315) (EXC DT4) 2006-2007 01
009 25759200 COVER, F/FLR CNSL RR (INCLS 10, 11) (GRAY) (PO CNSL ASM) D69 (13I) (EXC DT4) 2005-2007 01
010 15187371 RETAINER, ACSRY PWR RCPT (ЧАСТЬ OF 9, 12) (EBONY) (INCLS COVER) D69 2005-2007 01
011 25774623 RECEPTACLE, ACSRY PWR (ЧАСТЬ OF 9, 12) (ACSRY PWR RECEPTACLE ASSEM LABELED 4623) D 2005-2007 01
012 15216906 COVER, F/FLR CNSL RR (INCLS 10, 11, 13-15) (CASHMERE) DN (M12, DT4, 315) 2006-2007 01
012 25759204 COVER, F/FLR CNSL RR (INCLS 10, 11, 13-15) (GRAY) (PO CNSL ASM) D69 (DT4, 13I) 2005-2007 01
012 25759206 COVER, F/FLR CNSL RR (INCLS 10, 11, 13-15) (NEUTRAL) (PO CNSL ASM) D69 (DT4, 70I) 2005-2007 01
013 25737736 ПРУЖИНА, F/FLR CNSL RR ПЕПЕЛЬНИЦА GDE (ЧАСТЬ OF 12) D69 2005-2007 01
014 DOOR, F/FLR CNSL ПЕПЕЛЬНИЦА (ЧАСТЬ OF 12) 2005-2007
015 25750153 ШЛАНГИ, F/FLR CNSL ПЕПЕЛЬНИЦА (ЧАСТЬ OF 12) (EBONY) D69 (DT4, 19I) 2005-2007 01
016 HARNESS, F/FLR CNSL WRG (ЧАСТЬ OF 20) 2005-2007
017 11609385 ГАЙКА, U-TYPE, M6X1, 29.5 LEN, 12.5 WID, 19.5 CEN-END, 1050, GMW3359 (ЧАСТЬ OF 20) 2005-2007 02
018 11561674 БОЛТ, HEX W/FL WA, M6X1X20, 12 THD, 24 OD, 9.8, GMW3359, M-PT (ЧАСТЬ OF 20) 2005-2007 06
019 10397703 COVER, F/FLR CNSL БОЛТ ACC HOLE (CASHMERE) D69 (31I, 33I) 2006-2007 04
019 25731552 COVER, F/FLR CNSL БОЛТ ACC HOLE (GRAY) D69 (13I) 2005-2007 04
019 25748146 COVER, F/FLR CNSL БОЛТ ACC HOLE (EBONY) D69 (19I) 2005-2007 04
020 15299363 КОНСОЛЬ, F/FLR (INCLS 1, 4-6, 16-18, 22) (CASHMERE) DN (M12, 31I) 2006-2007 01
020 25748147 КОНСОЛЬ, F/FLR (INCLS 1, 4-6, 16-18, 22) (EBONY) DN (M12, 19I) 2005-2007 01
020 25771468 КОНСОЛЬ, F/FLR (INCLS 1, 4-6, 16-18, 22) (GRAY) DN (M12, 13I) 2005-2007 01
021 15229751 KNOB, M/TRNS CONT LVR (W/BOOT W/SHFT PATT) DN (M12) 2005-2007 01
022 10397704 SPACER, F/FLR CNSL SI T/PNL (ЧАСТЬ OF 20) (CASHMERE) DN (M12, UAV, 315) 2006-2007 02
023 WASHER, F/FLR CNSL 2005-2007
024 WASHER, F/FLR UPR CNSL 2005-2007
025 WASHER, F/FLR UPR CNSL BRKT 2005-2007
