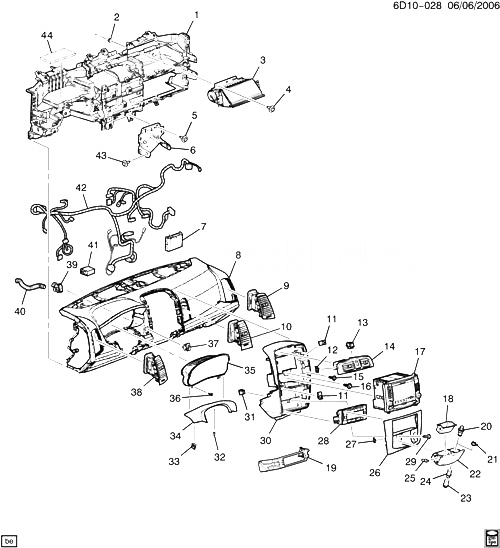

(6D10-028) - 2004-2007 DM,DN69 ПРИБОРНАЯ ПАНЕЛЬ ЧАСТЬ 1 CADILLAC - CTS 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25667204 КРОНШТЕЙН, INST D69 2003-2007 01
002 11503749 ГАЙКА, M6X1 (INFL RST I/P MDL) (ACDelco #11503749) 2003-2007 04
003 25756980 МОДУЛЬ, I/P INFL RST D69 2003-2007 01
004 11609989 БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (I/P INFL RST MDL) 2003-2007 04
005 11609989 БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (INST CARR BRKT) 2003-2007 04
006 15207992 BRACKET, I/P CARR (TO FLR) D69 2003-2007 01
007 10391431 МОДУЛЬ, BODY CONT (ACDelco #10391431) DN (M12, CE4, UAV) (EXC TR7, T62, T65, T79, V92, XA7) 2006-2006 01
007 10391431 МОДУЛЬ, BODY CONT (STAMPED 10391431) (ACDelco #10391431) DM (MV1, M82) (EXC TR7, T62, T65, T79, V92, XA7) 2005-2007 01
007 10391431 МОДУЛЬ, BODY CONT (2.560) (ACDelco #10391431) DN (M12, CE4, UAV) (EXC TR7, T62, T65, T79, V92, XA7) 2006-2006 01
007 10391431 МОДУЛЬ, BODY CONT (STAMPED 10391431) (2.560) (ACDelco #10391431) DM (MV1, M82) (EXC TR7, T62, T65, T79, V92, XA7) 2005-2007 01
008 15220570 PANEL, INST (CASHMERE) DM (33I) 2006-2007 01
008 25769946 PANEL, INST (GRAY) DM (13I) 2004-2007 01
008 25769947 PANEL, INST (EBONY) DM, DN (19I) 2004-2007 01
009 15220549 DEFLECTOR, I/P OTR AIR OTLT (CASHMERE) DM (33I) 2006-2007 01
009 25749973 DEFLECTOR, I/P OTR AIR OTLT (EBONY) DM (13I, 19I) 2006-2007 01
009 25749973 DEFLECTOR, I/P OTR AIR OTLT (EBONY) DN (13I, 19I, 31I) 2006-2007 01
010 15220551 DEFLECTOR, I/P CTR AIR OTLT (CASHMERE) DM (33I) 2006-2007 01
010 25749975 DEFLECTOR, I/P CTR AIR OTLT (EBONY) DM (13I, 19I) 2006-2007 01
010 25749975 DEFLECTOR, I/P CTR AIR OTLT (EBONY) DN (13I, 19I, 31I) 2006-2007 01
011 11518121 ГАЙКА, U, M6X1, MULTI THD, .5-4.0 THK PNL (ЧАСТЬ OF 30) 2003-2007 02
012 22570333 RETAINER, I/P ACSRY TR PLT (ЧАСТЬ OF 14) (10.240) D69 2003-2007 03
013 SWITCH, HAZARD WRNG (ЧАСТЬ OF 14) 2004-2007
014 15140468 PLATE, I/P ACSRY TR (INCLS 12, 13) (NO FINISH) (WOOD FILM) (DOMESTIC, NON EUROPEAN, MID EASTERN COUNTRIES) DM (B18) 2005-2007 01
014 15140469 PLATE, I/P ACSRY TR (INCLS 12, 13) (WALNUT BURL) DM 2005-2007 01
014 25749919 PLATE, I/P ACSRY TR (INCLS 12, 13) (EBONY) (INCLS SW RET) (DOMESTIC, NON EUROPEAN MID EASTERN COUNTRIES) D69 (EXC V92) 2004-2007 01
014 25749920 PLATE, I/P ACSRY TR (INCLS 12, 13) (EBONY) (INCLS SW RET) (EUROPEAN MID EASTERN COUNTRIES) D69 (EXPORT) 2004-2007 01
015 11589015 БОЛТ, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (I/P LWR EXTN) 2003-2007 12
016 11609989 БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (I/P LWR EXTN) 2003-2007 04
017 15824241 RADIO, AM/FM STEREO CLK T/PLYR CD PLYR (ACDelco #15824241) (LABELED 15824241.) DM69 (B18, U2R, U66) 2005-2006 01
017 15887293 RADIO, AM/FM STEREO CLK T/PLYR CD PLYR (ACDelco #15887293) (LABELED 15887293) DM69 (B18, UK1, U2S, U57) 2006-2007 01
017 15950585 RADIO, AM/FM STEREO CLK T/PLYR CD PLYR (ACDelco #15950585) (LABELED 15824244.) DM69 (U2R, U66) (EXC B18, FCN) 2006-2006 01
017 15950585 RADIO, AM/FM STEREO CLK T/PLYR CD PLYR (ACDelco #15950585) (LABELED 15887288) DM69 (U2R, U66) (EXC B18, FCN) 2006-2007 01
017 15950585 RADIO, AM/FM STEREO CLK T/PLYR CD PLYR (ACDelco #15950585) (LABELED 15950585) DM69 (U2R, U66) (EXC B18, FCN) 2006-2007 01
017 15950587 RADIO, AM/FM STEREO CLK T/PLYR CD PLYR (ACDelco #15950587) (LABELED 15950587, 15887291, 15824245, 15280956, 10387600, 15144093, 25770920.) DM69 (U2S, U57) (EXC UK1) 2004-2007 01
017 15950588 RADIO, AM/FM STEREO CLK T/PLYR CD PLYR (ACDelco #15950588) (LABELED 15824241, 15950588.) DM69 (B18, U2R, U66) 2005-2006 01
017 15950589 RADIO, AM/FM STEREO CLK T/PLYR CD PLYR (ACDelco #15950589) (LABELED 15887292) DM69 (B18, U2S, U57) (EXC FCN, UK1) 2006-2007 01
017 15950589 RADIO, AM/FM STEREO CLK T/PLYR CD PLYR (ACDelco #15950589) (LABELED 15950589) DM69 (B18, U2S, U57) (EXC FCN, UK1) 2006-2007 01
017 15950590 RADIO, AM/FM STEREO CLK T/PLYR CD PLYR (ACDelco #15950590) (LABELED 15950590) DM69 (B18, UK1, U2S, U57) 2006-2007 01
017 15950591 RADIO, AM/FM STEREO CLK T/PLYR CD PLYR (ACDelco #15950591) (LABELED 15887294) DM69 (B18, FCN, U2S, U57) 2006-2007 01
017 15950591 RADIO, AM/FM STEREO CLK T/PLYR CD PLYR (ACDelco #15950591) (LABELED 15950591) DM69 (B18, FCN, U2S, U57) 2006-2007 01
018 25716165 ПЕПЕЛЬНИЦА, I/P (ЧАСТЬ OF 26) D69 2003-2007 01
019 25736373 BRACKET, I/P CTR DM, DN 2004-2007 01
020 11516141 LIGHTER, CIG (ЧАСТЬ OF 26) (BLACK) (W/SMALL, PLASTIC KNOB END 14.0MM) D 2003-2007 01
021 12385528 PLUG, ACSRY PWR RCPT OPG (ЧАСТЬ OF 26) DM (EXC DT4) 2005-2007 01
021 12385528 PLUG, ACSRY PWR RCPT OPG (ЧАСТЬ OF 26) DN 2005-2007 01
022 COMPARTMENT, I/P (ЧАСТЬ OF 26) DM, DN (DT4) 2004-2007 01
022 25716163 COMPARTMENT, I/P (ЧАСТЬ OF 26) (CTR LWR, ЧАСТЬ OF ПЕПЕЛЬНИЦА PKG, FLOCKED BIN) DM (EXC DT4) 2003-2007 01
022 25716163 COMPARTMENT, I/P (ЧАСТЬ OF 26) (CTR LWR, ЧАСТЬ OF ПЕПЕЛЬНИЦА PKG, FLOCKED BIN) DN (EXC DT4) 2004-2007 01
023 11516144 RETAINER, C/LTR HSG (I/P ПЕПЕЛЬНИЦА) (ЧАСТЬ OF 26) (CASCO) (W/O CAP) D69 2003-2007 01
024 11516142 RECEPTACLE, C/LTR (I/P ПЕПЕЛЬНИЦА) (ЧАСТЬ OF 26) (MATES W/CONN 12085504, (CASCO) (1-PIN CONN) D69 2003-2007 01
025 89039649 LATCH, I/P ПЕПЕЛЬНИЦА (ЧАСТЬ OF 26) D69 2003-2007 01
026 15270441 PANEL, I/P LWR EXTN TR (INCLS 18, 20-25, 27) (EBONY) DN (DT4) 2005-2007 01
026 25750258 PANEL, I/P LWR EXTN TR (EBONY) (INCLS 18, 20-25, 27) (EBONY) DN (EXC DT4) 2005-2007 01
026 25758549 PANEL, I/P LWR EXTN TR (INCLS 18, 20-25, 27) (EBONY) DM (EXC DT4) 2004-2007 01
026 25758550 PANEL, I/P LWR EXTN TR (INCLS 18, 20-25, 27) (EBONY) DM (DT4) 2004-2007 01
026 25758552 PANEL, I/P LWR EXTN TR (INCLS 18, 20-25, 27) (WOODGRAIN) DM (B18, DT4) 2005-2007 01
026 25758553 PANEL, I/P LWR EXTN TR (INCLS 18, 20-25, 27) (WOODGRAIN) DM (EXC DT4) 2005-2007 01
027 22570333 RETAINER, I/P LWR EXTN T/PNL (ЧАСТЬ OF 26) (10.240) D69 2003-2007 04
028 21998813 CONTROL, HTR КОНДИЦИОНЕР (ACDelco #15-73038) (USE ON PARTS LABELED 21998813) DM, DN (CJ2) (EXC KA1) 2005-2006 01
028 21998814 CONTROL, HTR КОНДИЦИОНЕР (ACDelco #15-73039) (USE ON PARTS LABELED 21998814) DM, DN (CJ2, KA1) 2005-2006 01
029 11589015 БОЛТ, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (I/P LWR EXTN T/PNL) 2003-2007 01
030 15220559 EXTENSION, I/P LWR (INCLS 11, 31) (CASHMERE) DM 2006-2007 01
030 25749981 EXTENSION, I/P LWR (INCLS 11, 31) (EBONY) DM, DN 2004-2007 01
031 25536302 ГАЙКА, I/P LWR EXTN (ЧАСТЬ OF 30) (4.2 X 1.41) (TAPPING NUT) (3.430) D69 2003-2007 12
032 INSULATOR, I/P CSTR TR PLT (ЧАСТЬ OF 34) 2004-2007
033 RETAINER, I/P CSTR TR PLT (ЧАСТЬ OF 34) 2004-2007
034 15220555 PLATE, I/P CSTR TR (INCLS 32, 33) (DK CASHMERE) DM (33I) 2006-2007 01
034 25749976 PLATE, I/P CSTR TR (INCLS 32, 33) (EBONY) DM, DN 2004-2007 01
035 15284087 CLUSTER, INST (ACDelco #15284087) DN69 (U19) (EXC U30) 2006-2007 01
035 15284100 CLUSTER, INST (ACDelco #15284100) DM69 (U30) (EXC U19) 2006-2007 01
035 15284101 CLUSTER, INST (ACDelco #15284101) DM69 (U19, U30) 2006-2006 01
036 11516630 SCREW, RD, M4.2X1.41X20, TYPE AB PT, GM6010M, GMW4205 (INST CSTR) 2003-2007 02
037 15220575 GRILLE, I/S AIR TEMP SEN (CASHMERE) DM (33I) 2006-2007 01
037 25749915 GRILLE, I/S AIR TEMP SEN (EBONY) D69 (13I, 19I) 2006-2007 01
038 15220548 DEFLECTOR, I/P OTR AIR OTLT (CASHMERE) DM (33I) 2006-2007 01
038 25749972 DEFLECTOR, I/P OTR AIR OTLT (EBONY) DM (13I, 19I) 2006-2007 01
038 25749972 DEFLECTOR, I/P OTR AIR OTLT (EBONY) DN (13I, 19I, 31I) 2006-2007 01
039 25687484 SENSOR, I/S AIR TEMP (ACDelco #15-5889) D 2003-2007 01
040 DUCT, I/S AIR TEMP SEN 2004-2007
041 25716295 FLASHER, HAZARD LP T/SIG LP (7 PIN) (ACDelco #25716295) D69 2003-2007 01
041 25716295 FLASHER, HAZARD LP T/SIG LP (7 PIN) (2.575) (ACDelco #25716295) D69 2003-2007 01
041 25721769 FLASHER, HAZARD LP T/SIG LP (10 PIN) (ACDelco #25721769) D69 2003-2007 01
041 25721769 FLASHER, HAZARD LP T/SIG LP (10 PIN) (2.575) (ACDelco #25721769) D69 2003-2007 01
042 HARNESS, I/P WRG (СМ. ГРУППУ 02.000 ЖГУТЫ ПРОВОДОВ/ПРИБОРНАЯ ПАНЕЛЬ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2003-2007
043 11515755 БОЛТ, HEX, M8X1.25X16, 15 THD, 18 O.D., 10.9, 7114M (INST CARR BRKT) (T/W 12345493 REPLCS 25534835) 2003-2007 04
044 15244361 INSULATOR, I/P CARR DM, DN 2004-2007 01
