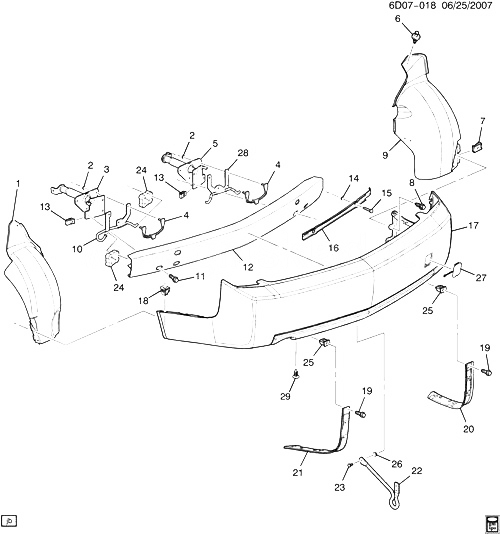

(6D07-018) - 2004-2007 D69 БАМПЕР ЗАДНИЙ CADILLAC - CTS 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25664525 EXTENSION, RR BPR FASCIA DM 2004-2007 01
001 25664525 EXTENSION, RR BPR FASCIA DR (EXPORT) 2004-2007 01
001 25773225 EXTENSION, RR BPR FASCIA DN 2004-2007 01
002 10009923 ГАЙКА, БОЛТ RETAINING ПРУЖИНА, M8X1.25, 25 O.D., ZOR (ЧАСТЬ OF 3, 5) 2004-2007 03
003 25746733 АМОРТИЗАТОР, RR BPR ENGY (INCLS 2, 4, 10, 13, 24) D69 2004-2007 01
004 PLATE, RR BPR ENGY ABS STUD (ЧАСТЬ OF 3, 5) 2004-2007
005 25746734 АМОРТИЗАТОР, RR BPR ENGY (INCLS 2, 4, 13, 24, 28) DM (LP1) 2005-2007 01
005 25746734 АМОРТИЗАТОР, RR BPR ENGY (INCLS 2, 4, 13, 24, 28) DR (LP1) (EXPORT) 2005-2007 01
005 25765129 АМОРТИЗАТОР, RR BPR ENGY (INCLS 2, 4, 13, 24, 28) (DUAL EXHAUST) (USE T/W BAR #25765133) DM69 (LY7) 2004-2007 01
005 25765129 АМОРТИЗАТОР, RR BPR ENGY (INCLS 2, 4, 13, 24, 28) (DUAL EXHAUST) (USE T/W BAR #25765133) DN69 2004-2007 01
005 25765129 АМОРТИЗАТОР, RR BPR ENGY (INCLS 2, 4, 13, 24, 28) (DUAL EXHAUST) (USE T/W BAR #25765133) DR69 (LY7) (EXPORT) 2004-2007 01
006 11518017 RETAINER, 25 LG, 20.5 OD, 8.0 HOLE, 6.2-8.2 PNL, NYLON, 6/6, BLK (RR BPR FASCIA EXTN) 2004-2007 12
007 11516993 ГАЙКА, M4.2X1.41 (RR BPR FASCIA EXTN) 2004-2007 04
008 11589015 БОЛТ, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (RR BPR FASCIA EXTN) 2004-2007 04
009 25664524 EXTENSION, RR BPR FASCIA DM 2004-2007 01
009 25664524 EXTENSION, RR BPR FASCIA DR (EXPORT) 2004-2007 01
009 25773224 EXTENSION, RR BPR FASCIA DN 2004-2007 01
010 25755350 BRACKET, EXH TAIL PIPE HNGR (ЧАСТЬ OF 3) D69 2004-2006 01
011 11515758 БОЛТ, HFH, M8X1.25X30, 28THD, 18 O.D., MACH PT, 10.9, 7114M (RR BPR IMP BAR) 2004-2007 03
012 25765133 BAR, RR BPR IMP D69 2004-2007 01
013 11518444 ГАЙКА, U, M8X1.25, 25X14.2, 3.4-6.3 PNL, 1050, 6173M (ЧАСТЬ OF 3, 5) 2004-2007 03
014 14093869 ГАЙКА, PUSH ON, M6, 2.25THK, 12.95 O.D., STL, POR (ЧАСТЬ OF 17) 2004-2007 04
015 STUD, RR BPR FASCIA RET (ЧАСТЬ OF 17) 2004-2007
016 25704358 RETAINER, RR BPR FASCIA (15X18X23.8) D 2004-2007 AR
016 25716146 RETAINER, RR BPR FASCIA D69 2004-2007 02
017 12335546 FASCIA, RR BPR (INCLS 14, 15, 16) (КРАСКА TO MATCH) DM (LP1) 2005-2007 01
017 12335546 FASCIA, RR BPR (INCLS 14, 15, 16) (КРАСКА TO MATCH) DR (LP1) (EXPORT) 2005-2007 01
017 12335719 FASCIA, RR BPR (INCLS 14, 15, 16) (КРАСКА TO MATCH) DM (LY7) (EXC VGE) 2006-2007 01
017 12335719 FASCIA, RR BPR (INCLS 14, 15, 16) (КРАСКА TO MATCH) DR (LY7) (EXC VGE) (EXPORT) 2006-2007 01
017 12335776 FASCIA, RR BPR (DUAL EXHAUST) (INCLS 14, 15, 16, 27) (КРАСКА TO MATCH) DN 2004-2007 01
017 15280941 FASCIA, RR BPR (INCLS 14, 15, 16, 27) (BLACK) DM (VGE) 2006-2007 01
018 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (RR BPR FASCIA) 2004-2007 04
019 11519116 БОЛТ, WASHER, M6.3X1.8X20, 14 THD, 17 OD, GM6010M, 7153M (RR BPR FASCIA BRKT) 2004-2007 10
020 25761444 BRACKET, RR BPR FASCIA D69 2004-2007 01
021 25761445 BRACKET, RR BPR FASCIA D69 2004-2007 01
022 25718706 HOOK, RR TOW (INCLS 26) (INTEGRAL NUT 25 +/- 5) D (V76) (EXPORT) 2004-2007 01
023 11570082 БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (RR TOW HOOK) (ACDelco #11570082) 2004-2007 06
024 15284207 INSULATOR, EXH TAIL PIPE HNGR (ЧАСТЬ OF 3, 5) D69 2006-2007 04
025 ГАЙКА, RR BPR FASCIA 2004-2007
026 25643805 ГАЙКА, RR TOW HOOK (ЧАСТЬ OF 22) (7.452) D 2004-2007 01
027 12335941 COVER, RR BPR FASCIA ACC HOLE (FLAT) D69 2004-2007 01
028 BRACKET, EXH TAIL PIPE HNGR (ЧАСТЬ OF 5) 2004-2007
029 10121502 RETAINER, FITS .250 HOLE, 1.01LG.700-OD NYLON BLACK (RR BPR FASCIA (PUSH IN)) 2004-2007 03
