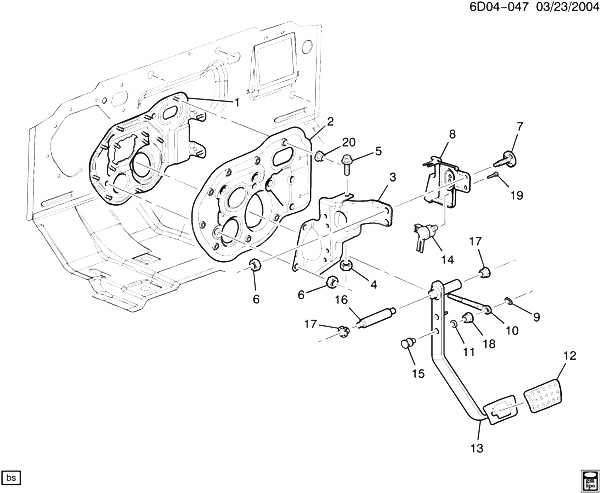

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25764206 |
REINFORCEMENT, DA PNL BRK PED BRKT |
DM (M82) |
2004-2007 |
01 |
| 001 |
25764207 |
REINFORCEMENT, DA PNL BRK PED BRKT |
DN (M12) |
2004-2007 |
01 |
| 001 |
25764207 |
REINFORCEMENT, DA PNL BRK PED BRKT |
DM (MV1) |
2005-2007 |
01 |
| 002 |
25737331 |
BARRIER, BRK PED BRKT SND |
DN (M12) |
2004-2007 |
01 |
| 002 |
25737331 |
BARRIER, BRK PED BRKT SND |
DM (MV1) |
2005-2007 |
01 |
| 002 |
25773182 |
BARRIER, BRK PED BRKT SND |
DM (M82) |
2004-2007 |
01 |
| 003 |
|
BRACKET, BRK PED (ЧАСТЬ OF 13) |
|
2004-2007 |
|
| 004 |
|
ГАЙКА, BRK PED BRKT BR (ЧАСТЬ OF 13) |
|
2004-2007 |
|
| 005 |
11517518 |
БОЛТ, HFH, M6X1X20, 17.9 THD, 14.2 O.D., 9.8, TIN ZN (ЧАСТЬ OF 13) (ACDelco #11517518)
|
2004-2007 |
01 |
|
| 006 |
11514519 |
ГАЙКА, HEX W/23.75 OD CON WA, M8X1.25, 7.32THK, 9, PZOR (BRK PED BRKT)
|
2004-2007 |
06 |
|
| 007 |
|
STUD, BRK PED BRKT (ЧАСТЬ OF 13) |
|
2004-2007 |
|
| 008 |
|
BRACKET, BRK PED (ЧАСТЬ OF 13) |
|
2004-2007 |
|
| 009 |
03817880 |
RETAINER, BRK PED PUSH ROD (ЧАСТЬ OF 13) (0.80 IN) (PUSH IN) |
D |
2004-2007 |
01 |
| 010 |
|
ROD, BRK PED PUSH (ЧАСТЬ OF 13) |
|
2004-2007 |
|
| 011 |
00410230 |
WASHER, ПРУЖИНА 29/64 I.D., 11/16 O.D., 5/64 THK, PL (ЧАСТЬ OF 13) |
|
2004-2007 |
01 |
| 012 |
25771615 |
COVER, BRK PED (ЧАСТЬ OF 13) |
D |
2004-2007 |
01 |
| 013 |
25743457 |
PEDAL, BRK (W/BRKT) (INCLS 3-5, 7-12, 14-19) |
DM (M82) |
2004-2007 |
01 |
| 013 |
25743459 |
PEDAL, BRK (W/BRKT) (INCLS 3-5, 7-12, 14-19) |
DN (M12) |
2004-2007 |
01 |
| 013 |
25743459 |
PEDAL, BRK (W/BRKT) (INCLS 3-5, 7-12, 14-19) |
DM (MV1) |
2005-2007 |
01 |
| 014 |
89047699 |
SENSOR KIT, BRK PED POSN (ЧАСТЬ OF 13) (INCLS 19)
| DM69 |
2004-2007 |
01 |
|
| 014 |
89047699 |
SENSOR KIT, BRK PED POSN (ЧАСТЬ OF 13) (INCLS 19)
| DN69 (M12) |
2004-2007 |
01 |
|
| 015 |
|
PIN, BRK PED PUSH ROD (ЧАСТЬ OF 13) |
|
2004-2007 |
|
| 016 |
|
PIN, BRK PED PIV (ЧАСТЬ OF 13) |
|
2004-2007 |
|
| 017 |
15594358 |
BUSHING, BRK PED PIV (ЧАСТЬ OF 13) (0.831) |
D |
2004-2007 |
02 |
| 018 |
10434956 |
BUSHING, BRK PED PUSH ROD (ЧАСТЬ OF 13) |
D |
2004-2007 |
01 |
| 019 |
11609999 |
SCREW, HEX HD FL WA, M4X0.7X20, 13 THD, 12 OD, 9.8, GMW3044, W/NYLON (ЧАСТЬ OF 13, 14) |
|
2004-2007 |
01 |
| 020 |
11609411 |
ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (BRK PED BRKT SND BARR)
|
2004-2007 |
08 |
|
