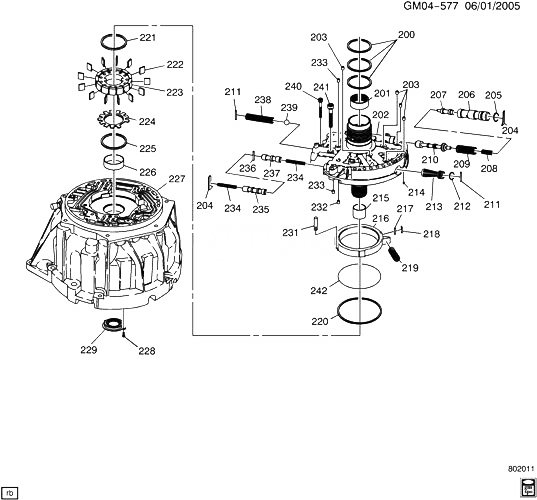

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 200 |
|
RING, REV CLU HSG FLUID SEAL (*KIT1) |
|
2003-2007 |
|
| 201 |
|
BEARING, INPUT SHF (*KIT1) |
|
2003-2007 |
|
| 202 |
|
COVER, A/TRNS ГИДРОНАСОС (*KIT1) |
|
2003-2007 |
|
| 203 |
|
VALVE, A/TRNS ГИДРОНАСОС BALL CHK (*KIT1) |
|
2003-2007 |
|
| 204 |
|
RETAINER, LINE BOOST VLV BUSH (*KIT1) |
|
2003-2007 |
|
| 205 |
|
SEAL, LINE BOOST VLV BUSH (O RING) (*KIT1) |
|
2003-2007 |
|
| 206 |
|
BUSHING, LINE BOOST VLV (*KIT1) |
|
2003-2007 |
|
| 207 |
|
VALVE, LINE BOOS (*KIT1) |
|
2003-2007 |
|
| 208 |
|
ПРУЖИНА, LINE BOOST VLV (*KIT1) |
|
2003-2007 |
|
| 209 |
|
ПРУЖИНА, PRESS REG VLV (*KIT1) |
|
2003-2007 |
|
| 210 |
|
VALVE, PRESS REG (*KIT1) |
|
2003-2007 |
|
| 211 |
|
PIN, A/TRNS ГИДРОНАСОС CVR SCRN (*KIT1) |
|
2003-2007 |
|
| 212 |
|
SEAL, A/TRNS ГИДРОНАСОС CVR SCRN (*KIT1) |
|
2003-2007 |
|
| 213 |
24209145 |
ФИЛЬТР, PRESS CONT SOL VLV FLUID (ACDelco #24209145)
| D (M82, M22, MV3, MX5) |
2006-2006 |
01 |
|
| 214 |
|
COLLAR, A/TRNS ГИДРОНАСОС CVR HUB (*KIT1) |
|
2003-2007 |
|
| 215 |
|
BUSHING, REV CLU HSG (*KIT1) |
|
2003-2007 |
|
| 216 |
24212478 |
SLIDE, A/TRNS ГИДРОНАСОС (17.9545MM) (SLIDE ID MARK = 1 DIMPLE) (ACDelco #24212478) |
D (M82) |
2006-2007 |
01 |
| 216 |
24212479 |
SLIDE, A/TRNS ГИДРОНАСОС (17.9675MM) (SLIDE ID MARK = 1 DIMPLE) (ACDelco #24212479) |
D (M82) |
2006-2007 |
01 |
| 216 |
24212480 |
SLIDE, A/TRNS ГИДРОНАСОС (17.9805MM) (SLIDE ID MARK = 1 DIMPLE) (ACDelco #24212480) |
D (M82) |
2006-2007 |
01 |
| 216 |
24212481 |
SLIDE, A/TRNS ГИДРОНАСОС (17.9935MM) (SLIDE ID MARK = 1 DIMPLE) (ACDelco #24212481) |
D (M82) |
2006-2007 |
01 |
| 216 |
24212482 |
SLIDE, A/TRNS ГИДРОНАСОС (18.0065MM) (SLIDE ID MARK = 1 DIMPLE) (ACDelco #24212482) |
D (M82) |
2006-2007 |
01 |
| 217 |
|
SUPPORT, A/TRNS ГИДРОНАСОС SLIDE SEAL (*KIT1) |
|
2003-2007 |
|
| 218 |
|
SEAL, A/TRNS ГИДРОНАСОС SLIDE (*KIT1) |
|
2003-2007 |
|
| 219 |
|
ПРУЖИНА, A/TRNS ГИДРОНАСОС SLIDE (*KIT1) |
|
2003-2007 |
|
| 220 |
|
RING, A/TRNS ГИДРОНАСОС SLIDE FLUID SEAL (*KIT1) |
|
2003-2007 |
|
| 221 |
24201144 |
RING, A/TRNS ГИДРОНАСОС VANE (RING, PUMP VANE) (ACDelco #24201144) |
D (M82) |
2006-2007 |
02 |
| 222 |
08631280 |
VANE, A/TRNS ГИДРОНАСОС (ACDelco #8631280) |
D (M82) |
2006-2007 |
13 |
| 223 |
|
ROTOR, A/TRNS ГИДРОНАСОС (*KIT1) |
|
2003-2007 |
|
| 224 |
24205410 |
GUIDE, A/TRNS ГИДРОНАСОС ROT (13 VANE) (ACDelco #24205410) |
D (M82) |
2006-2007 |
01 |
| 225 |
24201144 |
RING, A/TRNS ГИДРОНАСОС VANE (RING, PUMP VANE) (ACDelco #24201144) |
D (M82) |
2006-2007 |
02 |
| 226 |
|
BUSHING, T/CV (*KIT1) |
|
2003-2007 |
|
| 227 |
|
ШЛАНГИ, T/CV (*KIT1) |
|
2003-2007 |
|
| 228 |
96015215 |
БОЛТ, A/TRNS ГИДРОНАСОС (4.115) |
D (M82, M22, MV3, MX5) |
2006-2006 |
02 |
| 229 |
96041855 |
SEAL, T/CV FLUID
| D (M82) |
2003-2007 |
01 |
|
| 231 |
|
PIN, A/TRNS ГИДРОНАСОС SLIDE PIV (*KIT1) |
|
2003-2007 |
|
| 232 |
|
ORIFICE, A/TRNS ГИДРОНАСОС AIR BL (*KIT1) |
|
2003-2007 |
|
| 233 |
|
ORIFICE, A/TRNS ГИДРОНАСОС AIR BL (*KIT1) |
|
2003-2007 |
|
| 234 |
|
ПРУЖИНА, TCC C/VLV (*KIT1) |
|
2003-2007 |
|
| 235 |
|
VALVE, TCC CONT (*KIT1) |
|
2003-2007 |
|
| 236 |
|
PIN, A/TRNS ГИДРОНАСОС CVR SCRN (*KIT1) |
|
2003-2007 |
|
| 237 |
|
VALVE, TCC ENABLE (*KIT1) |
|
2003-2007 |
|
| 238 |
|
ПРУЖИНА, PRESS RLF BALL VLV (*KIT1) |
|
2003-2007 |
|
| 239 |
|
VALVE, PRESS RLF BALL (*KIT1) |
|
2003-2007 |
|
| 240 |
|
БОЛТ, A/TRNS ГИДРОНАСОС CVR (*KIT1) |
|
2003-2007 |
|
| 241 |
|
БОЛТ, A/TRNS ГИДРОНАСОС CVR (*KIT1) |
|
2003-2007 |
|
| 242 |
|
SEAL, A/TRNS O/PMP SLIDE (O RING) (*KIT1) |
|
2003-2007 |
|
| K01 |
96042810 |
ШЛАНГИ KIT, T/CV (INCLS 200-212, 214-215, 217-220, 223, 226, 227, 231-242) (W/МАСЛЯНЫЙ НАСОС) |
D (LY7, M82) |
2004-2006 |
01 |
| K01 |
96042972 |
ШЛАНГИ KIT, T/CV (INCLS 200-212, 214-215, 217-220, 223, 226, 227, 231-242) |
D69 (LP1, M82) |
2005-2006 |
01 |
