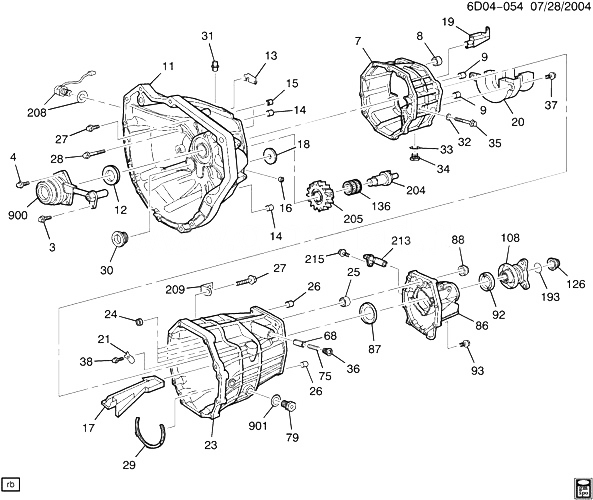

(6D04-054) - 2005-2007 D69 6-ТИ СКОРОСТНАЯ МКПП ЧАСТЬ 2 (MV1) CASE COMPONENTS CADILLAC - CTS 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
003 89058852 БОЛТ, CLU ACTR (M6X1.0X20) D69 (MV1) 2005-2007 01
004 89048559 БОЛТ, CLU ACTR (M8X1.25X20) (4.104) D69 (MV1) 2005-2007 03
007 89058759 CASE, TRANS INTER (INCLS 8, 9) DM (MV1) 2005-2007 01
008 89058774 BEARING, SHFT CONT SHF (ЧАСТЬ OF 7) (4.408) DM (MV1) 2005-2007 01
009 89058791 PIN, TRANS INTER CASE LOC (ЧАСТЬ OF 7) DM (MV1) 2005-2007 02
011 89058758 CASE, TRANS FRT (INCLS 12-16) DM (MV1) 2005-2007 01
012 89058833 SEAL, MAIN SHF (ЧАСТЬ OF 11) DM (MV1) 2005-2007 01
013 SHIELD, INPUT SHF BRG OIL (ЧАСТЬ OF 11) 2005-2007
014 89058791 PIN, TRANS INTER CASE LOC (ЧАСТЬ OF 11) DM (MV1) 2005-2007 02
015 89059311 PIN, TRANS CASE LOC (ЧАСТЬ OF 11) DM (MV1) 2005-2007 02
016 89059312 PLUG, TRANS CASE HOLE (ЧАСТЬ OF 11) DM (MV1) 2005-2007 01
017 TROUGH, TRANS RR CASE OIL 2005-2007
018 89058837 SLINGER, INPUT SHF BRG OIL D69 (MV1) 2005-2007 01
019 89058839 TROUGH, M/TRNS OIL DM (MV1) 2005-2007 01
020 89058840 TROUGH, TRANS INTER CASE OIL DM (MV1) 2005-2007 01
021 RETAINER, INPUT SHF BRG RET 2005-2007
021 89058820 RETAINER, INPUT SHF BRG RET DM (MV1) 2005-2007 01
023 89058760 CASE, TRANS RR (INCLS 24-26) DM (MV1) 2005-2007 01
024 BUSHING, SHFT SHF (ЧАСТЬ OF 23) 2005-2007
025 89058774 BEARING, SHFT SHF (ЧАСТЬ OF 23) D69 (MV1) 2005-2007 01
026 89058791 PIN, TRANS INTER CASE LOC (ЧАСТЬ OF 23) DM (MV1) 2005-2007 02
027 89058853 БОЛТ, TRANS CASE (CASE TO CASE) (M10X1.25X40) D69 (MV1) 2005-2007 06
028 89058854 БОЛТ, TRANS CASE (CASE TO CASE) (M10X1.25X80) D69 (MV1) 2005-2007 05
029 89059319 GASKET, TRANS RR CASE DM (MV1) 2005-2007 01
030 89058843 PLUG, CLU HSG HOLE DM (MV1) 2005-2007 01
031 89059313 VENT, M/TRNS DM (MV1) 2005-2007 01
032 89059314 SEAL, REV IDLER GR SHF (O RING) (ACDelco #89059314) DM (MV1) 2005-2007 01
033 89048245 GASKET, TRANS OIL DRN PLUG (ACDelco #89048245) D69 (MV1) 2005-2007 01
034 19132842 PLUG, TRANS OIL DRN (4.510) DM (MV1) 2005-2007 01
035 89059315 БОЛТ, REV IDLER GR SHF RET DM (MV1) 2005-2007 01
036 19132971 PLUG, SHFT SHF DTNT DM (MV1) 2005-2007 01
037 89048559 БОЛТ, TRANS INTER CASE OIL TROUGH (M8X1.25X20) (4.104) DM (MV1) 2005-2007 02
038 БОЛТ, INPUT SHF BRG RET 2005-2007
038 89058855 БОЛТ, INPUT SHF BRG RET (M8X1.25X25) DM (MV1) 2005-2007 01
068 89058860 DETENT, SHFT SHF D69 (MV1) 2005-2007 01
068 89058860 DETENT, SHFT SHF DM (MV1) 2005-2007 01
068 89059329 DETENT, SHFT SHF (CAM) DM (MV1) 2005-2007 01
075 89058859 ПРУЖИНА, SHFT SHF DTNT DM (MV1) 2005-2007 01
079 89048248 PLUG, TRANS OIL FIL DM (MV1) 2005-2007 01
086 89058761 EXTENSION, TRANS (INCLS 87, 88) DM (MV1) 2005-2007 01
087 89058838 SLINGER, INPUT SHF BRG OIL (ЗАДНИЙ) (ЧАСТЬ OF 86) D69 (MV1) 2005-2007 01
088 89058834 SEAL, SHFT CONT SHF (ЧАСТЬ OF 86) DM (MV1) 2005-2007 01
092 89058835 SEAL, RR ВЫХОДНОЙ SHF DM (MV1) 2005-2007 01
093 89058856 БОЛТ, TRANS EXTN DM69 (MV1) 2005-2007 08
108 89058847 FLANGE, TRANS PROP SHF DM (MV1, JJA) 2006-2006 01
126 19132973 ГАЙКА, PROP SHF TRANS FLG DM (MV1, JJA) 2006-2006 01
136 89058775 BEARING, REV IDLER GR DM (MV1) 2005-2007 01
193 89058836 SEAL, PROP SHF TRANS FLG FLUID DM (MV1, JJA) 2006-2006 01
204 89058790 SHAFT, REV IDLER GR DM (MV1) 2005-2007 01
205 89058789 GEAR, REV IDLER DM (MV1) 2005-2007 01
208 89059321 SWITCH, B/U LP (ACDelco #D2271C) DM (MV1, JJA) 2006-2006 01
209 89059318 RETAINER, B/U LP SW DM (MV1, JJA) 2006-2006 01
213 89058851 SENSOR, M/TRNS ВЫХОДНОЙ SPD (4.337) D (MV1) 2005-2007 01
213 89058851 SENSOR, M/TRNS ВЫХОДНОЙ SPD D (MV1) 2005-2007 01
215 89058852 БОЛТ, VEH SPD SEN (M6X1.0X20) (0.780) D69 (MV1) 2005-2007 01
215 89058852 БОЛТ, VEH SPD SEN (M6X1.0X20) (0.780) D69 (MV1) 2005-2007 01
900 24242161 CYLINDER, CLU ACTR DM (MV1) 2005-2007 01
901 89048245 GASKET, TRANS OIL FILL PLUG (ACDelco #89048245) DM (MV1) 2005-2007 01
