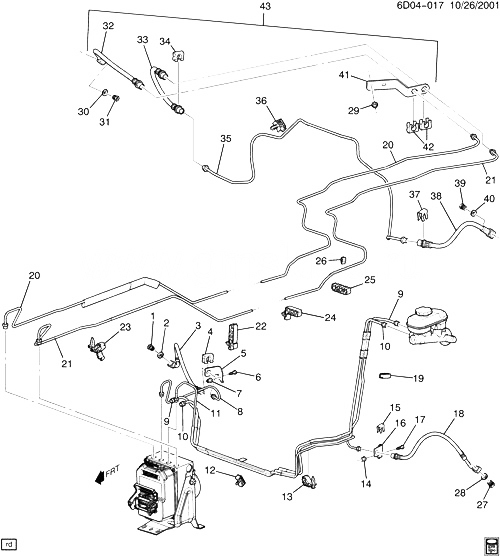

(6D04-017) - 2004-2007 DM69 ТОРМОЗНЫЕ ШЛАНГИ И ТРУБКИ CADILLAC - CTS 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15724653 FITTING, FRT BRK PIPE (7/16-24 X .36) (.30 THD, .56 LENGTH, .194 TUBE, STL, GM7113M) D 2003-2007 02
002 21012386 WASHER, FRT BRK HOSE (10.3X14.5X1.61) (COPPER) (ACDelco #21012386) D 2005-2007 AR
003 15933096 HOSE, FRT BRK (INCLS 4, 5, 14, 15, 17) (ACDelco #176-1544) DM, DN 2004-2007 01
004 11569742 RETAINER, FRT BRK HOSE (ЧАСТЬ OF 3) (1 SIDED RETAINER) D 2003-2007 02
005 BRACKET, FRT BRK HOSE (ЧАСТЬ OF 3) 2004-2007
006 11517103 STUD, SPL W/KNURLED SHLDR, M6X1X27, 10 THD, 13 O.D., P-PT., 9.8, 7114M (FRT BRK HOSE BRKT) 2003-2007 01
007 11517102 ГАЙКА, HEX FLG, M6X1X15, 19.8 OD, 9, 7111M (FRT BRK HOSE) 2003-2007 01
008 25756684 PIPE, FRT BRK DM 2004-2007 01
009 10374025 PIPE, BRK PRESS MOD VLV FRT DM 2004-2007 01
010 10374077 PIPE, BRK PRESS MOD VLV RR DM 2004-2007 01
011 25743892 PIPE, FRT BRK DM 2004-2007 01
012 25688075 RETAINER, FRT BRK PIPE (PUSH PIN W/3 HOLES- (1) 4.75MM DIA, (2) 6.35MM DIA) DM, DN, DR 2004-2007 02
013 25743891 RETAINER, FRT BRK PIPE D 2003-2007 02
014 11517102 ГАЙКА, HEX FLG, M6X1X15, 19.8 OD, 9, 7111M (ЧАСТЬ OF 3, 18) 2003-2007 01
015 11569742 RETAINER, FRT BRK HOSE (ЧАСТЬ OF 3, 18) (1 SIDED RETAINER) D 2003-2007 02
016 BRACKET, FRT BRK HOSE (ЧАСТЬ OF 18) 2004-2007
017 11517103 STUD, SPL W/KNURLED SHLDR, M6X1X27, 10 THD, 13 O.D., P-PT., 9.8, 7114M (ЧАСТЬ OF 3, 18) 2003-2007 01
018 15933097 HOSE, FRT BRK (INCLS 14, 15, 16, 17) (ACDelco #176-1493) DM, DN 2004-2007 01
019 03541444 SPACER, FRT BRK PIPE DM69 2006-2007 01
020 25760813 PIPE, RR BRK FRT D69 (LP1, LY7) 2005-2007 01
021 25766005 PIPE, RR BRK FRT D69 (LP1, LY7) 2005-2007 01
022 25726788 RETAINER, BRK FUEL PIPE (SQUARE HEAD PUSH PIN W/5 HOLES (2)4.76. (2)8.00 (1)9.52) D (LY7) 2004-2007 02
022 25726788 RETAINER, BRK FUEL PIPE (SQUARE HEAD PUSH PIN W/5 HOLES (2)4.76. (2)8.00 (1)9.52) D (LP1) 2005-2007 02
023 25743891 RETAINER, FRT BRK PIPE D 2003-2007 02
024 15270078 RETAINER, BRK FUEL PIPE (USES RETAINER PIN FOR ATTACHMENT) D69 (LY7, LP1) 2005-2007 02
025 25688547 RETAINER, BRK FUEL PIPE (RETAINER W/5 HOLES (2)7.95, (2)4.76, (1)9.52MM) D (LY7) 2004-2006 01
025 25688547 RETAINER, BRK FUEL PIPE (RETAINER W/5 HOLES (2)7.95, (2)4.76, (1)9.52MM) D (LP1) 2005-2006 01
026 25607191 RETAINER, BRK PIPE (21.5X10.0MM) (HOLDS (2) 4.68-4.82 TUBES) D69 (LP1, LY7) 2006-2007 01
027 15724653 FITTING, FRT BRK PIPE (7/16-24 X .36) (.30 THD, .56 LENGTH, .194 TUBE, STL, GM7113M) D 2003-2007 02
028 21012386 WASHER, FRT BRK HOSE (10.3X14.5X1.61) (COPPER) (ACDelco #21012386) D 2005-2007 AR
029 11517102 ГАЙКА, HEX FLG, M6X1X15, 19.8 OD, 9, 7111M (FRT BRK HOSE) 2003-2007 01
030 GASKET, RR BRK HOSE FTG (ЧАСТЬ OF 43) 2004-2007
031 15724653 FITTING, FRT BRK PIPE (7/16-24 X .36) (.30 THD, .56 LENGTH, .194 TUBE, STL, GM7113M) D 2003-2007 02
032 HOSE, RR BRK (ЧАСТЬ OF 43) 2004-2007
033 HOSE, RR BRK INTER (ЧАСТЬ OF 43) 2004-2007
034 11569742 RETAINER, RR BRK HOSE (1 SIDED RETAINER) D 2003-2007 02
035 25708777 PIPE, RR BRK C/OVR (INCLS FITTING RETAINER) DM69 2006-2007 01
036 25693890 RETAINER, RR BRK PIPE (HOLDS (1) 4.76 LINE) (W/TREE) D 2003-2007 04
037 11569742 RETAINER, RR BRK HOSE (1 SIDED RETAINER) D 2003-2007 02
038 15933091 HOSE, RR BRK (1 HOSE) (ACDelco #15933091) DM69 2005-2007 01
039 15724653 FITTING, FRT BRK PIPE (7/16-24 X .36) (.30 THD, .56 LENGTH, .194 TUBE, STL, GM7113M) D 2003-2007 02
040 GASKET, RR BRK HOSE FTG (ЧАСТЬ OF 43) 2004-2007
041 BRACKET, RR BRK HOSE (ЧАСТЬ OF 43) 2004-2007
042 11569742 RETAINER, RR BRK HOSE (ЧАСТЬ OF 43) (1 SIDED RETAINER) D 2003-2007 02
043 15933093 HOSE, RR BRK (W/ 2 ШЛАНГИ, 1 RETAINER BRACKET) (INCLS 30, 32, 33, 40, 41, 42) (ACDelco #15933093) D69 (JL9) 2003-2007 01
043 15933093 HOSE, RR BRK (W/ 2 ШЛАНГИ, 1 RETAINER BRACKET) (INCLS 30, 32, 33, 40, 41, 42) (ACDelco #15933093) DM69 (JE5) 2006-2007 01
