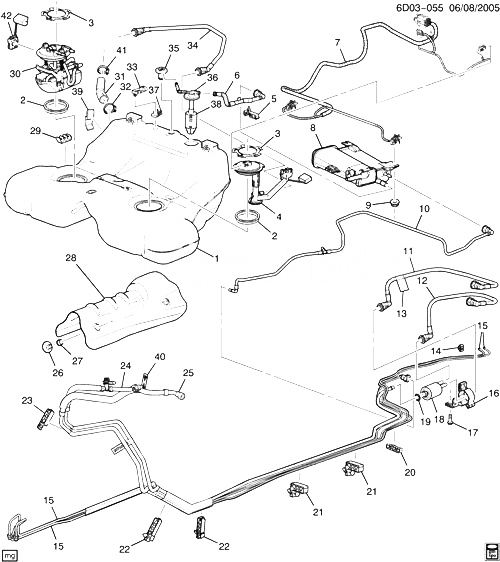

(6D03-055) - 2005-2007 D69 СИСТЕМА ТОПЛИВОСНАБЖЕНИЯ (LP1/2.8T) CADILLAC - CTS 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25894461 TANK, FUEL (INCLS 6, 27, 35-39) DM, DN69 2006-2007 01
001 25894461 TANK, FUEL (INCLS 6, 27, 35-39) DR69 (EXPORT) 2006-2007 01
002 25901272 SEAL, FUEL SDR (ЧАСТЬ OF 4, 30, 42) (ACDelco #G37) D 2004-2007 AR
003 25740096 CAM, FUEL SDR (ACDelco #TR23) D 2004-2007 02
004 SENDER KIT, FUEL (INCLS 2) 2004-2007
004 88965813 SENDER KIT, FUEL (INCLS 2) (FOR AUXILARY МОДУЛЬ) (ACDelco #MU1579) D 2004-2007 01
005 25679252 RETAINER, FUEL FEED EVAP EMIS RTN FRT PIPE (HOLDS 15.8/7.95/7.0 TUBES, HAS CHRISTMAS TREE RETAINER) (3.162) DM69 2005-2007 01
005 25679252 RETAINER, FUEL FEED EVAP EMIS RTN FRT PIPE (HOLDS 15.8/7.95/7.0 TUBES, HAS CHRISTMAS TREE RETAINER) (3.162) DR69 (EXPORT) 2005-2007 01
005 25679252 RETAINER, FUEL FEED EVAP EMIS RTN FRT PIPE (HOLDS 15.8/7.95/7.0 TUBES, HAS CHRISTMAS TREE RETAINER) DM69 2005-2007 01
005 25679252 RETAINER, FUEL FEED EVAP EMIS RTN FRT PIPE (HOLDS 15.8/7.95/7.0 TUBES, HAS CHRISTMAS TREE RETAINER) DR69 (EXPORT) 2005-2007 01
006 VALVE, F/TNK VENT (ЧАСТЬ OF 1) 2004-2007
006 VALVE, F/TNK VENT (ЧАСТЬ OF 1) 2005-2007
007 15801808 HARNESS, FUEL SDR WRG (3.115) DM69 2005-2007 01
007 15801808 HARNESS, FUEL SDR WRG (3.115) DR69 (EXPORT) 2005-2007 01
007 15801808 HARNESS, FUEL SDR WRG DM69 2005-2007 01
007 15801808 HARNESS, FUEL SDR WRG DR69 (EXPORT) 2005-2007 01
008 19177356 CANISTER, EVAP EMIS (ACDelco #215-645) D29-69 2006-2007 01
009 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (EVAP EMIS CNSTR BRKT) 2004-2007 01
010 15801811 PIPE, EVAP EMIS CNSTR PURGE (ЗАДНИЙ EVAP LINE) DM, DR, DW 2006-2007 01
011 15801814 PIPE, FUEL FEED RR (INCLS 13) DM69 2006-2007 01
011 15801814 PIPE, FUEL FEED RR (INCLS 13) DR69 (EXPORT) 2006-2007 01
012 15801816 PIPE, FUEL RTN RR D 2006-2007 01
013 LABEL, FUEL FEED PIPE WRNG (ЧАСТЬ OF 11) 2004-2007
013 LABEL, FUEL FEED PIPE WRNG (ЧАСТЬ OF 11) 2005-2007
014 25607191 RETAINER, BRK PIPE (21.5X10.0MM) (HOLDS (2) 4.68-4.82 TUBES) D69 (LP1, LY7) 2006-2007 01
015 PIPE, RR BRK FRT (СМ. ГРУППУ 04.000 ТОРМОЗНЫЕ ШЛАНГИ И ТРУБКИ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2004-2007
015 PIPE, RR BRK FRT (СМ. ГРУППУ 04.000 ТОРМОЗНЫЕ ШЛАНГИ И ТРУБКИ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2005-2007
016 25701014 RETAINER, FUEL FLTR D 2006-2007 01
017 11588337 БОЛТ, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (FUEL FLTR BRKT) 2004-2007 01
018 ФИЛЬТР, FUEL 2004-2007
018 25763176 ФИЛЬТР, FUEL (ACDelco #GF897) D (LH2, LY7, LP1) 2005-2007 01
019 SEAL, FUEL FLTR RET (O RING) (ЧАСТЬ OF 25) 2004-2006
019 22514722 SEAL, FUEL FLTR RET (O RING) (7.35MM ID X 1.66MM THK) (ЧАСТЬ OF 25) (3.163) (ACDelco #217-452) D (LP1, LY7) 2004-2006 01
019 22514722 SEAL, FUEL FLTR RET (O RING) (7.35MM ID X 1.66MM THK) (ЧАСТЬ OF 25) (3.163) (ACDelco #217-452) D (LY7) 2004-2006 01
020 25688547 RETAINER, BRK FUEL PIPE (RETAINER W/5 HOLES (2)7.95, (2)4.76, (1)9.52MM) D (LY7) 2004-2007 01
020 25688547 RETAINER, BRK FUEL PIPE (RETAINER W/5 HOLES (2)7.95, (2)4.76, (1)9.52MM) D69 (LP1) 2005-2006 01
021 15270078 RETAINER, BRK FUEL PIPE (USES RETAINER PIN FOR ATTACHMENT) D29-69 2005-2007 02
022 25726788 RETAINER, BRK FUEL PIPE (SQUARE HEAD PUSH PIN W/5 HOLES (2)4.76. (2)8.00 (1)9.52) D 2004-2007 01
023 25749839 RETAINER, BRK FUEL PIPE (HOLDS 3 ТРУБКИ, FLAT SHAPE, SNAP-IN RETAINER) D (LY7) 2004-2007 01
023 25749839 RETAINER, BRK FUEL PIPE (HOLDS 3 ТРУБКИ, FLAT SHAPE, SNAP-IN RETAINER) D69 (LP1) 2005-2007 01
024 25769213 PIPE, EVAP EMIS CNSTR PURGE D69 (LP1, LY7) 2005-2007 01
025 15145716 PIPE, FUEL FEED (INCLS 19, 40) D69 (LP1, LY7) 2005-2007 01
026 25679213 PIN, F/TNK UPR SHLD D 2004-2007 04
027 RETAINER, F/TNK SHLD (ЧАСТЬ OF 1) 2004-2007
027 RETAINER, F/TNK SHLD (ЧАСТЬ OF 1) 2005-2007
028 25679209 SHIELD, F/TNK D 2004-2007 01
029 25679252 RETAINER, FUEL FEED EVAP EMIS RTN FRT PIPE (HOLDS 15.8/7.95/7.0 TUBES, HAS CHRISTMAS TREE RETAINER) (3.162) DM69 2005-2007 01
029 25679252 RETAINER, FUEL FEED EVAP EMIS RTN FRT PIPE (HOLDS 15.8/7.95/7.0 TUBES, HAS CHRISTMAS TREE RETAINER) (3.162) DR69 (EXPORT) 2005-2007 01
029 25679252 RETAINER, FUEL FEED EVAP EMIS RTN FRT PIPE (HOLDS 15.8/7.95/7.0 TUBES, HAS CHRISTMAS TREE RETAINER) DM69 2005-2007 01
029 25679252 RETAINER, FUEL FEED EVAP EMIS RTN FRT PIPE (HOLDS 15.8/7.95/7.0 TUBES, HAS CHRISTMAS TREE RETAINER) DR69 (EXPORT) 2005-2007 01
030 19121648 МОДУЛЬ KIT, F/TNK F/PMP (PRIMARY) (INCLS 2) (WITH LEVEL SENSOR) (ACDelco #MU1497) DM69 2005-2007 01
030 19121648 МОДУЛЬ KIT, F/TNK F/PMP (PRIMARY) (INCLS 2) (WITH LEVEL SENSOR) (ACDelco #MU1497) DR69 (EXPORT) 2005-2007 01
030 19121648 МОДУЛЬ KIT, F/TNK F/PMP (PRIMARY) (INCLS 2) (WITH LEVEL SENSOR) (3.107) (ACDelco #MU1497) DM69 2005-2007 01
030 19121648 МОДУЛЬ KIT, F/TNK F/PMP (PRIMARY) (INCLS 2) (WITH LEVEL SENSOR) (3.107) (ACDelco #MU1497) DR69 (EXPORT) 2005-2007 01
030 19151141 МОДУЛЬ KIT, F/TNK F/PMP (W/O FUEL LVL SEN) (PRIMARY) (INCLS 2) (ACDelco #M10117) DM69 2006-2007 01
030 19151141 МОДУЛЬ KIT, F/TNK F/PMP (W/O FUEL LVL SEN) (PRIMARY) (INCLS 2) (ACDelco #M10117) DR69 (EXPORT) 2006-2007 01
030 19151141 МОДУЛЬ KIT, F/TNK F/PMP (W/O FUEL LVL SEN) (PRIMARY) (INCLS 2) (3.107) (ACDelco #M10117) DM69 2006-2007 01
030 19151141 МОДУЛЬ KIT, F/TNK F/PMP (W/O FUEL LVL SEN) (PRIMARY) (INCLS 2) (3.107) (ACDelco #M10117) DR69 (EXPORT) 2006-2007 01
031 15925742 HOSE, F/TNK FIL (INCLS 32, 41) DM69 2006-2007 01
031 15925742 HOSE, F/TNK FIL (INCLS 32, 41) DR69 (EXPORT) 2006-2007 01
032 25711370 CЛАМПА, F/TNK FIL HOSE (ЧАСТЬ OF 31) (30-45MM CЛАМПА RANGE) D 2004-2007 01
033 16238399 SENSOR, F/TNK PRESS (ACDelco #16238399) D69 2005-2007 01
034 PIPE, FUEL SDR FUEL FEED (INCLS CONN) (PIPE ATTACHES TO SENDING UNITS INSIDE OF GAS TANK) 2004-2007
034 15951521 PIPE, FUEL SDR FUEL FEED (INCLS CONN) (PIPE ATTACHES TO SENDING UNITS INSIDE OF GAS TANK) DM69 2006-2007 01
034 15951521 PIPE, FUEL SDR FUEL FEED (INCLS CONN) (PIPE ATTACHES TO SENDING UNITS INSIDE OF GAS TANK) DR69 (EXPORT) 2006-2007 01
035 VALVE, F/TNK FIL HOSE CHK (ЧАСТЬ OF 1) 2004-2007
035 VALVE, F/TNK FIL HOSE CHK (ЧАСТЬ OF 1) 2005-2007
036 VALVE, F/TNK VENT (ЧАСТЬ OF 1) 2004-2007
036 VALVE, F/TNK VENT (ЧАСТЬ OF 1) 2005-2007
037 RETAINER, FUEL PRESS REG (ЧАСТЬ OF 1) 2004-2007
037 RETAINER, FUEL PRESS REG (ЧАСТЬ OF 1) 2005-2007
038 VALVE, F/TNK VENT (ЧАСТЬ OF 1) 2004-2007
038 VALVE, F/TNK VENT (ЧАСТЬ OF 1) 2005-2007
039 RETAINER, FUEL SDR (ЧАСТЬ OF 1) 2004-2007
039 RETAINER, FUEL SDR (ЧАСТЬ OF 1) 2005-2007
040 LABEL, FUEL FEED PIPE WRNG (ЧАСТЬ OF 25) 2004-2007
040 LABEL, FUEL FEED PIPE WRNG (ЧАСТЬ OF 25) 2005-2007
041 09177063 CЛАМПА, F/TNK FIL HOSE (ЧАСТЬ OF 31) (25-40MM CЛАМПА RANGE) D 2004-2007 01
042 88965812 SENSOR KIT, FUEL LVL (INCLS 2) (FOR PRIMARY МОДУЛЬ) (ACDelco #SK1148) D 2004-2007 01
