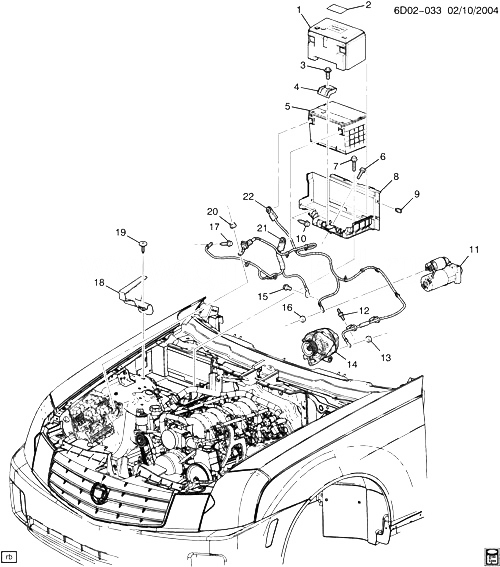

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25747792 |
INSULATOR, BAT (INSTALLED ON RH SIDE OF CAR) |
D69 |
2005-2007 |
01 |
| 002 |
15204281 |
LABEL, BAT WRNG (INCLUDES SYMBOLS ONLY) |
D69 (VBX) (EXPORT) |
2004-2007 |
01 |
| 003 |
11509853 |
БОЛТ, HEX W/CON WA, M8X1.25X45, 24 O.D., HDR PT, 9.8, PS (BAT HOLDN RET)
|
2004-2007 |
01 |
|
| 004 |
25558374 |
RETAINER, BAT HOLDN (CENTER SLOT)
| D69 |
2004-2007 |
01 |
|
| 005 |
88901964 |
АККУМУЛЯТОР, (CCA 650) (SIDE TERM) (260X178X168) (US DEALERS CONTACT ACDELCO WD FOR ORDERING PRICING INFO) (ACDelco #101-6YR) (PROFESSIONAL - 6 YR) |
DN69 (LS2) |
2006-2007 |
01 |
| 006 |
11516727 |
БОЛТ, HEX HD W/CONICAL WASHER, M6X1X40, 30 THD, 17 OD, 9.8 MAT, 7114M FIN, (BAT TRAY) |
|
2004-2007 |
01 |
| 007 |
11517486 |
БОЛТ-HEX, M6X1X30, 19 THD, 17 OD, 9.8, 6280M (SN-ZN), MACH, P-PT (BAT TRAY) |
|
2004-2007 |
04 |
| 008 |
15812691 |
TRAY, BAT |
DM, DN69 |
2004-2007 |
01 |
| 009 |
11518121 |
ГАЙКА, U, M6X1, MULTI THD, .5-4.0 THK PNL (BAT TRAY) |
|
2004-2007 |
02 |
| 010 |
11609989 |
БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (BAT TRAY)
|
2004-2007 |
02 |
|
| 011 |
89017848 |
STARTER, (REMAN) (ACDelco #323-1641) (DELCO SERIES PG260H) |
D (LS2) |
2006-2007 |
01 |
| 012 |
11517274 |
STUD, HFH M8X1.25X20, M10X1.5X25, 22.3 OD, 9.8, 6280M. (BAT CBL TERM) |
|
2004-2007 |
02 |
| 013 |
11515535 |
ГАЙКА, BAT WIRE (ATTACHES TO BACK OF GENERATOR) (2.559) |
D69 |
2004-2007 |
01 |
| 014 |
25766345 |
GENERATOR, (ACDelco #25766345) |
DN (LS2) |
2006-2007 |
01 |
| 015 |
11609619 |
БОЛТ, HEX W/ FL WA-M10X1.5X16, 20 OD, 10.9 STL, GMW3200 FINISH (ENG WRG HARN GND)
|
2004-2007 |
06 |
|
| 016 |
21021808 |
ГАЙКА, STRTR SOL BAT TERM (M8X1.25X6, BRASS) (2.343)
| D |
2004-2007 |
01 |
|
| 017 |
11518202 |
БОЛТ, HFH, M10X1.5X30, 22.0 00, 6202M, 6280M, TAP, TR, P-PT |
|
2004-2007 |
01 |
| 018 |
15292925 |
SHIELD, BAT HT
| D |
2004-2007 |
01 |
|
| 018 |
25737013 |
SHIELD, BAT HT (2.343) |
DN |
2004-2007 |
01 |
| 019 |
20511451 |
БОЛТ, BAT H/SHLD (PUSH ON) (12.800) |
D |
2004-2007 |
01 |
| 020 |
11517031 |
ГАЙКА, HFH, M8X1.25, 9.4THK, 17.4 O.D., 10, TIN ZN (BAT POS CBL) |
|
2004-2007 |
01 |
| 021 |
10394800 |
CABLE, BAT NEG (ACDelco #10394800) |
DN (LS2) |
2006-2006 |
01 |
| 022 |
10394799 |
CABLE, BAT POS (ACDelco #10394799) |
DN69 (LS2) |
2006-2006 |
01 |
