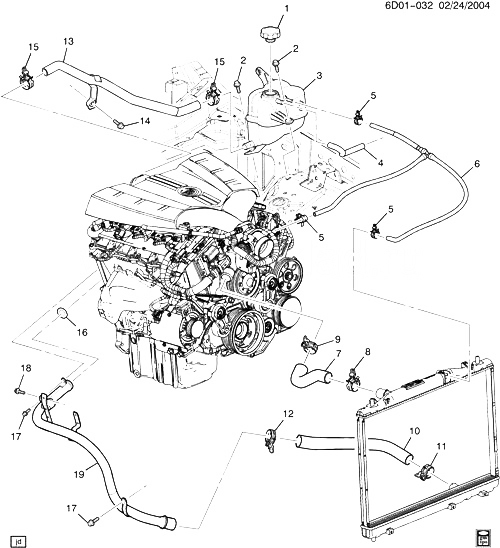

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15066786 |
CAP, RAD SURGE TK (15 PSI, DUAL O-RING) (ENGLISH LABEL) (ACDelco #RC99) |
D |
2004-2007 |
01 |
| 002 |
11561674 |
БОЛТ, HEX W/FL WA, M6X1X20, 12 THD, 24 OD, 9.8, GMW3359, M-PT (RAD SURGE TK)
|
2004-2007 |
02 |
|
| 003 |
25708419 |
TANK, RAD SURGE (INCLS 4) (ACDelco #25708419) |
DR (EXPORT) |
2004-2006 |
01 |
| 003 |
25769371 |
TANK, RAD SURGE (INCLS 4) (INCLS LOW COOLANT LEVEL SENSOR) (ACDelco #25769371) |
DM, DN69 |
2004-2006 |
01 |
| 004 |
25757865 |
HOSE, RAD SURGE TK OVFL (ЧАСТЬ OF 3) |
D |
2004-2007 |
01 |
| 005 |
|
CЛАМПА, RAD SURGE TK INL HOSE (ЧАСТЬ OF 6) |
|
2005-2007 |
|
| 006 |
88987636 |
HOSE, RAD SURGE TK INL (INCLS 5) |
DM (LP1, LY7, JJA) |
2005-2007 |
01 |
| 006 |
89022533 |
HOSE, RAD SURGE TK INL (INCLS 5) |
DR (LP1, LY7, JJA) (EXPORT) |
2005-2007 |
01 |
| 007 |
88987634 |
HOSE, RAD INL (INCLS 8, 9) |
DM (LP1, LY7, JJA) |
2005-2007 |
01 |
| 007 |
88987634 |
HOSE, RAD INL (INCLS 8, 9) |
DR (LP1, LY7, JJA) (EXPORT) |
2005-2007 |
01 |
| 008 |
|
CЛАМПА, RAD INL HOSE (ЧАСТЬ OF 7) |
|
2005-2007 |
|
| 009 |
11516233 |
CЛАМПА-ПРУЖИНАBAND, TYPE A, 15 WID, 40 HOSE OD, 6150M, 7111M, MM (ЧАСТЬ OF 7)
|
2004-2007 |
01 |
|
| 010 |
19129968 |
HOSE, RAD OTLT (INCLS 11, 12) (RAD OUTLET HOSE I/D 32.5MM AT ENG) (1ST DES SEE 88958082) |
DM69 (LP1, LY7) (2ND DES) |
2006-2006 |
01 |
| 010 |
19129968 |
HOSE, RAD OTLT (INCLS 11, 12) (RAD OUTLET HOSE I/D 32.5MM AT ENG) (1ST DES SEE 88958082) |
DR69 (LP1, LY7) (2ND DES) (EXPORT) |
2006-2006 |
01 |
| 010 |
88958082 |
HOSE, RAD OTLT (INCLS 11, 12) (RAD OUTLET HOSE I/D 37MM AT ENG) (2ND DES SEE 19129968) |
DM (LP1, LY7) (1ST DES) |
2006-2006 |
01 |
| 010 |
88958082 |
HOSE, RAD OTLT (INCLS 11, 12) (RAD OUTLET HOSE I/D 37MM AT ENG) (2ND DES SEE 19129968) |
DR (LP1, LY7) (1ST DES) (EXPORT) |
2006-2006 |
01 |
| 011 |
|
CЛАМПА, RAD OTLT HOSE (ЧАСТЬ OF 10) |
|
2005-2007 |
|
| 012 |
11516233 |
CЛАМПА-ПРУЖИНАBAND, TYPE A, 15 WID, 40 HOSE OD, 6150M, 7111M, MM (ЧАСТЬ OF 10)
|
2004-2007 |
01 |
|
| 013 |
88956900 |
HOSE, RAD SURGE TK ENG (INCLS 15) |
DM (LP1, LY7, JJA) |
2005-2007 |
01 |
| 013 |
89022532 |
HOSE, RAD SURGE TK ENG (INCLS 15) |
DR (LP1, LY7, JJA) (EXPORT) |
2005-2007 |
01 |
| 014 |
11518624 |
БОЛТ, HFH, M10X1.5X30.4, 22.5 THD, 22.3 O.D., 10.9, GMW3359 (RAD SURGE TK ENG PIPE CLIP) |
|
2004-2007 |
01 |
| 015 |
11517136 |
CЛАМПА, HOSE SPR, 27 NOM, 25.2 MIN-28.9 MAX, 15MM WIDE, BLACK (ЧАСТЬ OF 13) |
|
2004-2007 |
02 |
| 016 |
12623519 |
SEAL, RAD OTLT PIPE (O RING) (ЧАСТЬ OF 19) |
D (LY7) |
2004-2007 |
01 |
| 016 |
12623519 |
SEAL, RAD OTLT PIPE (O RING) (ЧАСТЬ OF 19) |
D (LP1) |
2005-2007 |
01 |
| 017 |
11519977 |
БОЛТ- HFH, M8X1.25X25, 16 THD, 18 OD, 8.8, GMW3359, MAT-PT. (RAD OTLT PIPE) |
|
2004-2007 |
02 |
| 018 |
11518624 |
БОЛТ, HFH, M10X1.5X30.4, 22.5 THD, 22.3 O.D., 10.9, GMW3359 (RAD OTLT PIPE) |
|
2004-2007 |
01 |
| 019 |
12603912 |
PIPE, RAD OTLT (INCLS 16) (WHEN USED IN PLACE OF 12587536 USE T/W РАДИАТОР OUTLET HOSE 19129968) |
D (LP1, LY7) |
2006-2007 |
01 |
