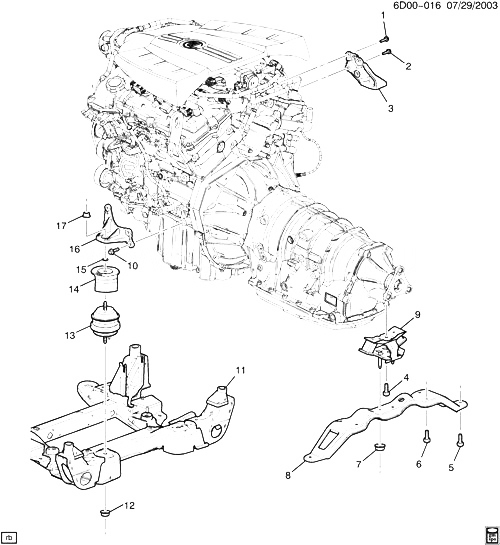

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
11516328 |
БОЛТ, HFH, M10X1.5X30, 22 O.D., HDR PT, 10.9, 7114M (ENG MT BRKT)
|
2004-2007 |
03 |
|
| 002 |
11515758 |
БОЛТ, HFH, M8X1.25X30, 28THD, 18 O.D., MACH PT, 10.9, 7114M (ENG MT BRKT)
|
2004-2007 |
01 |
|
| 003 |
25740814 |
BRACKET, ENG MT |
D69 (LP1, LY7, M82, MV1) |
2005-2007 |
01 |
| 004 |
11515767 |
БОЛТ, HFH, M10X1.5X35, 32THD, 22.3 O.D., MACH, 10.9, 7114M (TRANS MT) (T/W 12345493)
|
2004-2007 |
02 |
|
| 005 |
11519836 |
SCREW, PAN, M10X1.5X35, 33.5 THD, 20 OD, 10.9, 6138M, MACH (TRANS RR MT BRKT) |
|
2004-2007 |
02 |
| 006 |
11517383 |
БОЛТ, HEX W/CON SPR WASH, M10X1.5X55, 28 OD, 37 THD, 10.9, 7114M (TRANS RR MT BRKT) |
|
2004-2007 |
04 |
| 007 |
11516754 |
ГАЙКА, HEX, W/CON SPR WA, M10X1.5, 10THK, 28 O.D., 10, 7111M (TRANS MT BRKT)
|
2004-2007 |
02 |
|
| 008 |
25741437 |
BRACKET, TRANS RR MT (STRAIGHT MTG HOLES) |
D69 (LP1, LY7, MV1, M82) |
2005-2006 |
01 |
| 009 |
15930131 |
MOUNT, TRANS RR |
D69 (LP1, LY7, M82) |
2005-2007 |
01 |
| 009 |
25772454 |
MOUNT, TRANS RR |
D69 (LP1, LY7, MV1) |
2005-2007 |
01 |
| 010 |
11516328 |
БОЛТ, HFH, M10X1.5X30, 22 O.D., HDR PT, 10.9, 7114M (ENG MT BRKT)
|
2004-2007 |
04 |
|
| 011 |
|
РАМА, DRIVETRAIN FRT SUSP (СМ. ГРУППУ 07.000 РАМА AND КРЕПЛЕНИЕ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
|
2005-2007 |
|
| 012 |
11517780 |
ГАЙКА, M12X1.75, 15 THK, 29 OD, 10, 7111M, ALL METAL PREV TORQ (ENG MT FRM SI)
|
2004-2007 |
02 |
|
| 013 |
25741434 |
MOUNT, ENG (INCLS 14, 15)
| D69 (LP1, LY7, MV1, M82) |
2005-2007 |
02 |
|
| 014 |
|
SHIELD, ENG MT HT (ЧАСТЬ OF 13) |
|
2005-2007 |
|
| 015 |
|
ГАЙКА, ENG MT H/SHLD (ЧАСТЬ OF 13) |
|
2005-2007 |
|
| 016 |
25767813 |
BRACKET, ENG MT |
D69 (LP1, LY7, MV1, M82) |
2005-2007 |
01 |
| 017 |
11517780 |
ГАЙКА, M12X1.75, 15 THK, 29 OD, 10, 7111M, ALL METAL PREV TORQ (ENG MT)
|
2004-2007 |
02 |
|
