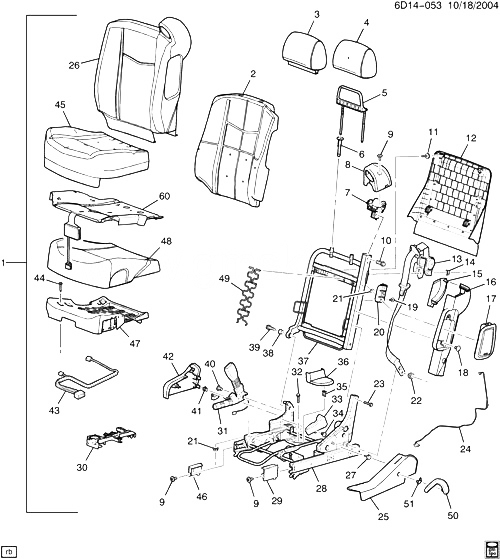

(6D14-053) - 2005-2007 DR69 СИДЕНЬЕ ПАССАЖИРА (EXC POWER ADJUSTER AH8) CADILLAC - CTS 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 SEAT, PASS (ONLY AVAILABLE FOR CURRENT MODEL YEAR VEHICLES) (INCLS 2-52) 2005-2007
002 88993031 PAD, P/SEAT BK CUSH (14.896) DR (EXC AL2) 2005-2007 01
002 88994084 PAD, P/SEAT BK CUSH (W/LUMBAR) (14.896) DR (AL2) 2005-2007 01
003 88896165 COVER, P/SEAT H/RST FIN (EBONY) DR (19C) (EXPORT) 2005-2006 01
003 88992480 COVER, P/SEAT H/RST FIN (NEUTRAL) DR (702) (EXPORT) 2005-2005 01
003 88992481 COVER, P/SEAT H/RST FIN (GRAY) DR (132) (EXPORT) 2005-2005 01
003 88992652 COVER, P/SEAT H/RST FIN (EBONY) DR (192) (EXPORT) 2005-2005 01
003 88995928 COVER, P/SEAT H/RST FIN (GRAY) DR (134) (EXPORT) 2005-2007 01
003 88995929 COVER, P/SEAT H/RST FIN (EBONY) (16.718) DR (194) (EXPORT) 2005-2007 01
003 88995930 COVER, P/SEAT H/RST FIN (NEUTRAL) (16.718) DR (704) (EXPORT) 2005-2005 01
004 88897669 FILLER, P/SEAT H/RST D69 2005-2007 01
005 88897670 SUPPORT, P/SEAT H/RST D 2005-2007 01
006 19122625 GUIDE, P/SEAT H/RST (EBONY) (W/O BUTTON) D69 (19I) 2005-2007 01
006 19122627 GUIDE, P/SEAT H/RST (EBONY) (W/BUTTON) D69 (19I) 2005-2007 01
006 88994276 GUIDE, P/SEAT H/RST (NEUTRAL) (W/BUTTON) D69 (70I) 2005-2005 01
006 88994279 GUIDE, P/SEAT H/RST (NEUTRAL) (W/O BUTTON) D69 (70I) 2005-2005 01
006 88994730 GUIDE, P/SEAT H/RST (GRAY) (W/BUTTON) (11.625) DR (13I) (EXPORT) 2005-2007 01
006 88994731 GUIDE, P/SEAT H/RST (GRAY) (W/O BUTTON) (11.625) D69 (13I) 2005-2007 01
007 88897640 ROLLER, P/SEAT SHLDR BELT DR (EXPORT) 2005-2007 01
008 88897614 COVER, P/SEAT SHLDR BELT OPG BZL (11.573) DR (EXPORT) 2005-2007 01
009 88897272 БОЛТ, P/SEAT (TOWER COVER) D69 2005-2007 03
010 88897644 БОЛТ, P/SEAT ADJR (ADJR TO FRM) D69 2005-2007 01
011 10421018 RETAINER, P/SEAT BK CUSH FIN PNL (ЧАСТЬ OF 12) (NATURAL) (4MM HOLE, 33MM) (15.100) DR (EXPORT) 2005-2007 03
012 88895403 PANEL, P/SEAT BK CUSH FIN (INCLS 11) (GRAY) (W/MESH MAP PKT) DR (13I) (EXPORT) 2005-2007 01
012 88895405 PANEL, P/SEAT BK CUSH FIN (INCLS 11) (NEUTRAL) (W/MESH MAP PKT) DR (70I) (EXPORT) 2005-2005 01
012 88992613 PANEL, P/SEAT BK CUSH FIN (INCLS 11) (EBONY) (W/MESH MAP PKT) DR (19I) (EXPORT) 2005-2007 01
013 BELT, P/SEAT (RETR SI) (СМ. ГРУППУ 14.000 РЕМНИ БЕЗОПАСНОСТИ-ПЕРЕДНИЕ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2005-2007
014 11517996 ГАЙКА, P/SEAT BELT (RETR SI) (M10X1.5, 11.2 THK) (8.917) DR (EXPORT) 2005-2007 01
014 25604879 ГАЙКА, P/SEAT BELT (RETR SI) (SPL W/10X1.5 THREAD) (W/SILENCER (PLASTIC)ATTACHED) D 2005-2007 01
015 88897618 BEZEL, P/SEAT SHLDR BELT OPG DR (EXPORT) 2005-2007 01
016 88897616 PANEL, P/SEAT BK CUSH SI BOLS DR (EXPORT) 2005-2007 01
017 МОДУЛЬ, P/SEAT SI INFL RST (СМ. ГРУППУ 14.000 INFLATABLE RESTRAINT SYSTEM ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2005-2007
018 00332364 RETAINER - PUSH IN, FITS HOLE SIZE 0.245 - 0.260, GRIP LENGTH 0.52, 0.7 OD, MATERIAL NYLON 6/6 PER GMP.PA66.015 (P/SEAT CUSH FRM SUPT) 2005-2007 02
019 11516587 БОЛТ-HEX W/CON WA, M6X1X20, 14 THD, 17 OD, 9.8, 7114M, MACH, 6MM P-PT (P/SEAT SI INFL RST MDL) 2005-2007 02
020 BRACKET, P/SEAT CUSH FRM FRT 2005-2007
021 11517068 ГАЙКА, INFL RST P/SEAT SI MDL (M6X1X3, 14.2 O.D.) (8.917) D 2005-2007 04
022 11517996 ГАЙКА, P/SEAT BELT (RETR SI) (M10X1.5, 11.2 THK) (8.917) DR (EXPORT) 2005-2007 01
022 25604879 ГАЙКА, P/SEAT BELT (RETR SI) (SPL W/10X1.5 THREAD) (W/SILENCER (PLASTIC)ATTACHED) D 2005-2007 01
023 88897643 БОЛТ, P/SEAT RECL (RECL TO FRM) D69 2005-2007 02
024 25736516 HARNESS, INFL RST WRG (LESS TUBE-ST MEMORY SWITCH HARNESS) DR (AL2, AQ9, A45, IL4) (EXPORT) 2005-2007 01
024 25736516 HARNESS, INFL RST WRG (LESS TUBE-ST MEMORY SWITCH HARNESS) DR (AQ9, IL4) (EXC AH8, AL2, KA1) (EXPORT) 2005-2007 01
025 88897677 COVER, P/SEAT RECL LWR FIN (INCLS 27) (NEUTRAL) (OTR) (W/O SWITCH OPENING) DR (70I) 2005-2005 01
025 88949021 COVER, P/SEAT RECL LWR FIN (INCLS 27) (GRAY) (OTR) (W/O SWITCH OPENING) DR (13I) 2005-2007 01
025 88992619 COVER, P/SEAT RECL LWR FIN (INCLS 27) (EBONY) (OTR) (W/O SWITCH OPENING) DR (AQ9, 19I) 2005-2007 01
026 88895427 COVER, P/SEAT BK CUSH (NEUTRAL) DR (AQ9, 702) (EXC KA1) (EXPORT) 2005-2005 01
026 88895474 COVER, P/SEAT BK CUSH (EBONY) DR (KA1, 19C) (EXPORT) 2005-2006 01
026 88992630 COVER, P/SEAT BK CUSH (GRAY W/EBONY) DR (AQ9, 132) (EXC KA1) (EXPORT) 2005-2005 01
026 88992641 COVER, P/SEAT BK CUSH (EBONY) DR (AQ9, 192) (EXC KA1) (EXPORT) 2005-2005 01
026 88995439 COVER, P/SEAT BK CUSH (EBONY) DR (AQ9, 19W) (EXC KA1) (EXPORT) 2005-2007 01
026 88995440 COVER, P/SEAT BK CUSH (GRAY) DR (AQ9, 13W) (EXC KA1) (EXPORT) 2005-2007 01
026 88995442 COVER, P/SEAT BK CUSH (EBONY) DR (AQ9, KA1, 19W) (EXPORT) 2005-2006 01
026 88995443 COVER, P/SEAT BK CUSH (GRAY) DR (AQ9, KA1, 13W) (EXPORT) 2005-2006 01
026 88995880 COVER, P/SEAT BK CUSH (GRAY) DR (AQ9, 134) (EXC KA1) (EXPORT) 2005-2007 01
026 88995881 COVER, P/SEAT BK CUSH (EBONY) DR (AQ9, 194) (EXC KA1) (EXPORT) 2005-2007 01
026 88995882 COVER, P/SEAT BK CUSH (NEUTRAL) DR (AQ9, 704) (EXC KA1) (EXPORT) 2005-2005 01
026 88995884 COVER, P/SEAT BK CUSH (GRAY W/EBONY) DR (AQ9, KA1, 134) (EXPORT) 2005-2007 01
026 88995885 COVER, P/SEAT BK CUSH (EBONY) (16.724) DR (AQ9, KA1, 194) (EXPORT) 2005-2007 01
026 88995886 COVER, P/SEAT BK CUSH (NEUTRAL) (16.724) DR (AQ9, KA1, 704) (EXPORT) 2005-2005 01
027 RETAINER, P/SEAT OTR RECL FIN CVR (ЧАСТЬ OF 25) 2005-2007
028 88895463 ADJUSTER, P/SEAT (СМ. ГРУППУ 11.000 ADJUSTER ASM/PASSENGER ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) DR (EXC AH8) (EXPORT) 2005-2007 01
029 88992626 COVER, P/SEAT ADJR FIN (EBONY) (FRT) D69 (19I) 2005-2007 01
030 SHIELD, WRG HARNESS (ЧАСТЬ OF 43) 2005-2007
031 BELT, P/SEAT (BKL SI) (СМ. ГРУППУ 14.000 РЕМНИ БЕЗОПАСНОСТИ-ПЕРЕДНИЕ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2005-2007
032 11609257 БОЛТ, P/SEAT ADJR (W/BELT) (M12X1.75X34) (8.907) D 2005-2007 AR
033 88897618 BEZEL, P/SEAT SHLDR BELT OPG DR (EXPORT) 2005-2007 01
034 00332364 RETAINER, P/SEAT SHLDR BELT (8.950) D 2005-2007 04
035 RETAINER, P/SEAT INR ADJR RR FIN CVR (ЧАСТЬ OF 36) 2005-2007
036 88895408 COVER, P/SEAT ADJR БОЛТ FIN (INCLS 35) (NEUTRAL) D69 (70I) 2005-2005 01
036 88895410 COVER, P/SEAT ADJR БОЛТ FIN (INCLS 35) (GRAY) D69 (13I) 2005-2007 01
036 88992629 COVER, P/SEAT ADJR БОЛТ FIN (INCLS 35) (EBONY) D69 (19I) 2005-2007 01
037 88849036 РАМА, P/SEAT BK CUSH (INCLS 49) (W/SUSPENSION) DR (EXC AH8, AL2) (EXPORT) 2005-2007 01
038 BUSHING, P/SEAT BK CUSH PIV (ЧАСТЬ OF 39) 2005-2007
039 88952646 БОЛТ, P/SEAT BK CUSH PIV (INCLS 38) (11.628) DR (EXPORT) 2005-2007 01
040 88952627 ГАЙКА, P/SEAT BELT (BKL SI) (TUBE NUT) (11.556) DR 2005-2007 01
041 RETAINER, P/SEAT ADJR FIN CVR (ЧАСТЬ OF 42) 2005-2007
042 88895365 COVER, P/SEAT RECL LWR FIN (INCLS 41) (NEUTRAL) (INR) DR (70I) 2005-2005 01
042 88895367 COVER, P/SEAT RECL LWR FIN (INCLS 41) (GRAY) (INR) DR (13I) 2005-2007 01
042 88992615 COVER, P/SEAT RECL LWR FIN (INCLS 41) (EBONY) (INR) DR (19I) 2005-2007 01
043 88993170 HARNESS, P/SEAT WRG (INCLS 30) DR (AQ9, ILC) (EXC AH8, AL2) (EXPORT) 2005-2006 01
044 БОЛТ, P/SEAT CUSH FRM (ЧАСТЬ OF 47) 2005-2007
045 88994777 COVER, P/SEAT CUSH (EBONY) DR (AQ9, 19C) (EXC AH8, AL2, KA1) (EXPORT) 2005-2006 01
045 88994785 COVER, P/SEAT CUSH (EBONY) DR (AQ9, 192) (EXC KA1) (EXPORT) 2005-2005 01
045 88994790 COVER, P/SEAT CUSH (GRAY) DR (AQ9, KA1, 132) (EXPORT) 2005-2005 01
045 88994791 COVER, P/SEAT CUSH (EBONY) DR (AQ9, KA1, 192) (EXPORT) 2005-2005 01
045 88994811 COVER, P/SEAT CUSH (GRAY) DR (AQ9, 132) (EXC AH8, AL2, KA1) (EXPORT) 2005-2005 01
045 88995452 COVER, P/SEAT CUSH (EBONY) DR (AQ9, 19W) (EXC KA1) (EXPORT) 2005-2007 01
045 88995453 COVER, P/SEAT CUSH (GRAY) DR (AQ9, 13W) (EXC KA1) (EXPORT) 2005-2007 01
045 88995455 COVER, P/SEAT CUSH (EBONY) DR (AQ9, KA1, 19W) (EXPORT) 2005-2006 01
045 88995456 COVER, P/SEAT CUSH (GRAY) DR (AQ9, KA1, 13W) (EXPORT) 2005-2006 01
045 88995897 COVER, P/SEAT CUSH (EBONY) DR (AQ9, 194) (EXC KA1) (EXPORT) 2005-2007 01
045 88995904 COVER, P/SEAT CUSH (GRAY W/EBONY) DR (AQ9, KA1, 134) (EXPORT) 2005-2007 01
045 88995924 COVER, P/SEAT CUSH (GRAY) DR (AQ9, 134) (EXC AH8, AL2, KA1) (EXPORT) 2005-2007 01
045 88995926 COVER, P/SEAT CUSH (NEUTRAL) DR (AQ9, 704) (EXC AH8, AL2, KA1) (EXPORT) 2005-2005 01
046 88895386 COVER, P/SEAT ADJR FIN (GRAY) (FRT) DR (13I) (EXPORT) 2005-2007 01
046 88895388 COVER, P/SEAT ADJR FIN (NEUTRAL) (FRT) DR (70I) (EXPORT) 2005-2005 01
046 88992625 COVER, P/SEAT ADJR FIN (EBONY) (FRT) D69 (19I) 2005-2007 01
047 88895457 РАМА, P/SEAT CUSH (INCLS 44) (PWR) DR (EXPORT) 2005-2007 01
048 PAD, P/SEAT CUSH (ЧАСТЬ OF 60) 2005-2007
049 SUPPORT, P/SEAT CUSH FRM (ЧАСТЬ OF 37) 2005-2007
050 19122673 HANDLE, P/SEAT RECL (INCLS 51) (CASHMERE) DR (70I) (EXPORT) 2005-2005 01
050 88992627 HANDLE, P/SEAT RECL (INCLS 51) (EBONY) DR (19I) (EXPORT) 2005-2007 01
051 RETAINER, P/SEAT RECL HDL (ЧАСТЬ OF 50) 2005-2007
060 19124391 МОДУЛЬ KIT, INFL RST FRT PASS PRESENCE (W/ SEN) (INCLS 48) DR (EXPORT) 2005-2007 01
