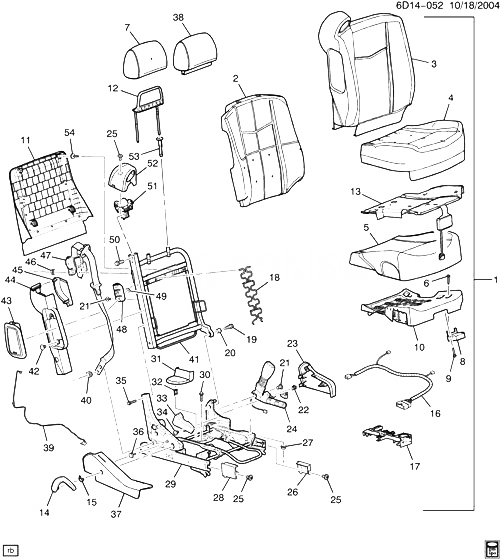

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
SEAT, PASS (ONLY AVAILABLE FOR CURRENT MODEL YEAR VEHICLES) (INCLS 2-54) |
|
2005-2007 |
|
| 002 |
88993032 |
PAD, P/SEAT BK CUSH (14.896) |
DM, DN (EXC AH8) |
2005-2005 |
01 |
| 003 |
88895437 |
COVER, P/SEAT BK CUSH (NEUTRAL) |
DM (702) (EXC KA1) |
2005-2005 |
01 |
| 003 |
88895441 |
COVER, P/SEAT BK CUSH (NEUTRAL) |
DM (KA1, 702) |
2005-2005 |
01 |
| 003 |
88895472 |
COVER, P/SEAT BK CUSH (EBONY) |
DM (19C) (EXC KA1) |
2005-2006 |
01 |
| 003 |
88895476 |
COVER, P/SEAT BK CUSH (EBONY) |
DM (KA1, 19C) |
2005-2006 |
01 |
| 003 |
88992632 |
COVER, P/SEAT BK CUSH (GRAY W/EBONY) |
DM (AQ9, 132) (EXC KA1) |
2005-2006 |
01 |
| 003 |
88992633 |
COVER, P/SEAT BK CUSH (GRAY W/EBONY) |
DM (AQ9, KA1, 132) |
2005-2005 |
01 |
| 003 |
88992643 |
COVER, P/SEAT BK CUSH (EBONY) |
DM (AQ9, 192) (EXC AX4, KA1) |
2005-2005 |
01 |
| 003 |
88993395 |
COVER, P/SEAT BK CUSH (EBONY) (W/SUEDE INSERTS) |
DN (AQ9, KA1, 193) |
2005-2005 |
01 |
| 003 |
88993413 |
COVER, P/SEAT BK CUSH (NEUTRAL) |
DN (AQ9, 703) (EXC KA1) |
2005-2005 |
01 |
| 003 |
88993414 |
COVER, P/SEAT BK CUSH (NEUTRAL) (W/SUEDE INSERTS) |
DN (AQ9, KA1, 703) |
2005-2005 |
01 |
| 003 |
88995278 |
COVER, P/SEAT BK CUSH (GRAY) (W/SUEDE INSERTS) |
DN (AQ9, 133) (EXC KA1) |
2005-2005 |
01 |
| 003 |
88995279 |
COVER, P/SEAT BK CUSH (GRAY) (W/SUEDE INSERTS) |
DN (AQ9, KA1, 133) |
2005-2005 |
01 |
| 003 |
88995445 |
COVER, P/SEAT BK CUSH (EBONY) |
DM (AQ9, 19W) (EXC KA1) |
2005-2007 |
01 |
| 003 |
88995446 |
COVER, P/SEAT BK CUSH (GRAY) |
DM (AQ9, 13W) (EXC KA1) |
2005-2007 |
01 |
| 003 |
88995448 |
COVER, P/SEAT BK CUSH (EBONY) |
DM (AQ9, KA1, 19W) |
2005-2007 |
01 |
| 003 |
88995450 |
COVER, P/SEAT BK CUSH (GRAY) |
DM (AQ9, KA1, 13W) |
2005-2007 |
01 |
| 003 |
88995888 |
COVER, P/SEAT BK CUSH (GRAY W/EBONY) |
DM (AQ9, 134) (EXC KA1) |
2005-2007 |
01 |
| 003 |
88995889 |
COVER, P/SEAT BK CUSH (EBONY) |
DM (AQ9, 194) (EXC KA1) |
2005-2007 |
01 |
| 003 |
88995890 |
COVER, P/SEAT BK CUSH (NEUTRAL) |
DM (AQ9, 704) (EXC KA1) |
2005-2005 |
01 |
| 003 |
88995892 |
COVER, P/SEAT BK CUSH (GRAY W/EBONY) |
DM (AQ9, KA1, 134) |
2005-2007 |
01 |
| 003 |
88995893 |
COVER, P/SEAT BK CUSH (EBONY) |
DM (AQ9, KA1, 194) |
2005-2007 |
01 |
| 003 |
88995894 |
COVER, P/SEAT BK CUSH (NEUTRAL) |
DM (AQ9, KA1, 704) |
2005-2005 |
01 |
| 003 |
88995940 |
COVER, P/SEAT BK CUSH (EBONY) |
DN (AQ9, 195) (EXC AH8, AL2, KA1) |
2005-2005 |
01 |
| 003 |
88995941 |
COVER, P/SEAT BK CUSH (NEUTRAL) |
DN (AQ9, 705) (EXC AH8, AL2, KA1) |
2005-2005 |
01 |
| 003 |
88995942 |
COVER, P/SEAT BK CUSH (GRAY) |
DN (AQ9, 135) (EXC AH8, AL2, KA1) |
2005-2005 |
01 |
| 004 |
88994264 |
COVER, P/SEAT CUSH (NEUTRAL) (W/SUEDE INSERTS) |
DN (AQ9, 703) (EXC AH8, AL2, KA1) |
2005-2005 |
01 |
| 004 |
88994268 |
COVER, P/SEAT CUSH (NEUTRAL) (W/SUEDE INSERTS) |
DN (AQ9, KA1, 703) (EXC AH8, AL2) |
2005-2005 |
01 |
| 004 |
88994782 |
COVER, P/SEAT CUSH (EBONY) |
DM (AQ9, AX4, 19C) (EXC KA1) (EXPORT) |
2005-2006 |
01 |
| 004 |
88994793 |
COVER, P/SEAT CUSH (GRAY W/EBONY) |
DM (AQ9, 132) (EXC AH8, AL2, AX4, KA1) |
2005-2006 |
01 |
| 004 |
88994794 |
COVER, P/SEAT CUSH (EBONY) |
DM (AQ9, 192) (EXC AH8, AL2, KA1) |
2005-2005 |
01 |
| 004 |
88994795 |
COVER, P/SEAT CUSH (NEUTRAL) |
DM (AQ9, 702) (EXC AH8, AL2, KA2) |
2005-2005 |
01 |
| 004 |
88994799 |
COVER, P/SEAT CUSH (GRAY) |
DM (AQ9, KA1, 132) (EXC AH8, AL2, AX4) |
2005-2005 |
01 |
| 004 |
88994800 |
COVER, P/SEAT CUSH (EBONY) |
DM (AQ9, KA1, 192) (EXC AH8, AL2, AX4) |
2005-2005 |
01 |
| 004 |
88994812 |
COVER, P/SEAT CUSH (EBONY) |
DM (AQ9, AX4, 192) (EXC AH8, AL2, KA1) (EXPORT) |
2005-2005 |
01 |
| 004 |
88995283 |
COVER, P/SEAT CUSH (GRAY) (W/SUEDE INSERTS) |
DN (AQ9, 133) (EXC AH8, AL2, KA1) |
2005-2005 |
01 |
| 004 |
88995285 |
COVER, P/SEAT CUSH (GRAY) (W/SUEDE INSERTS) |
DN (AQ9, KA1, 133) (EXC AH8, AL2) |
2005-2005 |
01 |
| 004 |
88995458 |
COVER, P/SEAT CUSH (EBONY) |
DM (AQ9, 19W) (EXC AH8, AL2, KA1) |
2005-2007 |
01 |
| 004 |
88995459 |
COVER, P/SEAT CUSH (GRAY) |
DM (AQ9, 13W) (EXC AH8, AL2, KA1) |
2005-2007 |
01 |
| 004 |
88995464 |
COVER, P/SEAT CUSH (EBONY) |
DM (AQ9, KA1, 19W) (EXC AH8) |
2005-2007 |
01 |
| 004 |
88995906 |
COVER, P/SEAT CUSH (NEUTRAL) (16.717) |
DM (AQ9, KA1, 704) (EXC AX4, A45) |
2005-2005 |
01 |
| 004 |
88995908 |
COVER, P/SEAT CUSH (GRAY W/EBONY) |
DM (AQ9, 134) (EXC AH8, AL2, AX4, KA1) |
2005-2007 |
01 |
| 004 |
88995909 |
COVER, P/SEAT CUSH (EBONY) |
DM (AQ9, 194) (EXC AH8, AL2, AX4, KA1) |
2005-2007 |
01 |
| 004 |
88995910 |
COVER, P/SEAT CUSH (NEUTRAL) |
DM (AQ9, 704) (EXC AH8, AL2, AX4, KA1) |
2005-2006 |
01 |
| 004 |
88995916 |
COVER, P/SEAT CUSH (GRAY) |
DM (AQ9, KA1, 134) (EXC AH8, AL2, AX4, CZ2) |
2005-2007 |
01 |
| 004 |
88995917 |
COVER, P/SEAT CUSH (EBONY) |
DM (AQ9, KA1, 194) (EXC AH8, AL2, AX4) |
2005-2007 |
01 |
| 004 |
88995918 |
COVER, P/SEAT CUSH (NEUTRAL) |
DM (AQ9, KA1, 704) (EXC AH8, AL2, AX4) |
2005-2006 |
01 |
| 004 |
88995921 |
COVER, P/SEAT CUSH (EBONY) |
DM (AL2, AQ9, A45, KA1, 194) (EXC CZ2) |
2005-2007 |
01 |
| 004 |
88995960 |
COVER, P/SEAT CUSH (EBONY) |
DN (AQ9, 195) (EXC AH8, AL2, KA1) |
2005-2005 |
01 |
| 004 |
88995961 |
COVER, P/SEAT CUSH (NEUTRAL) |
DN (AQ9, 705) (EXC AH8, AL2, KA1) |
2005-2005 |
01 |
| 004 |
88995962 |
COVER, P/SEAT CUSH (GRAY) |
DN (AQ9, 135) (EXC AH8, AL2, KA1) |
2005-2005 |
01 |
| 005 |
|
COVER, P/SEAT CUSH (ЧАСТЬ OF 13) |
|
2005-2007 |
|
| 006 |
|
БОЛТ, P/SEAT CUSH FRM (ЧАСТЬ OF 10) |
|
2005-2007 |
|
| 007 |
88897669 |
FILLER, P/SEAT H/RST |
D69 |
2005-2007 |
01 |
| 007 |
88992653 |
RESTRAINT, P/SEAT HD (EBONY) |
DM (192) |
2005-2005 |
01 |
| 007 |
88995473 |
RESTRAINT, P/SEAT HD (EBONY) |
DM (19W) |
2005-2007 |
01 |
| 007 |
88995474 |
RESTRAINT, P/SEAT HD (GRAY) |
DM (13W) |
2005-2007 |
01 |
| 007 |
88995980 |
RESTRAINT, P/SEAT HD (GRAY) |
DM (134) |
2005-2007 |
01 |
| 007 |
88995981 |
RESTRAINT, P/SEAT HD (EBONY) (16.718) |
DM (194) |
2005-2007 |
01 |
| 007 |
88995982 |
RESTRAINT, P/SEAT HD (NEUTRAL) (16.718) |
DM (704) |
2005-2005 |
01 |
| 007 |
88995984 |
RESTRAINT, P/SEAT HD (EBONY) |
DN (195) |
2005-2007 |
01 |
| 007 |
88995985 |
RESTRAINT, P/SEAT HD (NEUTRAL) |
DN (705) |
2005-2005 |
01 |
| 007 |
88995986 |
RESTRAINT, P/SEAT HD (GRAY) |
DN (135) |
2005-2007 |
01 |
| 008 |
10399538 |
МОДУЛЬ, P/SEAT HTR CONT
| D69 (KA1) |
2005-2007 |
01 |
|
| 009 |
88952627 |
ГАЙКА, P/SEAT BELT (BKL SI) (TUBE NUT) (11.556) |
DM |
2005-2007 |
01 |
| 010 |
88897610 |
РАМА, P/SEAT CUSH (INCLS 6) (MAN) |
DM, DN (EXC AH8) |
2005-2005 |
01 |
| 011 |
88895405 |
PANEL, P/SEAT BK CUSH FIN (INCLS 54) (NEUTRAL) (W/MESH MAP PKT) |
DM, DN (70I) |
2005-2005 |
01 |
| 011 |
88895407 |
PANEL, P/SEAT BK CUSH FIN (INCLS 54) (GRAY) (W/MESH MAP PKT)
| DM, DN (13I) |
2005-2007 |
01 |
|
| 011 |
88992614 |
PANEL, P/SEAT BK CUSH FIN (INCLS 54) (EBONY) (W/MESH MAP PKT) |
DM, DN (19I) |
2005-2007 |
01 |
| 012 |
88897670 |
SUPPORT, P/SEAT H/RST |
D |
2005-2007 |
01 |
| 013 |
19124390 |
МОДУЛЬ KIT, INFL RST FRT PASS PRESENCE (W/ SEN) (INCLS 5)
| DM, DN |
2005-2007 |
01 |
|
| 014 |
88897411 |
HANDLE, P/SEAT RECL (INCLS 15) (NEUTRAL) |
DM, DN (70I) |
2005-2005 |
01 |
| 014 |
88949044 |
HANDLE, P/SEAT RECL (INCLS 15) (GRAY) |
DN (13I) |
2005-2005 |
01 |
| 014 |
88949044 |
HANDLE, P/SEAT RECL (INCLS 15) (GRAY) |
DM (13I) |
2005-2007 |
01 |
| 014 |
88992628 |
HANDLE, P/SEAT RECL (INCLS 15) (EBONY) |
DM, DN (19I) |
2005-2005 |
01 |
| 015 |
|
RETAINER, P/SEAT RECL HDL (ЧАСТЬ OF 14) |
|
2005-2007 |
|
| 016 |
88993173 |
HARNESS, P/SEAT WRG (INCLS 17) |
DM69 (AQ9, KA1) (EXC AH8, AL2) |
2005-2007 |
01 |
| 016 |
88994822 |
HARNESS, P/SEAT WRG (INCLS 17) |
DN69 (AQ9, AQ9) |
2005-2007 |
01 |
| 016 |
88994838 |
HARNESS, P/SEAT WRG (INCLS 17) |
DN69 (AQ9, KA1) (EXC AH8, AL2) |
2005-2005 |
01 |
| 016 |
88994838 |
HARNESS, P/SEAT WRG (INCLS 17) |
DM69 (AQ9) (EXC AH8, AL2, KA1) |
2005-2006 |
01 |
| 017 |
|
SHIELD, WRG HARNESS (ЧАСТЬ OF 16) |
|
2005-2007 |
|
| 018 |
88849035 |
РАМА, P/SEAT BK CUSH (W/SUSPENSION SUPPORT) |
DN (EXC AH8, AL2, KA1) |
2005-2005 |
01 |
| 018 |
88849035 |
РАМА, P/SEAT BK CUSH (W/SUSPENSION SUPPORT) |
DM (EXC AH8, AL2) |
2005-2007 |
01 |
| 019 |
88952646 |
БОЛТ, P/SEAT BK CUSH FRM (INCLS 20) (11.628) |
D69 |
2005-2007 |
01 |
| 020 |
|
BUSHING, P/SEAT BK CUSH PIV (ЧАСТЬ OF 19) |
|
2005-2007 |
|
| 021 |
88952627 |
ГАЙКА, P/SEAT BELT (BKL SI) (TUBE NUT) (11.556) |
D |
2005-2007 |
01 |
| 022 |
|
RETAINER, P/SEAT ADJR FIN CVR (ЧАСТЬ OF 23) |
|
2005-2007 |
|
| 023 |
88895369 |
COVER, P/SEAT RECL LWR FIN (INCLS 22) (NEUTRAL) (INR) |
DM, DN (70I) |
2005-2007 |
01 |
| 023 |
88895371 |
COVER, P/SEAT RECL LWR FIN (INCLS 22) (GRAY) (INR) |
DM, DN (13I) |
2005-2007 |
01 |
| 023 |
88992616 |
COVER, P/SEAT RECL LWR FIN (INCLS 22) (EBONY) (INR) |
DM, DN (19I) |
2005-2007 |
01 |
| 024 |
|
BELT, P/SEAT (BKL SI) |
|
2005-2007 |
|
| 024 |
89024403 |
BELT KIT, P/SEAT (BKL SI) (GRAY) |
DM (13I) (EXC AX4) |
2005-2005 |
01 |
| 024 |
89024403 |
BELT KIT, P/SEAT (BKL SI) (GRAY) |
DN (13I) |
2005-2005 |
01 |
| 024 |
89024404 |
BELT KIT, P/SEAT (BKL SI) (EBONY) |
DM (19I) (EXC AX4) |
2005-2005 |
01 |
| 024 |
89024404 |
BELT KIT, P/SEAT (BKL SI) (EBONY) |
DN (19I) |
2005-2005 |
01 |
| 024 |
89024405 |
BELT KIT, P/SEAT (BKL SI) (NEUTRAL) |
DM (70I) (EXC AX4) |
2005-2005 |
01 |
| 024 |
89024405 |
BELT KIT, P/SEAT (BKL SI) (NEUTRAL) |
DN (70I) |
2005-2005 |
01 |
| 025 |
88897272 |
БОЛТ, P/SEAT (TOWER COVER) |
D69 |
2005-2007 |
03 |
| 026 |
88895389 |
COVER, P/SEAT ADJR FIN (NEUTRAL) (FRT) |
DM (70I) |
2005-2005 |
01 |
| 026 |
88895391 |
COVER, P/SEAT ADJR FIN (GRAY) (FRT) |
DM (13I) |
2005-2005 |
01 |
| 026 |
88895391 |
COVER, P/SEAT ADJR FIN (GRAY) (FRT) |
DN (13I) |
2005-2005 |
01 |
| 026 |
88992625 |
COVER, P/SEAT ADJR FIN (EBONY) (FRT) |
D69 (19I) |
2005-2007 |
01 |
| 026 |
88992626 |
COVER, P/SEAT ADJR FIN (EBONY) (FRT) |
D69 (19I) |
2005-2007 |
01 |
| 027 |
11514623 |
БОЛТ, HEX W/CON WA, M6X1X20 (P/SEAT SI INFL RST MDL) |
|
2005-2007 |
02 |
| 028 |
88895389 |
COVER, P/SEAT ADJR FIN (NEUTRAL) (FRT) |
DM (70I) |
2005-2005 |
01 |
| 028 |
88895391 |
COVER, P/SEAT ADJR FIN (GRAY) (FRT) |
DM (13I) |
2005-2005 |
01 |
| 028 |
88895391 |
COVER, P/SEAT ADJR FIN (GRAY) (FRT) |
DN (13I) |
2005-2005 |
01 |
| 028 |
88992625 |
COVER, P/SEAT ADJR FIN (EBONY) (FRT) |
D69 (19I) |
2005-2007 |
01 |
| 028 |
88992626 |
COVER, P/SEAT ADJR FIN (EBONY) (FRT) |
D69 (19I) |
2005-2007 |
01 |
| 029 |
88895464 |
ADJUSTER, P/SEAT (СМ. ГРУППУ 11.000 ADJUSTER ASM/PASSENGER ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) |
DM, DN (EXC AH8) |
2005-2005 |
01 |
| 030 |
11609257 |
БОЛТ, P/SEAT ADJR (W/BELT) (M12X1.75X34) (8.907)
| D |
2005-2007 |
AR |
|
| 031 |
88895408 |
COVER, P/SEAT ADJR БОЛТ FIN (INCLS 32) (NEUTRAL) |
D69 (70I) |
2005-2005 |
01 |
| 031 |
88895410 |
COVER, P/SEAT ADJR БОЛТ FIN (INCLS 32) (GRAY) |
D69 (13I) |
2005-2007 |
01 |
| 031 |
88992629 |
COVER, P/SEAT ADJR БОЛТ FIN (INCLS 32) (EBONY) |
D69 (19I) |
2005-2007 |
01 |
| 032 |
|
RETAINER, P/SEAT INR ADJR RR FIN CVR (ЧАСТЬ OF 31) |
|
2005-2007 |
|
| 033 |
88897619 |
BEZEL, P/SEAT SHLDR BELT OPG |
DM (ILC, IL2) |
2005-2007 |
01 |
| 033 |
88897619 |
BEZEL, P/SEAT SHLDR BELT OPG |
DN (ILC, IL2) |
2005-2007 |
01 |
| 033 |
88992618 |
BEZEL, P/SEAT SHLDR BELT OPG (EBONY) |
DM (19I) |
2005-2007 |
01 |
| 033 |
88992618 |
BEZEL, P/SEAT SHLDR BELT OPG (EBONY) |
DN (19I) |
2005-2007 |
01 |
| 034 |
00332364 |
RETAINER - PUSH IN, FITS HOLE SIZE 0.245 - 0.260, GRIP LENGTH 0.52, 0.7 OD, MATERIAL NYLON 6/6 PER GMP.PA66.015 (P/SEAT SHLDR BELT) |
|
2005-2007 |
01 |
| 035 |
88897643 |
БОЛТ, P/SEAT RECL (RECL TO FRM) |
D69 |
2005-2007 |
02 |
| 036 |
|
RETAINER, P/SEAT OTR RECL FIN CVR (ЧАСТЬ OF 37) |
|
2005-2007 |
|
| 037 |
88897633 |
COVER, P/SEAT RECL LWR FIN (INCLS 36) (NEUTRAL) (OTR) (W/O SWITCH OPENING) (MAN) |
DM, DN (70I) (EXC AH8) |
2005-2005 |
01 |
| 037 |
88897637 |
COVER, P/SEAT RECL LWR FIN (INCLS 36) (GRAY) (OTR) (W/O SWITCH OPENING) (MAN) |
DM, DN (13I) |
2005-2005 |
01 |
| 037 |
88949022 |
COVER, P/SEAT RECL LWR FIN (INCLS 36) (NEUTRAL) (OTR) (W/O SWITCH OPENING) (PWR) |
DM, DN (70I) |
2005-2005 |
01 |
| 037 |
88949024 |
COVER, P/SEAT RECL LWR FIN (INCLS 36) (GRAY) (OTR) (W/O SWITCH OPENING) (PWR) |
DN (13I) |
2005-2005 |
01 |
| 037 |
88992622 |
COVER, P/SEAT RECL LWR FIN (INCLS 36) (EBONY) (OTR) (W/O SWITCH OPENING) (MAN) |
DM, DN (19I) |
2005-2005 |
01 |
| 038 |
88992480 |
COVER, P/SEAT H/RST FIN (NEUTRAL) |
DM (702) |
2005-2005 |
01 |
| 038 |
88992480 |
COVER, P/SEAT H/RST FIN (NEUTRAL) |
DM (704) |
2005-2005 |
01 |
| 038 |
88992481 |
COVER, P/SEAT H/RST FIN (GRAY) |
DM (132) |
2005-2006 |
01 |
| 038 |
88992652 |
COVER, P/SEAT H/RST FIN (EBONY) |
DM (192) |
2005-2005 |
01 |
| 038 |
88993403 |
COVER, P/SEAT H/RST FIN (EBONY) (W/SUEDE INSERTS) |
DN (193) |
2005-2005 |
01 |
| 038 |
88994887 |
COVER, P/SEAT H/RST (NEUTRAL) (W/SUEDE INSERTS) |
DN (703) |
2005-2005 |
01 |
| 038 |
88995287 |
COVER, P/SEAT H/RST (GRAY) (W/SUEDE INSERTS) |
DN (133) |
2005-2005 |
01 |
| 038 |
88995470 |
COVER, P/SEAT H/RST (EBONY) |
DM (19W) |
2005-2007 |
01 |
| 038 |
88995471 |
COVER, P/SEAT H/RST (GRAY) |
DM (13W) |
2005-2007 |
01 |
| 038 |
88995928 |
COVER, P/SEAT H/RST FIN (GRAY) |
DM (134) |
2005-2007 |
01 |
| 038 |
88995929 |
COVER, P/SEAT H/RST FIN (EBONY) (16.718) |
DM (194) |
2005-2007 |
01 |
| 038 |
88995930 |
COVER, P/SEAT H/RST FIN (NEUTRAL) (16.718) |
DM (704) |
2005-2005 |
01 |
| 038 |
88995976 |
COVER, P/SEAT H/RST (EBONY) |
DN (195) |
2005-2007 |
01 |
| 038 |
88995977 |
COVER, P/SEAT H/RST (NEUTRAL) |
DN (705) |
2005-2005 |
01 |
| 038 |
88995978 |
COVER, P/SEAT H/RST (GRAY) (14.880) |
DN (135) |
2005-2007 |
01 |
| 039 |
25736516 |
HARNESS, INFL RST WRG (LESS TUBE-ST MEMORY SWITCH HARNESS) |
DM (AL2, AQ9, A45, IL4) (EXC AX4) |
2005-2006 |
01 |
| 039 |
25736516 |
HARNESS, INFL RST WRG (LESS TUBE-ST MEMORY SWITCH HARNESS) |
DM (AL2, AQ9, A45, ILW) (EXC AX4) |
2005-2006 |
01 |
| 039 |
25736516 |
HARNESS, INFL RST WRG (LESS TUBE-ST MEMORY SWITCH HARNESS) |
DM (AL2, AQ9, AX4, A45, IL4) |
2005-2006 |
01 |
| 039 |
25736516 |
HARNESS, INFL RST WRG (LESS TUBE-ST MEMORY SWITCH HARNESS) |
DM (AQ9, IL4) (EXC AL2, AX4, A45) |
2005-2006 |
01 |
| 039 |
25736516 |
HARNESS, INFL RST WRG (LESS TUBE-ST MEMORY SWITCH HARNESS) |
DM (AQ9, ILW) (EXC A45) |
2005-2007 |
01 |
| 039 |
25736516 |
HARNESS, INFL RST WRG (LESS TUBE-ST MEMORY SWITCH HARNESS) |
DM (AQ9, ILW) (EXC AH8, AL2) |
2005-2007 |
01 |
| 039 |
25736516 |
HARNESS, INFL RST WRG (LESS TUBE-ST MEMORY SWITCH HARNESS) |
DN (AQ9) |
2005-2007 |
01 |
| 040 |
11517996 |
ГАЙКА, P/SEAT BELT (RETR SI) (M10X1.5, 11.2 THK) (8.917)
| DM |
2005-2007 |
01 |
|
| 040 |
25604879 |
ГАЙКА, P/SEAT BELT (RETR SI) (SPL W/10X1.5 THREAD) (W/SILENCER (PLASTIC)ATTACHED) |
D |
2005-2007 |
01 |
| 041 |
88849035 |
РАМА, P/SEAT BK CUSH (W/SUSPENSION SUPPORT) |
DN (EXC AH8, AL2, KA1) |
2005-2005 |
01 |
| 041 |
88849035 |
РАМА, P/SEAT BK CUSH (W/SUSPENSION SUPPORT) |
DM (EXC AH8, AL2) |
2005-2007 |
01 |
| 042 |
00332364 |
RETAINER - PUSH IN, FITS HOLE SIZE 0.245 - 0.260, GRIP LENGTH 0.52, 0.7 OD, MATERIAL NYLON 6/6 PER GMP.PA66.015 (P/SEAT CUSH FRM SUPT) |
|
2005-2007 |
02 |
| 043 |
25760561 |
МОДУЛЬ, P/SEAT SI INFL RST (GRAY) |
DM (13I) |
2005-2005 |
01 |
| 043 |
25760561 |
МОДУЛЬ, P/SEAT SI INFL RST (GRAY) |
DN (AQ9, 13I) |
2005-2005 |
01 |
| 043 |
25760562 |
МОДУЛЬ, P/SEAT SI INFL RST (EBONY) |
DM, DN (19I) |
2005-2005 |
01 |
| 043 |
25760563 |
МОДУЛЬ, P/SEAT SI INFL RST (NEUTRAL) |
DM, DN (70I) |
2005-2005 |
01 |
| 044 |
88897617 |
PANEL, P/SEAT BK CUSH SI BOLS |
DM, DN |
2005-2007 |
01 |
| 045 |
88895385 |
BEZEL, P/SEAT BELT OPG (BKL SI) (GRAY) |
DM (13I) |
2005-2005 |
01 |
| 046 |
11517996 |
ГАЙКА, P/SEAT BELT (RETR SI) (M10X1.5, 11.2 THK) (8.917)
| DM |
2005-2007 |
01 |
|
| 046 |
25604879 |
ГАЙКА, P/SEAT BELT (RETR SI) (SPL W/10X1.5 THREAD) (W/SILENCER (PLASTIC)ATTACHED) |
D |
2005-2007 |
01 |
| 047 |
10369739 |
BELT, P/SEAT (RETR SI) (EBONY) |
DM (19I) (EXPORT) |
2005-2005 |
01 |
| 047 |
88952534 |
BELT KIT, P/SEAT (RETR SI) (GRAY) |
DM (13I) |
2005-2007 |
01 |
| 047 |
88952534 |
BELT KIT, P/SEAT (RETR SI) (GRAY) |
DN (13I) |
2005-2007 |
01 |
| 047 |
88952536 |
BELT KIT, P/SEAT (RETR SI) (NEUTRAL) |
DM (70I) (EXC AX4) |
2005-2005 |
01 |
| 047 |
88952536 |
BELT KIT, P/SEAT (RETR SI) (NEUTRAL) |
DN (70I) |
2005-2005 |
01 |
| 047 |
88957484 |
BELT KIT, P/SEAT (RETR SI) (EBONY) |
DM (19I) |
2005-2005 |
01 |
| 047 |
88957484 |
BELT KIT, P/SEAT (RETR SI) (EBONY) |
DN (19I) |
2005-2007 |
01 |
| 048 |
|
BRACKET, P/SEAT |
|
2005-2007 |
|
| 049 |
11517068 |
ГАЙКА, INFL RST P/SEAT SI MDL (M6X1X3, 14.2 O.D.) (8.917) |
D |
2005-2007 |
04 |
| 050 |
88897644 |
БОЛТ, P/SEAT ADJR (ADJR TO FRM) |
D69 |
2005-2007 |
01 |
| 051 |
88897641 |
ROLLER, P/SEAT SHLDR BELT |
DN |
2005-2006 |
01 |
| 051 |
88897641 |
ROLLER, P/SEAT SHLDR BELT |
DM |
2005-2007 |
01 |
| 052 |
88897615 |
COVER, P/SEAT SHLDR BELT OPG BZL (11.573) |
DM |
2005-2007 |
01 |
| 052 |
88897615 |
COVER, P/SEAT SHLDR BELT OPG BZL (11.573) |
DN |
2005-2007 |
01 |
| 053 |
19122625 |
GUIDE, P/SEAT H/RST (EBONY) (W/O BUTTON) |
D69 (19I) |
2005-2007 |
01 |
| 053 |
19122627 |
GUIDE, P/SEAT H/RST (EBONY) (W/BUTTON) |
D69 (19I) |
2005-2007 |
01 |
| 053 |
88994276 |
GUIDE, P/SEAT H/RST (NEUTRAL) (W/BUTTON) |
D69 (70I) |
2005-2005 |
01 |
| 053 |
88994279 |
GUIDE, P/SEAT H/RST (NEUTRAL) (W/O BUTTON) |
D69 (70I) |
2005-2005 |
01 |
| 053 |
88994730 |
GUIDE, P/SEAT H/RST (GRAY) (W/BUTTON) (11.625) |
DM, DN (13I) |
2005-2007 |
01 |
| 053 |
88994731 |
GUIDE, P/SEAT H/RST (GRAY) (W/O BUTTON) (11.625) |
D69 (13I) |
2005-2007 |
01 |
| 054 |
10421018 |
RETAINER, P/SEAT BK CUSH CVR (ЧАСТЬ OF 11) (NATURAL) (4MM HOLE, 33MM) (15.100) |
DM, DN |
2005-2007 |
03 |
