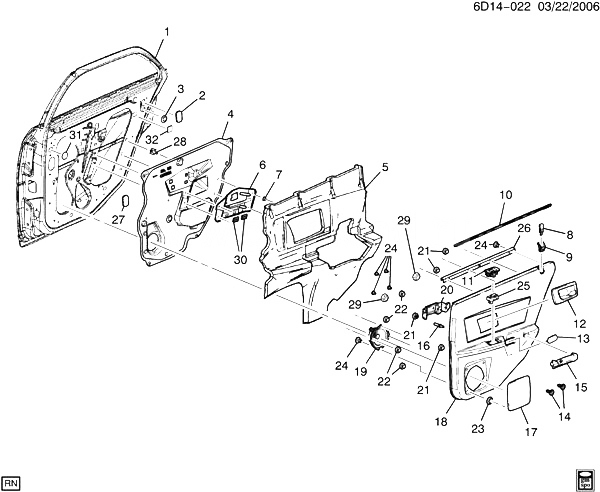

(6D14-022) - 2003-2007 D69 ОТДЕЛКА/ЗАДНЯЯ ДВЕРЬ CADILLAC - CTS 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 19120493 DOOR, RR SI D69 2003-2007 01
001 19120494 DOOR, RR SI D69 2003-2007 01
002 10328154 SEAL, RR S/D I/S HDL (10.565) D69 2004-2006 02
003 25652432 PLUG, RR S/D INR PNL HOLE (35MM DIA) (FITS 25MM HOLE) (ROUND) (12.934) D69 2003-2007 02
004 25758245 DEFLECTOR, RR S/D WAT D69 2003-2007 01
004 25758246 DEFLECTOR, RR S/D WAT D69 2003-2007 01
005 REINFORCEMENT, RR S/D INR PNL LK 2003-2007
006 25687638 PLATE, RR S/D PULL HDL HNGR (INCLS 30) D69 2003-2007 01
006 25687639 PLATE, RR S/D PULL HDL HNGR (INCLS 30) D69 2003-2007 01
007 03530297 ГАЙКА, HFH, M6X1, 5.85THK, 14.2 O.D., 10, ZOR (RR S/D PULL HDL HNGR PLT) 2003-2007 08
008 25751121 KNOB, RR S/D LKG ROD (GRAY) D69 (13I) 2004-2007 02
008 25751122 KNOB, RR S/D LKG ROD (NEUTRAL) DM69 (70I) 2005-2005 02
008 25751122 KNOB, RR S/D LKG ROD (NEUTRAL) DR69 (70I) (EXPORT) 2005-2005 02
008 25751335 KNOB, RR S/D LKG ROD (EBONY) D69 (19I) 2003-2005 02
008 25751335 KNOB, RR S/D LKG ROD (EBONY) DN69 (70I) 2005-2005 02
009 88952714 BEZEL, RR S/D LKG ROD P/BUT (GRAY) D (13I) 2003-2007 02
009 88952716 BEZEL, RR S/D LKG ROD P/BUT (NEUTRAL) DM69 (70I) 2004-2005 02
009 88952716 BEZEL, RR S/D LKG ROD P/BUT (NEUTRAL) DR69 (70I) (EXPORT) 2004-2005 02
010 88980785 MOLDING, RR S/D CTR (PRIMED) (КРАСКА TO MATCH) D 2003-2007 01
010 88980786 MOLDING, RR S/D CTR (КРАСКА TO MATCH) D 2003-2007 01
011 88983977 PLATE, RR S/D ACSRY SW MT (EBONY) D69 (19I) 2004-2007 01
011 88983978 PLATE, RR S/D ACSRY SW MT (EBONY) D69 (19I) 2004-2007 01
011 89038775 PLATE, RR S/D ACSRY SW MT (NEUTRAL) D69 (70I) 2004-2005 01
011 89038776 PLATE, RR S/D ACSRY SW MT (GRAY) D69 (13I) 2004-2007 01
011 89038784 PLATE, RR S/D ACSRY SW MT (NEUTRAL) D69 (70I) 2004-2005 01
011 89038785 PLATE, RR S/D ACSRY SW MT (GRAY) D69 (13I) 2004-2007 01
012 25752964 BEZEL, RR S/D I/S HDL (EBONY) DM, DN 2004-2005 01
012 25752964 BEZEL, RR S/D I/S HDL (EBONY) DR (EXPORT) 2004-2005 01
012 25752965 BEZEL, RR S/D I/S HDL (EBONY) DM, DN 2004-2005 01
012 25752965 BEZEL, RR S/D I/S HDL (EBONY) DR (EXPORT) 2004-2005 01
013 25727743 COVER, RR S/D T/PNL (GRAY) (14.685) D69 (13I) 2005-2007 02
013 25727745 COVER, RR S/D T/PNL (NEUTRAL) (14.685) DM (70I) 2005-2005 02
013 25727745 COVER, RR S/D T/PNL (NEUTRAL) (14.685) DR (70I) (EXPORT) 2005-2005 02
013 25748814 COVER, RR S/D T/PNL (EBONY) (14.685) DM (19I) 2005-2005 02
013 25748814 COVER, RR S/D T/PNL (EBONY) (14.685) DN (19I, 70I) 2005-2005 02
013 25748814 COVER, RR S/D T/PNL (EBONY) (14.685) DR (19I) (EXPORT) 2005-2005 02
014 03539184 БОЛТ, RR S/D PULL HDL HNGR PLT (ATTACH TO HNGR PLT ASM) (14.683) D69 2003-2007 04
015 19206597 HANDLE, RR S/D PULL (GRAY) (SATIN CHROME) (14.691) DN (DR5, 13I) 2005-2006 02
015 88983942 HANDLE, RR S/D PULL (EBONY) (MONO-TONE W/O WOOD) (КРАСКАED) (HANDLE CAP COMBINED) (14.691) DM (19I) (EXC B19) 2004-2005 02
015 88983942 HANDLE, RR S/D PULL (EBONY) (MONO-TONE W/O WOOD) (КРАСКАED) (HANDLE CAP COMBINED) (14.691) DR (19I) (EXC B19) (EXPORT) 2004-2005 02
015 88983942 HANDLE, RR S/D PULL (EBONY) (MONO-TONE W/O WOOD) (КРАСКАED) (HANDLE CAP COMBINED) (14.691) DM (19I) (EXC B18) 2005-2007 02
015 88983942 HANDLE, RR S/D PULL (EBONY) (MONO-TONE W/O WOOD) (КРАСКАED) (HANDLE CAP COMBINED) (14.691) DR (19I) (EXC B18) (EXPORT) 2005-2007 02
015 89038778 HANDLE, RR S/D PULL (NEUTRAL) (BURL WALNUT WOOD HANDLE) (14.691) DM (B18, 70I) 2005-2006 02
015 89038778 HANDLE, RR S/D PULL (NEUTRAL) (BURL WALNUT WOOD HANDLE) (14.691) DR (B18, 70I) (EXPORT) 2005-2006 02
015 89038779 HANDLE, RR S/D PULL (GRAY) (BURL WALNUT WOOD HANDLE) (14.691) DM (B18, 13I) 2005-2006 02
015 89038779 HANDLE, RR S/D PULL (GRAY) (BURL WALNUT WOOD HANDLE) (14.691) DR (B18, 13I) (EXPORT) 2005-2006 02
015 89038781 HANDLE, RR S/D PULL (NEUTRAL) (КРАСКАED) (14.691) DM (70I) (EXC B19) 2004-2005 02
015 89038781 HANDLE, RR S/D PULL (NEUTRAL) (КРАСКАED) (14.691) DR (70I) (EXC B19) (EXPORT) 2004-2005 02
015 89038782 HANDLE, RR S/D PULL (GRAY) (КРАСКАED) (14.691) DM (13I) (EXC B18, B19) 2005-2005 02
015 89038782 HANDLE, RR S/D PULL (GRAY) (КРАСКАED) (14.691) DR (13I) (EXC B18, B19) (EXPORT) 2005-2005 02
015 89039785 HANDLE, RR S/D PULL (SATIN CHROME) (14.691) DN (19I, 70I) 2004-2005 02
015 89040111 HANDLE, RR S/D PULL (EBONY) (BURL WALNUT WOOD HANDLE) (14.691) DM (B18, 19I) 2005-2006 02
015 89040111 HANDLE, RR S/D PULL (EBONY) (BURL WALNUT WOOD HANDLE) (14.691) DR (B18, 19I) (EXPORT) 2005-2006 02
015 89041933 HANDLE, RR S/D PULL (EBONY) (W/FAUX HYBRID WOOD INSERTS) (14.691) DM (B19, 19I) 2004-2006 02
015 89041933 HANDLE, RR S/D PULL (EBONY) (W/FAUX HYBRID WOOD INSERTS) (14.691) DR (B19, 19I) (EXPORT) 2004-2006 02
015 89041934 HANDLE, RR S/D PULL (GRAY) (W/FAUX HYBRID WOOD INSERTS) (14.691) DM (B19, 13I) 2004-2006 02
015 89041934 HANDLE, RR S/D PULL (GRAY) (W/FAUX HYBRID WOOD INSERTS) (14.691) DR (B19, 13I) (EXPORT) 2004-2006 02
015 89041935 HANDLE, RR S/D PULL (NEUTRAL) (W/FAUX HYBRID WOOD INSERTS) (14.691) DM (B19, 70I) 2004-2005 02
015 89041935 HANDLE, RR S/D PULL (NEUTRAL) (W/FAUX HYBRID WOOD INSERTS) (14.691) DR (B19, 70I) (EXPORT) 2004-2005 02
016 12337828 SCREW, HEX W/FLAT WA, TAP, M6.3X1.81X20, 13.2 O.D., AB PT, STL, PZ0R (RR S/D I/S HDL) 2003-2007 02
017 88952720 GRILLE, RDO RR S/D SPKR (GRAY) DM (U57, U66, 13I) 2004-2007 01
017 88952720 GRILLE, RDO RR S/D SPKR (GRAY) DR (U57, U66, 13I) (EXPORT) 2004-2007 01
017 88952722 GRILLE, RDO RR S/D SPKR (NEUTRAL) DM (U57, U66, 70I) 2004-2005 01
017 88952722 GRILLE, RDO RR S/D SPKR (NEUTRAL) DR (U57, U66, 70I) (EXPORT) 2004-2005 01
017 88952723 GRILLE, RDO RR S/D SPKR (GRAY) DM (U57, U66, 13I) 2004-2007 01
017 88952723 GRILLE, RDO RR S/D SPKR (GRAY) DR (U57, U66, 13I) (EXPORT) 2004-2007 01
017 88952725 GRILLE, RDO RR S/D SPKR (NEUTRAL) DM (U57, U66, 70I) 2004-2005 01
017 88952725 GRILLE, RDO RR S/D SPKR (NEUTRAL) DR (U57, U66, 70I) (EXPORT) 2004-2005 01
017 88983940 GRILLE, RDO RR S/D SPKR (EBONY) DN (U57, 19I, 70I) 2004-2005 01
017 88983940 GRILLE, RDO RR S/D SPKR (EBONY) DM (U57, U66, 19I) 2004-2007 01
017 88983940 GRILLE, RDO RR S/D SPKR (EBONY) DR (U57, U66, 19I) (EXPORT) 2004-2007 01
017 88983941 GRILLE, RDO RR S/D SPKR (EBONY) DN (U57, 19I, 70I) 2004-2005 01
017 88983941 GRILLE, RDO RR S/D SPKR (EBONY) DR (B18, U57, U66, 19I) (EXPORT) 2004-2007 01
017 88983941 GRILLE, RDO RR S/D SPKR (EBONY) DM (U57, U66, 19I) 2005-2007 01
018 88983936 TRIM, RR S/D (EBONY) DN (U57, 19I, 70I) 2005-2005 01
018 88983936 TRIM, RR S/D (EBONY) DM (U57, U66, 19I) 2005-2007 01
018 88983936 TRIM, RR S/D (EBONY) DR (U57, U66, 19I) (EXPORT) 2005-2007 01
018 88983937 TRIM, RR S/D (EBONY) DN (U57, 19I, 70I) 2005-2005 01
018 88983937 TRIM, RR S/D (EBONY) DM (U57, U66, 19I) 2005-2007 01
018 88983937 TRIM, RR S/D (EBONY) DR (U57, U66, 19I) (EXPORT) 2005-2007 01
018 88983983 TRIM, RR S/D (GRAY) (14.685) DM (U57, U66, 13I) 2005-2007 01
018 88983983 TRIM, RR S/D (GRAY) (14.685) DR (U57, U66, 13I) (EXPORT) 2005-2007 01
018 88983984 TRIM, RR S/D (NEUTRAL) (14.685) DM (70I) 2005-2005 01
018 88983984 TRIM, RR S/D (NEUTRAL) (14.685) DR (70I) (EXPORT) 2005-2005 01
018 88983985 TRIM, RR S/D (GRAY) (14.685) DM (U57, U66, 13I) 2005-2007 01
018 88983985 TRIM, RR S/D (GRAY) (14.685) DR (U57, U66, 13I) (EXPORT) 2005-2007 01
018 88983986 TRIM, RR S/D (NEUTRAL) (14.685) DM (70I) 2005-2005 01
018 88983986 TRIM, RR S/D (NEUTRAL) (14.685) DR (70I) (EXPORT) 2005-2005 01
019 15888320 SPEAKER, RDO RR S/D (ACDelco #15888320) DM69 (U66) 2004-2007 02
019 15888320 SPEAKER, RDO RR S/D (ACDelco #15888320) DR69 (U66) (EXPORT) 2004-2007 02
019 25660131 SPEAKER, RDO RR S/D (ACDelco #25660131) D69 (U57) 2003-2007 02
020 88952741 BRACKET, RR S/D PULL HDL (14.691) D 2003-2006 01
020 88952742 BRACKET, RR S/D PULL HDL (14.691) D 2003-2007 01
021 11562043 RETAINER, RR S/D T/PNL (FOR 0.95 MM TO 1.0 MM THICK PANEL) (INCLS 11561499) (8.950) D69 2004-2007 08
021 11562044 RETAINER, RR S/D T/PNL (FOR 1.7 MM TO 1.9 MM THICK PANEL) (INCLS 11561600) (8.950) D69 2004-2007 08
022 11562044 RETAINER, RR S/D T/PNL (FOR 1.7 MM TO 1.9 MM THICK PANEL) (INCLS 11561600) (8.950) D69 2004-2007 AR
023 20049623 ГАЙКА, HFH, 3/16, .75 O.D., .125 HT, SPR ST, PC (FRT S/D TR FIN PNL) 2003-2007 02
024 11509231 SCREW, RD HD C/R TAP, M4.2X1.41X13.0, GM6010M STL, GM813M NICKEL ORGANIC (FRT S/D T/PNL) 2003-2007 12
025 25750264 SWITCH, SI WDO (EBONY) (RR) D 2005-2007 02
026 89042460 REINFORCEMENT, FRT S/D TR UPR D 2003-2007 01
027 15820928 COVER, RR S/D ACC HOLE (45MM DIA) (12.684) D69 2003-2007 02
028 11517641 STUD, SPL, M6X1X25, 13 THD, 11 OD HD W/26 WIDE CLIP, 9.8, 6280M, P-PT (RR S/D LOCR) 2003-2007 08
029 11503749 ГАЙКА, M6X1 (RR S/D LOCR) (ACDelco #11503749) D69 2003-2007 02
030 ГАЙКА, RR S/D PULL HDL (ЧАСТЬ OF 6) 2003-2007
031 11515174 BARRIER, RR S/D INR PNL SND 2003-2007 02
032 11515174 BARRIER, RR S/D INR PNL SND 2003-2007 02
