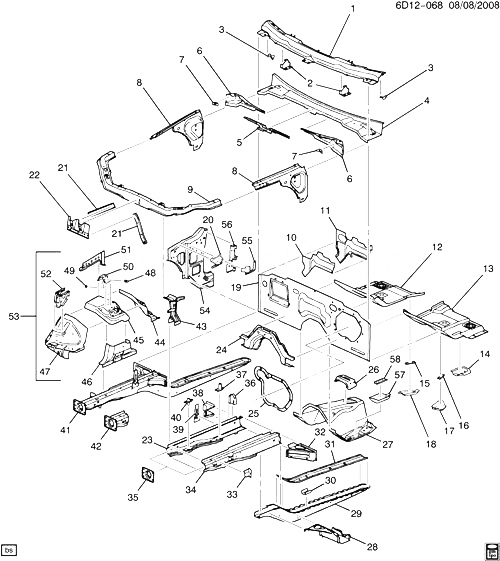

(6D12-068) - 2003-2005 D69 КУЗОВНЫЕ ДЕТАЛИ ЧАСТЬ 1-ДВИГАТЕЛЬНЫЙ ОТСЕК DASH CADILLAC - CTS 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 PANEL, W/S FRM PLNM 2003-2005
002 REINFORCEMENT, W/S LWR FRM 2003-2005
003 EXTENSION, PLNM UPR PNL 2003-2005
004 REINFORCEMENT, DA FRT EXTN PNL 2003-2005
005 REINFORCEMENT, W/S LWR FRM CTR 2003-2005
006 REINFORCEMENT, DA FRT EXTN PNL 2003-2005
007 REINFORCEMENT, WSW MOT 2003-2005
008 25693500 RAIL, F/CMPT OTR SI UPR D69 2003-2005 01
008 25693501 RAIL, F/CMPT OTR SI UPR D69 2003-2005 01
009 10355571 BAR, F/END UPR TIE (INCLS 22) D69 2003-2005 01
010 DEADENER, DA PNL UPR 2003-2005
011 INSULATOR, DA PNL UPR 2003-2005
012 PANEL, DA LWR EXTN 2003-2005
013 PANEL, DA LWR EXTN 2003-2005
014 25696592 SUPPORT, PARK BRK FRT CBL D 2003-2005 01
015 ГАЙКА, TRANS FRT MT (ЧАСТЬ OF 18) 2003-2005
016 ГАЙКА, TRANS FRT MT (ЧАСТЬ OF 17) 2003-2005
017 25743514 REINFORCEMENT, TRANS MT BRKT (INCLS 16) (RR) D 2004-2005 01
018 25743513 REINFORCEMENT, TRANS MT BRKT (INCLS 15) (RR) D 2003-2005 01
019 PANEL, DA UPR EXTN 2003-2005
020 BRACKET, КАПОТ HGE LWR (ЧАСТЬ OF 54) 2003-2005
021 25717971 BRACE, F/END SH MET DIAG D69 2003-2005 02
022 BRACKET, КАПОТ PRIM LAT (ЧАСТЬ OF 9) 2003-2005
023 RAIL, F/CMPT INR SI (ЧАСТЬ OF 41) 2003-2005
024 BAR, FLR PNL #1 CR 2003-2005
025 REINFORCEMENT, DA PNL (AT STRG COL OPG) 2003-2005
026 REINFORCEMENT, DA PNL 2003-2005
027 PANEL, DA LWR CTR EXTN 2003-2005
028 EXTENSION, FLR PNL #1 C/BAR (ЧАСТЬ OF 41) 2003-2005
029 RAIL, F/CMPT RR SI (ЧАСТЬ OF 41) 2003-2005
030 REINFORCEMENT, F/CMPT S/RL SHPG HOOK (ЧАСТЬ OF 41) 2003-2005
031 REINFORCEMENT, F/CMPT S/RL RR (ЧАСТЬ OF 41) 2003-2005
032 EXTENSION, F/CMPT OTR S/RL (ЧАСТЬ OF 41) 2003-2005
033 BRACKET, FRT W/H LWR FRT PNL (ЧАСТЬ OF 41) 2003-2005
034 RAIL, F/CMPT OTR SI LWR (ЧАСТЬ OF 41) 2003-2005
035 REINFORCEMENT, F/CMPT INR S/RL (ЧАСТЬ OF 41, 42) 2003-2005
036 REINFORCEMENT, ENG MT C/MBR (ЧАСТЬ OF 41) 2003-2005
037 ГАЙКА, ENG MT C/MBR (ЧАСТЬ OF 41) 2003-2005
038 REINFORCEMENT, FLR PNL #1 C/BAR (ЧАСТЬ OF 41) 2003-2005
039 REINFORCEMENT, FRT W/H RR PNL (ЧАСТЬ OF 41) 2003-2005
040 RETAINER, DRIVETRAIN FRT SUSP FRM NUT (ЧАСТЬ OF 41) 2003-2005
041 19178155 RAIL KIT, F/CMPT SI (INCLS 23, 28-40) D69 2003-2005 01
041 89024832 RAIL KIT, F/CMPT SI (INCLS 23, 28-40) (LWR) D69 2003-2005 01
042 89022997 PLATE, F/CMPT S/RL (INCLS 35) D69 2003-2005 01
042 89022998 PLATE, F/CMPT S/RL (INCLS 35) D69 2003-2005 01
043 25771544 REINFORCEMENT, F/END UPR TIE BAR D69 2003-2005 01
043 25771545 REINFORCEMENT, F/END UPR TIE BAR D69 2003-2005 01
044 EXTENSION, FRT W/H PNL (ЧАСТЬ OF 53) 2003-2005
045 10362380 ШЛАНГИ, FRT SUSP STRUT (ЧАСТЬ OF 53) D69 2003-2005 01
045 15900253 ШЛАНГИ, FRT SUSP STRUT (ЧАСТЬ OF 53) D69 2003-2005 01
046 PANEL, FRT W/H (ЧАСТЬ OF 53) 2003-2005
047 EXTENSION, FRT W/H PNL FRT (ЧАСТЬ OF 53) 2003-2005
048 25610246 STUD, КАПОТ OPEN ASST ROD (M8X1.25-6G) (TO КАПОТ) D69 2003-2005 01
049 11516071 ГАЙКА, M8X1.25, 7.1THK, 13.05 O.D., 10, ZC (ЧАСТЬ OF 53) 2003-2005 02
050 BRACKET, F/FDR UPR (ЧАСТЬ OF 53) 2003-2005
051 RAIL, F/CMPT FRT INR SI (ЧАСТЬ OF 53) 2003-2005
052 REINFORCEMENT, FRT W/H PNL UPR (ЧАСТЬ OF 53) 2003-2005
053 15900254 PANEL, FRT W/H (INCLS 44-47, 49-52) (ORDER STUD 25610246 NUT 11516071, FOR КАПОТ STRUT ATTACHMENT TO WHE EL HOUSE PANEL) DR (EXPORT) 2003-2005 01
053 15900254 PANEL, FRT W/H (INCLS 44-47, 49-52) (ORDER STUD 25610246 NUT 11516071, FOR КАПОТ STRUT ATTACHMENT TO КОЛЕСО HOUSE PANEL) DM 2003-2005 01
053 15900254 PANEL, FRT W/H (INCLS 44-47, 49-52) (ORDER STUD 25610246 NUT 11516071, FOR КАПОТ STRUT ATTACHMENT TO КОЛЕСО HOUSE PANEL) DN 2004-2005 01
053 89023657 PANEL, FRT W/H (INCLS 44-47, 49-52) (INCLS TWO STUDS) D69 2005-2005 01
054 19153756 PANEL, BODY H/PLR INR (INCLS 20, 55, 56) D69 2003-2005 01
054 19153757 PANEL, BODY H/PLR INR (INCLS 20, 55, 56) D69 2003-2005 01
055 BRACKET, DA LWR EXTN PNL (ЧАСТЬ OF 54) 2003-2005
056 SUPPORT, I/P OTR (ЧАСТЬ OF 54) 2003-2005
057 25727884 REINFORCEMENT, TRANS MT BRKT (INCLS 58) (FRT) D69 2003-2005 01
057 25727885 REINFORCEMENT, TRANS MT BRKT (INCLS 58) (FRT) D69 2003-2005 01
058 ГАЙКА, TRANS FRT MT (ЧАСТЬ OF 57) 2003-2005
