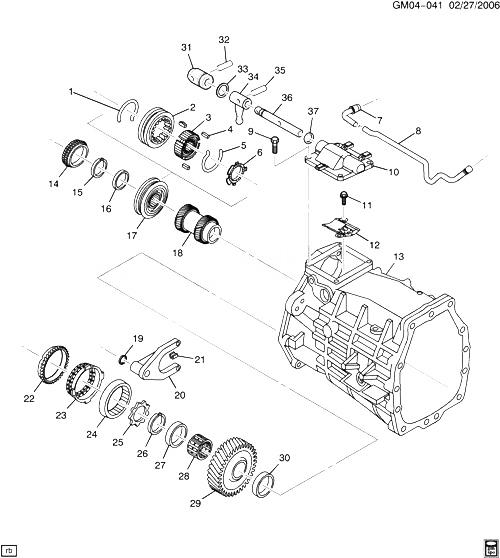

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
12523251 |
ПРУЖИНА, REV GR SYN (ЧАСТЬ OF 17) (4.384) |
DN (M12) |
2004-2005 |
02 |
| 002 |
|
SLEEVE, REV SYN (ЧАСТЬ OF 17) |
|
2004-2005 |
|
| 003 |
|
HUB, REV SYN (ЧАСТЬ OF 17) |
|
2004-2005 |
|
| 004 |
|
KEY, REV SYN (ЧАСТЬ OF 17) |
|
2004-2005 |
|
| 005 |
12523251 |
ПРУЖИНА, REV GR SYN (ЧАСТЬ OF 17) (4.384) |
DN (M12) |
2004-2005 |
02 |
| 006 |
12523044 |
RETAINER, REV GR SYN INSERT (ЧАСТЬ OF 17) |
DN (M12) |
2004-2005 |
01 |
| 007 |
12523294 |
VENT, M/TRNS |
DN69 (M12) |
2004-2005 |
01 |
| 008 |
89059474 |
PIPE, TRANS VENT |
DN (M12) |
2004-2005 |
01 |
| 009 |
12455048 |
БОЛТ, SHFT CONT SHF CVR (M8X1.25) (4.307) |
DN (M12) |
2004-2005 |
04 |
| 010 |
89059429 |
COVER, SHFT SHF |
DN (M12) |
2004-2005 |
01 |
| 011 |
12523243 |
БОЛТ, SHFT GDE DTNT PLT (4.303) |
DN (M12) |
2004-2005 |
02 |
| 012 |
89059466 |
PLATE, SHFT GDE DTNT |
DN (M12) |
2004-2005 |
01 |
| 013 |
89059425 |
CASE, TRANS |
DN (M12) |
2004-2005 |
01 |
| 014 |
12523049 |
RING, REV GR BLOCKING (4.384) |
DN (M12) |
2004-2005 |
01 |
| 015 |
12523253 |
RING, REV GR RET (4.318) |
DN (M12) |
2004-2005 |
02 |
| 016 |
12523047 |
WASHER, REV GR THR |
DN (M12) |
2004-2005 |
01 |
| 017 |
89059480 |
SYNCHRONIZER, REV GR (INCLS 1-6) |
DN (M12) |
2004-2005 |
01 |
| 018 |
12523042 |
GEAR, 5TH |
DN (M12) |
2004-2005 |
01 |
| 019 |
12523055 |
RING, REV SHFT FORK RET (4.422) |
DN (M12) |
2004-2005 |
01 |
| 020 |
12523288 |
FORK, REV SHFT |
DN (M12) |
2004-2005 |
01 |
| 021 |
12523233 |
INSERT, 5TH REV SHFT FORK |
DN (M12) |
2004-2005 |
02 |
| 022 |
12455036 |
RING, 6TH GR BLOCKING (4.383) |
DN (M12) |
2004-2005 |
01 |
| 023 |
88894070 |
CONE, 5TH 6TH GR SYN OTR |
DN (M12) |
2004-2005 |
02 |
| 024 |
12455017 |
CONE, 4TH GR SYN INR (6TH GEAR) |
DN (M12) |
2004-2005 |
01 |
| 025 |
12455039 |
WASHER, 5TH 6TH GR THR (4.384) |
DN (M12) |
2004-2005 |
02 |
| 026 |
12523253 |
RING, 5TH 6TH GR SYN HUB RET (6TH SPD) (4.318) |
DN (M12) |
2004-2005 |
01 |
| 027 |
12455040 |
SPACER, 5TH 6TH CNTR GR (4.416) |
DN (M12) |
2004-2005 |
02 |
| 028 |
12523255 |
BEARING, 6TH GR (4.355) (ACDelco #S1331) |
DN (M12) |
2004-2005 |
01 |
| 029 |
12455041 |
GEAR, 6TH GR DRV |
DN (M12) |
2004-2005 |
01 |
| 030 |
12455040 |
SPACER, 5TH 6TH CNTR GR (4.416) |
DN (M12) |
2004-2005 |
02 |
| 031 |
89059471 |
JOINT, M/TRNS SHFT LVR ROD UNIVERSAL (INCLS 32, 33) |
DN (M12) |
2004-2005 |
01 |
| 032 |
89059472 |
PIN, M/TRNS SHFT LVR (ЧАСТЬ OF 31) |
DN (M12) |
2004-2005 |
01 |
| 033 |
|
RETAINER, M/TRNS SEL LVR ROD SWIV (ЧАСТЬ OF 31) |
|
2004-2005 |
|
| 034 |
89059469 |
LEVER, SHFT CONT |
DN (M12) |
2004-2005 |
01 |
| 035 |
89059470 |
PIN, SHFT CONT LVR SHF |
DN69 (M12) |
2004-2005 |
01 |
| 036 |
89059468 |
SHAFT, SHFT CONT LVR |
DN (M12) |
2004-2005 |
01 |
| 037 |
12455027 |
SEAL, SHFT SHF OTR |
DN (M12) |
2004-2005 |
01 |
