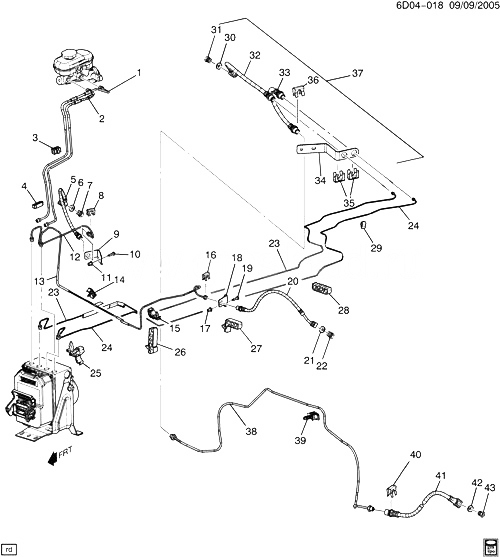

(6D04-018) - 2004-2007 DR69 ТОРМОЗНЫЕ ШЛАНГИ И ТРУБКИ CADILLAC - CTS 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25746479 PIPE, BRK PRESS MOD VLV FRT DR (EXPORT) 2003-2007 01
002 25746480 PIPE, BRK PRESS MOD VLV RR DR (EXPORT) 2003-2007 01
003 25710094 RETAINER, BRK PRESS MOD VLV FRT RR BRK PIPE (HOLDS (2) LINES) (W/SNAP IN CLIP) DR (EXPORT) 2003-2005 01
004 03541444 SPACER, FRT BRK PIPE D 2004-2005 01
005 15933096 HOSE, FRT BRK (INCLS 7-11) (ACDelco #176-1544) DR (EXPORT) 2004-2007 01
006 21012386 WASHER, FRT BRK HOSE (10.3X14.5X1.61) (COPPER) (ACDelco #21012386) D 2005-2007 AR
007 БОЛТ, FRT BRK HOSE CLIP (ЧАСТЬ OF 5) 2004-2007
008 11569742 RETAINER, FRT BRK HOSE (ЧАСТЬ OF 5) (1 SIDED RETAINER) D 2003-2007 02
009 BRACKET, FRT BRK HOSE (ЧАСТЬ OF 5) 2004-2007
010 11517103 STUD, SPL W/KNURLED SHLDR, M6X1X27, 10 THD, 13 O.D., P-PT., 9.8, 7114M (ЧАСТЬ OF 5) D 2003-2007 01
011 11517102 ГАЙКА, HEX FLG, M6X1X15, 19.8 OD, 9, 7111M (ЧАСТЬ OF 5) 2003-2007 01
012 25756684 PIPE, FRT BRK DR (EXPORT) 2004-2007 01
013 25743892 PIPE, FRT BRK DR (EXPORT) 2004-2007 01
014 25688075 RETAINER, FRT BRK PIPE (PUSH PIN W/3 HOLES- (1) 4.75MM DIA, (2) 6.35MM DIA) DM, DN, DR 2003-2006 02
015 25743891 RETAINER, FRT BRK PIPE D 2003-2006 02
016 11569742 RETAINER, FRT BRK HOSE (ЧАСТЬ OF 20) (1 SIDED RETAINER) D 2003-2007 02
017 11517102 ГАЙКА, HEX FLG, M6X1X15, 19.8 OD, 9, 7111M (ЧАСТЬ OF 20) 2003-2007 01
018 BRACKET, FRT BRK HOSE (ЧАСТЬ OF 20) 2004-2007
019 11517103 STUD, SPL W/KNURLED SHLDR, M6X1X27, 10 THD, 13 O.D., P-PT., 9.8, 7114M (ЧАСТЬ OF 20) 2003-2007 01
020 15933097 HOSE, FRT BRK (INCLS 16, 17, 18, 19) (ACDelco #176-1493) DR (EXPORT) 2004-2007 01
021 21012386 WASHER, FRT BRK HOSE (10.3X14.5X1.61) (COPPER) (ACDelco #21012386) D 2005-2007 AR
022 11517103 STUD, SPL W/KNURLED SHLDR, M6X1X27, 10 THD, 13 O.D., P-PT., 9.8, 7114M (FRT BRK HOSE) 2003-2007 01
023 25766005 PIPE, RR BRK FRT D69 (LP1, LY7) 2005-2007 01
024 25760813 PIPE, RR BRK FRT D69 (LP1, LY7) 2005-2007 01
025 25743891 RETAINER, FRT BRK PIPE D 2004-2006 02
026 25726788 RETAINER, BRK FUEL PIPE (SQUARE HEAD PUSH PIN W/5 HOLES (2)4.76. (2)8.00 (1)9.52) D (LY7) 2004-2007 01
026 25726788 RETAINER, BRK FUEL PIPE (SQUARE HEAD PUSH PIN W/5 HOLES (2)4.76. (2)8.00 (1)9.52) D69 (LP1) 2005-2007 02
027 15270078 RETAINER, BRK FUEL PIPE (USES RETAINER PIN FOR ATTACHMENT) D69 (LY7, LP1) 2005-2007 02
028 25688547 RETAINER, BRK FUEL PIPE (RETAINER W/5 HOLES (2)7.95, (2)4.76, (1)9.52MM) D (LY7) 2004-2006 01
028 25688547 RETAINER, BRK FUEL PIPE (RETAINER W/5 HOLES (2)7.95, (2)4.76, (1)9.52MM) D69 (LP1) 2005-2006 01
029 25607191 RETAINER, BRK PIPE (21.5X10.0MM) (HOLDS (2) 4.68-4.82 TUBES) D69 2003-2007 01
030 GASKET, RR BRK HOSE FTG (ЧАСТЬ OF 37) 2004-2007
031 БОЛТ, FRT BRK HOSE CLIP (ЧАСТЬ OF 37) 2004-2007
032 HOSE, RR BRK (ЧАСТЬ OF 37) 2004-2007
033 HOSE, RR BRK INTER (ЧАСТЬ OF 37) 2004-2007
034 BRACKET, RR BRK HOSE (ЧАСТЬ OF 37) 2004-2007
035 11569742 RETAINER, RR BRK HOSE (ЧАСТЬ OF 37) (1 SIDED RETAINER) D 2003-2007 02
036 11569742 RETAINER, RR BRK HOSE (ЧАСТЬ OF 37) (1 SIDED RETAINER) D 2003-2007 02
037 15933093 HOSE, RR BRK (W/ 2 ШЛАНГИ, 1 RETAINER BRACKET) (INCLS 30-36) (ACDelco #15933093) D69 (JL9) 2003-2007 01
038 25708777 PIPE, RR BRK C/OVR (INCLS FITTING RETAINER) D69 2003-2005 01
039 25693890 RETAINER, RR BRK PIPE (HOLDS (1) 4.76 LINE) (W/TREE) D 2003-2007 04
040 11569742 RETAINER, RR BRK HOSE (1 SIDED RETAINER) D 2003-2007 02
041 15933091 HOSE, RR BRK (1 HOSE) (INCLS 42, 43) (ACDelco #15933091) DR69 (EXPORT) 2005-2007 01
042 GASKET, RR BRK HOSE FTG (ЧАСТЬ OF 41) 2004-2007
043 БОЛТ, FRT BRK HOSE CLIP (ЧАСТЬ OF 41) 2004-2007
