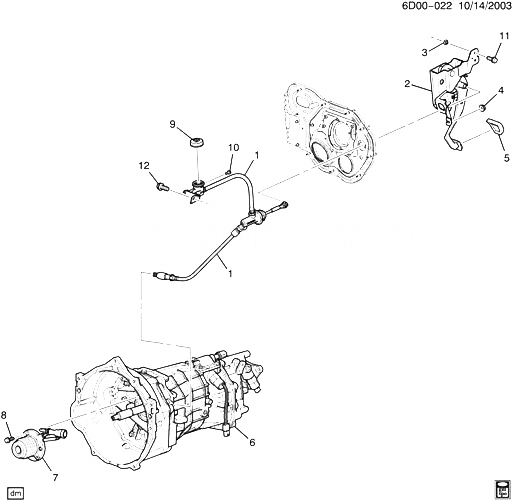

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
12587377 |
CYLINDER, CLU MAS |
DN (M12) |
2004-2007 |
01 |
| 002 |
21995782 |
PEDAL, CLU (W/BRKT) (INCLS 3, 5) (INCLS PAD) |
DN (M12) |
2004-2007 |
01 |
| 003 |
|
ГАЙКА, CLU PED BRKT BR (ЧАСТЬ OF 2) |
|
2004-2007 |
|
| 004 |
25632772 |
ГАЙКА, W/CON WA, M8X1.25, 6.5THK, 25.4 O.D., 10, ZF (CLU PED BRKT BR)
|
2004-2007 |
02 |
|
| 005 |
88996614 |
PAD, CLU PED (ЧАСТЬ OF 2) |
DN (M12) |
2004-2007 |
01 |
| 006 |
24236983 |
ТРАНСМИССИЯ, MAN (INCLS 7, 8) |
DN (LS6, M12) |
2004-2005 |
01 |
| 007 |
12587376 |
CYLINDER, CLU ACTR (ЧАСТЬ OF 6) |
DN (M12) |
2004-2007 |
01 |
| 008 |
11516424 |
БОЛТ, HFH, M6X1X25, 14.2 O.D., HDR PT, 9.8, ZE (ЧАСТЬ OF 6)
|
2004-2007 |
02 |
|
| 009 |
88996630 |
CAP, CLU M/CYL RSVR |
DN (M12) |
2004-2007 |
01 |
| 010 |
11515755 |
БОЛТ, HEX, M8X1.25X16, 15 THD, 18 O.D., 10.9, 7114M (CLU M/CYL RSVR BRKT) (T/W 12345493 REPLCS 25534835)
|
2004-2007 |
02 |
|
| 011 |
11515755 |
БОЛТ, HEX, M8X1.25X16, 15 THD, 18 O.D., 10.9, 7114M (CLU PED BRKT) (T/W 12345493 REPLCS 25534835)
|
2004-2007 |
01 |
|
| 012 |
11518202 |
БОЛТ, HFH, M10X1.5X30, 22.0 00, 6202M, 6280M, TAP, TR, P-PT (CLU M/CYL RSVR BRKT) |
|
2004-2007 |
01 |
