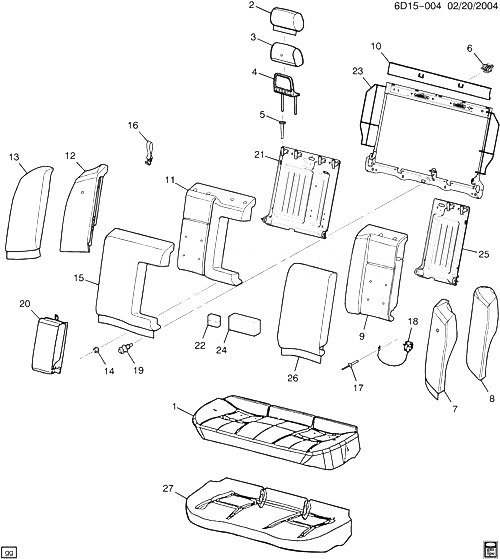

(6D15-004) - 2004-2007 DR69 ЗАДНЕЕ СИДЕНЬЕ CADILLAC - CTS 2004

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 88896778 CUSHION, R/SEAT D69 2003-2007 01
002 88896804 COVER, R/SEAT H/RST (EBONY) DR (19C) (EXPORT) 2004-2007 02
002 88992484 COVER, R/SEAT H/RST (NEUTRAL) DR (702) (EXPORT) 2004-2005 02
002 88992485 COVER, R/SEAT H/RST (GRAY) DR (132) (EXPORT) 2004-2005 02
002 88992675 COVER, R/SEAT H/RST (EBONY) DR (192) (EXPORT) 2004-2005 02
003 88897671 PAD, R/SEAT H/RST D69 2003-2006 02
004 88897672 SUPPORT, R/SEAT H/RST (GOES INTO ЗАДНИЙ BACK) D69 2003-2007 02
005 19122625 GUIDE, R/SEAT H/RST (EBONY) (W/O BUTTON) (11.376) D69 (19I) 2003-2007 02
005 19122627 GUIDE, R/SEAT H/RST (EBONY) (W/BUTTON) (11.376) D69 (19I) 2003-2007 02
005 88994276 GUIDE, R/SEAT H/RST (NEUTRAL) (W/BUTTON) (11.376) D69 (70I) 2003-2005 02
005 88994279 GUIDE, R/SEAT H/RST (NEUTRAL) (W/O BUTTON) (11.376) D69 (70I) 2003-2005 02
005 88994730 GUIDE, R/SEAT H/RST (GRAY) (W/BUTTON) DR (13I) (EXPORT) 2004-2007 02
005 88994731 GUIDE, R/SEAT H/RST (GRAY) (W/O BUTTON) DR (13I) (EXPORT) 2004-2007 02
006 16754704 CLIP, R/SEAT CUSH CVR (ЧАСТЬ OF 10) (10 X 10) (APLQ TO SI PNL) (STEEL) (10.056) D69 2003-2007 05
007 19122600 COVER, R/SEAT BK SI CUSH (EBONY) DR (19C) (EXPORT) 2004-2006 01
007 88952610 COVER, R/SEAT BK SI CUSH (NEUTRAL) DR (702) (EXPORT) 2004-2005 01
007 88952611 COVER, R/SEAT BK SI CUSH (GRAY) DR (132) (EXPORT) 2004-2005 01
007 88992680 COVER, R/SEAT BK SI CUSH (EBONY) DR (192) (EXPORT) 2004-2005 01
008 88896782 CUSHION, R/SEAT BK SI D69 2003-2007 01
009 88896780 CUSHION, R/SEAT BK D69 2003-2007 01
010 88992658 COVER, R/SEAT BK CUSH OPG FIN (INCLS 6) (EBONY) D69 (19I) 2003-2007 01
010 88992658 COVER, R/SEAT BK CUSH OPG FIN (INCLS 6) (EBONY) DR (19C, 192) (EXPORT) 2004-2006 01
011 88896779 CUSHION, R/SEAT BK D69 2003-2007 01
012 88896781 CUSHION, R/SEAT BK SI D69 2003-2007 01
013 19122598 COVER, R/SEAT BK SI CUSH (EBONY) DR (19C) (EXPORT) 2004-2006 01
013 88952606 COVER, R/SEAT BK SI CUSH (NEUTRAL) DR (702) (EXPORT) 2004-2005 01
013 88952607 COVER, R/SEAT BK SI CUSH (GRAY) DR (132) (EXPORT) 2004-2005 01
013 88992679 COVER, R/SEAT BK SI CUSH (EBONY) DR (192) (EXPORT) 2004-2005 01
014 11517068 NUT-METRIC HEX FLABGE, M6X1, 10MM SOCKET (R/SEAT BK CUSH) 2003-2007 04
015 19122596 COVER, R/SEAT BK CUSH (EBONY) (CLOTH) DR (19C) (EXPORT) 2004-2006 01
015 88994830 COVER, R/SEAT BK CUSH (GRAY W/EBONY) DR (132) (EXC A82) (EXPORT) 2004-2004 01
015 88994831 COVER, R/SEAT BK CUSH (EBONY) DR (192) (EXC A82) (EXPORT) 2004-2004 01
015 88994832 COVER, R/SEAT BK CUSH (NEUTRAL) DR (702) (EXC A82) (EXPORT) 2004-2004 01
015 88994840 COVER, R/SEAT BK CUSH (GRAY W/EBONY) DR (A82, 132) (EXPORT) 2004-2004 01
015 88994841 COVER, R/SEAT BK CUSH (EBONY) DR (A82, 192) (EXPORT) 2004-2004 01
015 88994842 COVER, R/SEAT BK CUSH (NEUTRAL) DR (A82, 702) (EXPORT) 2004-2004 01
016 88897674 STRAP, R/SEAT PULL (GRAY) DR (13I) (EXPORT) 2004-2007 02
016 88897676 STRAP, R/SEAT PULL (NEUTRAL) D69 (70I) 2003-2005 02
017 09440392 RIVET, POP, DOME HEAD, 3/16X.430, STL, ZC (R/SEAT BK CUSH LK) 2003-2007 04
018 88949046 LOCK, R/SEAT BK CUSH (W/CABLE) D69 2003-2007 02
019 88952646 БОЛТ, R/SEAT BK CUSH D69 2003-2007 02
020 ARMREST, R/SEAT (СМ. ГРУППУ 15.000 ПОДЛОКОТНИК ЗАДНЕГО СИДЕНЬЯ ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2003-2007
021 88896776 PANEL, R/SEAT BK CUSH DR (EXC A82) (EXPORT) 2004-2007 01
021 88993623 PANEL, R/SEAT BK CUSH DR (A82) (EXPORT) 2004-2007 01
022 88949039 SPACER, R/SEAT D69 2003-2007 02
023 88896775 РАМА, R/SEAT BK CUSH DR (EXPORT) 2004-2007 01
024 88952632 SPACER, R/SEAT (ANTI-RATTLE) D69 2003-2007 01
025 88896777 PANEL, R/SEAT BK CUSH DR (EXC A82) (EXPORT) 2004-2007 01
025 88993624 PANEL, R/SEAT BK CUSH DR (A82) (EXPORT) 2004-2007 01
026 19122594 COVER, R/SEAT BK CUSH (EBONY) DR (19C) (EXPORT) 2004-2006 01
026 88952602 COVER, R/SEAT BK CUSH (NEUTRAL) DR (702) (EXPORT) 2004-2005 01
026 88992654 COVER, R/SEAT BK CUSH (GRAY W/EBONY) (14.924) DR (132) (EXPORT) 2004-2005 01
026 88992676 COVER, R/SEAT BK CUSH (EBONY) DR (192) (EXPORT) 2004-2005 01
027 88896207 COVER, R/SEAT CUSH (EBONY) DR (19C) (EXPORT) 2004-2007 01
027 88996048 COVER, R/SEAT CUSH (GRAY) DR (132) (EXPORT) 2004-2005 01
027 88996049 COVER, R/SEAT CUSH (EBONY) DR (192) (EXPORT) 2004-2005 01
027 88996050 COVER, R/SEAT CUSH (NEUTRAL) DR (702) (EXPORT) 2004-2005 01
