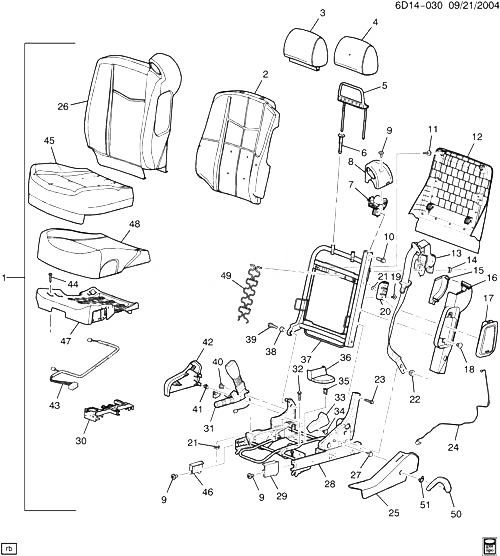

(6D14-030) - 2004 DR69 СИДЕНЬЕ ПАССАЖИРА (EXC POWER ADJUSTER AH8) CADILLAC - CTS 2004

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 SEAT, PASS (ONLY AVAILABLE FOR CURRENT MODEL YEAR VEHICLES) (INCLS 2-51) 2003-2004
002 88993031 PAD, P/SEAT BK CUSH (14.896) DR (EXC AL2) 2004-2004 01
003 88896165 COVER, P/SEAT H/RST FIN (EBONY) DR (19C) (EXPORT) 2004-2004 01
003 88992480 COVER, P/SEAT H/RST FIN (NEUTRAL) D (702) 2003-2004 01
003 88992481 COVER, P/SEAT H/RST FIN (GRAY) D (132) 2003-2004 01
003 88992652 COVER, P/SEAT H/RST FIN (EBONY) DR (192) (EXPORT) 2004-2004 01
004 88897669 FILLER, P/SEAT H/RST D69 2003-2004 01
005 88897670 SUPPORT, P/SEAT H/RST D 2003-2004 01
006 19122625 GUIDE, P/SEAT H/RST (EBONY) (W/O BUTTON) D69 (19I) 2003-2004 01
006 19122627 GUIDE, P/SEAT H/RST (EBONY) (W/BUTTON) D69 (19I) 2003-2004 01
006 88994276 GUIDE, P/SEAT H/RST (NEUTRAL) (W/BUTTON) D69 (70I) 2003-2004 01
006 88994279 GUIDE, P/SEAT H/RST (NEUTRAL) (W/O BUTTON) D69 (70I) 2003-2004 01
006 88994730 GUIDE, P/SEAT H/RST (GRAY) (W/BUTTON) (11.625) DR (13I) (EXPORT) 2004-2004 01
006 88994731 GUIDE, P/SEAT H/RST (GRAY) (W/O BUTTON) (11.625) D69 (13I) 2003-2004 01
007 88897640 ROLLER, P/SEAT SHLDR BELT DR (EXPORT) 2003-2004 01
008 88897614 COVER, P/SEAT SHLDR BELT OPG BZL (11.573) DR (EXPORT) 2003-2004 01
009 88897272 БОЛТ, P/SEAT (TOWER COVER) D69 2003-2004 03
010 88897644 БОЛТ, P/SEAT ADJR (ADJR TO FRM) D69 2003-2004 01
011 10421018 RETAINER, P/SEAT BK CUSH FIN PNL (ЧАСТЬ OF 12) (NATURAL) (4MM HOLE, 33MM) (15.100) DR (EXPORT) 2004-2004 03
012 88895401 PANEL, P/SEAT BK CUSH FIN (INCLS 11) (NEUTRAL) (W/MESH MAP PKT) DR (70I) (EXPORT) 2004-2004 01
012 88895403 PANEL, P/SEAT BK CUSH FIN (INCLS 11) (GRAY) (W/MESH MAP PKT) DR (13I) (EXPORT) 2004-2004 01
012 88992613 PANEL, P/SEAT BK CUSH FIN (INCLS 11) (EBONY) (W/MESH MAP PKT) DR (19I) (EXPORT) 2004-2004 01
013 10369741 BELT, P/SEAT (RETR SI) (GRAY) DR (13I) (EXPORT) 2004-2004 01
013 10369742 BELT, P/SEAT (RETR SI) (NEUTRAL) DR (70I) (EXPORT) 2004-2004 01
013 10369743 BELT, P/SEAT (RETR SI) (EBONY) DR (19I) (EXPORT) 2004-2004 01
014 11517996 ГАЙКА, P/SEAT BELT (RETR SI) (M10X1.5, 11.2 THK) (8.917) DR (EXPORT) 2003-2004 01
014 25604879 ГАЙКА, P/SEAT BELT (RETR SI) (SPL W/10X1.5 THREAD) (W/SILENCER (PLASTIC)ATTACHED) D 2003-2004 01
015 88895385 BEZEL, P/SEAT BELT OPG (BKL SI) (GRAY) DR (13I) (EXPORT) 2004-2004 01
016 88897616 PANEL, P/SEAT BK CUSH SI BOLS DR (EXPORT) 2004-2004 01
017 25760565 МОДУЛЬ, P/SEAT SI INFL RST (GRAY) DR (13I) (EXPORT) 2003-2004 01
017 25760566 МОДУЛЬ, P/SEAT SI INFL RST (EBONY) DR (19I) (EXPORT) 2004-2004 01
017 25760567 МОДУЛЬ, P/SEAT SI INFL RST (NEUTRAL) DR (70I) (EXPORT) 2003-2004 01
018 00332364 RETAINER - PUSH IN, FITS HOLE SIZE 0.245 - 0.260, GRIP LENGTH 0.52, 0.7 OD, MATERIAL NYLON 6/6 PER GMP.PA66.015 (P/SEAT CUSH FRM SUPT) 2003-2004 02
019 11516587 БОЛТ-HEX W/CON WA, M6X1X20, 14 THD, 17 OD, 9.8, 7114M, MACH, 6MM P-PT (P/SEAT SI INFL RST MDL) 2003-2004 02
020 BRACKET, P/SEAT 2004-2004
021 11517068 ГАЙКА, INFL RST P/SEAT SI MDL (M6X1X3, 14.2 O.D.) (8.917) D 2003-2004 04
022 11517996 ГАЙКА, P/SEAT BELT (RETR SI) (M10X1.5, 11.2 THK) (8.917) DR (EXPORT) 2003-2004 01
022 25604879 ГАЙКА, P/SEAT BELT (RETR SI) (SPL W/10X1.5 THREAD) (W/SILENCER (PLASTIC)ATTACHED) D 2003-2004 01
023 88897643 БОЛТ, P/SEAT RECL (RECL TO FRM) D69 2003-2004 02
024 25736516 HARNESS, INFL RST WRG (LESS TUBE-ST MEMORY SWITCH HARNESS) D (AQ9) 2003-2004 01
025 88897677 COVER, P/SEAT RECL LWR FIN (INCLS 27) (NEUTRAL) (OTR) (W/O SWITCH OPENING) DR (70I) 2004-2004 01
025 88949021 COVER, P/SEAT RECL LWR FIN (INCLS 27) (GRAY) (OTR) (W/O SWITCH OPENING) DR (13I) 2004-2004 01
025 88992619 COVER, P/SEAT RECL LWR FIN (INCLS 27) (EBONY) (OTR) (W/O SWITCH OPENING) DR (AQ9, 19I) 2004-2004 01
026 88895427 COVER, P/SEAT BK CUSH (NEUTRAL) DR (AQ9, 702) (EXC KA1) (EXPORT) 2004-2004 01
026 88895474 COVER, P/SEAT BK CUSH (EBONY) DR (KA1, 19C) (EXPORT) 2004-2004 01
026 88992630 COVER, P/SEAT BK CUSH (GRAY W/EBONY) DR (AQ9, 132) (EXC KA1) (EXPORT) 2004-2004 01
026 88992641 COVER, P/SEAT BK CUSH (EBONY) DR (AQ9, 192) (EXC KA1) (EXPORT) 2004-2004 01
027 RETAINER, P/SEAT OTR RECL FIN CVR (ЧАСТЬ OF 25) 2004-2004
028 88895463 ADJUSTER, P/SEAT (СМ. ГРУППУ 11.000 ADJUSTER ASM/PASSENGER ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) DR (EXC AH8) (EXPORT) 2003-2004 01
029 88895386 COVER, P/SEAT ADJR FIN (GRAY) (FRT) DR (13I) (EXPORT) 2004-2004 01
029 88895388 COVER, P/SEAT ADJR FIN (NEUTRAL) (FRT) DR (70I) (EXPORT) 2004-2004 01
029 88992625 COVER, P/SEAT ADJR FIN (EBONY) (FRT) D69 (19I) 2004-2004 01
029 88992626 COVER, P/SEAT ADJR FIN (EBONY) (FRT) D69 (19I) 2003-2004 01
030 SHIELD, WRG HARNESS (ЧАСТЬ OF 43) 2004-2004
031 25757212 BELT, P/SEAT (BKL SI) (GRAY) DR (13I) (EXPORT) 2003-2004 01
031 25757213 BELT, P/SEAT (BKL SI) (EBONY) DR (19I) (EXPORT) 2003-2004 01
031 25757214 BELT, P/SEAT (BKL SI) (NEUTRAL) DR (70I) (EXPORT) 2003-2004 01
032 11609257 БОЛТ, P/SEAT ADJR (W/BELT) (M12X1.75X34) (8.907) D 2003-2004 AR
033 88897618 BEZEL, P/SEAT SHLDR BELT OPG DR (EXPORT) 2003-2004 01
034 00332364 RETAINER, P/SEAT SHLDR BELT (8.950) D 2003-2004 04
035 RETAINER, P/SEAT INR ADJR RR FIN CVR (ЧАСТЬ OF 36) 2004-2004
036 88895408 COVER, P/SEAT ADJR БОЛТ FIN (INCLS 35) (NEUTRAL) D69 (70I) 2003-2004 01
036 88895410 COVER, P/SEAT ADJR БОЛТ FIN (INCLS 35) (GRAY) D69 (13I) 2003-2004 01
036 88992629 COVER, P/SEAT ADJR БОЛТ FIN (INCLS 35) (EBONY) D69 (19I) 2003-2004 01
037 88849036 РАМА, P/SEAT BK CUSH (INCLS 49) (W/SUSPENSION) DR (EXC AH8, AL2) (EXPORT) 2004-2004 01
038 BUSHING, P/SEAT BK CUSH PIV (ЧАСТЬ OF 39) 2004-2004
039 88952646 БОЛТ, P/SEAT BK CUSH PIV (INCLS 38) (11.628) DR (EXPORT) 2004-2004 01
040 88952627 ГАЙКА, P/SEAT BELT (BKL SI) (TUBE NUT) (11.556) D 2003-2004 01
041 RETAINER, P/SEAT ADJR FIN CVR (ЧАСТЬ OF 42) 2004-2004
042 88895365 COVER, P/SEAT RECL LWR FIN (INCLS 41) (NEUTRAL) (INR) DR (70I) 2004-2004 01
042 88895367 COVER, P/SEAT RECL LWR FIN (INCLS 41) (GRAY) (INR) DR (13I) 2004-2004 01
042 88992615 COVER, P/SEAT RECL LWR FIN (INCLS 41) (EBONY) (INR) DR (19I) 2004-2004 01
043 88897282 HARNESS, D/SEAT CONT MDL WRG (INCLS 30) DR (AQ9, ILC) (EXC AL2, A45, KA1) (EXPORT) 2004-2004 01
044 БОЛТ, P/SEAT CUSH FRM (ЧАСТЬ OF 47) 2004-2004
045 88895485 COVER, P/SEAT CUSH (NEUTRAL) (W/LEATHER STRIP ON SIDE OF SEAT) (FOR 2ND DES SEE 88995025) DR (AQ9, 702) (EXC AH8, AL2, KA1) (1ST DES) (EXPORT) 2004-2004 01
045 88992635 COVER, P/SEAT CUSH (GRAY) (W/LEATHER STRIP ON SIDE OF SEAT) (FOR 2ND DES SEE 88995004) DR (AQ9, 132) (EXC AH8, AL2, KA1) (1ST DES) (EXPORT) 2004-2004 01
045 88992646 COVER, P/SEAT CUSH (EBONY) (W/LEATHER STRIP ON SIDE OF SEAT) (FOR 2ND DES SEE 88995011) DR (AQ9, 192) (EXC AH8, AL2, KA1) (1ST DES) (EXPORT) 2004-2004 01
045 88994778 COVER, P/SEAT CUSH (EBONY) DR (AL2, AQ9, 19C) (EXC KA1) (EXPORT) 2003-2004 01
045 88995004 COVER, P/SEAT CUSH (GRAY) (W/CLOTH STRIP ON SIDE OF SEAT) (FOR 1ST DES SEE 88992635) DR (AQ9, 132) (EXC AH8, AL2, KA1) (2ND DES) (EXPORT) 2004-2004 01
045 88995011 COVER, P/SEAT CUSH (EBONY) (W/CLOTH STRIP ON SIDE OF SEAT) (FOR 1ST DES SEE 88992646) DR (AQ9, 192) (EXC AH8, AL2, KA1) (2ND DES) (EXPORT) 2004-2004 01
045 88995025 COVER, P/SEAT CUSH (NEUTRAL) (W/CLOTH STRIP ON SIDE OF SEAT) (FOR 1ST DES SEE 88895485) DR (AQ9, 702) (EXC AH8, AL2, KA1) (2ND DES) (EXPORT) 2004-2004 01
046 88895386 COVER, P/SEAT ADJR FIN (GRAY) (FRT) DR (13I) (EXPORT) 2004-2004 01
046 88895388 COVER, P/SEAT ADJR FIN (NEUTRAL) (FRT) DR (70I) (EXPORT) 2004-2004 01
046 88992625 COVER, P/SEAT ADJR FIN (EBONY) (FRT) D69 (19I) 2004-2004 01
046 88992626 COVER, P/SEAT ADJR FIN (EBONY) (FRT) D69 (19I) 2003-2004 01
047 88895457 РАМА, P/SEAT CUSH (INCLS 44) (PWR) DR (EXPORT) 2004-2004 01
048 88995421 PAD, P/SEAT CUSH DR (EXPORT) 2003-2004 01
049 88849036 РАМА, P/SEAT BK CUSH (ЧАСТЬ OF 37) (W/SUSPENSION) DR (EXC AH8, AL2) (EXPORT) 2004-2004 01
050 88992627 HANDLE, P/SEAT RECL (EBONY) DR (19I) (EXPORT) 2003-2004 01
051 RETAINER, P/SEAT RECL HDL 2004-2004
