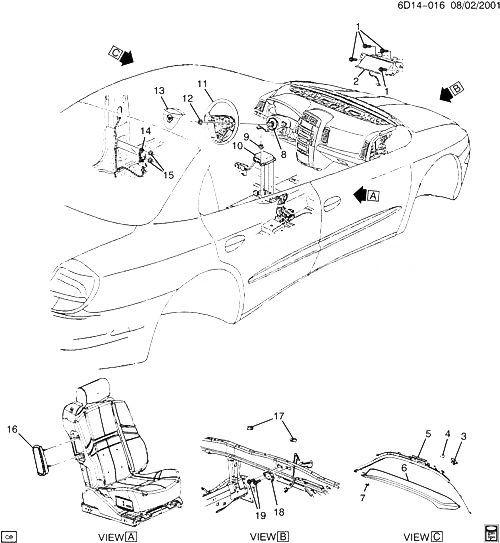

(6D14-016) - 2004 DM,DN69 INFLATABLE RESTRAINT SYSTEM CADILLAC - CTS 2004

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 11609989 БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (I/P INFL RST MDL) 2003-2004 04
002 15306012 CONNECTOR, MDL-INFL RST I/P (YELLOW) (2-WAY MALE) (W/LEADS) (16.712) (ACDelco #PT1139) D69 2003-2004 02
002 25756980 МОДУЛЬ, I/P INFL RST D69 2003-2004 01
002 88953129 CONNECTOR, INFL RST F/END DISCRM SEN (YELLOW) (GRAY TIP) (2-WAY FEMALE GT150) (W/LEADS) (1.150) (ACDelco #PT1545) D69 2003-2004 01
002 88987998 CONNECTOR, MDL-INFL RST I/P (YELLOW) (4-WAY MALE) (M/P 280) (W/LEADS) (16.712) (ACDelco #PT2038) D69 2003-2004 01
003 11518722 RETAINER, RF S/RL INFL RST MDL (ЧАСТЬ OF 5) (SILVER) (M6.3X1.8) (11X30 SLOT) D 2003-2004 10
004 11518723 RETAINER, RF S/RL INFL RST MDL (ЧАСТЬ OF 5) (BLACK) (M6.3X1.8) (14MM SLOT) D 2003-2004 04
005 15805999 МОДУЛЬ, RF S/RL INFL RST (INCLS 3, 4) D69 2003-2004 01
005 15806000 МОДУЛЬ, RF S/RL INFL RST (INCLS 3, 4) D69 2003-2004 01
006 MOLDING, W/S SI GARN (СМ. ГРУППУ 10.000 ВЕТРОВОЕ СТЕКЛО TRIM АРМАТУРА ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2003-2004
007 25772916 PLUG, C/PLR UPR G/MLDG БОЛТ HOLE FIN (GRAY) (AIRBAG) (14.865) D (13I, 19I) 2003-2004 02
007 25772917 PLUG, C/PLR UPR G/MLDG БОЛТ HOLE FIN (NEUTRAL) (AIRBAG) (14.865) D (70I) 2003-2004 02
008 COLUMN, STRG (СМ. ГРУППУ 6.000 STEERING КОЛЕСО ДЕТАЛИ КОМПЛЕКТА ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) 2003-2004
009 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (INFL RST DIAGN ENGY RESV MDL) 2003-2004 03
010 CONNECTOR, INLINE-TO INFL RST SI IMP SEN MDL 2003-2004
010 19115245 МОДУЛЬ, INFL RST SEN DIAGN (SERVICES OEM #25773432) D 2004-2004 01
011 25750358 КОЛЕСО, STRG (EBONY) DM (NP5) 2004-2004 01
011 25766590 КОЛЕСО, STRG (WOODGRAIN) DM (B19, N30) 2004-2004 01
011 25773042 КОЛЕСО, STRG (EBONY) DN 2004-2004 01
012 26056108 ГАЙКА, STRG WHL (M14X1.5 27 OD) D69 2003-2004 01
013 15814818 МОДУЛЬ, STRG WHL INFL RST (EBONY) (14.865) D69 2003-2004 01
013 15814818 МОДУЛЬ, STRG WHL INFL RST (EBONY) D69 2003-2004 01
013 88987998 CONNECTOR, INLINE-TO INFL RST РАСПРЕДЕЛИТЕЛЬ ЗАЖИГАНИЯ (YELLOW) (4-WAY MALE) (M/P 280) (W/LEADS) (16.712) (ACDelco #PT2038) D69 2003-2004 01
013 88987998 CONNECTOR, INLINE-TO INFL RST STRG WHL MDL РАСПРЕДЕЛИТЕЛЬ ЗАЖИГАНИЯ (YELLOW) (4-WAY MALE) (M/P 280) (W/LEADS) (16.712) (ACDelco #PT2038) D69 2003-2004 02
014 15306061 CONNECTOR, MDL-INFL RST SI IMP SEN D/SEAT BELT TENSR (YELLOW) (6-WAY MALE) (W/LEADS) (GT15O, 280) (ACDelco #PT1222) D69 2003-2004 02
014 15306061 CONNECTOR, MDL-INFL RST SI IMP SEN P/SEAT BELT TENSR (YELLOW) (6-WAY MALE) (W/LEADS) (GT15O, 280) (ACDelco #PT1222) D69 2003-2004 02
014 25741820 SENSOR, INFL RST SI IMP (ATTACHES TO CENTER ПАНЕЛЬ ЗАДНЕЙ СТОЙКИ КУЗОВА) D 2003-2004 02
015 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (FRT S/D SI IMP INFL RST MDL) 2003-2004 04
016 15290832 МОДУЛЬ, D/SEAT SI INFL RST (EBONY) DN (19I) 2004-2004 01
016 25760561 МОДУЛЬ, P/SEAT SI INFL RST (GRAY) DM (13I) 2003-2004 01
016 25760562 МОДУЛЬ, P/SEAT SI INFL RST (EBONY) DM, DN (19I) 2004-2004 01
016 25760563 МОДУЛЬ, P/SEAT SI INFL RST (NEUTRAL) DM, DN (70I) 2004-2004 01
016 25760565 МОДУЛЬ, D/SEAT SI INFL RST (GRAY) DM (13I) 2003-2004 01
016 25760566 МОДУЛЬ, D/SEAT SI INFL RST (EBONY) DM (19I) 2003-2004 01
016 25760567 МОДУЛЬ, D/SEAT SI INFL RST (NEUTRAL) DM, DN (70I) 2004-2004 01
017 11609385 ГАЙКА, U-TYPE, M6X1, 29.5 LEN, 12.5 WID, 19.5 CEN-END, 1050, GMW3359 (INFL RST F/END DISCRM SEN) D 2003-2004 02
018 25744736 SENSOR, F/END INFL RST DISCRM (ATTACHES TO ДВИГАТЕЛЬНЫЙ ОТСЕК) D 2003-2004 01
019 11610115 БОЛТ, F/END INFL RST DISCRM SEN (M6X1X33, 17 OD) (8.900) D69 2003-2004 02
