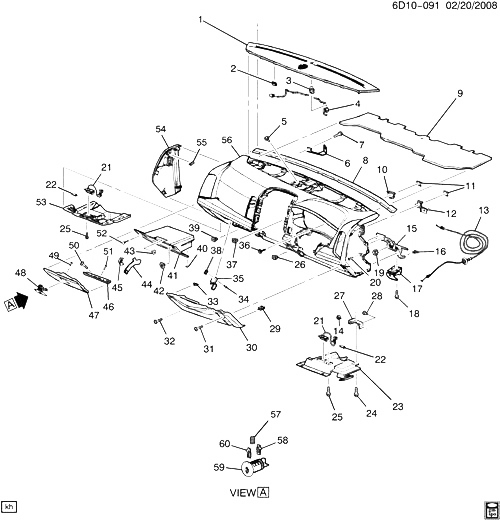

(6D10-091) - 2004-2005 DR69 ПРИБОРНАЯ ПАНЕЛЬ ЧАСТЬ 2 CADILLAC - CTS 2004

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25749921 GRILLE, W/S DEFR NOZ (INCLS 2-4) (EBONY) D69 (U57) 2004-2005 01
001 25749921 GRILLE, W/S DEFR NOZ (INCLS 2-4) (EBONY) D69 (U66) 2004-2005 01
002 22570333 RETAINER, W/S DEFR NOZ GRL (ЧАСТЬ OF 1) (10.240) D69 2004-2005 08
003 25713063 SENSOR, HDLP AUTO CONT AMB LGT (ЧАСТЬ OF 1) (DUAL SOLAR TWILIGHT) D69 2004-2005 01
004 89047176 WIRE, SUN LOAD TEMP SEN (ЧАСТЬ OF 1) D69 2004-2005 01
005 11609989 БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (I/P) 2004-2005 04
006 BRACKET, I/P (ЧАСТЬ OF 56) 2004-2005
007 11516630 SCREW, RD, M4.2X1.41X20, TYPE AB PT, GM6010M, GMW4205 (ЧАСТЬ OF 56) 2004-2005 02
008 25741697 SEAL, I/P UPR T/PNL D69 2004-2005 01
009 INSULATOR, I/P UPR TR PAD 2004-2005
010 25714894 BRACKET, I/P (INCLS 11) (CLUSTER) DR (EXPORT) 2004-2005 01
011 11516993 ГАЙКА, M4.2X1.41 (ЧАСТЬ OF 10, 12) 2004-2005 01
012 25714893 BRACKET, I/P (INCLS 11) (CLUSTER) D69 2004-2005 01
012 25714895 BRACKET, I/P (INCLS 11) (CLUSTER) DR (EXPORT) 2004-2005 01
013 25681210 CABLE, КАПОТ PRIM LAT REL DR (EXPORT) 2004-2005 01
014 11588413 RETAINER, PLASTIC TREE, FITS 6.35 HOLE, 20 O9.D., LENGTH 8.9, NY, BLK (КАПОТ PRIM LAT REL CBL) (CABLE RETAINER) 2004-2005 01
015 REINFORCEMENT, I/P (ЧАСТЬ OF 56) 2004-2005
016 11516993 ГАЙКА, M4.2X1.41 (I/P BRKT) 2004-2005 01
017 25712639 HANDLE, КАПОТ PRIM LAT REL CBL D 2004-2005 01
018 11589015 БОЛТ, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (КАПОТ PRIM LAT REL CBL) 2004-2005 02
019 11515638 ГАЙКА, U-TYPE, M4.2X1.41X10.5.5X22, .65-3.8 PNL THK, 1050, ZF (ЧАСТЬ OF 56) 2004-2005 05
020 11589015 БОЛТ, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (I/P BRKT) 2004-2005 04
021 03525213 ЛАМПА, CTSY (INCLS 22) (WITHOUT LENS) (IN I/P) DR 2004-2005 01
022 09433102 ЛАМПА, CTSY (ЧАСТЬ OF 21) (ACDelco #564) 2004-2005 02
023 25703992 INSULATOR, I/P DR (EXPORT) 2004-2005 01
024 11609989 БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (I/P INSL) 2004-2005 01
025 11516630 SCREW, RD, M4.2X1.41X20, TYPE AB PT, GM6010M, GMW4205 (I/P INSL) 2004-2005 03
026 25536302 ГАЙКА, I/P INSL (4.2 X 1.41) (TAPPING NUT) (3.430) D69 2004-2005 AR
027 25719218 BRACKET, КАПОТ PRIM LAT REL CBL DR (EXPORT) 2004-2005 01
028 11609989 БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (КАПОТ PRIM LAT REL CBL BRKT) 2004-2005 01
029 11516993 ГАЙКА, M4.2X1.41 (ЧАСТЬ OF 30) 2004-2005 02
030 25749638 BOLSTER, I/P DRVR KNEE (INCLS 29, 33) (EBONY) D69 (19I) 2004-2005 01
030 25749639 BOLSTER, I/P DRVR KNEE (INCLS 29, 33) (EBONY) DR (19I) (EXPORT) 2004-2005 01
030 25758847 BOLSTER, I/P DRVR KNEE (INCLS 29, 33) (GRAY) DR (13I) (EXPORT) 2004-2005 01
030 25758848 BOLSTER, I/P DRVR KNEE (INCLS 29, 33) (NEUTRAL) DR (70I) (EXPORT) 2004-2005 01
031 11508765 SCREW, TORX, W/ RD WA, M4.2X1.41X16, 11.1 O.D., STL, NIOR (I/P DRVR KNEE BOLS) 2004-2005 01
032 11516630 SCREW, RD, M4.2X1.41X20, TYPE AB PT, GM6010M, GMW4205 (I/P DRVR KNEE BOLS) 2004-2005 01
033 22570333 RETAINER, I/P DRVR KNEE BOLS PNL (ЧАСТЬ OF 30) (10.240) D69 2004-2005 02
034 11516630 SCREW, RD, M4.2X1.41X20, TYPE AB PT, GM6010M, GMW4205 (ЧАСТЬ OF 56) 2004-2005 01
035 25736546 STRIKER, I/P COMPT DR LAT (ЧАСТЬ OF 56) D69 2004-2005 01
036 11516630 SCREW, RD, M4.2X1.41X20, TYPE AB PT, GM6010M, GMW4205 (INST CSTR) 2004-2005 02
037 25536302 ГАЙКА, I/P LWR EXTN (4.2 X 1.41) (TAPPING NUT) (3.430) D69 2004-2005 12
038 11516993 ГАЙКА, M4.2X1.41 (ЧАСТЬ OF 56) 2004-2005 01
039 25536302 ГАЙКА, I/P COMPT (4.2 X 1.41) (TAPPING NUT) (3.430) D69 2004-2005 AR
040 INSULATOR, FOAM (ЧАСТЬ OF 41) 2004-2005
041 25703832 COMPARTMENT, I/P (INCLS 40, 43, 52) (GLOVE BOX) DR 2004-2005 01
042 25750526 SWITCH, ELEK TRACT CONT (EBONY) (ACDelco #25750526) D69 2004-2005 01
043 BUTTON, BIN (ЧАСТЬ OF 41) 2004-2005
044 25728922 STOP, I/P COMPT DR (OUTBOARD) D69 2004-2005 01
044 25728923 STOP, I/P COMPT DR (INBOARD) D69 2004-2005 01
044 25728924 STOP, I/P COMPT DR (OUTBOARD) DR (EXPORT) 2004-2005 01
045 25767872 DAMPENER, I/P COMPT DR D69 2004-2005 01
046 25701665 HINGE, I/P COMPT DR (ЧАСТЬ OF 47) D69 2004-2005 01
046 88986110 HINGE, I/P COMPT DR (ЧАСТЬ OF 47) DR (EXPORT) 2004-2005 01
047 25733607 DOOR, I/P COMPT (INCLS 46, 49, 51) (GRAY) (W/LATCH) DR (13I) (EXPORT) 2004-2005 01
047 25733608 DOOR, I/P COMPT (INCLS 46, 49, 51) (NEUTRAL) DR (70I) (EXPORT) 2004-2005 01
047 25749641 DOOR, I/P COMPT (INCLS 46, 49, 51) (EBONY) DR (19I) (EXPORT) 2004-2005 01
048 25736545 HANDLE, I/P COMPT DR LAT REL (NEUTRAL) D69 (70I) 2004-2005 01
049 11508765 SCREW, TORX, W/ RD WA, M4.2X1.41X16, 11.1 O.D., STL, NIOR (ЧАСТЬ OF 47) 2004-2005 02
050 11516630 SCREW, RD, M4.2X1.41X20, TYPE AB PT, GM6010M, GMW4205 (I/P COMPT DR HGE) 2004-2005 03
051 22549046 SCREW, M4.2X1.4X25, 11.1 O.D., 6010M, NZ (ЧАСТЬ OF 47) 2004-2005 02
052 15683368 BUMPER, I/P COMPT DR (ЧАСТЬ OF 41) (8.80 DIA) (CLOSED-STOP) (РАМА) (16.650) D69 2004-2005 02
053 25703991 INSULATOR, I/P DR (EXPORT) 2004-2005 01
054 25749646 PANEL, I/P SI TR (INCLS 55) (EBONY) D69 2004-2005 01
054 25749647 PANEL, I/P SI TR (INCLS 55) (EBONY) D69 2004-2005 01
055 22551452 CLIP, RETAINER, .051 THK, ZC (ЧАСТЬ OF 54) (10.240) 2004-2005 03
056 25749637 PANEL, INST (INCLS 6, 7, 15, 19, 34, 35, 38) (BLACK) DR (19I) (EXPORT) 2004-2005 01
056 25749964 PANEL, INST (INCLS 6, 7, 15, 19, 34, 35, 38) (GRAY) DR (13I) (EXPORT) 2004-2005 01
056 25749965 PANEL, INST (INCLS 6, 7, 15, 19, 34, 35, 38) (NEUTRAL) DR (70I) (EXPORT) 2004-2005 01
057 12458175 ПРУЖИНА, I/P COMPT DR LK CYL TUMB (ЧАСТЬ OF 59) (6.1X1.78) D69 2004-2005 01
058 TUMBLER, I/P COMPT DR LK CYL (ЧАСТЬ OF 59) 2004-2005
059 15825371 CYLINDER KIT, I/P COMPT DR LK (UNCODED) (INCLS 57, 58, 60) D 2004-2004 01
060 TUMBLER, I/P COMPT DR LK CYL ANTI-ROTATION RET (ЧАСТЬ OF 59) 2004-2005
